2011 Peugeot 308 CC key

!
i
1

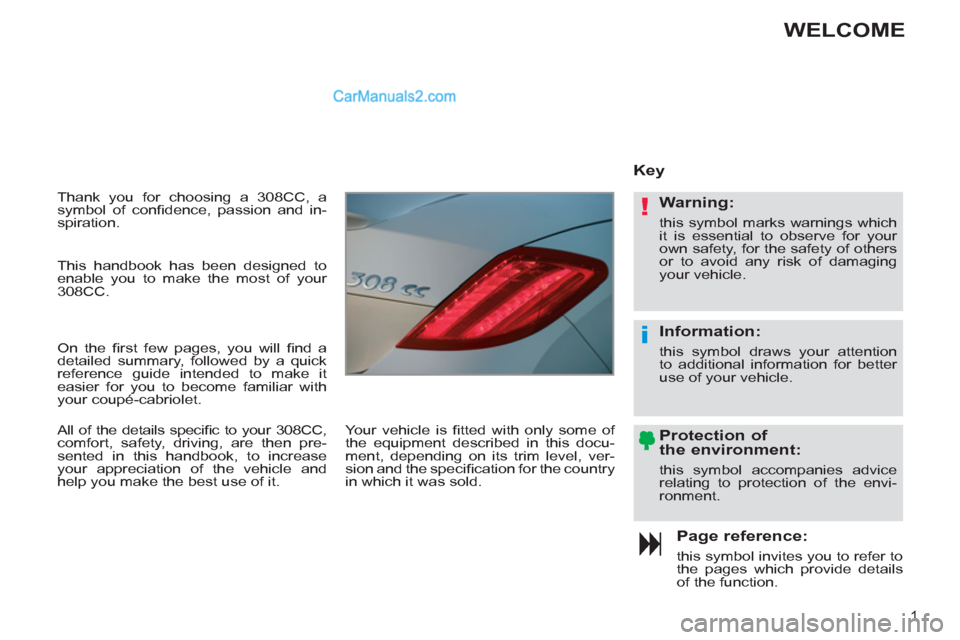

Thank you for choosing a 308CC, a
symbol of confi dence, passion and in-
spiration.

Page reference:

this symbol invites you to refer to
the pages which provide details
of the function.


Key

Protection of
the environment:
this symbol accompanies advice
relating to protection of the envi-
ronment.


Information:

this symbol draws your attention
to additional information for better
use of your vehicle.


Warning:

this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Your vehicle is fi tted with only some of
the equipment described in this docu-
ment, depending on its trim level, ver-
sion and the specifi cation for the country
in which it was sold.
WELCOME

This handbook has been designed to
enable you to make the most of your
308CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 308CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle and
help you make the best use of it.

2
CONTENTS
Instrument panels 22
Warning and indicator lamps 26
Indicators 36
Instrument panel buttons 40„
„
„
„
Ventilation 53
Manual air conditioning 55
Rear screen demist/defrost 56
Dual-zone digital air
conditioning 57
Windstop 59
Front seats 62
"AIRWAVE" system 65
Rear seats 66
Mirrors 67
Steering wheel adjustment 69„
„
„
„
„
„
„
„
„
„
COMFORT 53 Î 69
Remote control key 70
Alarm 75
Window controls 77
Doors 79
Boot 82
Fuel tank 83
Misfuel prevention 84„
„
„
„
„
„
„
ACCESS 70 Î 84
Lighting controls 85
LED lamps 87
Daytime running lamps 87
Automatic illumination of
headlamps 88
Welcome lighting 89
Headlamp adjustment 89
Directional lighting 90
Wiper controls 91
Automatic rain sensitive wipers 92
Courtesy lamps 93
Interior mood lighting 94„
„
„
„
„
„
„
„
„
„
„
VISIBILITY 85 Î 94 FAMILIARISATION 4 Î 19
INSTRUMENTS AND
CONTROLS 22 Î 41
Monochrome screen C
(Peugeot Connect Sound) 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 45
16/9 high defi nition
retractable colour screen
(Peugeot Connect Media) 47
Trip computer 50„
„
„
„
MULTIFUNCTION
SCREENS 42 Î 52
Interior fi ttings 95
Lockable glove box 96
Lockable front armrest 97
Boot fi ttings 99„
„
„
„
FITTINGS 95 Î 100
15
43
26
ECO-DRIVING 20 Î 21

5
FAMILIARISATION

Remote control key



A.
Unfolding/Folding the key
(fi rst press this button).
Normal locking
(press once; fi xed lighting of
the direction indicators).

Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
60 litres. Unlocking and partial opening
of the boot
(press for more than two sec-
onds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped beam headlamps, sidelamps
and side spotlamps makes your ap-
proach to the vehicle easier.



89

In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the door sill lamps and the foot-
well lamps, comes on. or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).



70



94




83



ACCESS

Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.

!
!
i
!
6
FAMILIARISATION
ACCESS


Retractable roof

The operation of the roof is the ex-
clusive responsibility of the driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to
operate the roof in strong winds. When washing your vehicle:


- lock the vehicle using the re-
mote control or the key,

- avoid spraying the upper part
of the windows,

- keep the end of the high pres-
sure nozzle at least 1 metre
from the windows and door
seals.
When the vehicle has been washed
or after rain, wait until the roof has
dried before opening it. It is preferable to operate the roof
with the engine running and the
vehicle stationary. Wait until the
end of operation message ap-
pears in the multifunction screen
before moving off.
The operation can only be carried
out when moving if the speed is be-
low 6 mph (10 km/h), and you are
driving smoothly on level ground.
Preliminary conditions


)
Start the engine

)
You must ensure that:


- the electric windows are initialised
(see corresponding section),

- the ambient temperature is higher
than -15 °C.

Precautions to be taken before
operating the roof


)
Park the vehicle on level ground.

)
Check that no objects could hinder
the operation of the roof:


- nothing should be placed on the
moving rear shelf 1
, on the boot
screen 2
or on the side trims 3
,

- if luggage is transported in the
boot, it must not lift the boot
screen,

- any objects, such as a jacket or
umbrella, placed in the boot, must
be secured using the luggage re-
taining net 4
.

)
Check that the boot screen 2
is secured
fi rmly.

)
Close the boot correctly.
After the roof has been operated
fully four times in succession, the
system switches to protection
mode temporarily to avoid dam-
age to the roof motors. Let the
system rest for approximately ten
minutes; if you are unable to oper-
ate the roof after this time, contact
a PEUGEOT dealer or a qualifi ed
workshop.

8
FAMILIARISATION

Interior mood lighting
This subdued lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.



94



"AIRWAVE" system
Incorporated in each front head re-
straint, this heating system improves
your comfort around the neck in cold
weather, particularly in the "cabriolet"
confi guration. It operates most effec-
tively with the Windstop installed in the
raised position.



65


Audio and telematics systems
These systems benefi t from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound, Peugeot Connect Bluetooth, Peugeot
Connect Navigation or Peugeot Connect
Media with 16/9 retractable colour screen,
JBL audio system, auxiliary sockets.

Peugeot Connect Sound




261


Peugeot Connect Navigation




229


Peugeot Connect Media




185


Peugeot Connect Media (RT4)

http://public.servicebox.peugeot.com

Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
"cabriolet" confi guration. They can only
be locked using the remote control or
the key at the same time as the rest of
the vehicle.



96, 97




INTERIOR

!i
12
FAMILIARISATION
SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.


Front seats


Other functions available...
Storing driving positions (driver's
electric seat).



66

"AIRWAVE" system.
Heated seats.



65



Electric access to the rear seats


Lockable front armrest




97





69

For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle,
only when using the remote control or
the key. As a safety precaution, these opera-
tions must only be carried out when
stationary.

1.
Control for release of the seat back
and automatic forward movement of
the seat.

2.
Control for returning the seat to the
initial position.



64

i
17
FAMILIARISATION

Passenger's front airbag

STARTING



1.
Insert the key.

2.
Select position:
"OFF"
(deactivation), with "rear facing"
child seat,
"ON"
(activation), with front passenger
or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.

1.
Stop
position.

2.
Ignition on (Running)
position.

3.
Starting
position.

A.
Front and/or rear seat belts not
fastened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear left seat belt warning lamp.

F.
Passenger's front airbag deactivated
warning lamp.

G.
Passenger's front airbag activated
warning lamp.


Seat belts and passenger's
front airbag
PASSENGER SAFETY




11 0




107, 111




Ignition switch




72

Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

!
i
i
18
FAMILIARISATION
DRIVING SAFELY


Stop & Start

The "ECO"
warning lamp
comes on in the instrument
panel and the engine is put au-
tomatically into standby: The "ECO"
warning lamp goes
off and the engine restarts au-
tomatically:
You can deactivate the system at
any time by pressing the "ECO OFF"

switch; the warning lamp in the button
comes on.
Activation/Reactivation



129



Going into engine STOP mode
Going into engine START mode


- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal,
In certain circumstances, STOP mode
may not be available; the "ECO"
warn-
ing lamp fl ashes for a few seconds,
then goes off.



128



- with a manual gearbox;
when you
fully
depress the clutch pedal.

If you engage a gear without fully de-
pressing the clutch pedal, the engine
will not restart automatically. An alert
message is displayed asking you fully
depress the clutch pedal.



129

The system is reactivated auto-
matically every time the engine is
started with the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition with the key. In certain circumstances, START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.
