2011 Peugeot 308 CC Faults

1
28
INSTRUMENTS and CONTROLS





Service


temporarily,
accompanied
by a message. Minor faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message
displayed in the screen:


- doors, boot or bonnet open,

- low engine oil level,

- low screenwash/headlamp wash reservoir
level,

- remote control battery fl at,

- low tyre pressures,

- saturation of the particle emission fi lter on
Diesel vehicles (see Checks - checking
levels/particle emissions fi lter).
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.

fi xed,
accompanied
by a message
and an audible
signal. Major faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message shown
in the screen and you must then contact
a
PEUGEOT dealer or a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations




Engine
autodiagnosis
system

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.


fi xed. The emission control
system has a fault. The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or qualifi ed workshop without delay.

1
40
INSTRUMENTS and CONTROLS

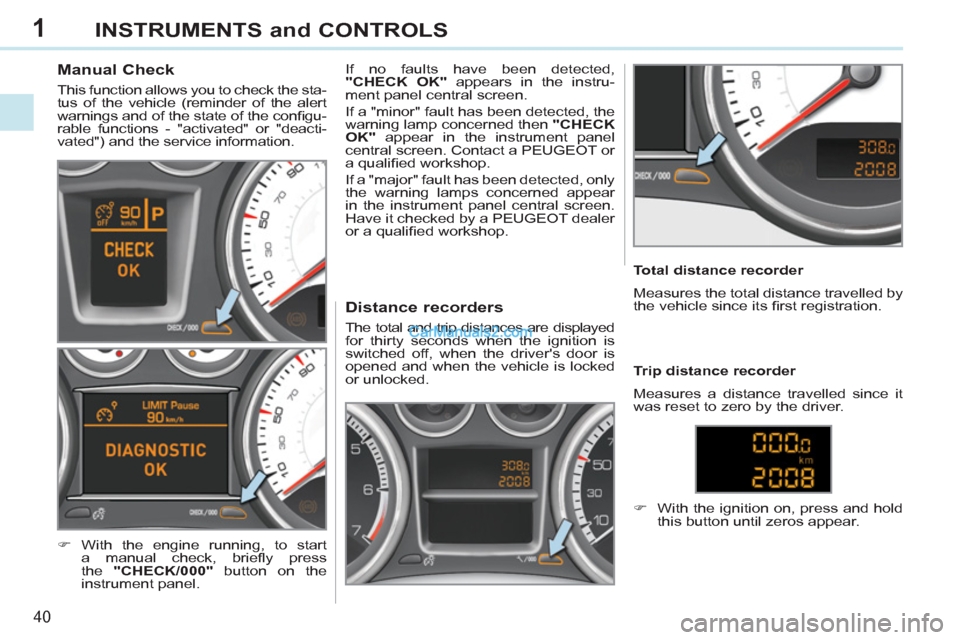

Manual Check

This function allows you to check the sta-
tus of the vehicle (reminder of the alert
warnings and of the state of the confi gu-
rable functions - "activated" or "deacti-
vated") and the service information.


)
With the engine running, to start
a manual check, briefl y press
the "CHECK/000"
button on the
instrument panel. If no faults have been detected,
"CHECK OK"
appears in the instru-
ment panel central screen.
If a "minor" fault has been detected, the
warning lamp concerned then "CHECK
OK"
appear in the instrument panel
central screen. Contact a PEUGEOT or
a qualifi ed workshop.
If a "major" fault has been detected, only
the warning lamps concerned appear
in the instrument panel central screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.













Distance recorders

The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver's door is
opened and when the vehicle is locked
or unlocked.
Total distance recorder
Measures the total distance travelled by
the vehicle since its fi rst registration.



)
With the ignition on, press and hold
this button until zeros appear.

Trip distance recorder
Measures a distance travelled since it
was reset to zero by the driver.

10
!
i
160
PRACTICAL INFORMATION
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying mal-
functions resulting from the installa-
tion of accessories not supplied and
not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
exceeds 10 milliamperes.

Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.





















CHANGING A FUSE


Access to tooling

The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
For access to them:


)
turn the screw a quarter of a turn to
the left,

)
unclip the cover by pulling the top
right,

)
disengage and pull away the cover,

)
remove carrier on the back of which
is fi tted the tweezer.



Changing a fuse

Before changing a fuse, you must:


)
identify and correct the cause of the
fault,

)

switch off all all electrical consumers,


)
immobilise the vehicle and switch
the ignition off,

)
identify the failed fuse using the al-
location tables and layout diagrams
in the following pages.

Good

Failed

Tweezer

When changing a fuse, you must:


)
use the special tweezer to extract
the fuse from its housing and check
its fi lament,

)
always replace the failed fuse with
a fuse of the same rating (same co-
lour); using a different rating may
cause faults (risk of fi re).
If the fuse fails again soon after it is
changed, have the electrical system
checked by a PEUGEOT dealer or a
qualifi ed workshop.

266
04
1
2
3
1

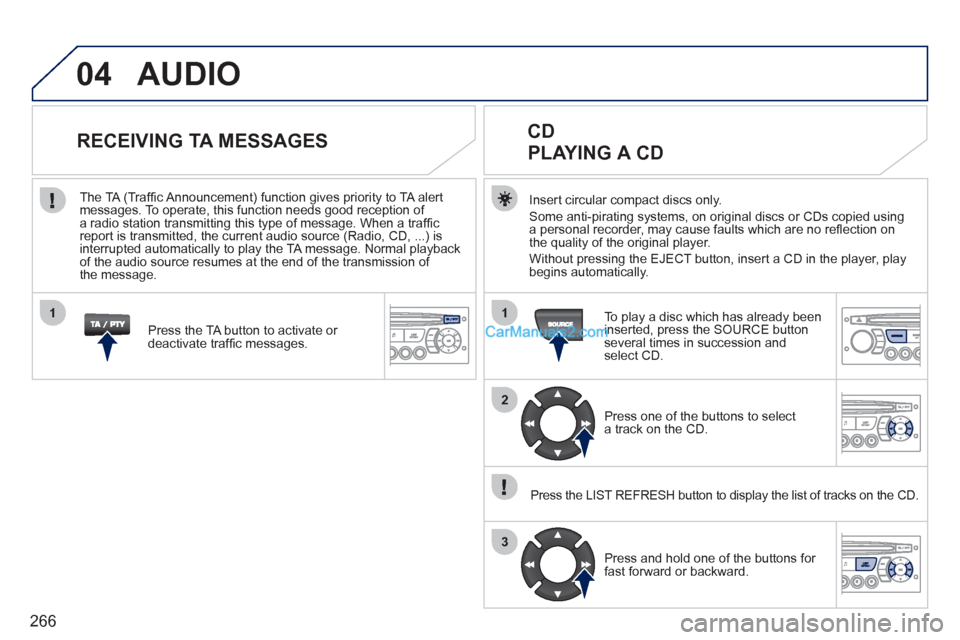

AUDIO


Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using
a personal recorder, may cause faults which are no refl ection on
the quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.


CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE button
several times in succession and
select CD.

Press one of the buttons to select
a track on the CD.

Press the LIST REFRESH button to display the list of tracks on the CD.

Press and hold one of the buttons for
fast forward or backward.








RECEIVING TA MESSAGES


Press the TA button to activate or
deactivate traffi c messages.

The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of
a radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of
the message.
