INSTRUMENTS and CONTROLS

















PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Screen.


6.
Control button.


Recalls the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

7.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter


(mph or km/h) or
Cruise control.


B.
Gear shift indicator.


C.
Automatic gearbox.


D.
Trip distance recorder.


(miles or km)

E.
Service indicator.


(miles or km) then,
engine oil level indicator


then
distance recorder.


(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.


Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.

1
i
23
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer


Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


service indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-

Navigation - Guidance/Trip computer.

1
i
24
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PEUGEOT
CONNECT MEDIA INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


se
rvice indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-
Navigation - Guidance/Trip computer.



- Vehicle parameters.

1
27
INSTRUMENTS and CONTROLS

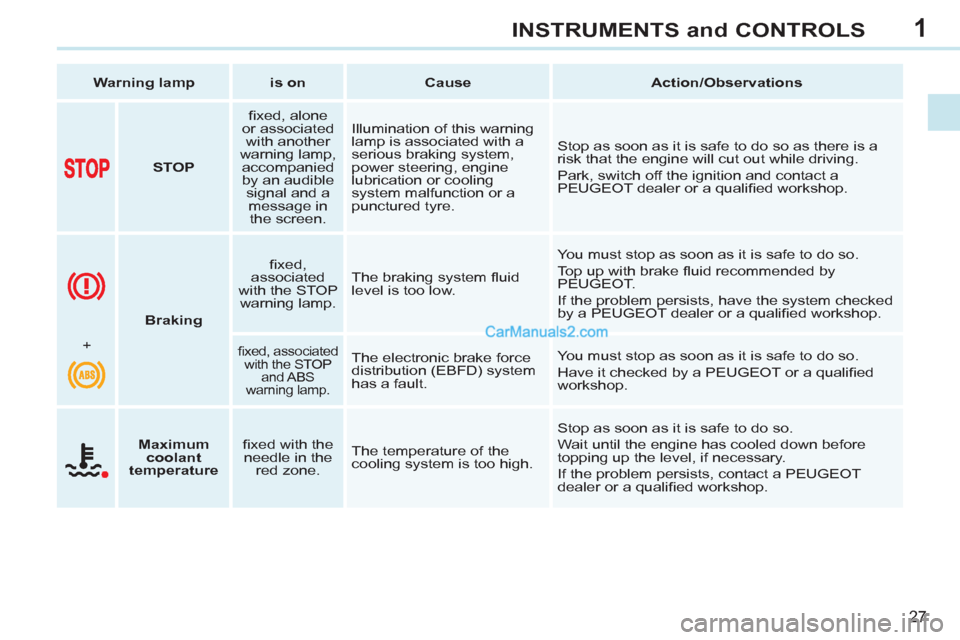

Warning lamp



is on



Cause



Action/Observations







STOP


fi xed, alone
or associated
with another
warning lamp,
accompanied
by an audible
signal and a
message in
the screen. Illumination of this warning
lamp is associated with a
serious braking system,
power steering, engine
lubrication or cooling
system malfunction or a
punctured tyre. Stop as soon as it is safe to do so as there is a
risk that the engine will cut out while driving.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.





Braking


fi xed,
associated
with the STOP
warning lamp. The braking system fl uid
level is too low. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer or a qualifi ed workshop.

+


fi xed, associated
with the STOP
and ABS
warning lamp.
The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT or a qualifi ed
workshop.




Maximum
coolant
temperature


fi xed with the
needle in the
red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or a qualifi ed workshop.

1
36
INSTRUMENTS and CONTROLS

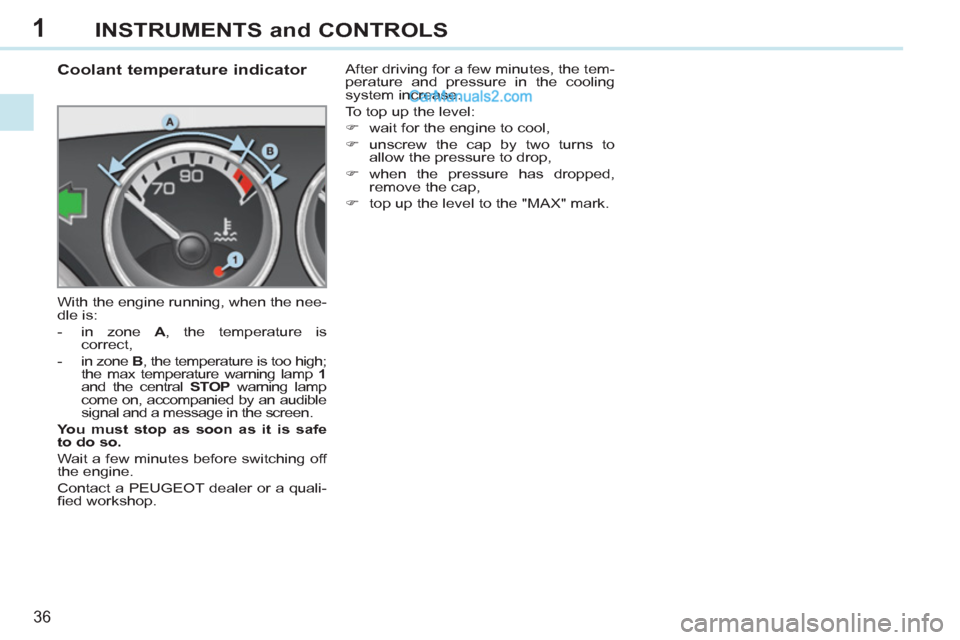

Coolant temperature indicator

With the engine running, when the nee-
dle is:


- in zone A
, the temperature is
correct,

- in zone B
, the temperature is too high;
the max temperature warning lamp 1

and the central STOP
warning lamp
come on, accompanied by an audible
signal and a message in the screen.

You must stop as soon as it is safe
to do so.

Wait a few minutes before switching off
the engine.
Contact a PEUGEOT dealer or a quali-
fi ed workshop. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:


)
wait for the engine to cool,

)
unscrew the cap by two turns to
allow the pressure to drop,

)
when the pressure has dropped,
remove the cap,

)
top up the level to the "MAX" mark.

10
i
i
171
PRACTICAL INFORMATION





TOWING A TRAILER,
A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.

Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

Driving advice

We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to
a PEUGEOT dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted in accordance with
the vehicle manufacturer's instruc-
tions. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
In all cases, keep a check on the cool-
ant temperature.

Braking
Towing a trailer increases the braking
distance.

Tyres


)
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.


Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.

283
ALPHABETICAL INDEX
ABS and EBFD systems ................ 104
Accessories .................................... 172
Accessories socket, 12 V ................. 98
Access to rear seats ......................... 64
Adjusting headlamps .................. 89, 90
Adjusting the steering wheel ............ 69
Airbags ........................................... 110
Air conditioning ..................... 20, 55, 57
Air conditioning (digital) .................... 57
Air conditioning (manual).................. 55
Air filter ........................................... 144
Air vents ........................................... 53
Alarm ................................................ 75
Anti-lock braking system (ABS) ...... 104
Anti-swirl net ..................................... 59
Anti-theft steering lock ...................... 72
Ashtray ............................................. 98
Assistance call ................ 102, 182, 183
Audible warning .............................. 102
Audio/video sockets ....................... 212
Audio streaming (Bluetooth) ........... 272
Automatic gearbox ................. 125, 145
Automatic illumination
of headlamps .......................... 85, 88
Automatic operation
of hazard warning lamps ............ 101
Automatic rain sensitive
windscreen wipers .................. 91, 92
Auxiliary socket .............. 212, 248, 270Battery .................................... 144, 166
Battery, remote control ............... 73, 74
Battery recharge ............................. 167
Bluetooth telephone
(hands-free) ................ 213, 249, 271
Bonnet ............................................ 138
Bonnet stay .................................... 138
Boot .................................................. 82
Boot (fittings) .................................. 100
Boot (opening) .................................. 70
Boot lamp ......................................... 94
Boot screen .................................... 100
Brake discs ..................................... 145
Brake lamps ................................... 158
Brake pads ..................................... 145
Brakes ............................................ 145
Braking assistance system ............. 104
ABChanging the date .......... 218, 252, 273
Changing the remote
control battery .............................. 73
Changing the time .......... 218, 252, 273
CHECK ............................................. 40
Checking levels ...................... 142, 143
Checking the engine oil level ........... 37
Checking tyre pressures
(using the kit) ............................. 150
Checks..................................... 138-145
Children ................... 109, 111, 114-121
Child seats .............................. 114-121
Closing the boot ............................... 82
Closing the doors ............................. 79
Closing the retractable roof ................ 6
Cold climate screen ........................ 172
Connectors,
audio ............97, 212, 248, 268, 270
Control for retractable roof ................. 6
Control for
the four windows .......................... 77
Control stalk, wipers ................... 91, 92
Coolant level ............................. 36, 142
Coolant temperature ......................... 36
Coolant temperature
indicator ........................................ 36
Courtesy lamps ................................ 93
Courtesy mirror ................................. 96
Cruise control ................................. 133 Capacity, fuel tank ............................ 83
CD MP3 .......................... 208, 246, 267
Central locking .................................. 80
Changing a bulb ...................... 155-159
Changing a fuse ...................... 160-165
Changing a wheel.................... 151-154
Changing a wiper blade ........... 93, 169
C
