MULTIFUNCTION SCREENS
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer
or a qualifi ed workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).
Distance remaining to
destination
(miles or km)
This is the distance remaining to be
travelled to the fi nal destination. It is
calculated instantly by the navigation
system, if guidance is activated.
If the distance is not entered, dashes
are displayed in place of the digits.
Stop & Start time counter
(minutes/seconds or hours/
minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
Page 69 of 292
3
!
i
i
!
67
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Demisting - Defrosting
Unfolding
)
From outside: unlock the vehicle us-
ing the remote control or the key.
)
From inside: with the ignition on, pull
control A
rearwards. If the mirrors are folded using con-
trol A
, they will not unfold when the
vehicle is unlocked. Pull again on
control A
.
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
fer to the "Rear screen demist-defrost"
page).
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central position.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Page 72 of 292
4
70
ACCESS
Unlocking and partial opening of the
boot
)
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action unlocks the vehicle fi rst.
)
Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using
the remote control Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst un-
locking action.
Selective unlocking using the key
)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
)
Turn the key to the left in the driver's
door lock again to unlock the pas-
senger's door and the boot. The complete or selective
unlocking parameter is set
via the vehicle confi gura-
tion menu.
REMOTE CONTROL KEY
System which permits central unlock-
ing and locking of the vehicle using the
lock or from a distance, as well as of the
interior storage compartments (glove
box and front armrest). It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
)
First press this button to unfold the
key.
Unlocking the vehicle
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
The central unlocking also unlocks the
glove box and the front armrest com-
partment.
According to version, the door mirrors
unfold at the same time.
)
Press the open padlock to
unlock the vehicle.
Complete unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Complete unlocking using the
remote control
)
Press the open padlock again to un-
lock the passenger's door and the
boot.
Complete unlocking is activated by de-
fault.

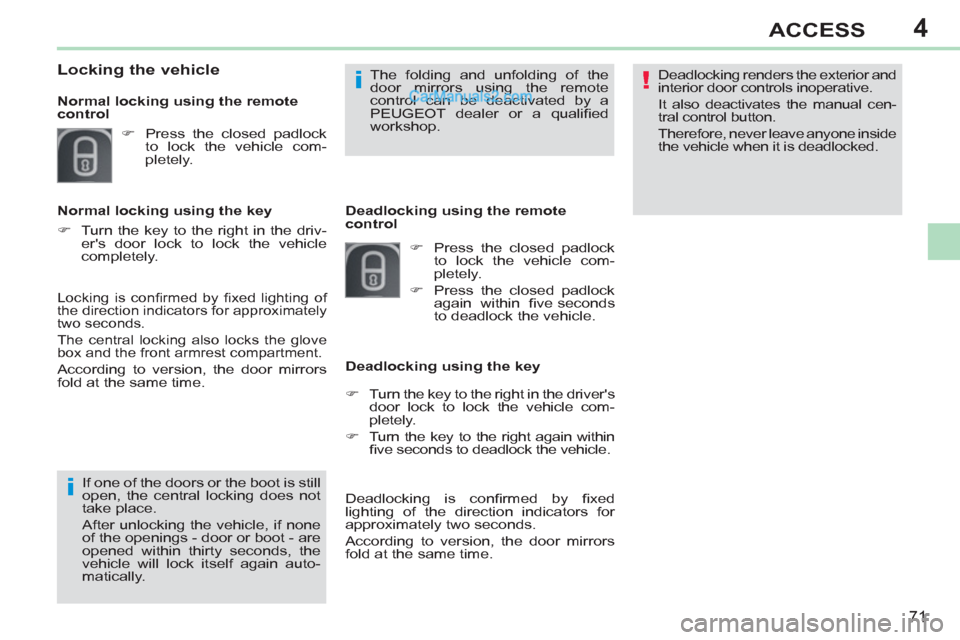

Page 73 of 292
4
!
i
i
71
ACCESS
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
If one of the doors or the boot is still
open, the central locking does not
take place.
After unlocking the vehicle, if none
of the openings - door or boot - are
opened within thirty seconds, the
vehicle will lock itself again auto-
matically.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
)
Press the closed padlock
to lock the vehicle com-
pletely.
)
Press the closed padlock
again within fi ve seconds
to deadlock the vehicle.
Locking the vehicle
)
Press the closed padlock
to lock the vehicle com-
pletely.
Normal locking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Normal locking using the remote
control
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
The central locking also locks the glove
box and the front armrest compartment.
According to version, the door mirrors
fold at the same time.
)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely.
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Page 74 of 292
4
i
72
ACCESS
Locating your vehicle
)
Press the closed padlock
to locate your locked ve-
hicle in a car park.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key
)
First press this button to fold the
key.
This is indicated by lighting of the cour-
tesy lamps and side spotlamps and
fl ashing of the direction indicators for a
few seconds.
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release
the key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Key left in the "Ignition on"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop)
, then
back to position 2 (Ignition
on
)
.
Page 75 of 292
4
73
ACCESS
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.
Page 76 of 292
4
!
74
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.
Page 78 of 292
4
!
i
76
ACCESS
Triggering of the alarm
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
Locking the vehicle without
activating the alarm
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is trig-
gered.
)
Switch on the ignition; the alarm
stops. The indicator lamp in the but-
ton goes off.
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
In "cabriolet" confi guration, interior
volumetric monitoring is deactivat-
ed automatically.
Deactivation of the interior
volumetric monitoring
)
Switch off the ignition.
)
Within ten seconds, press the but-
ton until the indicator lamp is on
continuously.
)
Get out of the vehicle.
)
Press the locking button on the re-
mote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
Locking the vehicle with exterior
perimeter monitoring only
Deactivate the interior volumetric moni-
toring to avoid unwanted triggering of
the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
Reactivation of the interior
volumetric monitoring
)
Press the unlocking button on the
remote control to deactivate the ex-
terior perimeter monitoring.
)
Press the locking button on the re-
mote control to activate all the moni-
toring functions.
The indicator lamp in the button again
fl ashes once per second.
This is indicated by sounding of the siren and fl ashing of the direction indicators
for thirty seconds.
Operating fault
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a fault with the system.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Automatic activation *
2 minutes after the last door or the boot
is closed, the system is activated auto-
matically.
)
To avoid triggering the alarm on en-
tering the vehicle, fi rst press the un-
locking button on the remote control.
*
According to country.
