16
FAMILIARISATION
MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the engine running, its associ-
ated low level warning lamp should
go off.

C.
With the ignition on, the oil level indi-
cator should display that the level is
OK or correct, according to version,
for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Emergency call in progress.

181


B.
Deactivation of the alarm interior
volumetric monitoring.


75


C.
Central locking.

80


D.
Deactivation of the ESP/ASR system.

105


E.
Deactivation of the front and rear
parking sensors.


135


F.
Access to PEUGEOT services.


181




1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




22




26, 30

21

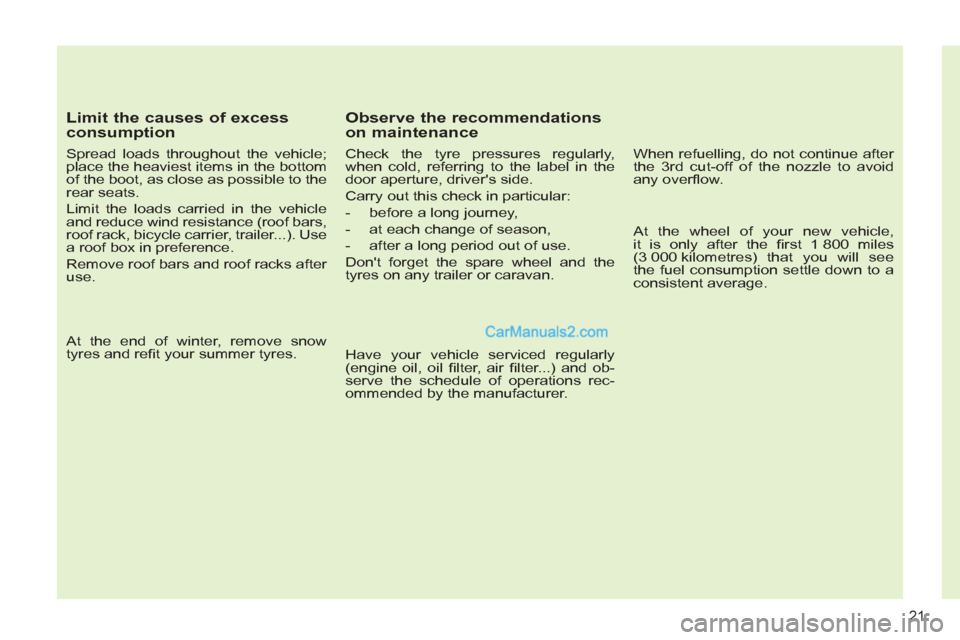

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

1
i
22
INSTRUMENTS and CONTROLS

















PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Screen.


6.
Control button.


Recalls the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

7.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter


(mph or km/h) or
Cruise control.


B.
Gear shift indicator.


C.
Automatic gearbox.


D.
Trip distance recorder.


(miles or km)

E.
Service indicator.


(miles or km) then,
engine oil level indicator


then
distance recorder.


(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.


Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.

1
i
23
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer


Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


service indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-

Navigation - Guidance/Trip computer.

1
i
24
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PEUGEOT
CONNECT MEDIA INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


se
rvice indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-
Navigation - Guidance/Trip computer.



- Vehicle parameters.

1
28
INSTRUMENTS and CONTROLS





Service


temporarily,
accompanied
by a message. Minor faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message
displayed in the screen:


- doors, boot or bonnet open,

- low engine oil level,

- low screenwash/headlamp wash reservoir
level,

- remote control battery fl at,

- low tyre pressures,

- saturation of the particle emission fi lter on
Diesel vehicles (see Checks - checking
levels/particle emissions fi lter).
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.

fi xed,
accompanied
by a message
and an audible
signal. Major faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message shown
in the screen and you must then contact
a
PEUGEOT dealer or a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations




Engine
autodiagnosis
system

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.


fi xed. The emission control
system has a fault. The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or qualifi ed workshop without delay.

1
!
30
INSTRUMENTS and CONTROLS








The other warning lamps appear only in this instrument panel.
The illumination of certain warning lamps may be accompanied by an audible sig-
nal; an additional message is still displayed in the multifunction screen, to help you
identify the fault.


Warning lamp



is on



Cause



Action/Observations







Door(s) open


fi xed if the
speed is
below 6 mph
(10 km/h).
A door or the boot is still open. Close the door or boot.
fi xed and
accompanied
by an
audible signal
if the speed is
above 6 mph
(10 km/h).



Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.




Battery
charge

*

fi xed. The battery charging
circuit has a fault (dirty or
loose terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or a qualifi ed workshop. If they are associated with the STOP
warning lamp, you must stop the vehicle
as soon as it is safe to do so!

*
According to destination country.

1
i
37
INSTRUMENTS and CONTROLS
The level shown will only be correct
if the vehicle is on level ground and
the engine has been off for more
than 30 minutes.















Engine oil level indicator

System which informs the driver wheth-
er the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of
"OIL"
, linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL --"
. Contact a PEUGEOT dealer or
a qualifi ed workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of
damage to the engine),

- B
= min; top up the
level via the oil fi ller
cap, using the grade
of oil suited to your
engine.
