2011 Peugeot 308 CC child lock

4
!
74
ACCESS














Lost keys

Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key.







Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.

Remote control

The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.


When purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.

7
i
109
SAFETY





The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not interchange the seat belt
buckles as they will not fulfi l their role
fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a collision,
emergency braking or if the vehicle rolls
over. You can release the device by
pulling fi rmly on the strap and releasing
it so that it reels in slightly. In order to be effective, a seat belt
must:


- be tightened as close to the body
as possible,

- be pulled in front of you with a
smooth movement, checking that
it does not twist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety
regulations, for all repairs on your
vehicle, go to a qualifi ed workshop
with the skills and equipment needed,
which a PEUGEOT dealer is able to
provide.
Have your seat belts checked regu-
larly by a PEUGEOT dealer or a
qualifi ed workshop, particularly if the
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.

In the event of an impact

Depending on the nature and se-
riousness of the impact
, the pre-
tensioning device may be deployed
before and independently of the
airbags. Deployment of the preten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer
or a qualifi ed workshop.

280

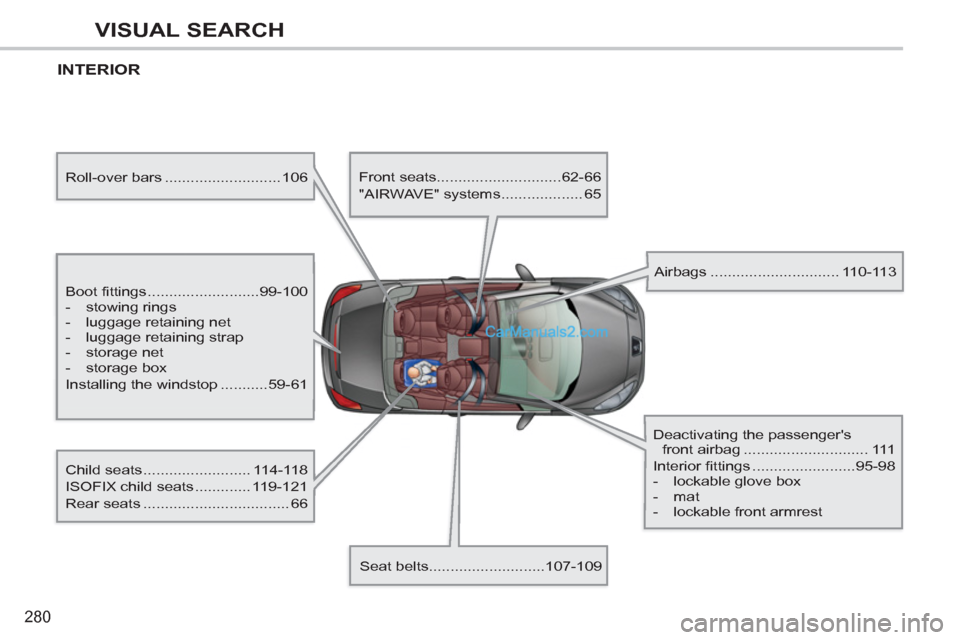

VISUAL SEARCH
INTERIOR


Boot fittings ..........................99-100


- stowing rings

- luggage retaining net

- luggage retaining strap

- storage net

- storage box
Installing the windstop ...........59-61

Child seats ......................... 114-118
ISOFIX child seats ............. 119-121
Rear seats .................................. 66
Front seats.............................62-66
"AIRWAVE" systems ................... 65

Seat belts...........................107-109
Airbags .............................. 110-113

Deactivating the passenger's
front airbag ............................. 111
Interior fittings ........................95-98


- lockable glove box

- mat

- lockable front armrest


Roll-over bars ........................... 106

283
ALPHABETICAL INDEX
ABS and EBFD systems ................ 104
Accessories .................................... 172
Accessories socket, 12 V ................. 98
Access to rear seats ......................... 64
Adjusting headlamps .................. 89, 90
Adjusting the steering wheel ............ 69
Airbags ........................................... 110
Air conditioning ..................... 20, 55, 57
Air conditioning (digital) .................... 57
Air conditioning (manual).................. 55
Air filter ........................................... 144
Air vents ........................................... 53
Alarm ................................................ 75
Anti-lock braking system (ABS) ...... 104
Anti-swirl net ..................................... 59
Anti-theft steering lock ...................... 72
Ashtray ............................................. 98
Assistance call ................ 102, 182, 183
Audible warning .............................. 102
Audio/video sockets ....................... 212
Audio streaming (Bluetooth) ........... 272
Automatic gearbox ................. 125, 145
Automatic illumination
of headlamps .......................... 85, 88
Automatic operation
of hazard warning lamps ............ 101
Automatic rain sensitive
windscreen wipers .................. 91, 92
Auxiliary socket .............. 212, 248, 270Battery .................................... 144, 166
Battery, remote control ............... 73, 74
Battery recharge ............................. 167
Bluetooth telephone
(hands-free) ................ 213, 249, 271
Bonnet ............................................ 138
Bonnet stay .................................... 138
Boot .................................................. 82
Boot (fittings) .................................. 100
Boot (opening) .................................. 70
Boot lamp ......................................... 94
Boot screen .................................... 100
Brake discs ..................................... 145
Brake lamps ................................... 158
Brake pads ..................................... 145
Brakes ............................................ 145
Braking assistance system ............. 104
ABChanging the date .......... 218, 252, 273
Changing the remote
control battery .............................. 73
Changing the time .......... 218, 252, 273
CHECK ............................................. 40
Checking levels ...................... 142, 143
Checking the engine oil level ........... 37
Checking tyre pressures
(using the kit) ............................. 150
Checks..................................... 138-145
Children ................... 109, 111, 114-121
Child seats .............................. 114-121
Closing the boot ............................... 82
Closing the doors ............................. 79
Closing the retractable roof ................ 6
Cold climate screen ........................ 172
Connectors,
audio ............97, 212, 248, 268, 270
Control for retractable roof ................. 6
Control for
the four windows .......................... 77
Control stalk, wipers ................... 91, 92
Coolant level ............................. 36, 142
Coolant temperature ......................... 36
Coolant temperature
indicator ........................................ 36
Courtesy lamps ................................ 93
Courtesy mirror ................................. 96
Cruise control ................................. 133 Capacity, fuel tank ............................ 83
CD MP3 .......................... 208, 246, 267
Central locking .................................. 80
Changing a bulb ...................... 155-159
Changing a fuse ...................... 160-165
Changing a wheel.................... 151-154
Changing a wiper blade ........... 93, 169
C

285

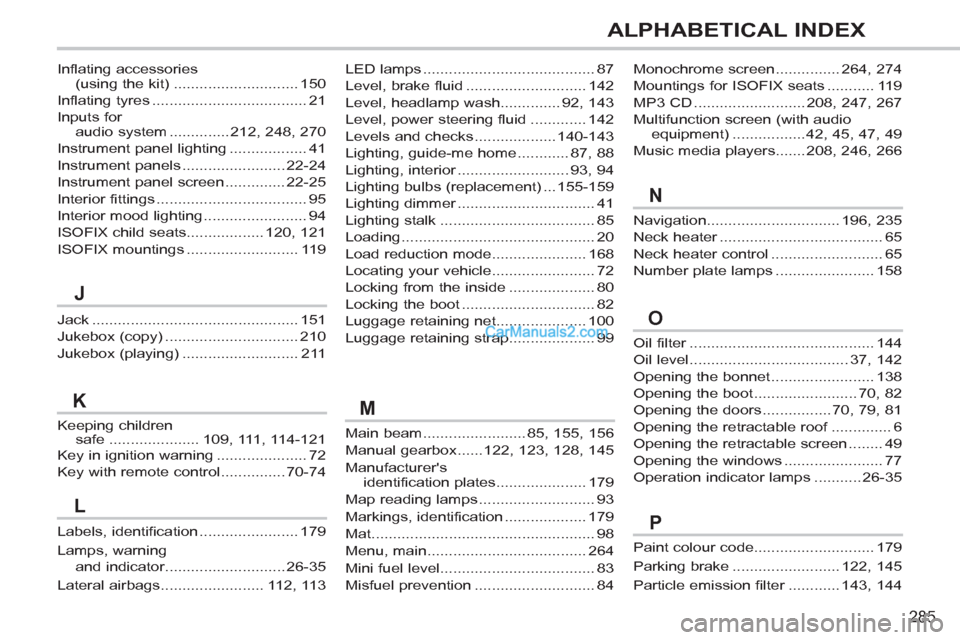

ALPHABETICAL INDEX
Oil filter ........................................... 144
Oil level ..................................... 37, 142
Opening the bonnet ........................ 138
Opening the boot ........................ 70, 82
Opening the doors ................ 70, 79, 81
Opening the retractable roof .............. 6
Opening the retractable screen ........ 49
Opening the windows ....................... 77
Operation indicator lamps ........... 26-35 Main beam ........................ 85, 155, 156
Manual gearbox ......122, 123, 128, 145
Manufacturer's
identification plates ..................... 179
Map reading lamps ........................... 93
Markings, identification ................... 179
Mat.................................................... 98
Menu, main ..................................... 264
Mini fuel level.................................... 83
Misfuel prevention ............................ 84 Labels, identification ....................... 179
Lamps, warning
and indicator ............................ 26-35
Lateral airbags ........................ 112, 113 Inflating accessories
(using the kit) ............................. 150
Inflating tyres .................................... 21
Inputs for
audio system .............. 212, 248, 270
Instrument panel lighting .................. 41
Instrument panels ........................ 22-24
Instrument panel screen .............. 22-25
Interior fittings ................................... 95
Interior mood lighting ........................ 94
ISOFIX child seats.................. 120, 121
ISOFIX mountings .......................... 119
Keeping children
safe ..................... 109, 111, 114-121
Key in ignition warning ..................... 72
Key with remote control ............... 70-74Navigation............................... 196, 235
Neck heater ...................................... 65
Neck heater control .......................... 65
Number plate lamps ....................... 158
J
K
L
N
M
OJack ................................................ 151
Jukebox (copy) ............................... 210
Jukebox (playing) ........................... 211LED lamps ........................................ 87
Level, brake fluid ............................ 142
Level, headlamp wash.............. 92, 143
Level, power steering fluid ............. 142
Levels and checks ................... 140-143
Lighting, guide-me home ............ 87, 88
Lighting, interior .......................... 93, 94
Lighting bulbs (replacement) ... 155-159
Lighting dimmer ................................ 41
Lighting stalk .................................... 85
Loading ............................................. 20
Load reduction mode...................... 168
Locating your vehicle........................ 72
Locking from the inside .................... 80
Locking the boot ............................... 82
Luggage retaining net..................... 100
Luggage retaining strap.................... 99Monochrome screen ............... 264, 274
Mountings for ISOFIX seats ........... 119
MP3 CD .......................... 208, 247, 267
Multifunction screen (with audio
equipment) .................42, 45, 47, 49
Music media players....... 208, 246, 266
Paint colour code............................ 179
Parking brake ......................... 122, 145
Particle emission filter ............ 143, 144
P

286
ALPHABETICAL INDEX
Reduction of electrical load ............ 168
Refitting a wheel ............................. 154
Reinitialising partial opening
of the windows ............................. 78
Reinitialising the electric windows .... 78
Reinitialising the remote control ....... 73
Remote control ............................ 70-74
Removable screen
(snow shield) .............................. 172
Removing a wheel .......................... 153
Removing the mat ............................ 98
Repair kit, puncture ................ 100, 146
Replacing bulbs ....................... 155-159
Replacing fuses ....................... 160-165
Replacing the air filter .................... 144
Replacing the oil filter ..................... 144
Replacing the particle
emission filter ............................. 144
Replacing the passenger
compartment filter ...................... 144
Replacing wiper blades ............ 93, 169
Resetting the service indicator ......... 39
Resetting the trip recorder ................ 40
Retractable colour screen .... 45, 47, 49
Retractable roof .......................... 6, 100
Rev counter ................................. 22-24
Reversing lamps ............................. 158
Roll-over bars ........................... 66, 106
Routine checks ....................... 144, 145
Routine maintenance ....................... 20
Running out of fuel (Diesel)............ 139 Radio .............................. 207, 245, 265
Rear armrest .................................... 66
Rear foglamps .......................... 86, 158
Rear head restraints ......................... 66
Rear lamps ..................................... 158
Rear parking sensors ..................... 135
Rear screen (demisting) ................... 56
Rear seats ................................ 66, 106
Rear view mirror ............................... 69
Recharging the battery ................... 167Satellite navigation system ..... 196, 235
Screen,
colour 16/9 .........191, 219, 232, 253
Screen, monochrome C ................... 50
Screen, multifunction (with audio
equipment) .................42, 45, 47, 49
Screen-wash reservoir ................... 143
Screen menu map .......... 219, 253, 274
Screenwash fluid level.............. 92, 143
Seat adjustment ......................... 62, 63
Seat belts ............................... 107, 109
Serial number, vehicle .................... 179
Service indicator ............................... 38
Servicing ........................................... 20
Setting the clock ............. 218, 252, 273
Short-cut menus ............. 192, 233, 234
Sidelamps ...................85, 87, 155, 158
Side repeater .................................. 157
Side spotlamps ......................... 89, 157
SIM card ......................................... 216
Snow chains ................................... 179
Spare wheel ................................... 151
Speed limiter .................................. 131
Speedometer ............................... 22-24
Stability control (ESP) .................... 105
Starting the vehicle ................... 72, 125
Steering mounted
controls ....................... 190, 231, 263
Stopping the vehicle ................. 72, 125
Stop Start ....................52, 57, 83, 128,
138, 144, 166 Passenger compartment filter ........ 144
Petrol engine ............................ 84, 140
PEUGEOT call button ............ 182, 183
PEUGEOT CONNECT
ASSISTANCE ..................... 182, 183
Peugeot Connect Media ...... 25, 47, 49,
50, 185-228
Peugeot Connect Navigation..... 45, 49,
229-260
PEUGEOT CONNECT SOS .......... 182
Peugeot Connect Sound ................. 42,
261-278
PEUGEOT services ........................ 183
PIN code ......................................... 216
Player, CD MP3 .............. 208, 246, 267
Priming the fuel system .................. 139
Protecting children ... 109, 111, 114-121
Puncture ......................................... 146
R
S
