FAMILIARISATION


1.
Cruise control/speed limiter switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
12 V accessory socket.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Bonnet release.

12.
Fusebox.

13.
Manual headlamp height
adjustment.
Stop & Start button.

14.
Side adjustable air vent.

15.
Front side window demisting vent.

16.
Speaker (tweeter).

17.
Windscreen demisting vent.

INSTRUMENTS AND CONTROLS

!i
12
FAMILIARISATION

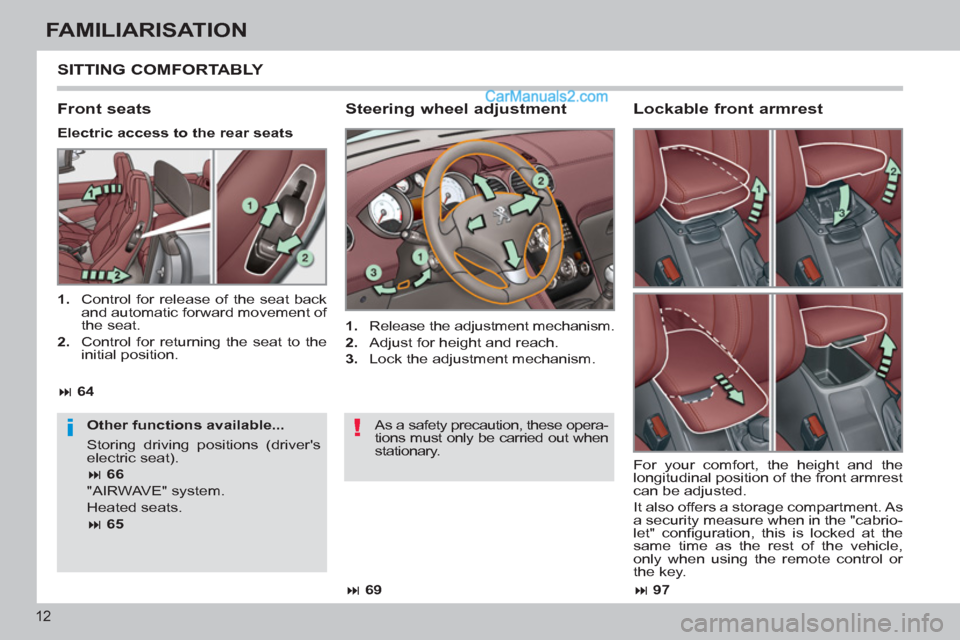

SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.


Front seats


Other functions available...
Storing driving positions (driver's
electric seat).



66

"AIRWAVE" system.
Heated seats.



65



Electric access to the rear seats


Lockable front armrest




97





69

For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle,
only when using the remote control or
the key. As a safety precaution, these opera-
tions must only be carried out when
stationary.

1.
Control for release of the seat back
and automatic forward movement of
the seat.

2.
Control for returning the seat to the
initial position.



64

3
!
i
!
69
COMFORT








STEERING WHEEL
ADJUSTMENT



)
When stationary
, pull the control lever
to release the adjustment mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.






Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

In order to ensure optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.

Adjustment


)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.

As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".



Manual day/night model

Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the normal
"day" position.








Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehicles,
low sun...

6
97
FITTINGS

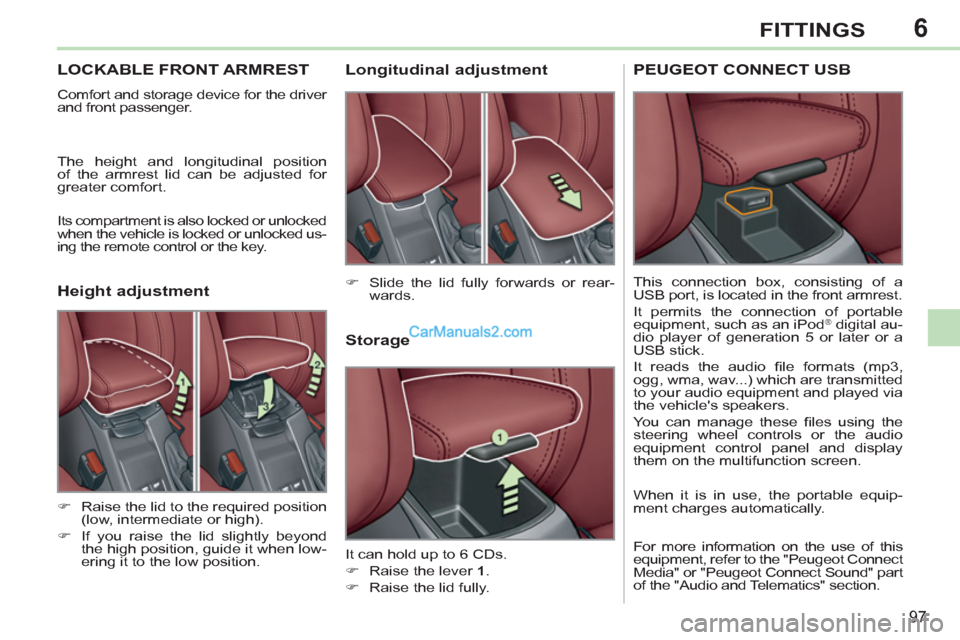

LOCKABLE FRONT ARMREST

Comfort and storage device for the driver
and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key.

Storage

It can hold up to 6 CDs.


)
Raise the lever 1
.

)
Raise the lid fully.


)
Slide the lid fully forwards or rear-
wards.



)
Raise the lid to the required position
(low, intermediate or high).

)
If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position.



Longitudinal adjustment

Height adjustment











PEUGEOT CONNECT USB


This connection box, consisting of a
USB port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod
® digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of this
equipment, refer to the "Peugeot Connect
Media" or "Peugeot Connect Sound" part
of the "Audio and Telematics" section.

7
i
102
SAFETY

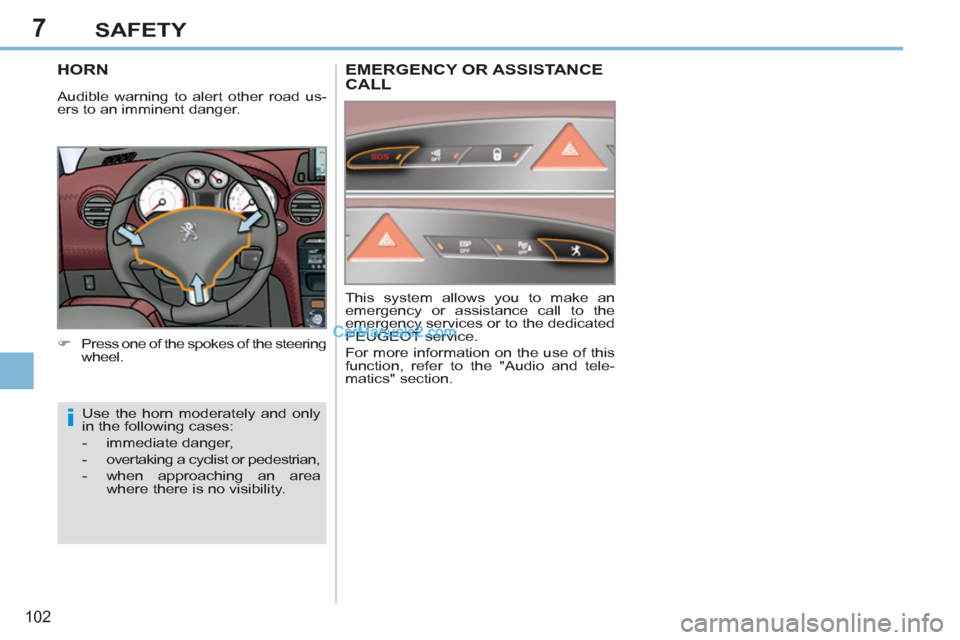

HORN



)
Press one of the spokes of the steering
wheel.
Use the horn moderately and only
in the following cases:


- immediate danger,

- overtaking a cyclist or pedestrian,

- when approaching an area
where there is no visibility.

Audible warning to alert other road us-
ers to an imminent danger.








EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.

7
!
i
i
i
103
SAFETY








TYRE UNDER-INFLATION
DETECTION
System which automatically and contin-
uously checks the pressure of the tyres
while driving. All repairs and changing of tyres on
a wheel fi tted with this system must
be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
If, when changing a tyre, you fi t a
wheel which is not detected by your
vehicle (example: fi tting of snow
tyres), you must have the system
reinitialised by a PEUGEOT dealer
or a qualifi ed workshop.
This system does not avoid the need
to have the tyre pressures checked
regularly (refer to the "Identifi cation
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and pre-
vent premature wear of the tyres,
particularly in arduous driving con-
ditions (heavy load, high speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).

This warning lamp is displayed
in the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal,
to identify the wheel concerned.


)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Under-infl ated tyre
The STOP
warning lamp comes
on and/or this warning lamp is
displayed in the instrument panel,
accompanied by an audible sig-
nal and a message in the screen
identifying the wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Repair or change the damaged
wheel (punctured or very defl ated
tyre), and have the tyre pressure
checked as soon as possible.

Puncture
The tyre under-infl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly.
Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/
or a message appears in the
screen, accompanied by an
audible signal, to locate the wheel or
wheels which are not detected or to in-
dicate a malfunction of the system.
Contact a PEUGEOT dealer or a qualifi ed
workshop to replace the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
If your vehicle is equipped with a
spare wheel, this is not
fi tted with
a sensor.

7
i
!
11 0
SAFETY





AIRBAGS

The airbags have been designed to max-
imise the safety of the occupants in the
event of violent collisions. They supple-
ment the action of the force-limiting seat
belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:


- in the event of a serious impact,
the airbags are deployed instanta-
neously and protect the occupants
of the vehicle; immediately after the
impact, the airbags defl ate rapidly
so that they do not hinder the visibil-
ity of the occupants or their possible
exit from the vehicle,

- in the event of a minor impact or
rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone is suf-
fi cient to provide maximum protec-
tion in these situations.

The deployment of one or more
airbags is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
some irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.

















Front airbags

System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and thorax.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

Deployment
The airbags are deployed simultaneously,
unless the passenger's front airbag is de-
activated, in the event of a serious front im-
pact to all or part of the front impact zone A
,
in the longitudinal centreline of the vehicle
on a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the tho-
rax and head of the front occupant of the
vehicle and the steering wheel, driver's
side, and the dashboard, passenger's
side to cushion their forward movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.


The airbags do not operate when
the ignition is off.

This equipment only operates once.
If a second impact occurs (during
the same or a subsequent acci-
dent), the airbag will not operate.
