2011 Peugeot 308 CC AUX

8
FAMILIARISATION

Interior mood lighting
This subdued lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.



94



"AIRWAVE" system
Incorporated in each front head re-
straint, this heating system improves
your comfort around the neck in cold
weather, particularly in the "cabriolet"
confi guration. It operates most effec-
tively with the Windstop installed in the
raised position.



65


Audio and telematics systems
These systems benefi t from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound, Peugeot Connect Bluetooth, Peugeot
Connect Navigation or Peugeot Connect
Media with 16/9 retractable colour screen,
JBL audio system, auxiliary sockets.

Peugeot Connect Sound




261


Peugeot Connect Navigation




229


Peugeot Connect Media




185


Peugeot Connect Media (RT4)

http://public.servicebox.peugeot.com

Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
"cabriolet" confi guration. They can only
be locked using the remote control or
the key at the same time as the rest of
the vehicle.



96, 97




INTERIOR

189
02

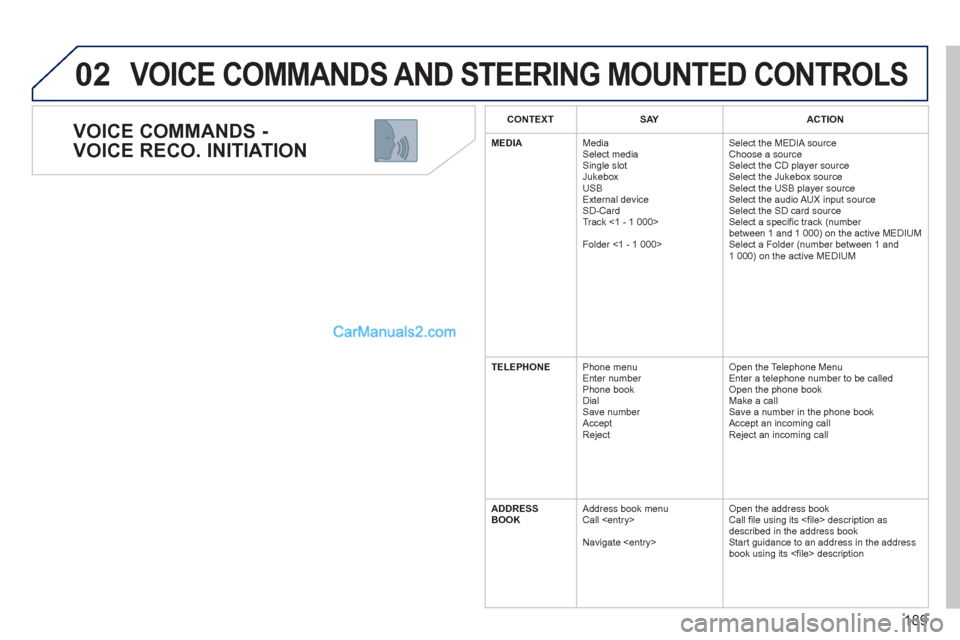

VOICE COMMANDS -
VOICE RECO. INITIATION
VOICE COMMANDS AND STEERING MOUNTED CONTROLS



CONTEXT


SAY


ACTION



MEDIA

Media
Select media
Single slot
Jukebox
USB
External device
SD-Card
Track <1 - 1 000>
Folder <1 - 1 000> Select the MEDIA source
Choose a source
Select the CD player source
Select the Jukebox source
Select the USB player source
Select the audio AUX input source
Select the SD card source
Select a specifi c track (number
between 1 and 1 000) on the active MEDIUM
Select a Folder (number between 1 and
1 000) on the active MEDIUM


TELEPHONE

Phone menu
Enter number
Phone book
Dial
Save number
Accept
Reject Open the Telephone Menu
Enter a telephone number to be called
Open the phone book
Make a call
Save a number in the phone book
Accept an incoming call
Reject an incoming call


ADDRESS
BOOK
Address book menu
Call
Navigate Open the address book
Call fi le using its <fi le> description as
described in the address book
Start guidance to an address in the address
book using its <fi le> description

208

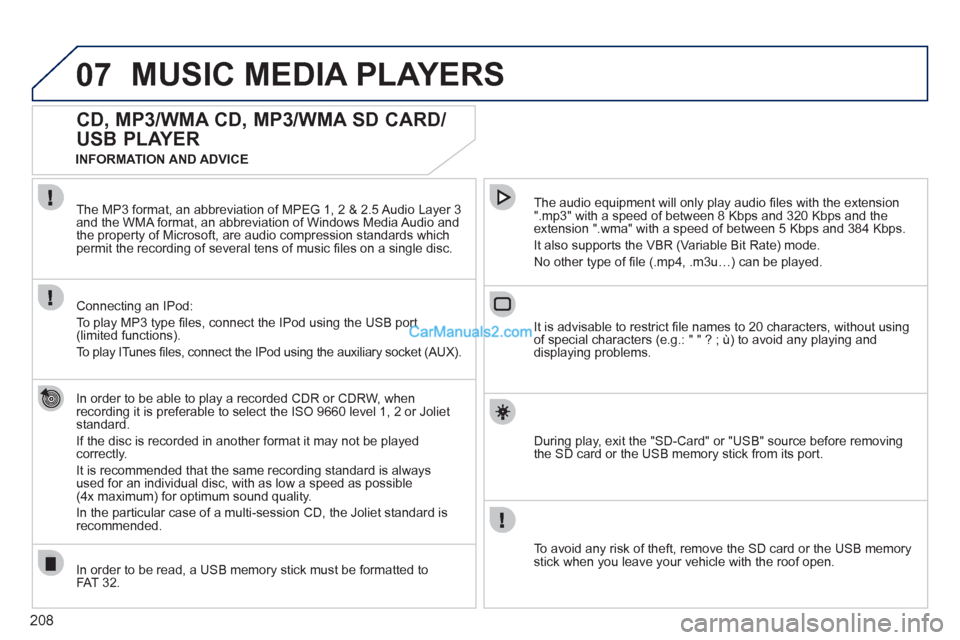

07 MUSIC MEDIA PLAYERS







CD, MP3/WMA CD, MP3/WMA SD CARD/
USB PLAYER

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
standard.
If the disc is recorded in another format it may not be played
correctly.
It is recommended that the same recording standard is always
used for an individual disc, with as low a speed as possible
(4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
The audio equipment will only play audio fi les with the extension
".mp3" with a speed of between 8 Kbps and 320 Kbps and the
extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
It also supports the VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u…) can be played. The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3
and the WMA format, an abbreviation of Windows Media Audio and
the property of Microsoft, are audio compression standards which
permit the recording of several tens of music fi les on a single disc.

Connecting an IPod:
To play MP3 type fi les, connect the IPod using the USB port
(limited functions).
To play ITunes fi les, connect the IPod using the auxiliary socket (AUX).

In order to be read, a USB memory stick must be formatted to
FAT 32.
It is advisable to restrict fi le names to 20 characters, without using
of special characters (e.g.: " " ? ; ù) to avoid any playing and
displaying problems.

During play, exit the "SD-Card" or "USB" source before removing
the SD card or the USB memory stick from its port.

To avoid any risk of theft, remove the SD card or the USB memory
stick when you leave your vehicle with the roof open.

INFORMATION AND ADVICE

212
07
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
1
3RADIONAV ESC TRAFFICMEDIAMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2
1
3
4
2RADIONAV ESC TRAFFICMEDIAMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

Connect the portable device (MP3 player, camcorder, camera…) to
the RCA sockets (white and red for audio; yellow for video) in the
glove box using a JACK/RCA audio cable.

Press the MEDIA button then press
it again or select the Media Menu
function and press OK to confi rm.

Select the AUX music source and
press OK to confi rm. Play begins
automatically.


Select "Select media" then "External
device (AV)" and press OK to
activate it.

External device



The display and management of the controls is via the portable
device.














USING AN EXTERNAL DEVICE (AUX)
AUDIO/VIDEO/RCA CABLE NOT SUPPLIED


If the external input is not activated, select "Ext. Device (Aux)
management" to activate it.


VIEWING A VIDEO DVD


Select the video source required ("DVD-Video", "External
device (AV)"). Press OK to confi rm. Play begins.

Press the MEDIA button to gain
access to the DVD menu at any time,
or to the functions of the Media Menu
which adjust the video (brightness/
contrast, image format…).
If the DVD does not appear on the
screen, press the MODE button to
gain access to the "MEDIA" screen
which displays the DVD screen.
Insert the DVD in the player. Play begins
automatically.

The 4-direction navigator and the chromed ring allow you to move
the DVD selection cursor. Change chapter by pressing the
or

button.

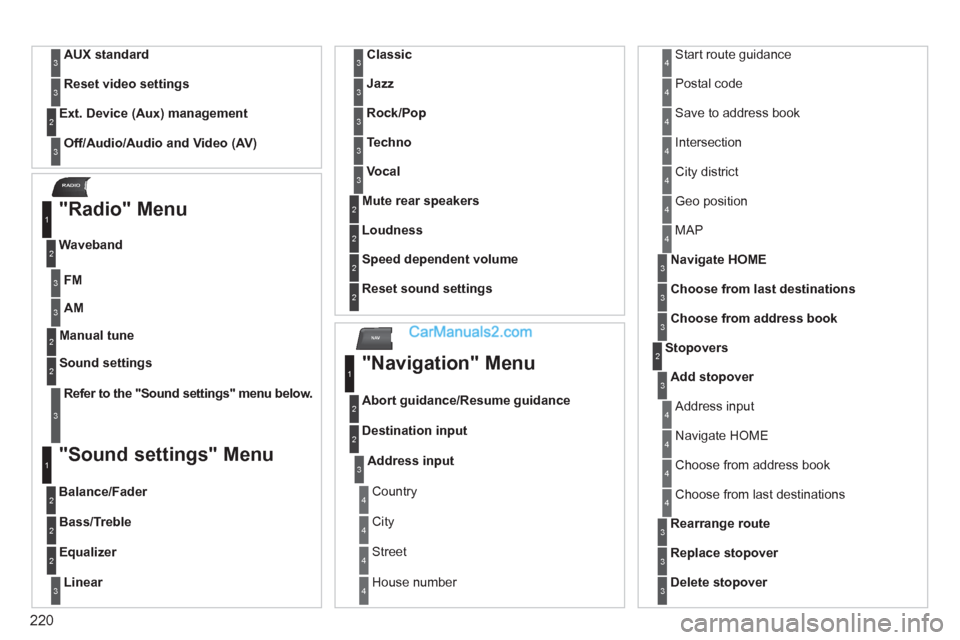

MUSIC MEDIA PLAYERS

220
NAV
RADIO

AUX standard 3


Reset video settings
3


Off/Audio/Audio and Video (AV)



Ext. Device (Aux) management
2
3


"Radio" Menu


FM



Waveband
1
2
3


AM

3


Manual tune 2


Refer to the "

Sound settings

" menu below.


Sound settings
2
3


"Sound settings" Menu


Balance/Fader
1
2


Bass/Treble 2


Equalizer 2


Linear
3


Classic
3


Jazz
3


Rock/Pop
3


Techno
3


Vocal

3


Mute rear speakers 2


Loudness 2


Speed dependent volume 2


Reset sound settings
2


"Navigation" Menu


Abort guidance/Resume guidance
1
2


Destination input 2


Address input
3

Country 4

City 4

Street 4

House number 4

Start route guidance 4

Postal code 4

Save to address book 4

Intersection 4

City district 4

Geo position 4

MAP 4


Navigate HOME
3


Choose from last destinations
3


Choose from address book

3


Stopovers 2


Add stopover
3

Address input 4

Navigate HOME 4

Choose from address book 4

Choose from last destinations 4


Rearrange route
3


Replace stopover
3


Delete stopover
3

248
07
43 1
2
MUSIC MEDIA PLAYERS


Connect the portable device (MP3/
WMA player…) to the RCA audio
sockets (white and red) using a
JACK/RCA audio cable.

Press the MUSIC button then
press it again or select the Music
Menu function and press the dial to
confi rm.

Select the AUX music source and
press the dial to confi rm. Play begins
automatically.
Select the "External device" function
and press the dial to activate it.

External device















USING THE EXTERNAL INPUT (AUX)
AUDIO JACK-RCA CABLE NOT SUPPLIED


Music Menu




The display and management of the controls is on the portable
device.

268
05
1
1
2
3
PEUGEOT CONNECT USB


The system puts together playlists (temporary memory) created
over a period which depends on the capacity of the USB device.
The other sources are available during this time.
The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.
When connecting for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or
using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB
memory stick.
The fi le formats recognised are .mp3
(mpeg1 layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.
The playlists types accepted are m3u, .pls, .wpl.
This unit consists of a USB port and an auxiliary
Jack socket * . The audio fi les are transmitted
from portable equipment such as a digital
player or a USB memory stick to your Peugeot
Connect Sound to be listened to via the vehicle's
speakers.

USB memory stick (1.1, 1.2 and 2.0) or iPod
®
of
generation 5 or later:


- USB memory sticks should be formatted
FAT or FAT 32 (NTFS not supported),

- the iPod
®
lead is essential,

- navigation through the fi le database is by
means of the steering mounted controls,

- the iPod
®
software should be regularly
updated for the best connection.

The list of compatible equipment and the compression rates supported
are available from PEUGEOT dealers.













USING THE PEUGEOT CONNECT USB


CONNECTING A USB MEMORY STICK

Other iPod
®
players of earlier generations and
players using the MTP protocol * :


- play via Jack-Jack lead only (not supplied),

- navigation through the fi le database is from
the portable device.


* According to vehicle.

270
05
1
2
1
2
The display and control is via the portable device. First adjust the volume of your portable device.
Then adjust the volume of your
audio system.

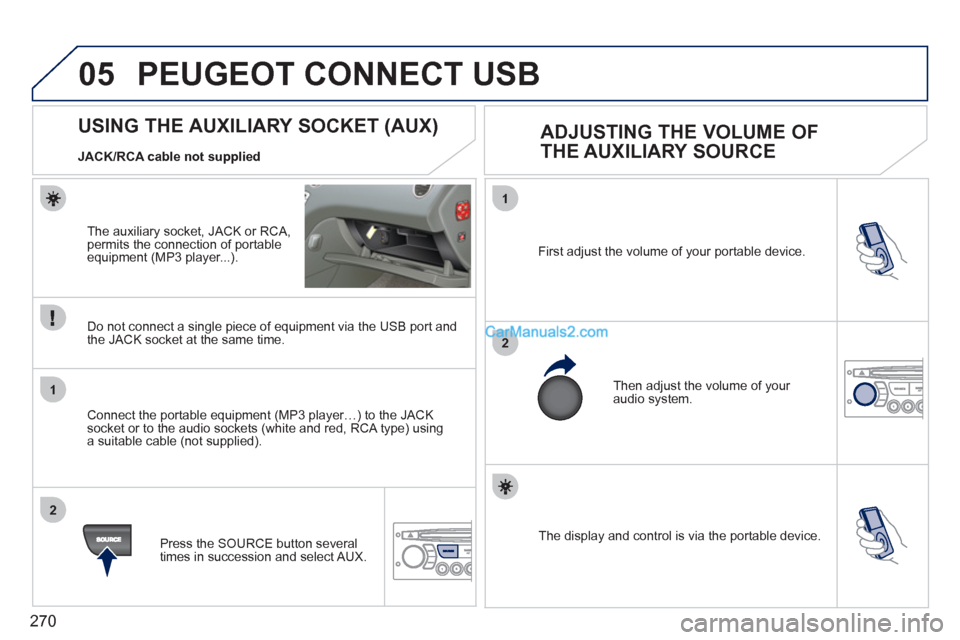

USING THE AUXILIARY SOCKET (AUX)

ADJUSTING THE VOLUME OF
THE AUXILIARY SOURCE
PEUGEOT CONNECT USB


The auxiliary socket, JACK or RCA,
permits the connection of portable
equipment (MP3 player...).

Do not connect a single piece of equipment via the USB port and
the JACK socket at the same time.

Connect the portable equipment (MP3 player…) to the JACK
socket or to the audio sockets (white and red, RCA type) using
a suitable cable (not supplied).

Press the SOURCE button several
times in succession and select AUX.



JACK/RCA cable not supplied
