15
43
26
ECO-DRIVING 20 Î 21

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control stalk.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Passenger's airbag deactivation
switch.

9.
Glove box/Audio/video sockets.

10.
Retractable roof control.
Control for all four windows.

11 .
Storage compartment or instrument
panel navigator associated with the
Peugeot Connect Media.

12.
"AIRWAVE" system controls.

13.
Front armrest.

14.
Front ashtray.

15.
Heating/air conditioning controls.

16.
Audio and telematics system.

17.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.

1
i
23
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer


Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


service indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-

Navigation - Guidance/Trip computer.

1
i
24
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PEUGEOT
CONNECT MEDIA INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


se
rvice indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-
Navigation - Guidance/Trip computer.



- Vehicle parameters.

1
i
25
INSTRUMENTS and CONTROLS

*
According to country.









Instrument panel navigator associated
with the Peugeot Connect Media

Main menu


)
Press button 1
to open the main
menu and select one of the following
functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move on the
screen.

)
Press button 1
again to confi rm the
selection.

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


Choice of language
This menu allows you to select the lan-
guage used by the screen: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .

Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (mpg, km/l or
l/100 km).
This group of buttons permits:


- when stationary
, confi guration of
the vehicle's equipment and the
central screen settings (language,
units...),

- while driving
, scrolling through the
active functions (trip computer, navi-
gation...).

Controls
There are four buttons to control the in-
strument panel large screen:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous screen, exit
from the menu. The main menu and its associated
functions can only be accessed
when stationary, via buttons 1
to 4
.
A message appears in the cen-
tral screen, above a certain speed
threshold, indicating that the main
menu cannot be displayed.
Trip computer information can only
be displayed while driving, using
buttons 2
and 3
(refer to the "Trip
computer" section).

2
42
MULTIFUNCTION SCREENS

Main menu

"Audio functions" menu



)
Press the "MENU"
button for ac-
cess to the main menu
:


- audio functions,

- diagnosis vehicle,

- personalisation-confi guration,

- telephone (hands-free kit).

)
Press the "
" or "
" buttons to se-
lect the menu required, then confi rm
by pressing the "OK"
button.

With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText) or the CD
(introscan, shuffl e, CD repeat).
For more information on the "Audio func-
tions" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.















MONOCHROME SCREEN C (WITH
PEUGEOT CONNECT SOUND)

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- visual parking sensor information,

- audio sources (radio, CD...),

- telephone information and directo-
ries,

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "ESC"
button.


Controls

From the control panel of your Peugeot
Connect Sound, you can:


)
press the "MENU"
button to gain
access to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or


)
press the "ESC"
button to abandon
the operation in progress.

2
i
50
MULTIFUNCTION SCREENS












Monochrome screen C


With the monochrome screen C or
the instrument panel small screen

Information displays

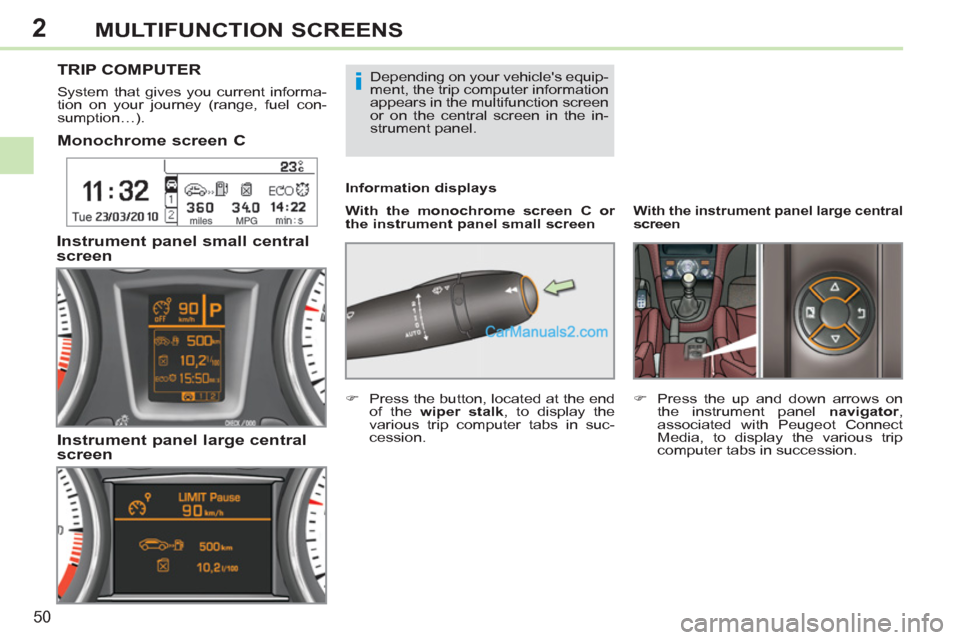

TRIP COMPUTER


System that gives you current informa-
tion on your journey (range, fuel con-
sumption…).


Instrument panel small central
screen


Instrument panel large central
screen
Depending on your vehicle's equip-
ment, the trip computer information
appears in the multifunction screen
or on the central screen in the in-
strument panel.

With the instrument panel
large central
screen


)
Press the up and down arrows on
the instrument panel navigator
,
associated with Peugeot Connect
Media, to display the various trip
computer tabs in succession.

)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.

2
!
i
i
52
MULTIFUNCTION SCREENS






A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer
or a qualifi ed workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining to be
travelled to the fi nal destination. It is
calculated instantly by the navigation
system, if guidance is activated.
If the distance is not entered, dashes
are displayed in place of the digits.








Stop & Start time counter
(minutes/seconds or hours/
minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
