SAFETY













For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system must be
carried out by a PEUGEOT dealer or
a qualifi ed workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when
an airbag is deployed cannot be ruled
out. The bag infl ates almost instantly
(within a few milliseconds) then defl ates
within the same time discharging the
hot gas via openings provided for this
purpose.
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.



Lateral airbags
Fit only approved covers on the seats, compatible with deployment of the lateral
airbags. For information on the range of seat covers suitable for your vehicle,
contact a PEUGEOT dealer (see "Practical information § Accessories").
Do not fi x or attach anything to the seat backs. This could cause injury to the
chest or arms if the lateral airbag is deployed.
Do not fi x or attach anything to the front head restraints (articles of clothing...).
This could cause injury to the head if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.

10
i
146
PRACTICAL INFORMATION

Access to the kit

The kit is stowed in the boot under
the fl oor. It is installed in the tool box,
located under the storage box.

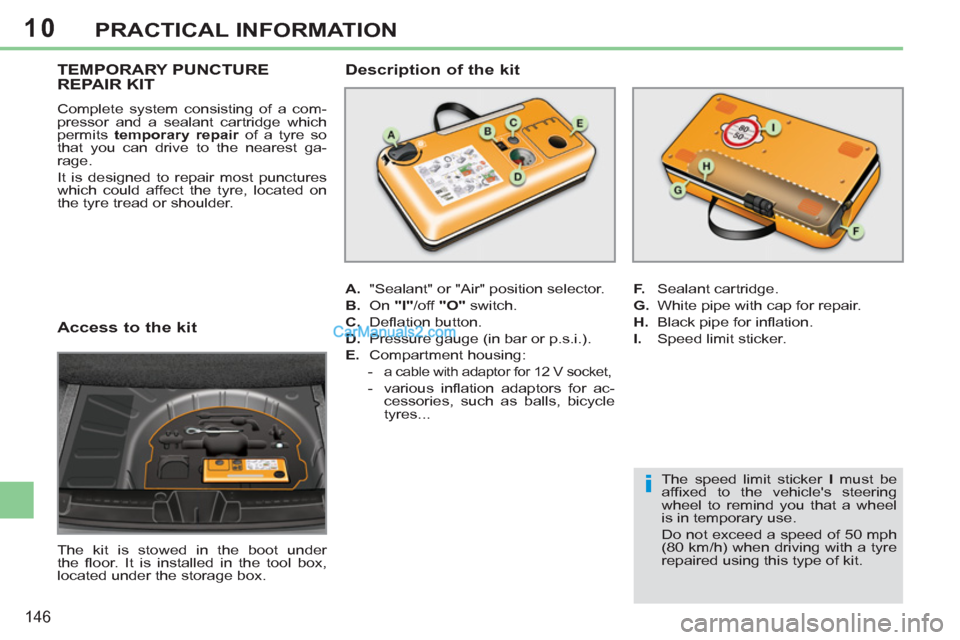

TEMPORARY PUNCTURE
REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.



A.
"Sealant" or "Air" position selector.

B.
On "I"
/off "O"
switch.

C.
Defl ation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compartment housing:


-
a cable with adaptor for 12 V socket,


- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...


Description of the kit


F.
Sealant cartridge.

G.
White pipe with cap for repair.

H.
Black pipe for infl ation.

I.
Speed limit sticker.

The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.

10
161
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).

Access to the fuses


)
refer to the paragraph "Access to
tooling".

Fuse tables


Fuse N°



Rating


Functions



F1



-

Not used.


F2



30 A

Earth for locking and deadlocking.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply.


F6



30 A

Rear one-touch electric windows, exterior door
opening controls.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
sun visor lighting, glove box lighting.


F8



20 A



Audio equipment, radio/telephone, multifunction screen, tyre
under-infl ation detection, interior storage compartments.



F9



30 A

Front 12 V socket, cigarette lighter.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

10
i
169
PRACTICAL INFORMATION








CHANGING A WIPER BLADE


Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.







TOWING THE VEHICLE

Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.

Access to the tools

The towing eye is installed in the boot
under the fl oor.
For access to it:


)
change to the "coupé" confi guration,

)
open the boot,

)
raise the fl oor,

)
secure it by hooking its handle on
the boot seal,

)
remove the towing eye from the
holder.



General recommendations

Observe the legislation in force in
your country.
Ensure that the weight of the tow-
ing vehicle is higher than that of the
towed vehicle.
The driver must stay at the wheel
of the towed vehicle.
Driving on motorways and fast
roads is prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use
an approved towing bar; rope and
straps are prohibited.
When towing a vehicle with the
engine off, there is no longer any
power assistance for braking or
steering.
In the following cases, you must
always call on a professional reco-
very service:


-
vehicle broken down on a motor-
way or fast road,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,

- towing with only two wheels on
the ground,

- where there is no approved
towing bar available...
