2011 Peugeot 308 CC Owner's Manual

215
08
1
2
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

*
The services available via the telephone depend on the network, the
SIM card and the compatibility of the Bluetooth equipment used. Refer to
your telephone's manual and your operator to check which services you
have access to. A list of mobile telephones which offer the best range of
services is available from dealers.

USING THE TELEPHONE












CONNECTING A BLUETOOTH
TELEPHONE



For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
Media must be carried out with the vehicle stationary and the
ignition on.

Activate the telephone's Bluetooth function and
ensure that it is visible to all.
Once the telephone has been connected, the Peugeot Connect
Media can synchronise the address book and the call list. This
synchronisation may take a few minutes * .


Press the PICK UP button.

The list of telephones connected previously (4 maximum) appears
in the multifunction screen. Select the telephone required then
select "Connect phone" for a new connection. Select "Delete
pairing" to cancel the connection to the telephone.

216
08
14
5
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV ESC TRAFFICADDR
BOOK2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1SETUP2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
3
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2

Extract the holder by pressing the eject button.

Install the SIM card in the holder
and then insert it in the slot.

To remove the SIM card, repeat step 1.

For safety reasons and because they require prolonged attention
on the part of the driver, the SIM card installation operations must
be carried out when stationary.
Enter the PIN code on the keypad
then select OK and confi rm.


The system asks "Do you want
to switch to the internal phone?",
select "Yes" if you wish to use your
SIM card for your personal calls.
Otherwise, only the emergency
call and the services will use the
SIM card.
Remember PIN



When entering your PIN code, tick the "Remember PIN" tab to
allow use of the telephone without having to enter this code when it
is used subsequently.










USING THE INTERNAL TELEPHONE
WITH A SIM CARD
USING THE TELEPHONE


Once the SIM card has been installed, the system can synchronise
the address book and the call list.
This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you
can still connect a Bluetooth telephone to receive your calls on the vehicle's
audio system.

217
08
1
22ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
3
1
3
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK2
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK


Press the end of the steering mounted control to
accept the call or end the call in progress.

Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing OK.


RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display in the screen.


To hang up, press the HANG UP
button or press OK and select "End
call" then confi rm by pressing OK.

End call



Press the PICK UP button.

It is also possible to select a number from the address book. You
can select "Dial from address book". The Peugeot Connect Media
can record up to 4 096 entries.
Select "Dial number", then dial the
telephone number using the virtual
keypad.

Select the Phone menu function and
press OK to confi rm.


Dial number


Phone menu




The list of the last 20 calls made and received in the vehicle
appears under Phone menu. You can select a number and press
OK to make the call.


Ye s N o



The PICK UP button accepts, the HANG UP button rejects the
incoming call.

USING THE TELEPHONE



Press the end of the steering mounted control for
more than two seconds to open the address book.


Operating the telephone while driving is prohibited. It is recommended
that you park safely or use in preference the steering mounted controls.


It is always possible to start a call directly from the telephone; park
the vehicle as a safety measure.

218
09
1
4
5
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
3
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV ESC TRAFFICADDR
BOOKSETUPSETUP
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK26
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
CONFIGURATION
















SETTING THE DATE AND TIME


Make the adjustments using the ring
and move on to the next using the
4-direction navigator.
Press OK to confi rm.
Select the "Date format" function and
press OK to confi rm.
Select the format required using the
ring and press OK to confi rm.

Select the "Set date & time" function
and press OK to confi rm.

Pressing the SETUP button for more than 2 seconds permits
access to:
This setting operation must be carried out if the battery has been
disconnected.

Press the SETUP button.


Select the "Time format" function and
press OK to confi rm.
Select the format required using the
ring and press OK to confi rm.

Set date & time



Select the "Date & Time" function
and press OK to confi rm.


Description of the unit



GPS coverage



Demo mode



Date & Time

Principle of GPS synchronisation (GMT):


1. Confi rm the "Synchronise with GPS" selection, the time is then set to
GMT universal time, the date is also updated.

2. Using the 4-direction navigator, move the cursor to the time fi elds and
press OK.

3. You can then use the ring to set the time to the time zone of your choice.
Note that when changing between summer/winter time, the time zone
must be changed again manually.

219
10
MEDIA
TRAFFIC
SCREEN MENU MAP













MAIN FUNCTION


OPTION A

OPTION B…

option A1



option A2


1
2
3
2
3


"Traffic" Menu


Messages on route



Select preferred list
1
2
3

Deactivate PIN 4


Only warnings on route
3


All warning messages
3


All messages
3


Geo. Filter
3

Within 2 miles (3 km) 4

Within 3 miles (5 km) 4

Within 6 miles (10 km) 4

Within 30 miles (50 km) 4


On confi rmation
Read out settings
2
3


Incoming messages
3


TMC station information
2


"Media" Menu


Audio CD/MP3-Disc
/

DVD-Audio
/ DVD-Video


Select media
1
2
3


Jukebox (Folders & Files)
3


SD-Card
3


USB
3


External device (audio/AV)

3


Add fi les

Jukebox management
2
3

Folders & Files 4


Create folder
3


Modify content
3


Edit playlist
3


Play options
3

Playlists 4


Memory capacity

3


Refer to the "
Sound settings
"
menu
details of which are shown on the next
page.

Sound settings
2
3


Aspect ratio
Video settings
2
3


Menu language 3


Display 3

Brightness 4

Contrast 4

Colour 4

220
NAV
RADIO

AUX standard 3


Reset video settings
3


Off/Audio/Audio and Video (AV)



Ext. Device (Aux) management
2
3


"Radio" Menu


FM



Waveband
1
2
3


AM

3


Manual tune 2


Refer to the "

Sound settings

" menu below.


Sound settings
2
3


"Sound settings" Menu


Balance/Fader
1
2


Bass/Treble 2


Equalizer 2


Linear
3


Classic
3


Jazz
3


Rock/Pop
3


Techno
3


Vocal

3


Mute rear speakers 2


Loudness 2


Speed dependent volume 2


Reset sound settings
2


"Navigation" Menu


Abort guidance/Resume guidance
1
2


Destination input 2


Address input
3

Country 4

City 4

Street 4

House number 4

Start route guidance 4

Postal code 4

Save to address book 4

Intersection 4

City district 4

Geo position 4

MAP 4


Navigate HOME
3


Choose from last destinations
3


Choose from address book

3


Stopovers 2


Add stopover
3

Address input 4

Navigate HOME 4

Choose from address book 4

Choose from last destinations 4


Rearrange route
3


Replace stopover
3


Delete stopover
3

221
ADDR
BOOK

Recalculate
3

Fast route 4

Short route 4

Optimized route 4


POI nearby

POI search
2
3


POI near destination
3


POI in city
3


POI in country
3


POI near route

3


Route type

Route options
2
3

POI near destination 4

Short route 4

Optimized route 4

Subscr. service 4


Route dynamics

Settings
2
3

Traffi c independent 4

Semi-dynamic 4

Dynamic 4


Avoidance criteria
3

Avoid motorways 4

Avoid toll roads 4

Avoid tunnels 4

Avoid ferries 4


Recalculate


3


"Address book" Menu


Create new entry
1
2


Show memory status 2


Export address book 2


Delete all voice entries 2


Delete all entries 2


Delete folder "My Addresses"
2


"Phone" menu


Dial number
1
2


Dial from address book 2


Call lists 2


Messages 2


Select phone 2

Search phone 4


Telephone off
3


Use Bluetooth phone
3


Use internal phone
3


Connect Bluetooth phone
3

Disconnect phone 5

Rename phone 5

Delete pairing 5

Delete all pairings 5

Show details 5

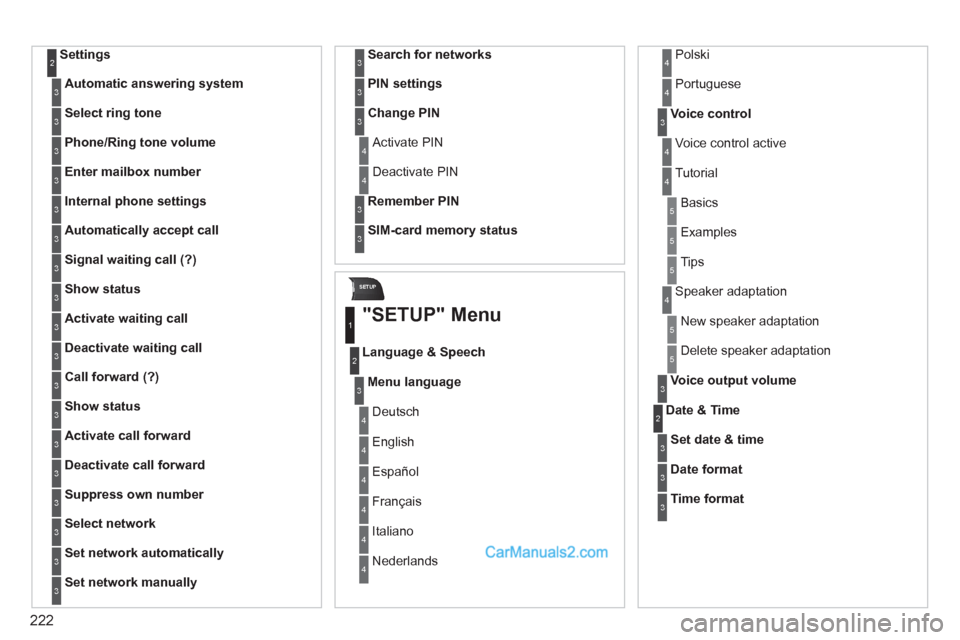

222
SETUP

Settings 2


Automatic answering system
3


Select ring tone
3


Phone/Ring tone volume
3


Enter mailbox number
3


Internal phone settings
3


Automatically accept call
3


Signal waiting call (?)
3


Show status
3


Activate waiting call
3


Deactivate waiting call
3


Call forward (?)
3


Show status
3


Activate call forward
3


Deactivate call forward
3


Suppress own number
3


Select network
3


Set network automatically
3


Set network manually
3


Search for networks
3


PIN settings
3


Change PIN
3

Activate PIN 4

Deactivate PIN 4


Remember PIN
3


SIM-card memory status


3


"SETUP" Menu


Menu language



Language & Speech
1
2
3

Deutsch 4

English 4

Español 4

Français 4

Italiano 4

Nederlands 4

Polski 4


Voice control
3

Voice control active 4

Tutorial 4

Portuguese 4

Basics 5

Examples 5

Tips 5

Speaker adaptation 4

New speaker adaptation 5

Delete speaker adaptation 5


Voice output volume

3


Date & Time 2


Set date & time
3


Date format
3


Time format

3
