FAMILIARISATION


1.
Cruise control/speed limiter switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake.

8.
12 V accessory socket.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Bonnet release.

12.
Fusebox.

13.
Manual headlamp height
adjustment.
Stop & Start button.

14.
Side adjustable air vent.

15.
Front side window demisting vent.

16.
Speaker (tweeter).

17.
Windscreen demisting vent.

INSTRUMENTS AND CONTROLS

!i
12
FAMILIARISATION
SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.


Front seats


Other functions available...
Storing driving positions (driver's
electric seat).



66

"AIRWAVE" system.
Heated seats.



65



Electric access to the rear seats


Lockable front armrest




97





69

For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle,
only when using the remote control or
the key. As a safety precaution, these opera-
tions must only be carried out when
stationary.

1.
Control for release of the seat back
and automatic forward movement of
the seat.

2.
Control for returning the seat to the
initial position.



64

3
62
COMFORT

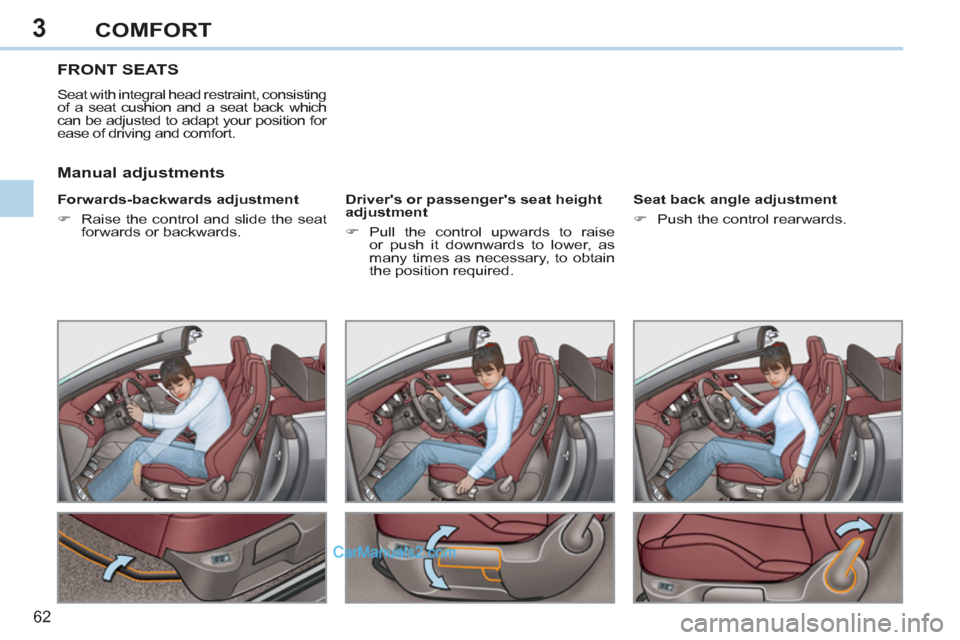

FRONT SEATS

Seat with integral head restraint, consisting
of a seat cushion and a seat back which
can be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment


)
Raise the control and slide the seat
forwards or backwards.

Driver's or passenger's seat height
adjustment


)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.

Seat back angle adjustment


)
Push the control rearwards.




Manual adjustments

3
!
!
66
COMFORT

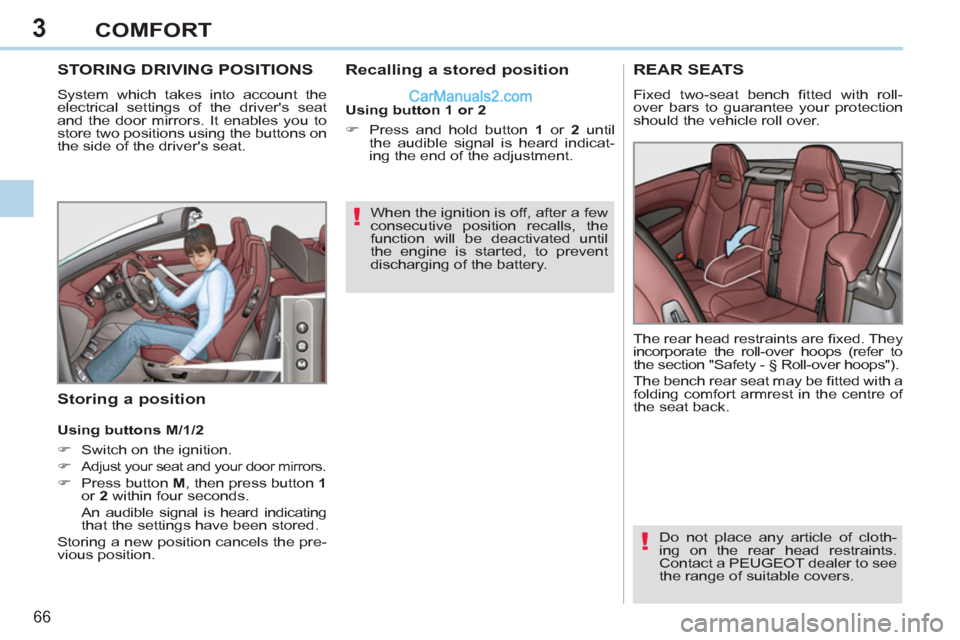

STORING DRIVING POSITIONS

System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.

Recalling a stored position

Storing a position

When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.


Using buttons M/1/2


)
Switch on the ignition.

)

Adjust your seat and your door mirrors.


)
Press button M
, then press button 1

or 2
within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the pre-
vious position.
















REAR SEATS

Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any article of cloth-
ing on the rear head restraints.
Contact a PEUGEOT dealer to see
the range of suitable covers. The rear head restraints are fi xed. They
incorporate the roll-over hoops (refer to
the section "Safety - § Roll-over hoops").
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2


)
Press and hold button 1
or 2
until
the audible signal is heard indicat-
ing the end of the adjustment.

5
i
i
89
VISIBILITY








EXTERIOR WELCOME
LIGHTING

The remote switching on of the lighting
and side spotlamps makes your approach
to the vehicle easier in poor light. It is ac-
tivated in accordance with the light inten-
sity detected by the brightness sensor.

Switching on


)
Press the open padlock on the re-
mote control.
The dipped beam headlamps and
the sidelamps come on, as well as
the side spotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.

Programming
The lighting duration is
selected via the vehicle
confi guration menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.










MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
Initial setting is position "0"
. To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
4 people.

-.
Intermediate setting.

2.
4 people + maximum authorised
loads.

-.
Intermediate setting.

3.
Driver + maximum authorised loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

7
i
109

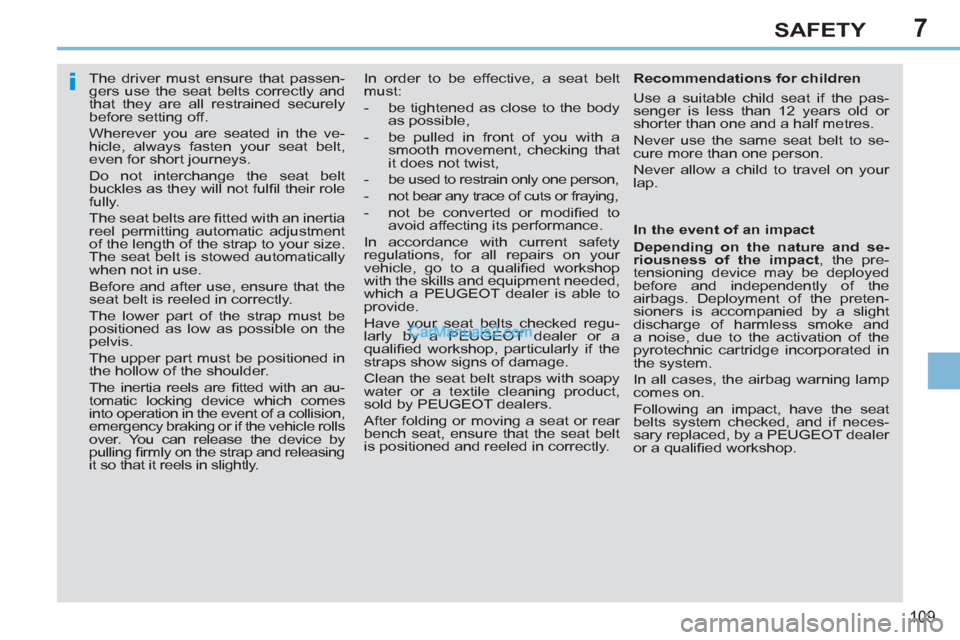

SAFETY





The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not interchange the seat belt
buckles as they will not fulfi l their role
fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a collision,
emergency braking or if the vehicle rolls
over. You can release the device by
pulling fi rmly on the strap and releasing
it so that it reels in slightly. In order to be effective, a seat belt
must:


- be tightened as close to the body
as possible,

- be pulled in front of you with a
smooth movement, checking that
it does not twist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety
regulations, for all repairs on your
vehicle, go to a qualifi ed workshop
with the skills and equipment needed,
which a PEUGEOT dealer is able to
provide.
Have your seat belts checked regu-
larly by a PEUGEOT dealer or a
qualifi ed workshop, particularly if the
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.

In the event of an impact

Depending on the nature and se-
riousness of the impact
, the pre-
tensioning device may be deployed
before and independently of the
airbags. Deployment of the preten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer
or a qualifi ed workshop.
