2011 Peugeot 308 CC Owner's Manual

12
175
TECHNICAL DATA

*

The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambi-
ent temperature is higher than 37 °C, limit the towed weight.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre VTi



1.6 litre THP



1.6 litre THP



1.6 litre THP




120 hp



156 hp



150 hp



163 hp



200 hp



Gearboxes


Manual



Manual



Automatic



Automatic



Manual



Model codes: 4B...


5FS-0



5FV-8



5FV-A



5FE-J



5FM-J



5FU-8


- Unladen weight
1 480
1 515
1 530
1 540
1 540
1 535
- Kerb weight
1 555
1 590
1 605
1 615
1 615
1 610
- Gross vehicle weight (GVW)
1 885
1 940
1 970
1 970
1 970
1 984
- Gross train weight (GTW)


on a 12 % gradient
2 985
3 340
3 240
2 770
2 770
2 784
- Braked trailer (within GTW limit)


on a 10 % or 12 % gradient
1 100
1 400
1 270
800
800
800
- Braked trailer * (with load transfer
within GTW limit)
1 200
1 400
1 270
800
800
800
- Unbraked trailer
750
750
750
750
750
750
- Recommended nose weight
64
64
64
64
64
64

12
176
TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:

4B...


9HR-8/S



RHH-8



RHH-A



DIESEL ENGINES


1.6 litre e-HDi PEF

112 hp

2.0 litre HDi PEF
163 hp


Cubic capacity (cc)
1 560
1 997
Bore x stroke (mm)
75 x 88.3
85 x 88
Max power: EU standard (kW)
82
120
Max power engine speed (rpm)
3 600
3 750
Max torque: EU standard (Nm)
270
340
Max torque engine speed (rpm)
1 500
2 000
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter
Yes
Yes

GEARBOXES

Manual
(6-speed)
Manual
(6-speed)

Automatic
(6-speed)

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
3.75
-
-

.../S:
e-HDi model, fi tted with Stop & Start.

12
177
TECHNICAL DATA

*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by
the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre e-HDi PEF

112 hp



2.0 litre HDi PEF
163 hp



Gearboxes


Manual



Manual



Automatic



Model codes: 4B...


9HR-8/S



RHH-8



RHH-A


- Unladen weight
1 535
1 577
1 625
- Kerb weight
1 610
1 652
1 700
- Gross vehicle weight (GVW)
1 950
2 025
2 050
- Gross train weight (GTW)



on a 12 % gradient
3 050
3 525
3 550
- Braked trailer (within GTW limit)



n a 10 % or 12 % gradient
1 100
1 500
1 500
- Braked trailer * (with load transfer
within GTW limit)
1 200
1 500
1 500
- Unbraked trailer
750
750
750
- Recommended nose weight
64
64
64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambi-
ent temperature is higher than 37 °C, limit the towed weight.

12
178
TECHNICAL DATA





DIMENSIONS (IN MM)

12
!
i
179
TECHNICAL DATA


























IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation of your vehicle.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi tted
with snow chains. For further infor-
mation, contact a PEUGEOT dealer
or a qualifi ed workshop.
If the infl ation pressures are too low,
this increases fuel consumption.
The infl ation pressures must be
checked when the tyres are cold,
at least once a month.


A.
Vehicle identifi cation number
(VIN) under the bonnet.

This number is engraved on the
bodywork near the damper support.
For access to it, raise the plastic
cover.
B.
VIN on the windscreen lower
crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

This number is indicated on a self-
destroying label affi xed to the door
aperture, below the door striker, on
the right-hand side.
D.
Tyre/paint label.

This label is affi xed to the door aper-
ture, on the driver's side.
It bears the following information:


- the tyre infl ation pressures, laden
and unladen,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

12
180
TECHNICAL DATA

181

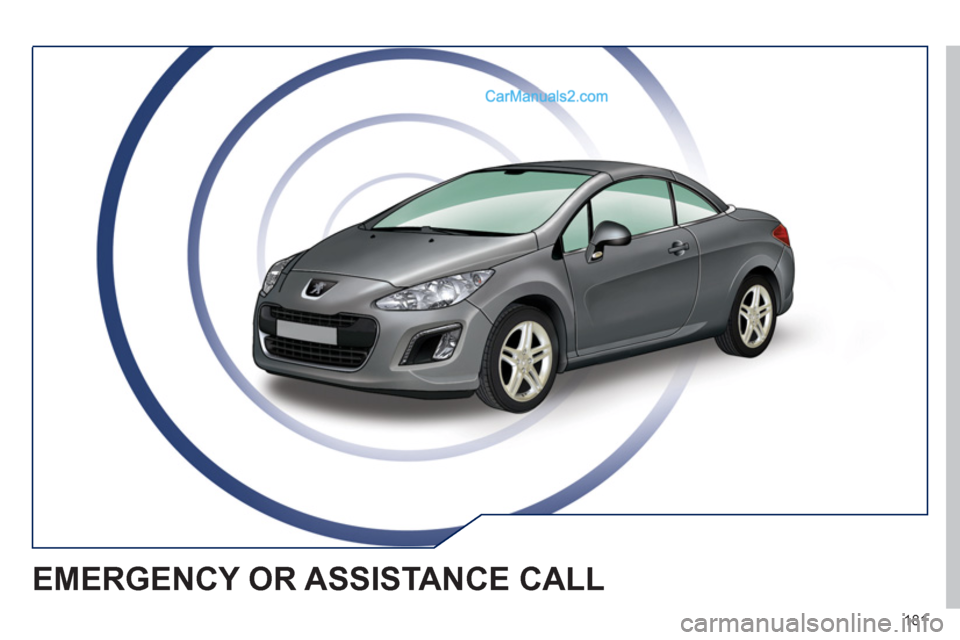

EMERGENCY OR ASSISTANCE CALL

182














EMERGENCY OR ASSISTANCE CALL


If an impact is detected by the airbag ECU, and
independently of the deployment of any airbags, an
emergency call is made automatically.



Pressing this button again immediately cancels the request. The green
LED goes off.
A press (at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made*.


OPERATION OF THE SYSTEM


The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

In an emergency, press this button for more than 2 seconds.
Flashing of the green LED and a voice message confi rm that the
call has been made to the PEUGEOT Emergency team * .

*
These services are subject to conditions and availability.
Consult a PEUGEOT dealer.
If the orange LED fl ashes: there is a system
fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a PEUGEOT.

If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularly to improve the quality of
PEUGEOT CONNECT services to customers, the manufacturer reserves
the right to carry out updates to the vehicle's on-board telematic system.
