Instrument panel
Switch panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the engine running, its associ-
ated low level warning lamp should
go off.

C.
With the ignition on, the oil level indi-
cator should display that the level is
OK or correct, according to version,
for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Emergency call in progress.

181


B.
Deactivation of the alarm interior
volumetric monitoring.


75


C.
Central locking.

80


D.
Deactivation of the ESP/ASR system.

105


E.
Deactivation of the front and rear
parking sensors.


135


F.
Access to PEUGEOT services.


181




1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




22




26, 30

1
i
22
INSTRUMENTS and CONTROLS

















PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Screen.


6.
Control button.


Recalls the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

7.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter


(mph or km/h) or
Cruise control.


B.
Gear shift indicator.


C.
Automatic gearbox.


D.
Trip distance recorder.


(miles or km)

E.
Service indicator.


(miles or km) then,
engine oil level indicator


then
distance recorder.


(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.


Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.

1
i
23
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer


Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


service indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-

Navigation - Guidance/Trip computer.

1
i
24
INSTRUMENTS and CONTROLS












PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX PEUGEOT
CONNECT MEDIA INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5.
Small screen.


6.
Central screen.


7.
Control button.


Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).

8.
Instrument panel lighting

dimmer

.

Adjusts the brightness of the lighting
of the instruments and controls.


Dials



1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

3.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

4.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Trip distance recorder.


(miles or km)

B.
Distance recorder.


(miles or km)

C.
Engine oil level indicator,


se
rvice indicator.


(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display. The following functions are displayed in
accordance with the selection.


- Warning lamps/CHECK.


- Tyre under-infl ation detection.


- Speed limiter/Cruise control.


- Gear shift indicator.


- Automatic gearbox.


-
Navigation - Guidance/Trip computer.



- Vehicle parameters.

1
i
37
INSTRUMENTS and CONTROLS
The level shown will only be correct
if the vehicle is on level ground and
the engine has been off for more
than 30 minutes.















Engine oil level indicator

System which informs the driver wheth-
er the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of
"OIL"
, linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL --"
. Contact a PEUGEOT dealer or
a qualifi ed workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of
damage to the engine),

- B
= min; top up the
level via the oil fi ller
cap, using the grade
of oil suited to your
engine.

1
38
INSTRUMENTS and CONTROLS






Service indicator

System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:


- the distance travelled,

- the time elapsed since the last
service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example:
1 700 miles (2 800 km) re-
main before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the spanner goes off
; the distance
recorder resumes its normal operation.
The screen then indicates the total and
trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due

Example:
560 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner remains
on
to indicate that a service must be car-
ried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser-
vice information appears in the screen.

1
i
i
39
INSTRUMENTS and CONTROLS
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be registered.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the ".../000"
button
on the right of the instrument panel,

)
switch on the ignition; the distance
recorder display begins a count-
down,

)
when the instrument panel central
screen indicates "=0"
, release the
button; the spanner disappears from
the screen. The distance remaining may be
weighted by the time factor, de-
pending on the driving conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

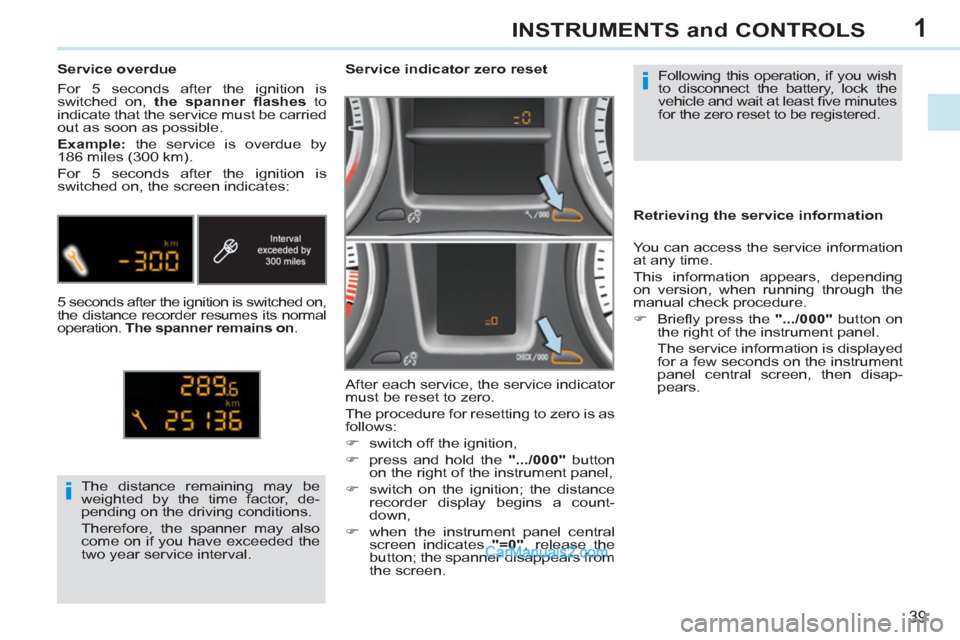

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
186 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
.
Retrieving the service information
You can access the service information
at any time.
This information appears, depending
on version, when running through the
manual check procedure.


)
Briefl y press the ".../000"
button on
the right of the instrument panel.
The service information is displayed
for a few seconds on the instrument
panel central screen, then disap-
pears.

9
!
i
142

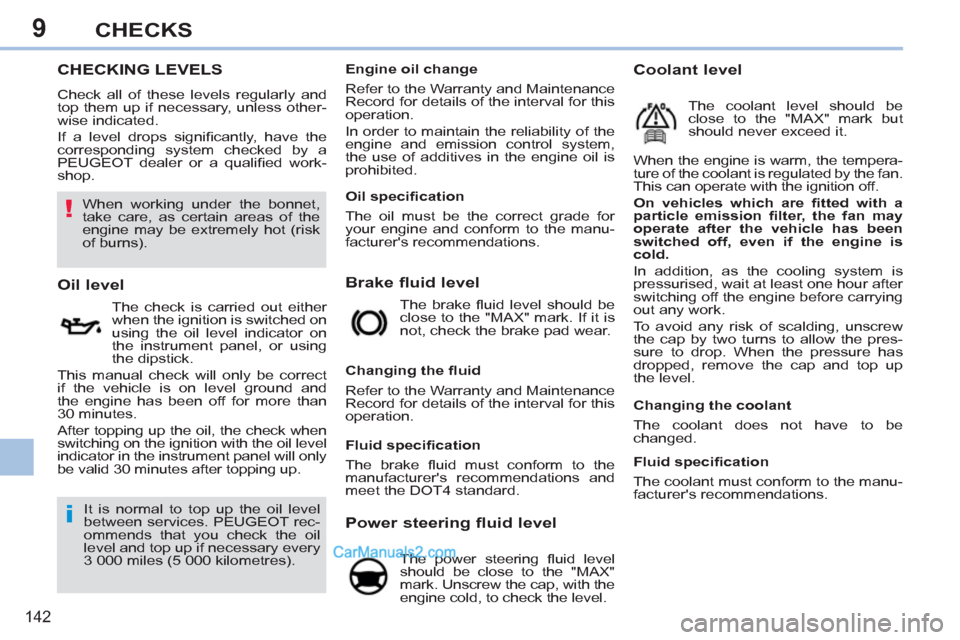

CHECKS





































CHECKING LEVELS

Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.

Brake fluid level

Oil level

The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
This manual check will only be correct
if the vehicle is on level ground and
the engine has been off for more than
30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel will only
be valid 30 minutes after topping up. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.
It is normal to top up the oil level
between services. PEUGEOT rec-
ommends that you check the oil
level and top up if necessary every
3 000 miles (5 000 kilometres).
Changing the fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation. When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold.

In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.

Changing the coolant
The coolant does not have to be
changed.
When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.

Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.

Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
