2011 Peugeot 308 CC Owner's Manual

7
!
i
11 9
SAFETY












"ISOFIX" MOUNTINGS

Your vehicle is approved with regulation
ISOFIX mountings.
The diagram below indicates the seats
which are fi tted with these mountings:
These are two rings A
for each seat, lo-
cated between the seat back and seat
cushion of the vehicle's seat, indicated
by a label.
The incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of a collision. For installing ISOFIX child seats
in your vehicle, refer to the table
showing the locations for fi tting
ISOFIX child seats. These rings are located behind covers.
For access to them:


)
insert the ignition key in the cut-out
in the cover,

)
pull it forwards to unclip it and then
fold it down.

The ISOFIX child seats
are fi tted with
two latches which are secured easily on
these rings A
.
This ISOFIX mounting system provides
reliable, safe and fast fi tting of the child
seat in your vehicle.

7
i
120
SAFETY

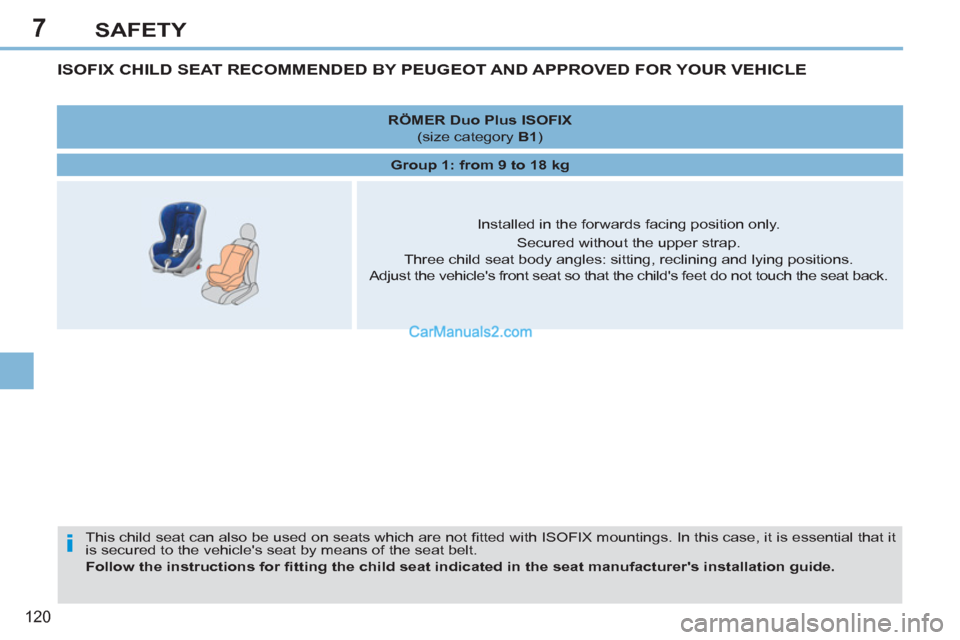

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it is essential that it
is secured to the vehicle's seat by means of the seat belt.

Follow the instructions for fi tting the child seat indicated in the seat manufacturer's installation guide.


RÖMER Duo Plus ISOFIX


(size category B1
)


Group 1: from 9 to 18 kg








Installed in the forwards facing position only.
Secured without the upper strap.
Three child seat body angles: sitting, reclining and lying positions.
Adjust the vehicle's front seat so that the child's feet do not touch the seat back.

7
121
SAFETY

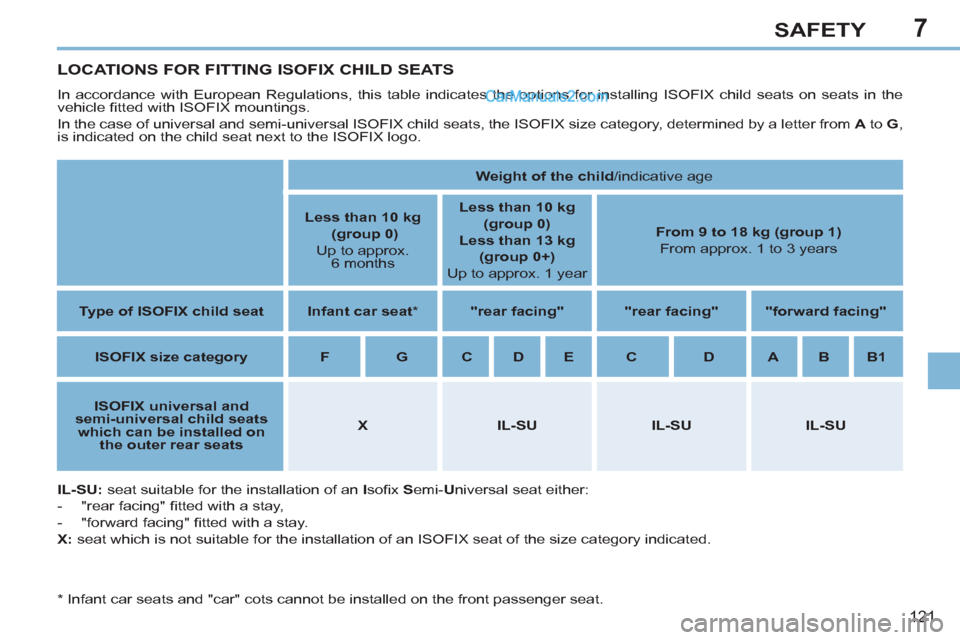

LOCATIONS FOR FITTING ISOFIX CHILD SEATS

In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rear facing" fi tted with a stay,

- "forward facing" fi tted with a stay.

X:
seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.



Weight of the child
/indicative age


Less than 10 kg
(group 0)


Up to approx.
6 months

Less than 10 kg


(group 0)
Less than 13 kg


(group 0+)


Up to approx. 1 year

From 9 to 18 kg (group 1)


From approx. 1 to 3 years


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




ISOFIX

universal and
semi-universal

child seats

which can be installed on
the



outer rear seats



X



IL-SU



IL-SU



IL-SU



* Infant car seats and "car" cots cannot be installed on the front passenger seat.

8
!
i
!
122
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and en-
gage a gear.






PARKING BRAKE


Applying


)
Pull the parking brake lever fully up
to immobilise your vehicle.

When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on or
has not been properly released.
Releasing


)
Pull the parking brake lever gently,
press the release button then lower
the lever fully.









6-SPEED MANUAL GEARBOX

As a safety precaution and to facili-
tate starting of the engine:


- always select neutral,

- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.

Engaging reverse gear



)
Raise the ring under the knob and
move the gear lever to the left then
forwards.


Engaging 5 th or 6 th gear



)
Move the lever fully to the right to
engage 5 th or 6 th gear.

8
i
123
DRIVING











GEAR SHIFT INDICATOR *

System which reduces fuel consump-
tion by advising the driver to change up
on vehicles fi tted with a manual gear-
box.

Operation

The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.

The gear engagement recommendations
must not be considered compulsory. In
fact, the confi guration of the road, the
amount of traffi c and safety remain de-
termining factors when choosing the best
gear. Therefore, the driver remains respon-
sible for deciding whether or not to follow
the advice given by the system.
This function cannot be deactivated.
The information appears in the instru-
ment panel screen in the form of an
arrow accompanied by the suggested
gear.

In the case of driving which makes
particular demands on the perfor-
mance of the engine (fi rm pres-
sure on the accelerator pedal, for
example, when overtaking...), the
system will not recommend a gear
change.
The system never suggests:


- engaging fi rst gear,

- engaging reverse gear,

- engaging a lower gear.



*
According to engine.
Example:


- You are in third gear.

- You press the accelerator pedal
moderately.

- The system may suggest that you
engage a higher gear, if appropriate.

8
!
124
DRIVING





HILL START ASSIST *

System which keeps your vehicle im-
mobilised temporarily (approximately
2 seconds) when starting on a gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:


- the vehicle is completely stationary,
with your foot on the brake pedal,

- in particular conditions on a slope,

- with the driver’s door closed.
The hill start assist cannot be deacti-
vated.

On an ascending slope, with the ve-
hicle stationary, the vehicle is held
for a brief moment when you release
the brake pedal and you are in fi rst
gear or neutral.



Operation


On a descending slope, with the ve-
hicle stationary and reverse gear en-
gaged, the vehicle is held for a brief
moment when you release the brake
pedal.



*
Model fi tted with the 1.6 litre THP
200 hp petrol engine.
Do not exit the vehicle while it is
being held in the hill start assist
phase.

Operating fault

If a malfunction of the system occurs,
these warning lamps come on. Have
it checked by a PEUGEOT dealer or a
qualifi ed workshop. If you need to exit the ve-
hicle with the engine run-
ning, apply the parking
brake and ensure that this
warning lamp in the instru-
ment panel is on fi xed.

8
125
DRIVING














"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX
Six speed automatic gearbox which of-
fers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
For this, four driving modes are of-
fered:


- automatic
operation for electronic
management of the gears by the
gearbox,

- sport
programme for a more dy-
namic style of driving,

- snow
programme to improve driv-
ing when traction is poor,

- manual
operation for sequential
changing of the gears by the driver.


Gear lever positions


P.
Park.


- Immobilisation of the vehicle, park-
ing brake on or off.

- Starting the engine.

R.
Reverse.


- Reversing manoeuvres, vehicle sta-
tionary, engine at idle.

N.
Neutral.


- Immobilisation of the vehicle, park-
ing brake on.

- Starting the engine.

D.
Automatic operation.

M. +/-
Manual operation with sequential
changing of the six gears.


)
Press forwards to change up through
the gears.
or


)
Press rearwards to change down
through the gears.



Displays in the instrument panel

When you move the lever in the gate
to select a position, the corresponding
indicator lamp is displayed in the instru-
ment panel.

P.
Park

R.
Reverse

N.
Neutral

D1... D6.
Drive (Automatic driving)

S.
Sport
programme

7
. Snow
programme

M1... M6.
Manual (Sequential driving)

-.
Invalid value during manual operation


Gear selection gate



1.
Gear lever.

2.
Button "S"
(sport)
.

3.
Button " 7
" (snow)
.

8
!
!
i
i
126
DRIVING

Moving off



)
Apply the parking brake.

)
Select position P
or N
.

)
Start the engine.
If this procedure is not followed, there
is an audible signal, accompanied by a
message in the screen.


)
With the engine running, press the
brake pedal.

)
Release the parking brake.

)
Select position R
, D
or M
.

)
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N
is engaged inadver-
tently while driving, allow the en-
gine to return to idle then engage
position D
to accelerate.
When the engine is running at idle,
with the brakes released, if position
R
, D
or M
is selected, the vehicle
moves even without the accelera-
tor being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance with
the engine running, apply the park-
ing brake and select position P
. A message appears if you try to
move the gear lever from posi-
tion P
to another position without
pressing the brake pedal.


Automatic operation



)
Select position D
for automatic

changing of the six gears.
The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.

D
and the gears selected automatically
appear in succession in the instrument
panel.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons. Never select position N
while the
vehicle is moving.
Never select positions P
or R
un-
less the vehicle is completely sta-
tionary.

Sport and snow programmes

These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.

Sport programme "S"


)
Press button "S"
, after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.

S
appears in the instrument
panel.

Snow programme " 7
"


)
Press button " 7
", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.

7
appears in the instrument
panel.
