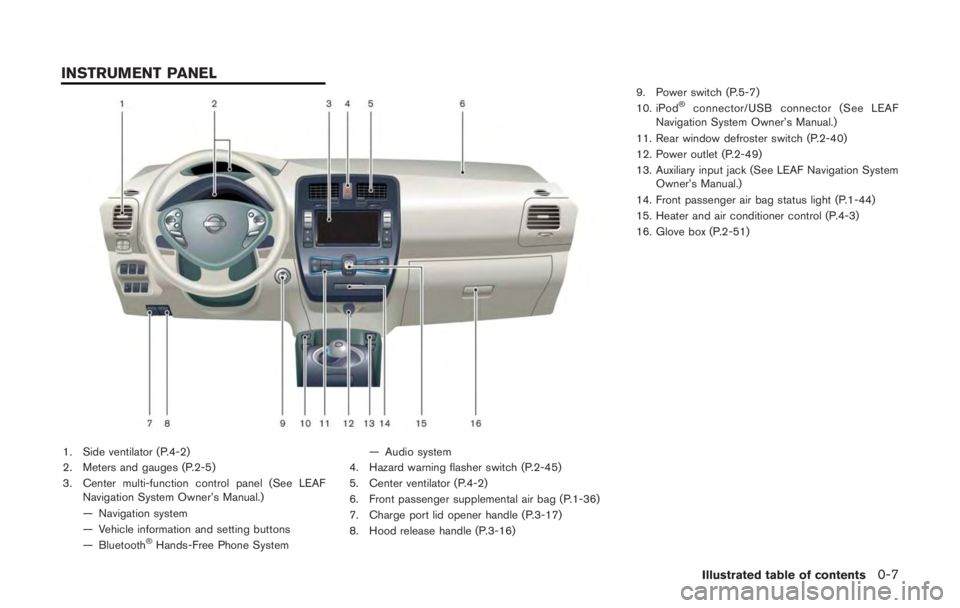

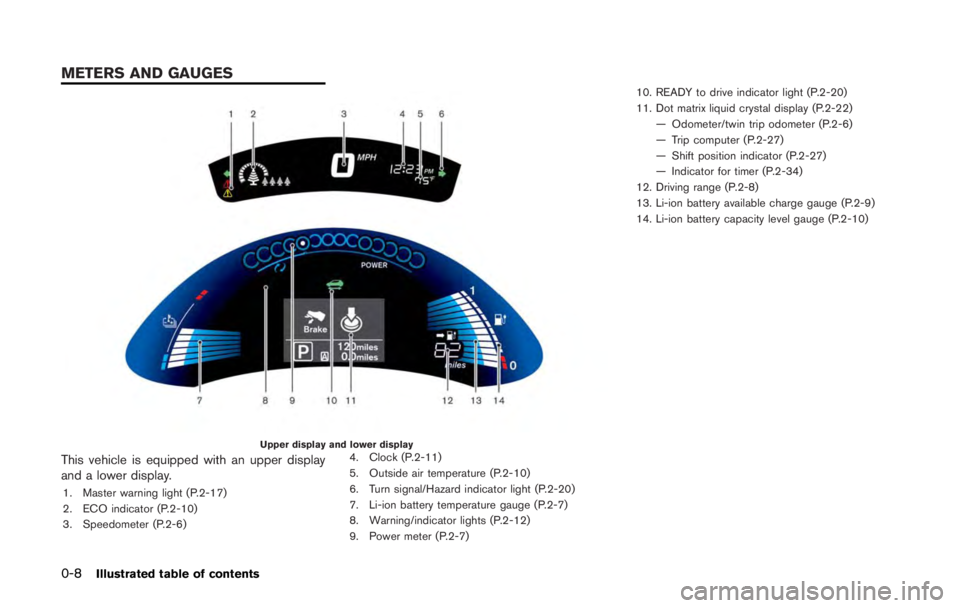

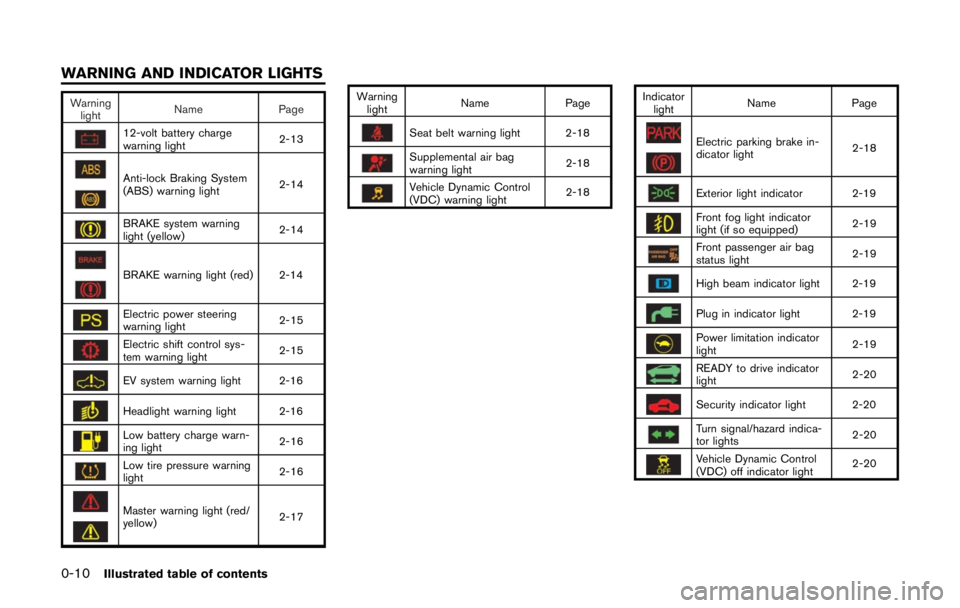

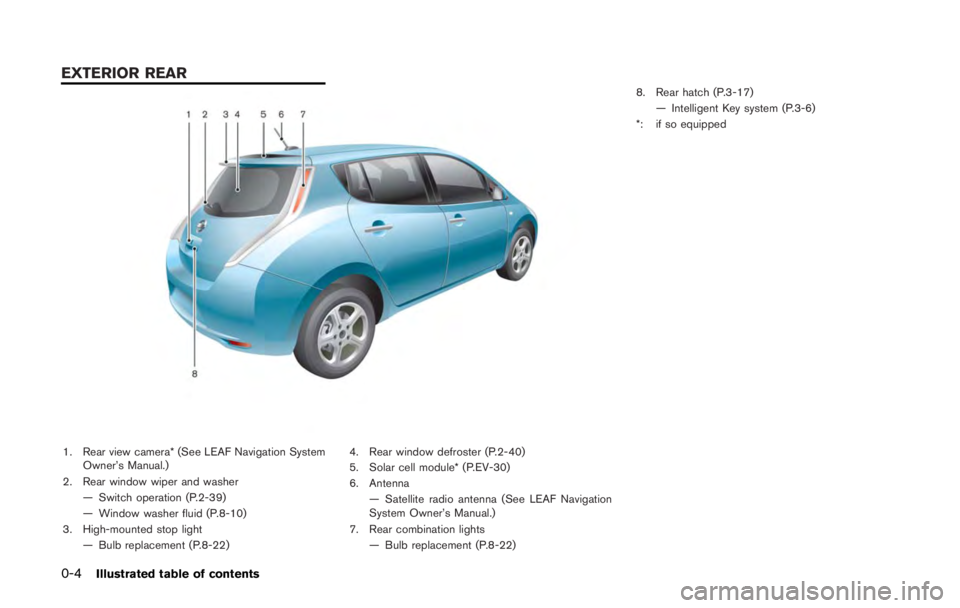

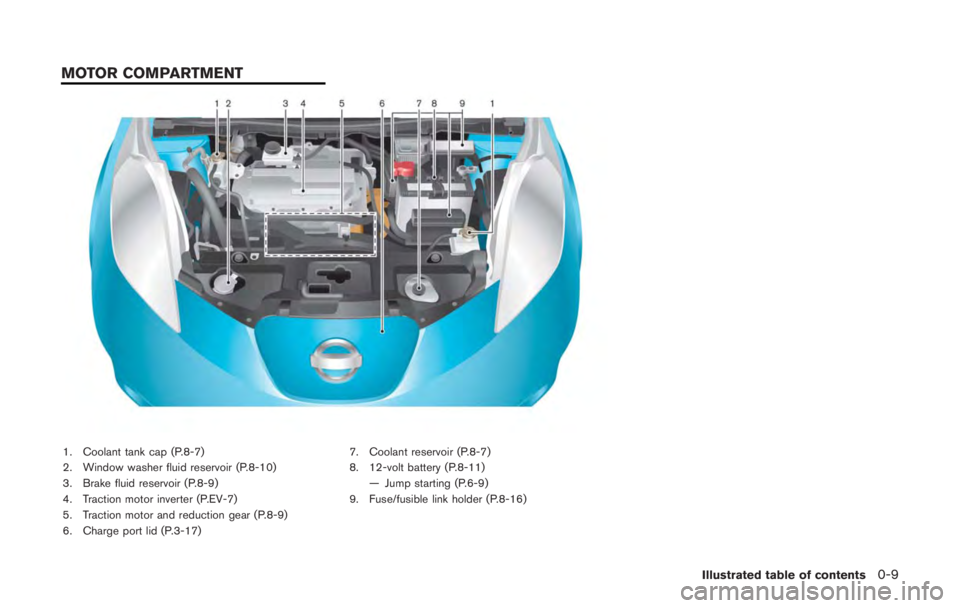

2011 NISSAN LEAF Owners Manual

Front

.Never tow a vehicle using the vehi-
cle tie down hook or recovery hook.
. Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
. Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov-
ery.
Rocking a stuck vehicle
If the vehicle is stuck in sand, snow, mud, etc.,
try to free it by following the procedure below.
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel left and right to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between the R
(Reverse) and D (Drive) positions.
.Apply the accelerator as little as possible
to maintain the rocking motion.
.Release the accelerator pedal before
shifting between R and D.
.Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.

If the electric parking brake cannot be released
by operating the electric parking brake switch,
the parking brake can be mechanically released.
Note that the following procedure must be
performed only when the parking brake needs
to be released in an emergency.
NOTE:
.Depending on the type of parking
brake system malfunction, the parking
brake switch operation indicator may
blink and the electric shift control
system warning light may illuminate in
the meter.
. If the electric shift control system
warning light illuminates in the meter,
stop the vehicle in a safe location and
contact a NISSAN certified LEAF dealer
immediately.
. The mechanical release of the parking
brake should only be done if there is a
malfunction of the electric parking
brake system. After the parking brake
mechanical release has been done, the
vehicle needs to be repaired. Have your
vehicle inspected by a NISSAN certified
LEAF dealer.
To release the parking brake mechanically,
perform the following procedure. 1. Confirm that the vehicle is in the P (Park)
position. If the vehicle cannot be placed in
the P (Park) position, contact a NISSAN
certified LEAF dealer.
2. Check that the parking brake switch opera- tion indicator does not illuminate.
3. Place power switch in the OFF position.
4. Open the rear hatch.
5. Remove the tool for mechanical release from the tool set that is located in the cargo area.
6. Remove the luggage floor board from the cargo area.
7. Remove the cap by turning counterclock- wise.
8. Insert the tool and turn it counterclockwise while pushing it in.
9. Continue to turn it until it stops and then release your hand. The tool will then return
approximately the same position it was in
before it was turned and release of the
parking brake will be completed. Do not turn
the tool beyond the point at which it stops.
Doing so may result in damage.
10. Store the tool for mechanical release by performing the procedure for removing it in
reverse.

.If the vehicle is driven with the
electric parking brake applied, the
electric brake components may
overheat causing a deterioration in
electric parking brake effectiveness
and premature electric parking
brake wear.
. The electric parking brake mechan-
ical release tool should be used
only to release the electric parking
brake in an emergency.
NOTE:
The electric parking brake mechanical
release tool can only be used to release
the electric parking brake. It can not to be
used to apply the electric parking brake.
The electric parking brake operation
switch indicator may turn off 1 minute
after the power switch is placed in the OFF
position. If the parking brake switch op-
eration indicator does not turn off, contact
a NISSAN certified LEAF dealer.

the fascia.)
5. Insert grommets into the mounting holes on the fascia.
6. Insert a flat-blade screwdriver into the grommet hole and turn the part
*C908.
7. Insert a J-nut into the license plate bracket before placing the license plate bracket on
the fascia.
8. Install the license plate bracket with screws.
9. Install the license plate with bolts that are not longer than 0.55 in (14 mm).

4.The resulting figure equals the available
amount of cargo and luggage load
capacity. For example, if the XXX
amount equals 1400 lbs. and there will
be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400−750 (5 x 150) = 650 lbs) or
(640 −340 (5 x 70) = 300 kg.)
5.Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(See “Measurement of weights” later in this
section.)
Also check tires for proper inflation pres-
sures. See the Tire and Loading Information
label.
