Features and controls
3-9
3

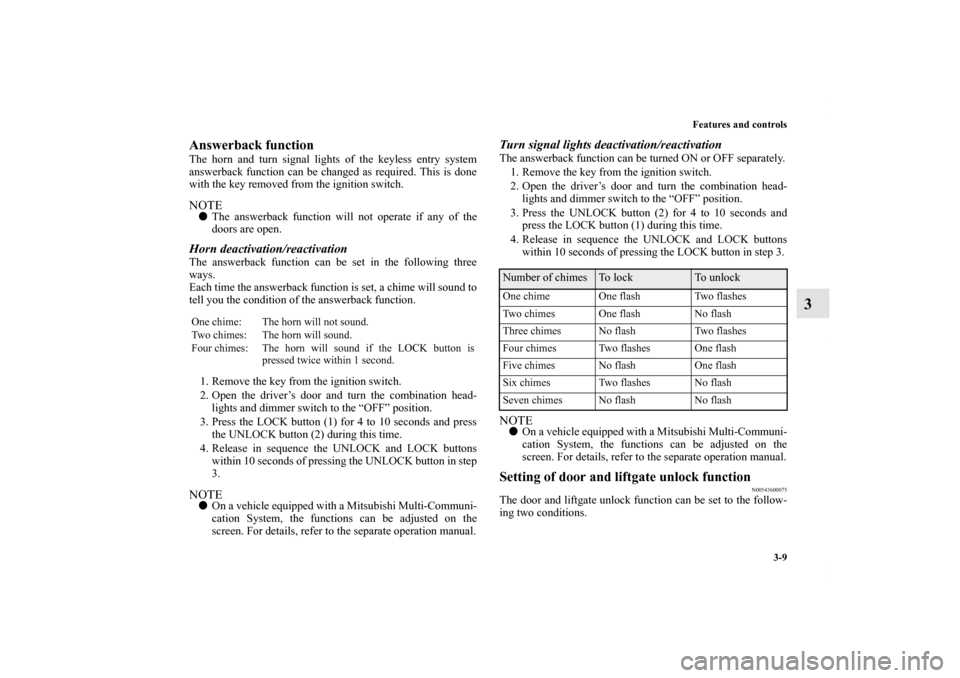

Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE
The answerback function will not operate if any of the
doors are open.Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Turn signal lights deactivation/reactivationThe answerback function can be turned ON or OFF separately.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00543600075
The door and liftgate unlock function can be set to the follow-
ing two conditions.
One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0120400US.book 9 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-10 Features and controls
3
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Replacement remote control transmitters
N00543800051
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the liftgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.Additional remote control transmitters
N00543900049
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 remote control transmitters, but
you may register up to 8 remote control transmitters.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock onlyBK0120400US.book 10 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-11
3

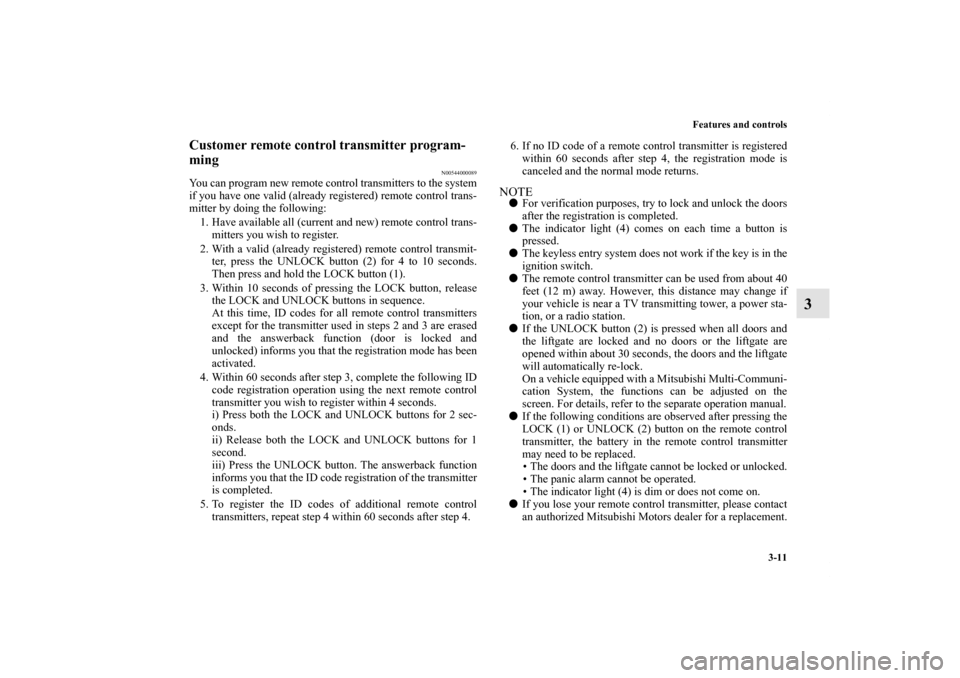

Customer remote control transmitter program-
ming
N00544000089
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0120400US.book 11 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

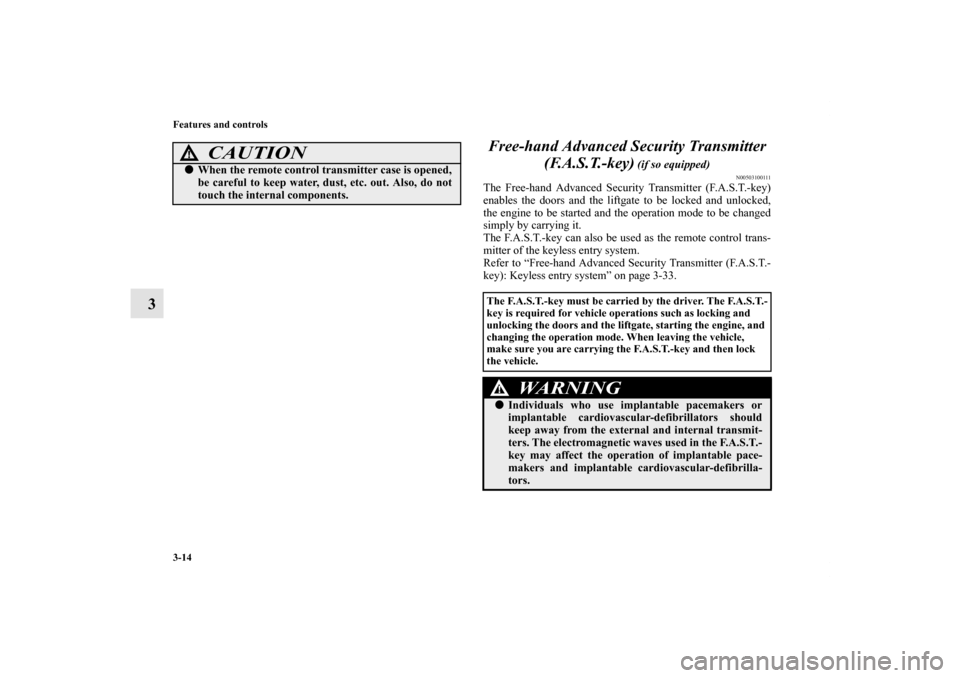

3-14 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100111
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the liftgate to be locked and unlocked,
the engine to be started and the operation mode to be changed
simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-33.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the liftgate, starting the engine, and
changing the operation mode. When leaving the vehicle,
make sure you are carrying the F.A.S.T.-key and then lock
the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0120400US.book 14 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-15
3

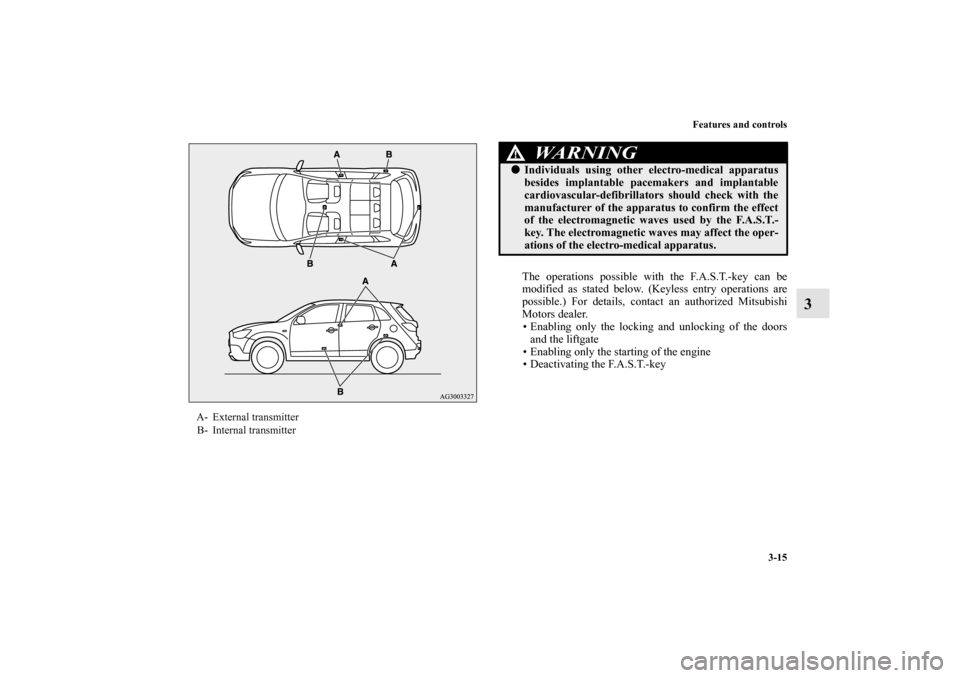

The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
• Enabling only the locking and unlocking of the doors
and the liftgate
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key
A- External transmitter
B- Internal transmitter
WA R N I N G
!
Individuals using other electro-medical apparatus
besides implantable pacemakers and implantable
cardiovascular-defibrillators should check with the
manufacturer of the apparatus to confirm the effect
of the electromagnetic waves used by the F.A.S.T.-
key. The electromagnetic waves may affect the oper-
ations of the electro-medical apparatus.
BK0120400US.book 15 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-16 Features and controls
3

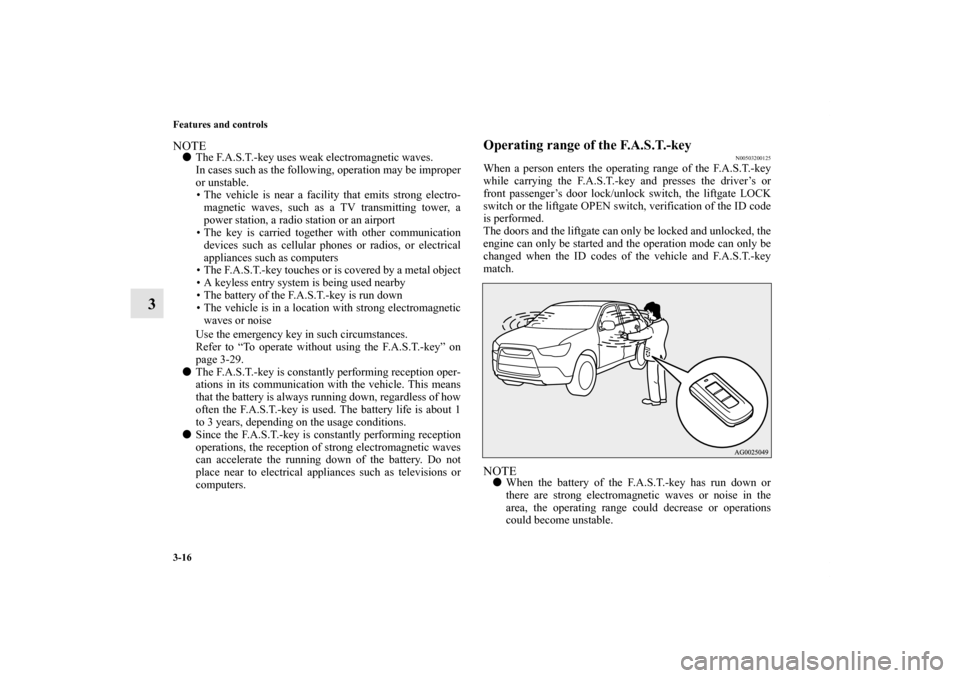

NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate without using the F.A.S.T.-key” on
page 3-29.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near to electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200125
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and presses the driver’s or
front passenger’s door lock/unlock switch, the liftgate LOCK
switch or the liftgate OPEN switch, verification of the ID code
is performed.
The doors and the liftgate can only be locked and unlocked, the
engine can only be started and the operation mode can only be
changed when the ID codes of the vehicle and F.A.S.T.-key
match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0120400US.book 16 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

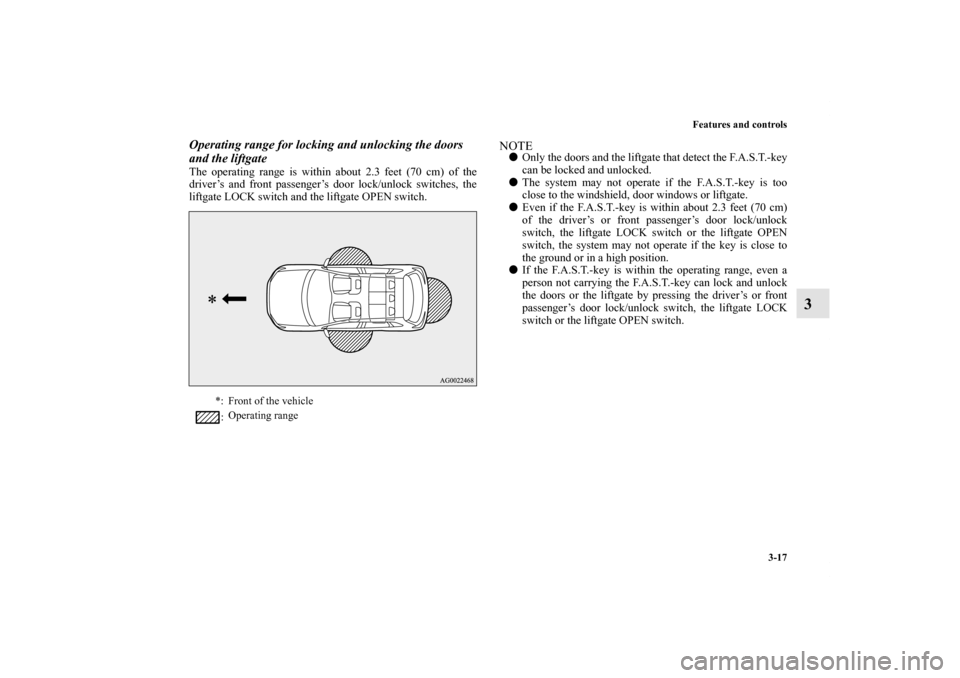

Features and controls
3-17
3
Operating range for locking and unlocking the doors
and the liftgateThe operating range is within about 2.3 feet (70 cm) of the
driver’s and front passenger’s door lock/unlock switches, the
liftgate LOCK switch and the liftgate OPEN switch.
NOTE
Only the doors and the liftgate that detect the F.A.S.T.-key
can be locked and unlocked.

The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or liftgate.

Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the driver’s or front passenger’s door lock/unlock
switch, the liftgate LOCK switch or the liftgate OPEN
switch, the system may not operate if the key is close to
the ground or in a high position.

If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the liftgate by pressing the driver’s or front
passenger’s door lock/unlock switch, the liftgate LOCK
switch or the liftgate OPEN switch.
*: Front of the vehicle
:Operating range
BK0120400US.book 17 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

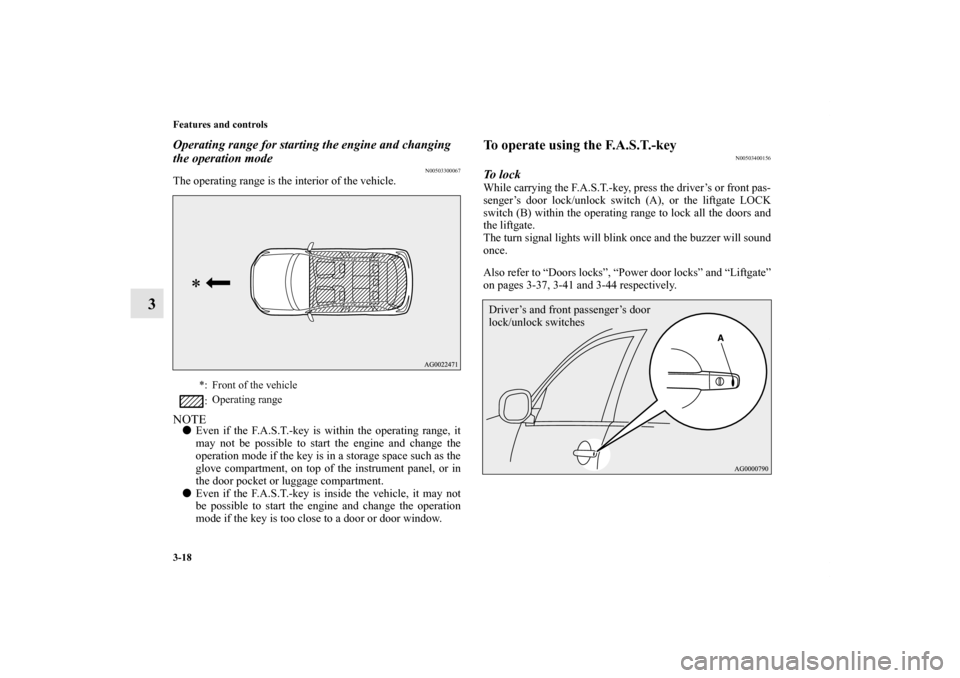

3-18 Features and controls
3
Operating range for starting the engine and changing
the operation mode
N00503300067
The operating range is the interior of the vehicle.NOTE
Even if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine and change the
operation mode if the key is in a storage space such as the
glove compartment, on top of the instrument panel, or in
the door pocket or luggage compartment.

Even if the F.A.S.T.-key is inside the vehicle, it may not
be possible to start the engine and change the operation
mode if the key is too close to a door or door window.
To operate using the F.A.S.T.-key
N00503400156
To l o c kWhile carrying the F.A.S.T.-key, press the driver’s or front pas-
senger’s door lock/unlock switch (A), or the liftgate LOCK
switch (B) within the operating range to lock all the doors and
the liftgate.
The turn signal lights will blink once and the buzzer will sound
once.
Also refer to “Doors locks”, “Power door locks” and “Liftgate”
on pages 3-37, 3-41 and 3-44 respectively.
*: Front of the vehicle
:Operating range
Driver’s and front passenger’s door
lock/unlock switches
BK0120400US.book 18 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
