Features and controls
3-29
3
the warning display and the buzzer buzzing for approximately
3 seconds to remind you to remove the key.

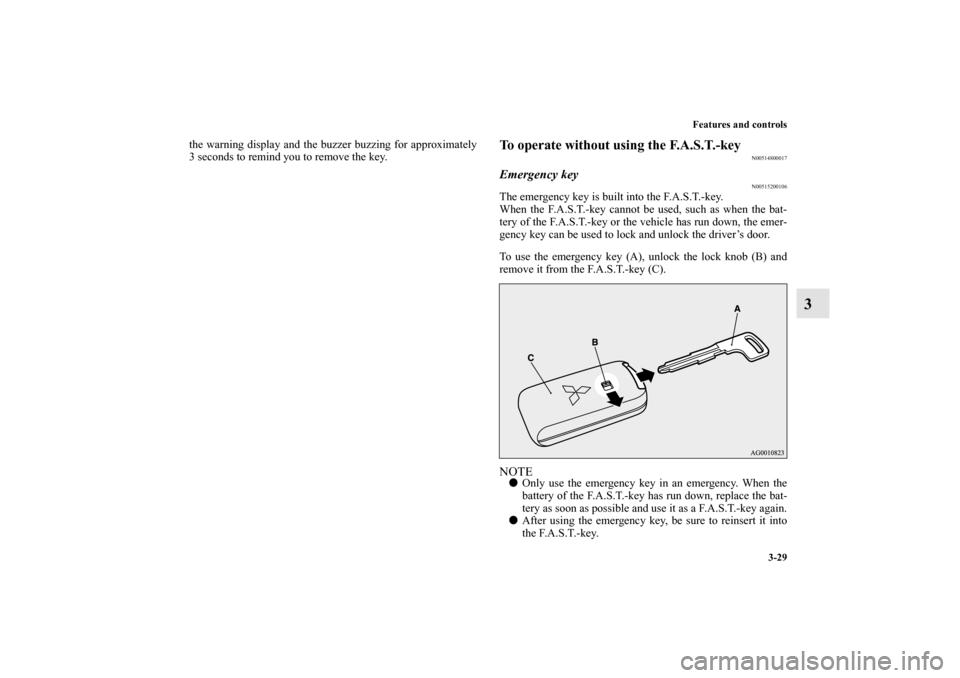

To operate without using the F.A.S.T.-key
N00514800017
Emergency key
N00515200106
The emergency key is built into the F.A.S.T.-key.
When the F.A.S.T.-key cannot be used, such as when the bat-
tery of the F.A.S.T.-key or the vehicle has run down, the emer-
gency key can be used to lock and unlock the driver’s door.
To use the emergency key (A), unlock the lock knob (B) and
remove it from the F.A.S.T.-key (C).NOTE
Only use the emergency key in an emergency. When the
battery of the F.A.S.T.-key has run down, replace the bat-
tery as soon as possible and use it as a F.A.S.T.-key again.

After using the emergency key, be sure to reinsert it into
the F.A.S.T.-key.
BK0120400US.book 29 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-30 Features and controls
3

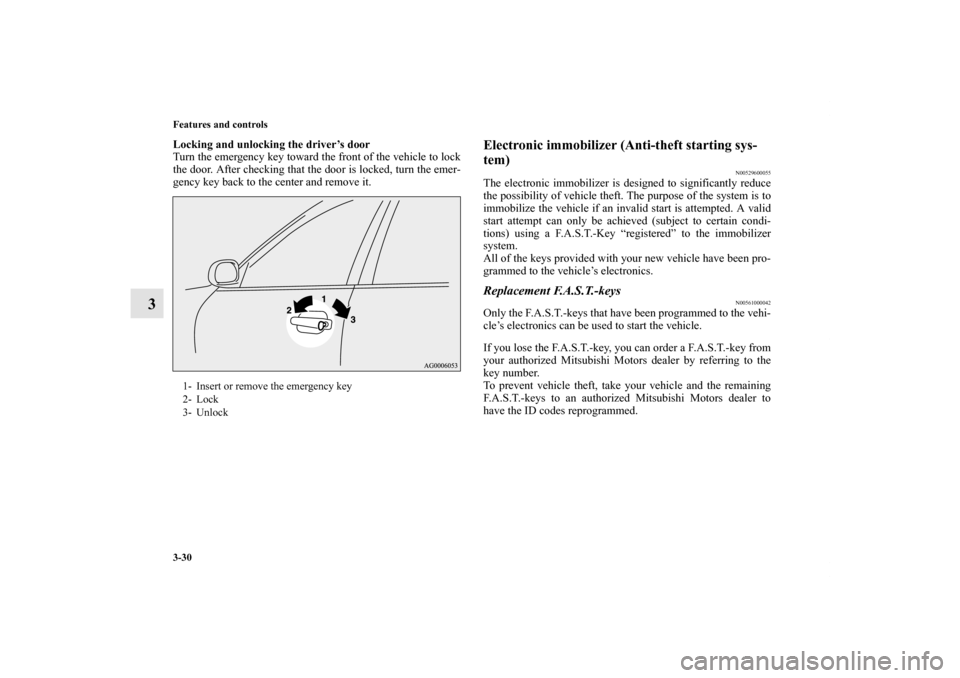

Locking and unlocking the driver’s door
Turn the emergency key toward the front of the vehicle to lock
the door. After checking that the door is locked, turn the emer-
gency key back to the center and remove it.
Electronic immobilizer (Anti-theft starting sys-
tem)
N00529600055
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a F.A.S.T.-Key “registered” to the immobilizer
system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.Replacement F.A.S.T.-keys
N00561000042
Only the F.A.S.T.-keys that have been programmed to the vehi-
cle’s electronics can be used to start the vehicle.
If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from
your authorized Mitsubishi Motors dealer by referring to the
key number.
To prevent vehicle theft, take your vehicle and the remaining
F.A.S.T.-keys to an authorized Mitsubishi Motors dealer to
have the ID codes reprogrammed.
1- Insert or remove the emergency key
2- Lock
3- Unlock
BK0120400US.book 30 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-32 Features and controls
3

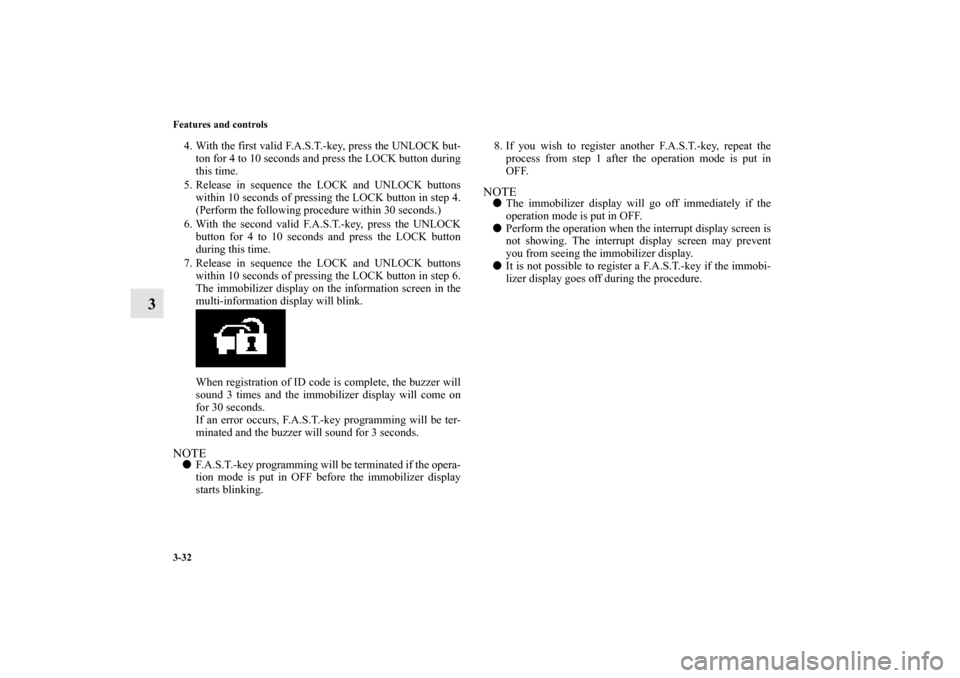

4. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton for 4 to 10 seconds and press the LOCK button during
this time.
5. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 4.
(Perform the following procedure within 30 seconds.)
6. With the second valid F.A.S.T.-key, press the UNLOCK
button for 4 to 10 seconds and press the LOCK button
during this time.
7. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 6.
The immobilizer display on the information screen in the
multi-information display will blink.
When registration of ID code is complete, the buzzer will
sound 3 times and the immobilizer display will come on
for 30 seconds.
If an error occurs, F.A.S.T.-key programming will be ter-
minated and the buzzer will sound for 3 seconds.NOTE
F.A.S.T.-key programming will be terminated if the opera-
tion mode is put in OFF before the immobilizer display
starts blinking.8. If you wish to register another F.A.S.T.-key, repeat the
process from step 1 after the operation mode is put in
OFF.
NOTE
The immobilizer display will go off immediately if the
operation mode is put in OFF.

Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a F.A.S.T.-key if the immobi-
lizer display goes off during the procedure.
BK0120400US.book 32 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-33
3

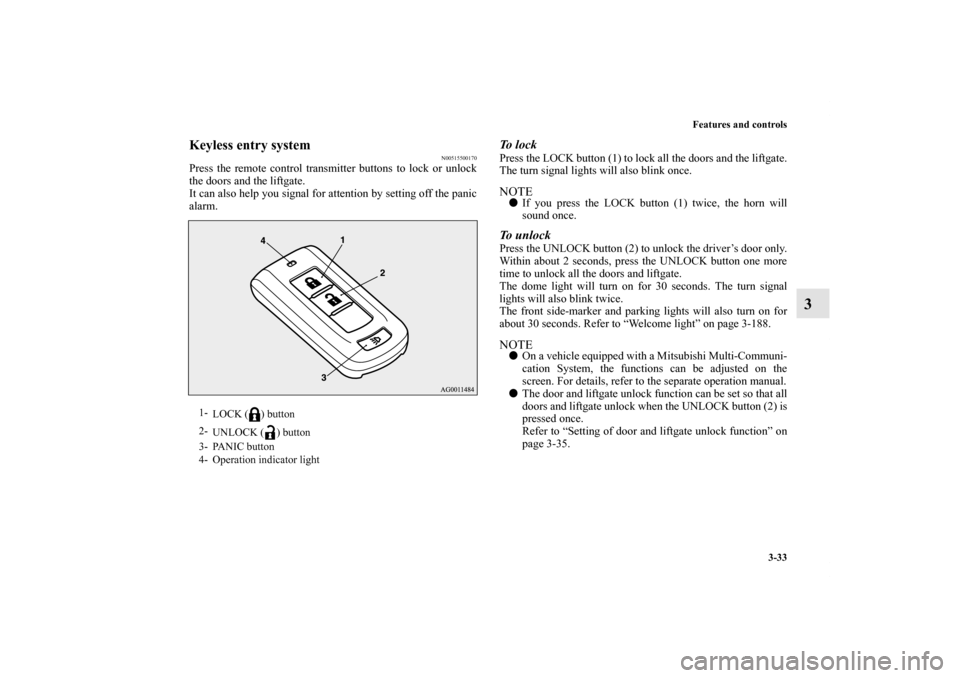

Keyless entry system
N00515500170
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice, the horn will
sound once.To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-188.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-35.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Operation indicator light
BK0120400US.book 33 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-34 Features and controls
3

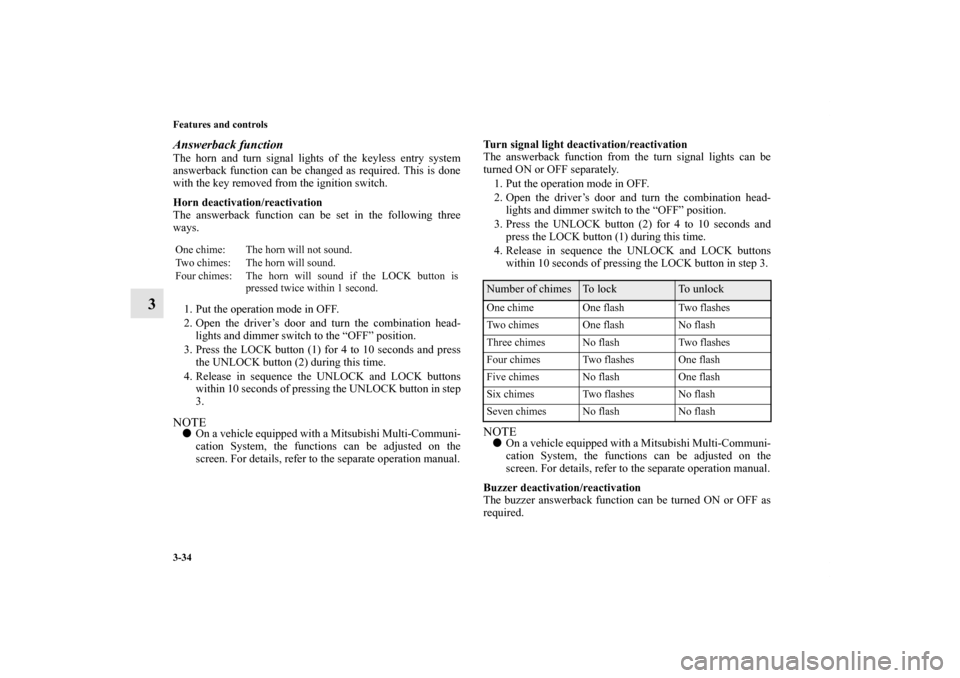

Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.
Horn deactivation/reactivation
The answerback function can be set in the following three
ways.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Turn signal light deactivation/reactivation
The answerback function from the turn signal lights can be
turned ON or OFF separately.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or OFF as
required.
One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0120400US.book 34 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-35
3

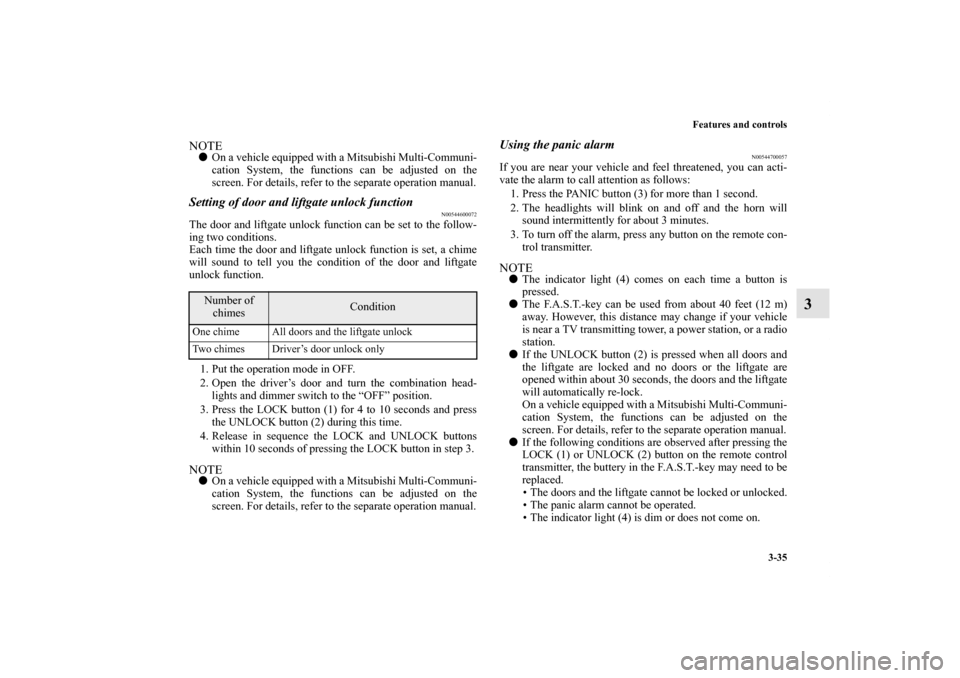

NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00544600072
The door and liftgate unlock function can be set to the follow-
ing two conditions.
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Using the panic alarm
N00544700057
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (4) comes on each time a button is
pressed.

The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the buttery in the F.A.S.T.-key may need to be
replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock only
BK0120400US.book 35 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-37
3

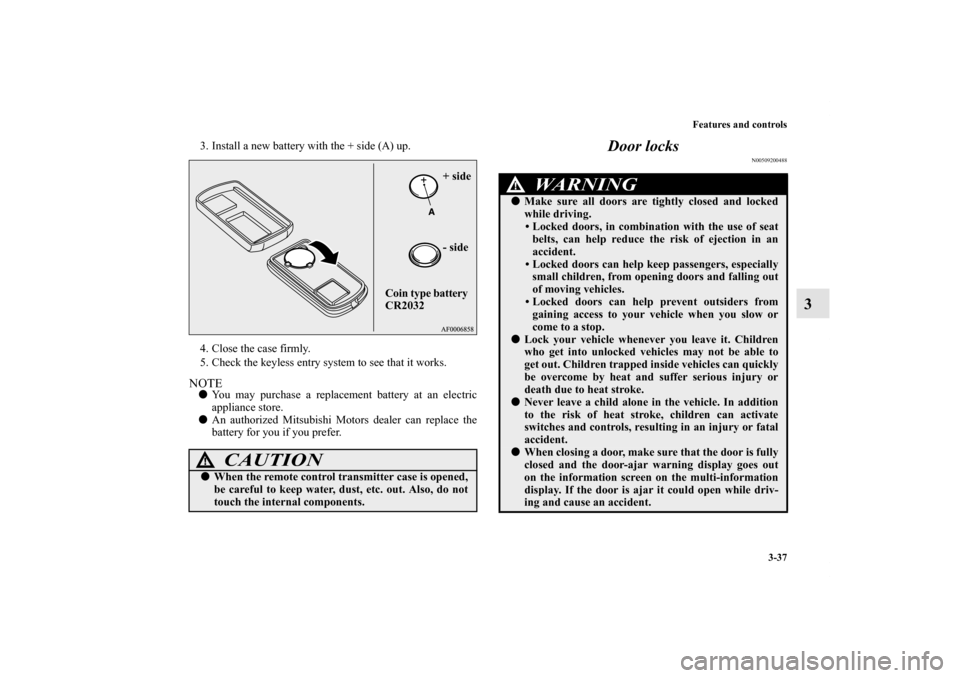

3. Install a new battery with the + side (A) up.
4. Close the case firmly.
5. Check the keyless entry system to see that it works.NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
Door locks
N00509200488
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
+ side
- side
Coin type battery
CR2032
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave a child alone in the vehicle. In addition
to the risk of heat stroke, children can activate
switches and controls, resulting in an injury or fatal
accident.
When closing a door, make sure that the door is fully
closed and the door-ajar warning display goes out
on the information screen on the multi-information
display. If the door is ajar it could open while driv-
ing and cause an accident.
BK0120400US.book 37 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-38 Features and controls
3

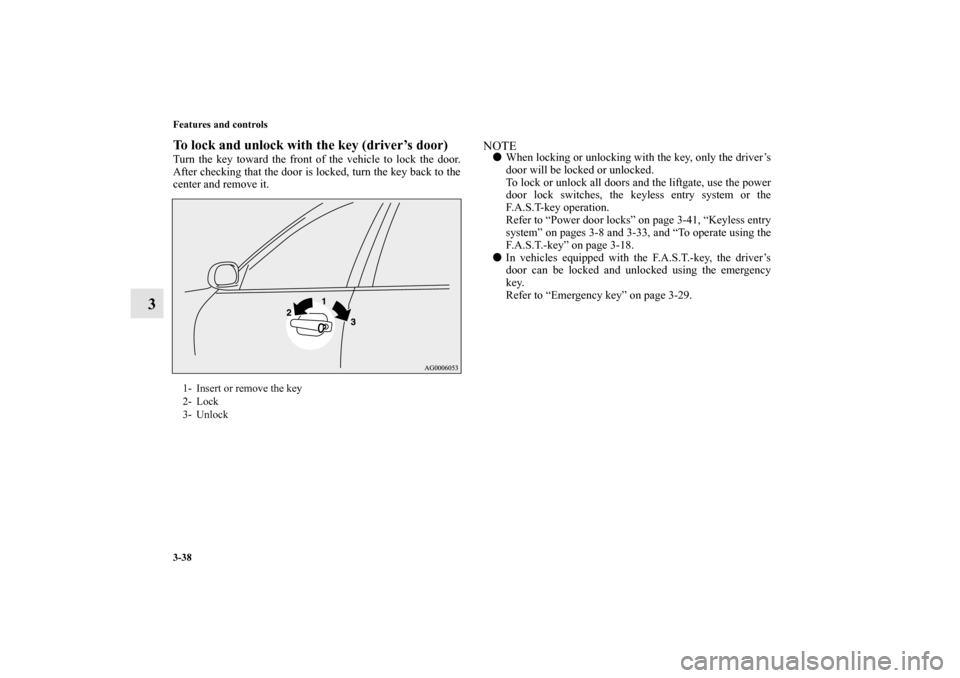

To lock and unlock with the key (driver’s door)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
NOTE
When locking or unlocking with the key, only the driver’s
door will be locked or unlocked.
To lock or unlock all doors and the liftgate, use the power
door lock switches, the keyless entry system or the
F.A.S.T-key operation.
Refer to “Power door locks” on page 3-41, “Keyless entry
system” on pages 3-8 and 3-33, and “To operate using the
F.A.S.T.-key” on page 3-18.

In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-29.
1- Insert or remove the key
2- Lock
3- Unlock
BK0120400US.book 38 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
