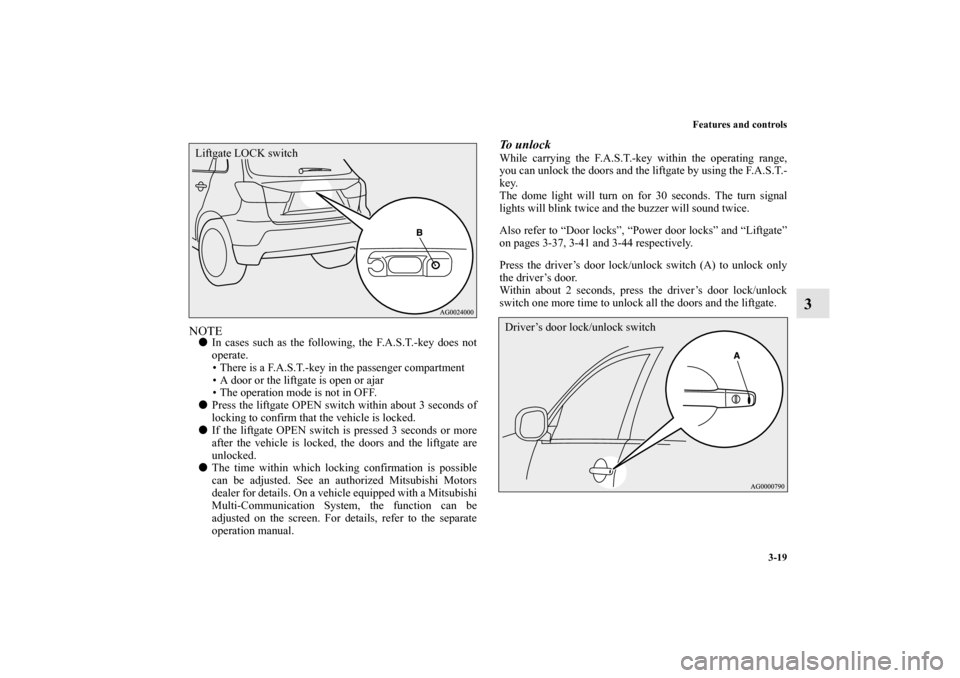

2011 MITSUBISHI OUTLANDER SPORT lock

Features and controls
3-19
3
NOTE
In cases such as the following, the F.A.S.T.-key does not
operate.
• There is a F.A.S.T.-key in the passenger compartment
• A door or the liftgate is open or ajar
• The operation mode is not in OFF.

Press the liftgate OPEN switch within about 3 seconds of
locking to confirm that the vehicle is locked.

If the liftgate OPEN switch is pressed 3 seconds or more
after the vehicle is locked, the doors and the liftgate are
unlocked.

The time within which locking confirmation is possible
can be adjusted. See an authorized Mitsubishi Motors
dealer for details. On a vehicle equipped with a Mitsubishi
Multi-Communication System, the function can be
adjusted on the screen. For details, refer to the separate
operation manual.
To unlockWhile carrying the F.A.S.T.-key within the operating range,
you can unlock the doors and the liftgate by using the F.A.S.T.-
key.
The dome light will turn on for 30 seconds. The turn signal
lights will blink twice and the buzzer will sound twice.
Also refer to “Door locks”, “Power door locks” and “Liftgate”
on pages 3-37, 3-41 and 3-44 respectively.
Press the driver’s door lock/unlock switch (A) to unlock only
the driver’s door.
Within about 2 seconds, press the driver’s door lock/unlock
switch one more time to unlock all the doors and the liftgate.
Liftgate LOCK switch
Driver’s door lock/unlock switch
BK0120400US.book 19 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

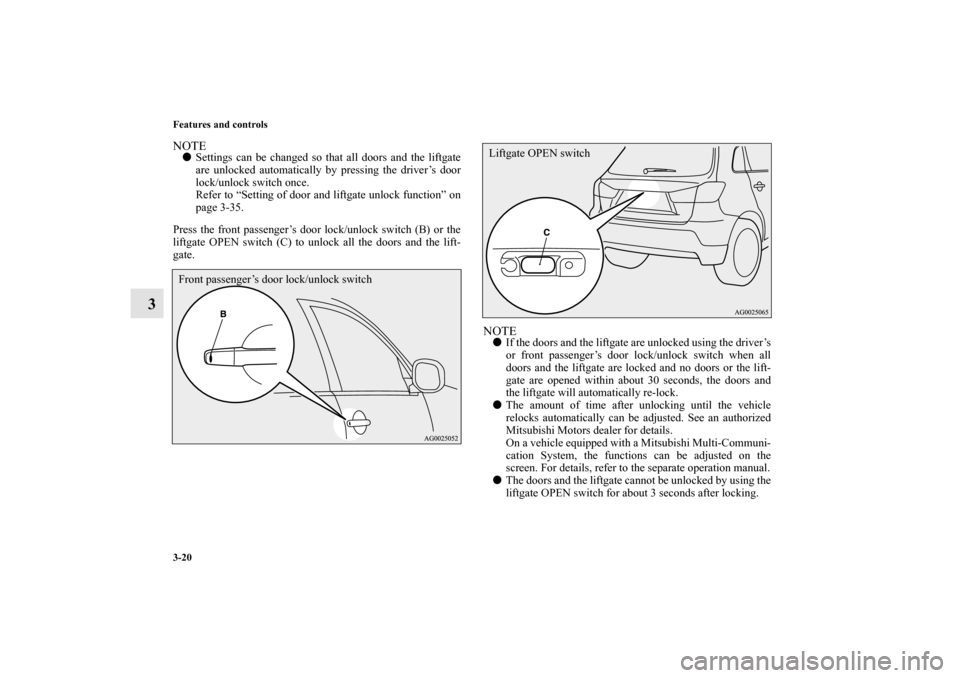

3-20 Features and controls
3
NOTE
Settings can be changed so that all doors and the liftgate
are unlocked automatically by pressing the driver’s door
lock/unlock switch once.
Refer to “Setting of door and liftgate unlock function” on
page 3-35.
Press the front passenger’s door lock/unlock switch (B) or the
liftgate OPEN switch (C) to unlock all the doors and the lift-
gate.
NOTE
If the doors and the liftgate are unlocked using the driver’s
or front passenger’s door lock/unlock switch when all
doors and the liftgate are locked and no doors or the lift-
gate are opened within about 30 seconds, the doors and
the liftgate will automatically re-lock.

The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The doors and the liftgate cannot be unlocked by using the
liftgate OPEN switch for about 3 seconds after locking.
Front passenger’s door lock/unlock switch
Liftgate OPEN switch
BK0120400US.book 20 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

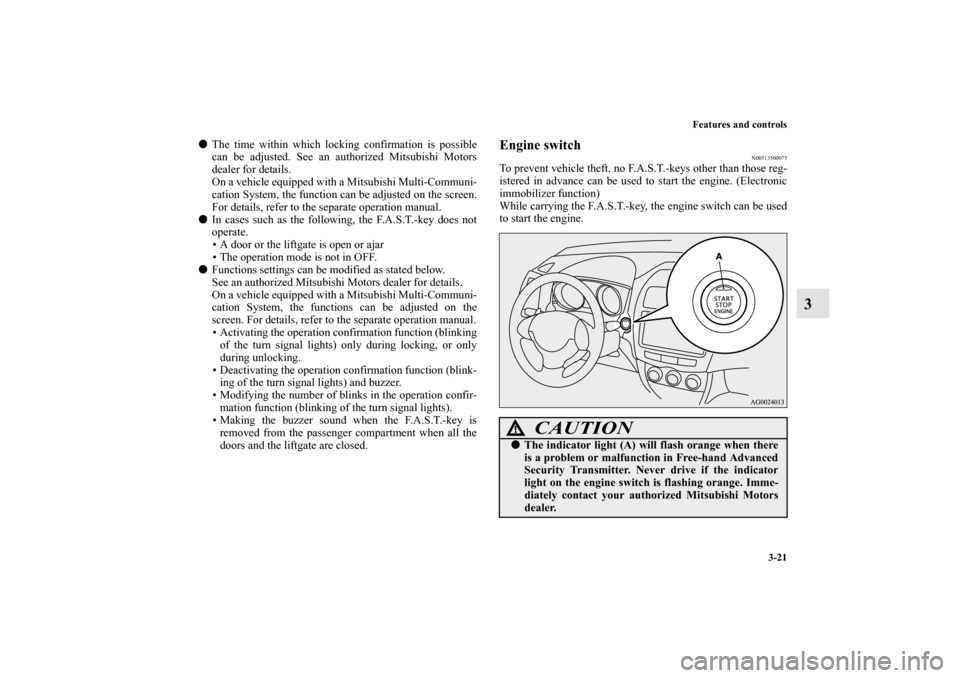

Features and controls
3-21
3

The time within which locking confirmation is possible
can be adjusted. See an authorized Mitsubishi Motors
dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the function can be adjusted on the screen.
For details, refer to the separate operation manual.

In cases such as the following, the F.A.S.T.-key does not
operate.
• A door or the liftgate is open or ajar
• The operation mode is not in OFF.

Functions settings can be modified as stated below.
See an authorized Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
• Activating the operation confirmation function (blinking
of the turn signal lights) only during locking, or only
during unlocking.
• Deactivating the operation confirmation function (blink-
ing of the turn signal lights) and buzzer.
• Modifying the number of blinks in the operation confir-
mation function (blinking of the turn signal lights).
• Making the buzzer sound when the F.A.S.T.-key is
removed from the passenger compartment when all the
doors and the liftgate are closed.
Engine switch
N00513500075
To prevent vehicle theft, no F.A.S.T.-keys other than those reg-
istered in advance can be used to start the engine. (Electronic
immobilizer function)
While carrying the F.A.S.T.-key, the engine switch can be used
to start the engine.
CAUTION
!
The indicator light (A) will flash orange when there
is a problem or malfunction in Free-hand Advanced
Security Transmitter. Never drive if the indicator
light on the engine switch is flashing orange. Imme-
diately contact your authorized Mitsubishi Motors
dealer.
BK0120400US.book 21 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-23
3
ACC power auto-cutout function
N00568100013
After approximately 30 minutes has elapsed with the operation
mode in ACC, the function automatically cuts out the power
for the audio system and other electric devices that can be
operated with that mode.
When the engine switch is pressed while the operation mode is
in ACC, the power is supplied again to those devices.
NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
approximately 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, we recommend you to consult an authorized
Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate Mitsubishi Multi-Communications
System manual for details.Warning activation
N00503500173
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized Mit-
subishi Motors dealer.
CAUTION
!
When the engine is not running, put the operation
mode in OFF. Leaving the operation mode in ON or
ACC for a long time when the engine is not running
may cause the battery to be discharged, making it
impossible to start the engine and to lock and unlock
the steering wheel.
When the battery is disconnected, the current oper-
ation mode is memorized. After reconnecting the
battery, the memorized mode is selected automati-
cally. Before disconnecting the battery for repair or
replacement, make sure to put the operation mode
in OFF.
Be careful if you are not sure which operation mode
the vehicle is in when the battery is run down.
The operation mode cannot be changed from OFF to
ACC or ON if the F.A.S.T.-key is not detected to be
in the vehicle. Refer to “Operating range for start-
ing the engine and changing the operation mode” on
page 3-18.
There is a problem in the F.A.S.T.-key
BK0120400US.book 23 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

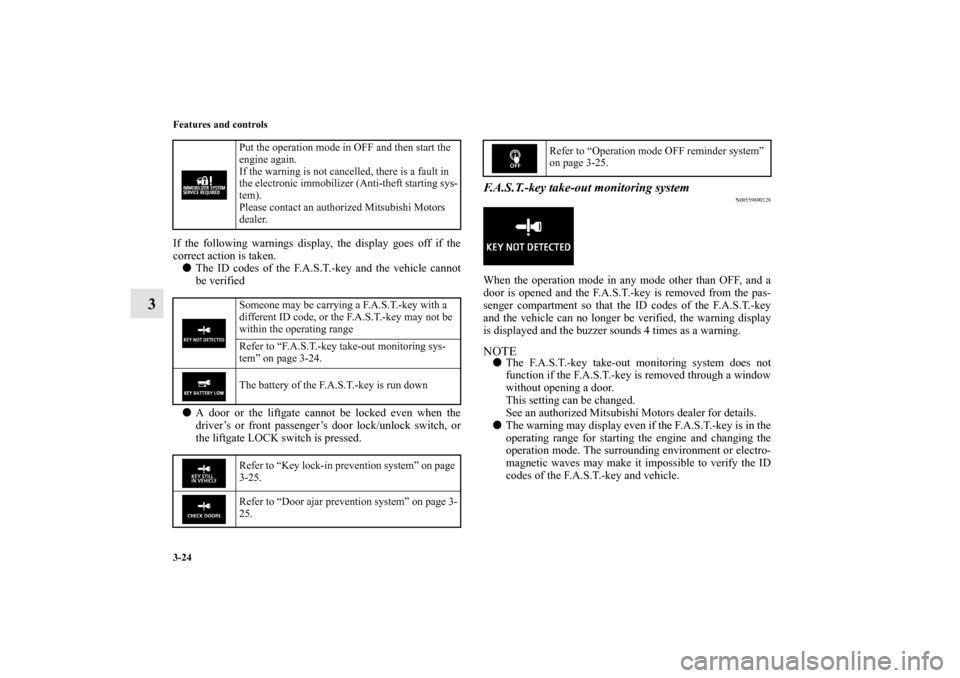

3-24 Features and controls
3
If the following warnings display, the display goes off if the
correct action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified

A door or the liftgate cannot be locked even when the
driver’s or front passenger’s door lock/unlock switch, or
the liftgate LOCK switch is pressed.
F.A.S.T.-key take-out monitoring system
N00559800128
When the operation mode in any mode other than OFF, and a
door is opened and the F.A.S.T.-key is removed from the pas-
senger compartment so that the ID codes of the F.A.S.T.-key
and the vehicle can no longer be verified, the warning display
is displayed and the buzzer sounds 4 times as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.

The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine and changing the
operation mode. The surrounding environment or electro-
magnetic waves may make it impossible to verify the ID
codes of the F.A.S.T.-key and vehicle.
Put the operation mode in OFF and then start the
engine again.
If the warning is not cancelled, there is a fault in
the electronic immobilizer (Anti-theft starting sys-
tem).
Please contact an authorized Mitsubishi Motors
dealer.
Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-24.
The battery of the F.A.S.T.-key is run down
Refer to “Key lock-in prevention system” on page
3-25.
Refer to “Door ajar prevention system” on page 3-
25.
Refer to “Operation mode OFF reminder system”
on page 3-25.
BK0120400US.book 24 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

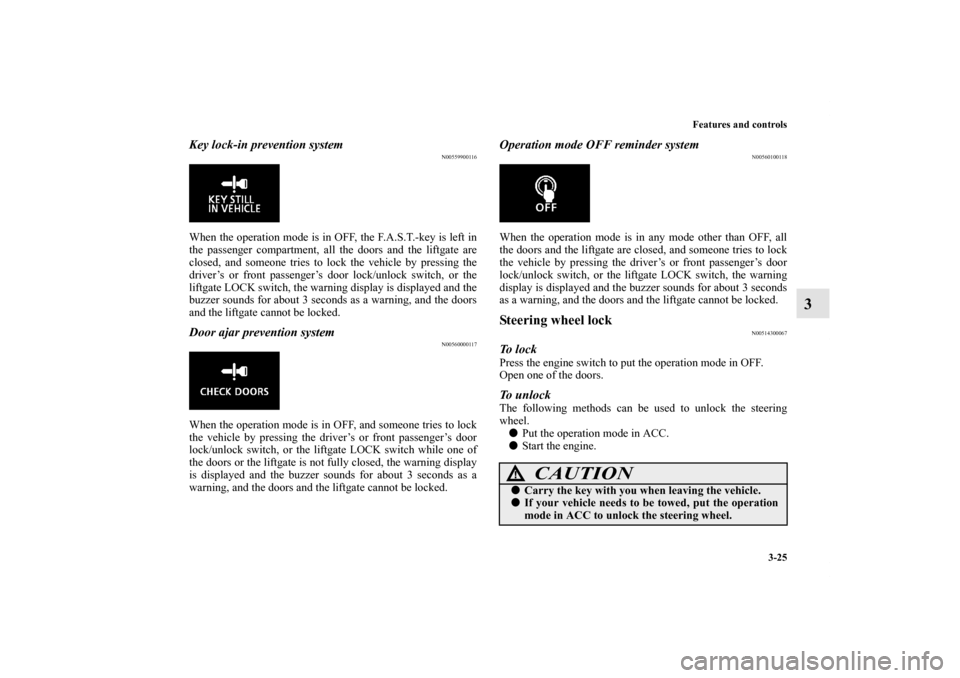

Features and controls
3-25
3
Key lock-in prevention system
N00559900116
When the operation mode is in OFF, the F.A.S.T.-key is left in
the passenger compartment, all the doors and the liftgate are
closed, and someone tries to lock the vehicle by pressing the
driver’s or front passenger’s door lock/unlock switch, or the
liftgate LOCK switch, the warning display is displayed and the
buzzer sounds for about 3 seconds as a warning, and the doors
and the liftgate cannot be locked.Door ajar prevention system
N00560000117
When the operation mode is in OFF, and someone tries to lock
the vehicle by pressing the driver’s or front passenger’s door
lock/unlock switch, or the liftgate LOCK switch while one of
the doors or the liftgate is not fully closed, the warning display
is displayed and the buzzer sounds for about 3 seconds as a
warning, and the doors and the liftgate cannot be locked.
Operation mode OFF reminder system
N00560100118
When the operation mode is in any mode other than OFF, all
the doors and the liftgate are closed, and someone tries to lock
the vehicle by pressing the driver’s or front passenger’s door
lock/unlock switch, or the liftgate LOCK switch, the warning
display is displayed and the buzzer sounds for about 3 seconds
as a warning, and the doors and the liftgate cannot be locked.Steering wheel lock
N00514300067
To l o c kPress the engine switch to put the operation mode in OFF.
Open one of the doors.To unlockThe following methods can be used to unlock the steering
wheel.

Put the operation mode in ACC.

Start the engine.
CAUTION
!
Carry the key with you when leaving the vehicle.
If your vehicle needs to be towed, put the operation
mode in ACC to unlock the steering wheel.
BK0120400US.book 25 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

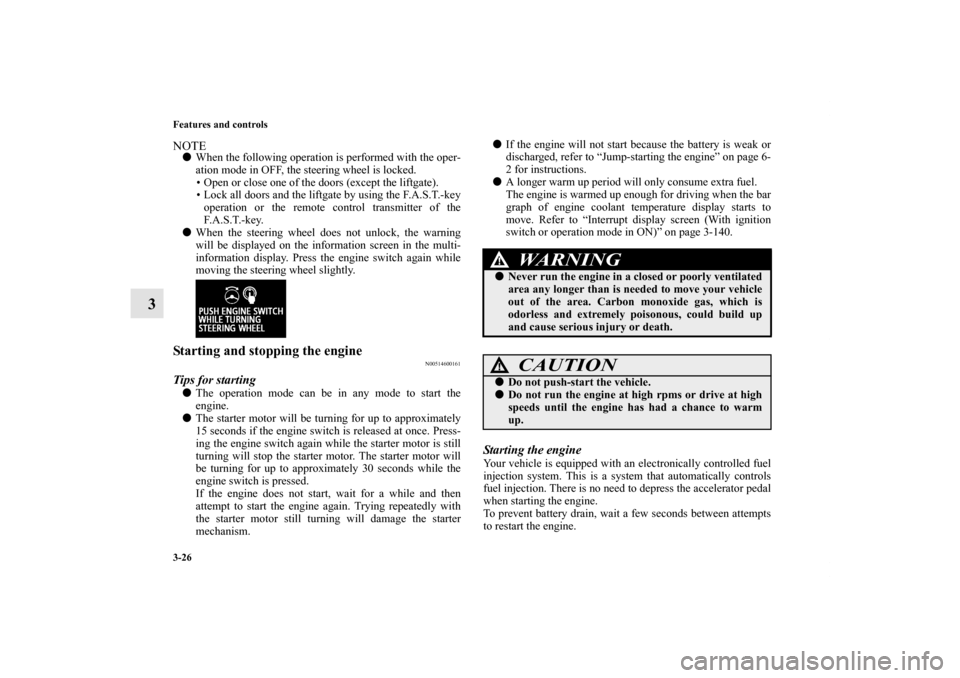

3-26 Features and controls
3
NOTE
When the following operation is performed with the oper-
ation mode in OFF, the steering wheel is locked.
• Open or close one of the doors (except the liftgate).
• Lock all doors and the liftgate by using the F.A.S.T.-key
operation or the remote control transmitter of the
F. A . S . T. - k e y.

When the steering wheel does not unlock, the warning
will be displayed on the information screen in the multi-
information display. Press the engine switch again while
moving the steering wheel slightly.Starting and stopping the engine
N00514600161
Tips for starting
The operation mode can be in any mode to start the
engine.

The starter motor will be turning for up to approximately
15 seconds if the engine switch is released at once. Press-
ing the engine switch again while the starter motor is still
turning will stop the starter motor. The starter motor will
be turning for up to approximately 30 seconds while the
engine switch is pressed.
If the engine does not start, wait for a while and then
attempt to start the engine again. Trying repeatedly with
the starter motor still turning will damage the starter
mechanism.
If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch or operation mode in ON)” on page 3-140.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is no need to depress the accelerator pedal
when starting the engine.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
BK0120400US.book 26 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-27
3
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Make sure the parking brake is applied.
3. Press and hold the brake pedal down with your right foot.
4. Press and hold the clutch pedal all the way down (manual
transaxle).
5. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT), make sure the selector lever is in the “P”
(PARK) position.NOTE
On vehicles equipped with continuously variable trans-
mission (CVT), the engine can only be started when the
selector lever is in the “P” (PARK) or “N” (NEUTRAL)
position.
For safety reasons, the engine should be started when the
selector lever is in the “P” (PARK) position in which the
driving wheels lock.
6. Press the engine switch.
7. Confirm that all warning lights and warning displays are
functioning properly.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.Startability of continuously variable transmission (CVT)
vehicles with an ambient temperature of -22 °F (-30 °C) or
lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
Stopping the engine
N00568200014
NOTE
If you have to bring the engine to an emergency stop
while driving, press and hold the engine switch for 3 sec-
onds or more, or press it quickly 3 times or more. The
engine will stop and the operation mode will go to ACC.
WA R N I N G
!
Do not operate the engine switch while driving
except in an emergency. If the engine is stopped
while driving, the brake servomechanism will cease
to function and braking efficiency will deteriorate.
Also, the power steering system will not function
and it will require greater manual effort to operate
the steering. This could result in a serious accident.
BK0120400US.book 27 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
