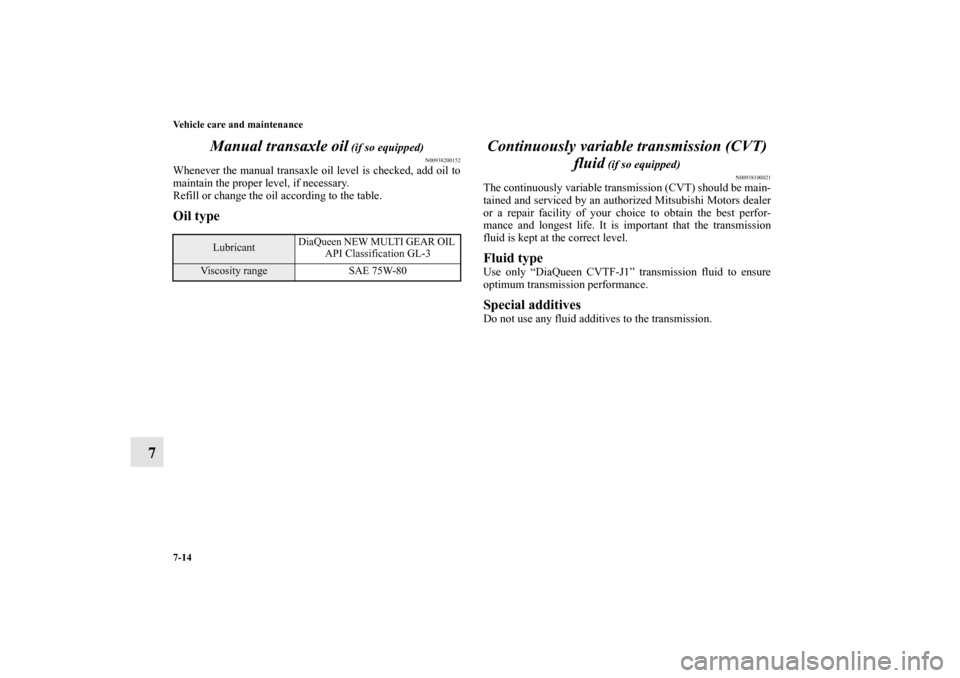

7-14 Vehicle care and maintenance
7Manual transaxle oil
(if so equipped)
N00938200152
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938100021
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission
fluid is kept at the correct level.Fluid typeUse only “DiaQueen CVTF-J1” transmission fluid to ensure
optimum transmission performance.Special additivesDo not use any fluid additives to the transmission.
LubricantDiaQueen NEW MULTI GEAR OIL
API Classification GL-3
Viscosity range SAE 75W-80
