2011 LINCOLN MKZ Owners Manual

Navigation system/SYNChands
free control features (if
equipped)
Press
control briefly until the
voice
icon appears on the
Navigation display to use the voice
command feature.
Press
to activate phone mode or
answer a phone call. Press VOL + or
to adjust volume. Press and
hold
to exit phone mode or end a call.
For further information on the Navigation system/SYNCsystem, refer to
theNavigation SystemandSYNCsupplements.
MOON ROOF (IF EQUIPPED)
You can move the glass panel of the moon roof back to open or tilt up
(from the closed position) to ventilate the vehicle.
WARNING:Do not let children play with the moon roof or leave
children unattended in the vehicle. They may seriously hurt
themselves.
To open the moon roof:
The moon roof is equipped with an
automatic, one-touch, express
opening, closing and venting feature.
Press and release the rear portion of
the control. To stop motion at any
time during the one-touch
operation, press the control a
second time.
WARNING:When closing the moon roof, you should verify that
it is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
To close the moon roof:
The moon roof is equipped with an automatic, one-touch, express closing
feature. Press and release the front portion of the control. To stop
motion at any time during the one-touch closing, press the control again.
Driver Controls
81
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

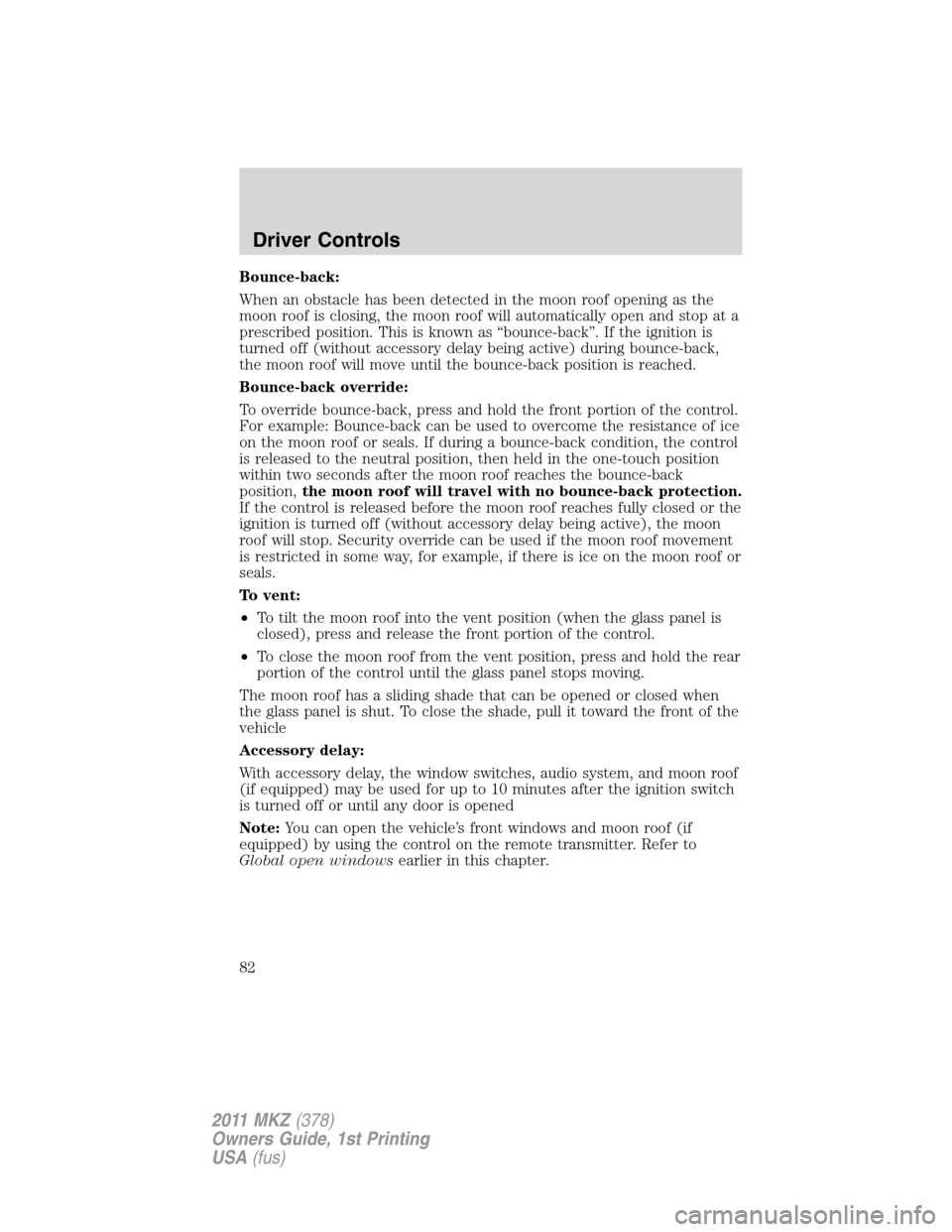

Bounce-back:
When an obstacle has been detected in the moon roof opening as the
moon roof is closing, the moon roof will automatically open and stop at a
prescribed position. This is known as “bounce-back”. If the ignition is
turned off (without accessory delay being active) during bounce-back,
the moon roof will move until the bounce-back position is reached.
Bounce-back override:
To override bounce-back, press and hold the front portion of the control.
For example: Bounce-back can be used to overcome the resistance of ice
on the moon roof or seals. If during a bounce-back condition, the control
is released to the neutral position, then held in the one-touch position
within two seconds after the moon roof reaches the bounce-back
position,the moon roof will travel with no bounce-back protection.
If the control is released before the moon roof reaches fully closed or the
ignition is turned off (without accessory delay being active), the moon
roof will stop. Security override can be used if the moon roof movement
is restricted in some way, for example, if there is ice on the moon roof or
seals.
To vent:
•To tilt the moon roof into the vent position (when the glass panel is
closed), press and release the front portion of the control.
•To close the moon roof from the vent position, press and hold the rear
portion of the control until the glass panel stops moving.
The moon roof has a sliding shade that can be opened or closed when
the glass panel is shut. To close the shade, pull it toward the front of the
vehicle
Accessory delay:
With accessory delay, the window switches, audio system, and moon roof
(if equipped) may be used for up to 10 minutes after the ignition switch
is turned off or until any door is opened
Note:You can open the vehicle’s front windows and moon roof (if
equipped) by using the control on the remote transmitter. Refer to
Global open windowsearlier in this chapter.
Driver Controls
82
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

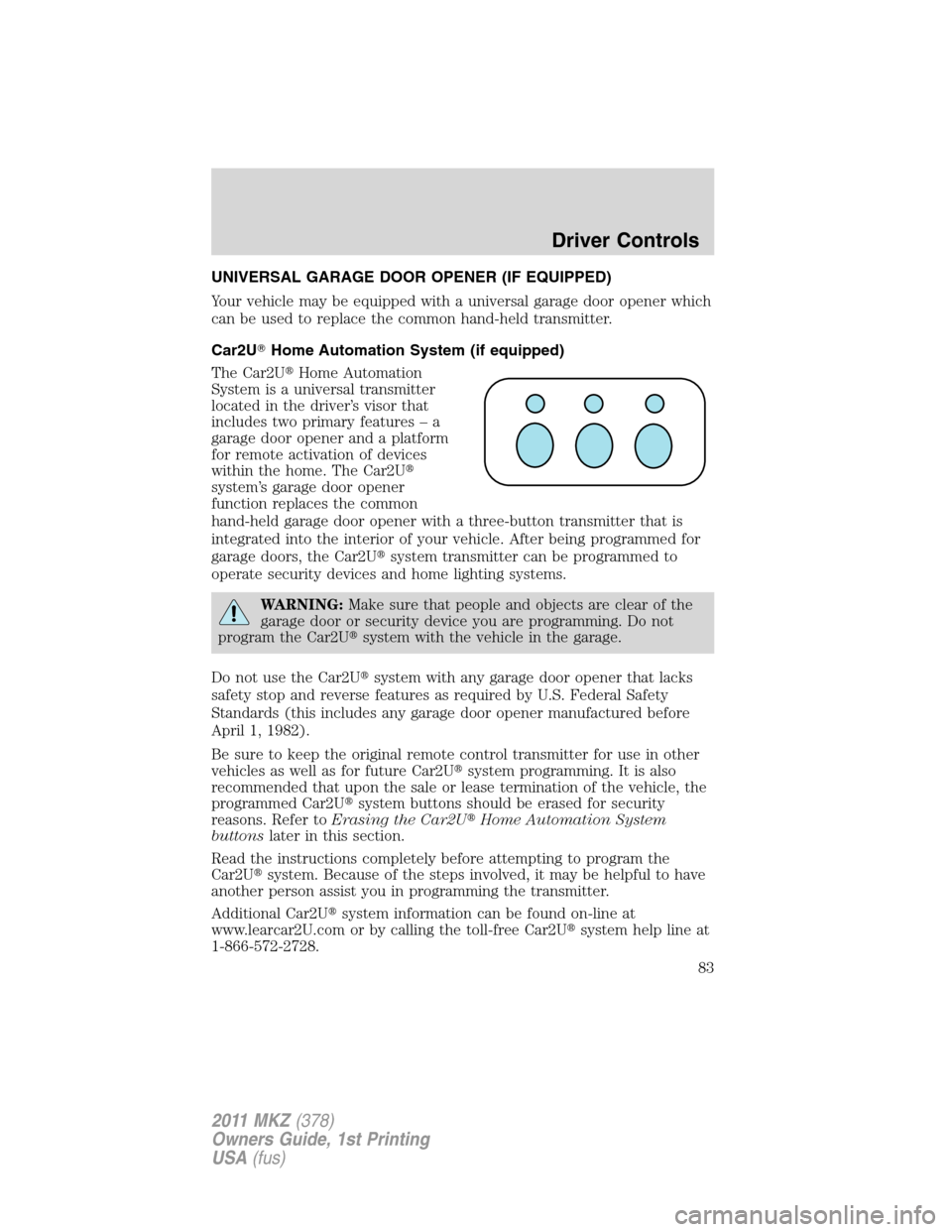

UNIVERSAL GARAGE DOOR OPENER (IF EQUIPPED)
Your vehicle may be equipped with a universal garage door opener which
can be used to replace the common hand-held transmitter.
Car2UHome Automation System (if equipped)
The Car2UHome Automation
System is a universal transmitter
located in the driver’s visor that
includes two primary features – a
garage door opener and a platform
for remote activation of devices
within the home. The Car2U
system’s garage door opener
function replaces the common
hand-held garage door opener with a three-button transmitter that is
integrated into the interior of your vehicle. After being programmed for
garage doors, the Car2Usystem transmitter can be programmed to
operate security devices and home lighting systems.
WARNING:Make sure that people and objects are clear of the
garage door or security device you are programming. Do not
program the Car2Usystem with the vehicle in the garage.
Do not use the Car2Usystem with any garage door opener that lacks
safety stop and reverse features as required by U.S. Federal Safety
Standards (this includes any garage door opener manufactured before
April 1, 1982).
Be sure to keep the original remote control transmitter for use in other
vehicles as well as for future Car2Usystem programming. It is also
recommended that upon the sale or lease termination of the vehicle, the
programmed Car2Usystem buttons should be erased for security
reasons. Refer toErasing the Car2UHome Automation System
buttonslater in this section.
Read the instructions completely before attempting to program the
Car2Usystem. Because of the steps involved, it may be helpful to have
another person assist you in programming the transmitter.
Additional Car2Usystem information can be found on-line at
www.learcar2U.com or by calling the toll-free Car2Usystem help line at
1-866-572-2728.
Driver Controls
83
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Types of garage door openers (rolling code and fixed code)
The Car2UHome Automation System may be programmed to operate
rolling code and fixed code garage door openers.
•Rolling code garage door openers were produced after 1996 and are
code protected. Rolling code means the coded signal is changed every
time your remote control garage door opener is used.
•Fixed code garage door openers were produced prior to 1996. Fixed
code uses the same coded signal every time. It is manually
programmed by setting DIP switches for a unique personal code.
If you do not know if your garage door
opener is a rolling code or fixed code
device, open your garage door
opener’s remote control battery cover.
If a panel of DIP switches is present
your garage door opener is a fixed
code device. If not, your garage door
opener is a rolling code device.
Rolling code programming
Note:Programming the rolling code garage door opener involves
time-sensitive actions. Read the entire procedure prior to beginning so
you will know which actions are time-sensitive. If you do not follow the
time-sensitive actions, the device will time out and you will have to
repeat the procedure.
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. Firmly press the two outer
Car2Usystem buttons for
1–2 seconds, then release.
12
34
5
6789
1
01
1
1
2
C
T
S
206-12 T
124
O
N
Driver Controls
84
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

2.Go to the garage to locate the
garage door opener motor and its
“learn” button. You may need a ladder
to reach the unit and you may need to
remove the unit’s cover or light lens to
locate the “learn” button. Press the
“learn” button, after which you will
have 10–30 seconds to return to your
vehicle and complete the following
steps. If you cannot locate the “learn”
button, refer to the Owner’s Guide of
your garage door opener or call the toll-free Car2Usystem help line at
1-866-57Car2U (1-866-572-2728).
3. Return to your vehicle. Press and
hold the Car2Usystem button you
would like to use to control the
garage door. You may need to hold
the button from 5–20 seconds,
during which time the selected
button indicator light will blink
slowly. Immediately (within
1 second) release the button once the garage door moves. When the
button is released, the indicator light will begin to blink rapidly until
programming is complete.
4. Press and release the button again. The garage door should move,
confirming that programming is successful. If your garage door does not
operate, repeat the previous steps in this section.
After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
To program another rolling code device such as an additional garage door
opener, a security device or home lighting, repeat Steps 1 through 4
substituting a different function button in Step 3 than what you used for
the garage door opener. For example, you could assign the left-most
button to the garage door, the center button to a security device, and
the right-most button to another garage door opener.
Note:The Car2Usystem allows for three devices to be programmed. If
you need to change or replace any of the three devices after it has been
initially programmed, it is necessary to erase the current settings using
theErasing the Car2UHome Automation System buttonsprocedure
and then programming all of the devices being used.
Driver Controls
85
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Fixed code programming
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. To program units with fixed code DIP switches, you will need the
garage door hand-held transmitter, paper and a pen or pencil.
2. Open the battery cover and record the switch settings from left to
right for all 8 to 12 switches. Use the figure below:
When a switch is in the up, on, or + position, circle “L.”
When a switch is in the middle, neutral, or 0 position, circle “M.”
When a switch is in the down, off, or – position, circle “R.”
Switch position1234567 8 9101112
Up,onor+ LLLLLLLLLLLL
Middle, neutral or 0MMMMMMMMMMMM
Down, off or –RRRRRRRRRRRR
L=left; M=middle; R=right
3. To input these positions into the
Car2Usystem, simultaneously
press all three Car2Usystem
buttons for a few seconds and then
release to put the device into
programming mode. The indicator
lights will blink slowly. Within
2.5 minutes enter your
corresponding DIP switch settings
from left to right into your Car2Usystem by pressing and releasing the
buttons corresponding to the settings you circled.
4. After inputting switch settings, simultaneously press and release all
three Car2Usystem buttons. The indicator lights will turn on.
Driver Controls
86
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

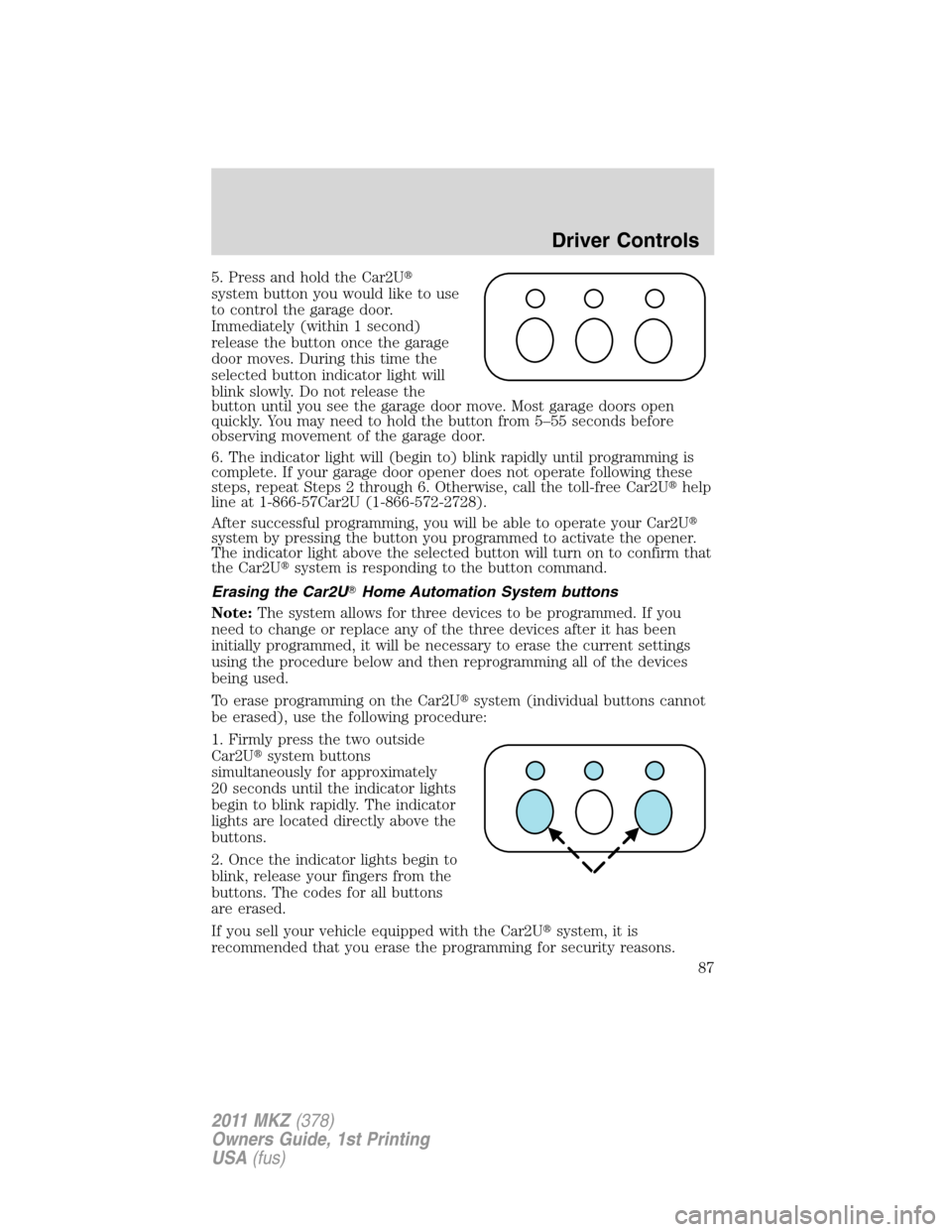

5. Press and hold the Car2U
system button you would like to use
to control the garage door.
Immediately (within 1 second)
release the button once the garage
door moves. During this time the
selected button indicator light will
blink slowly. Do not release the
button until you see the garage door move. Most garage doors open
quickly. You may need to hold the button from 5–55 seconds before
observing movement of the garage door.
6. The indicator light will (begin to) blink rapidly until programming is
complete. If your garage door opener does not operate following these
steps, repeat Steps 2 through 6. Otherwise, call the toll-free Car2Uhelp
line at 1-866-57Car2U (1-866-572-2728).
After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
Erasing the Car2UHome Automation System buttons
Note:The system allows for three devices to be programmed. If you
need to change or replace any of the three devices after it has been
initially programmed, it will be necessary to erase the current settings
using the procedure below and then reprogramming all of the devices
being used.
To erase programming on the Car2Usystem (individual buttons cannot
be erased), use the following procedure:
1. Firmly press the two outside
Car2Usystem buttons
simultaneously for approximately
20 seconds until the indicator lights
begin to blink rapidly. The indicator
lights are located directly above the
buttons.
2. Once the indicator lights begin to
blink, release your fingers from the
buttons. The codes for all buttons
are erased.
If you sell your vehicle equipped with the Car2Usystem, it is
recommended that you erase the programming for security reasons.
Driver Controls
87
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

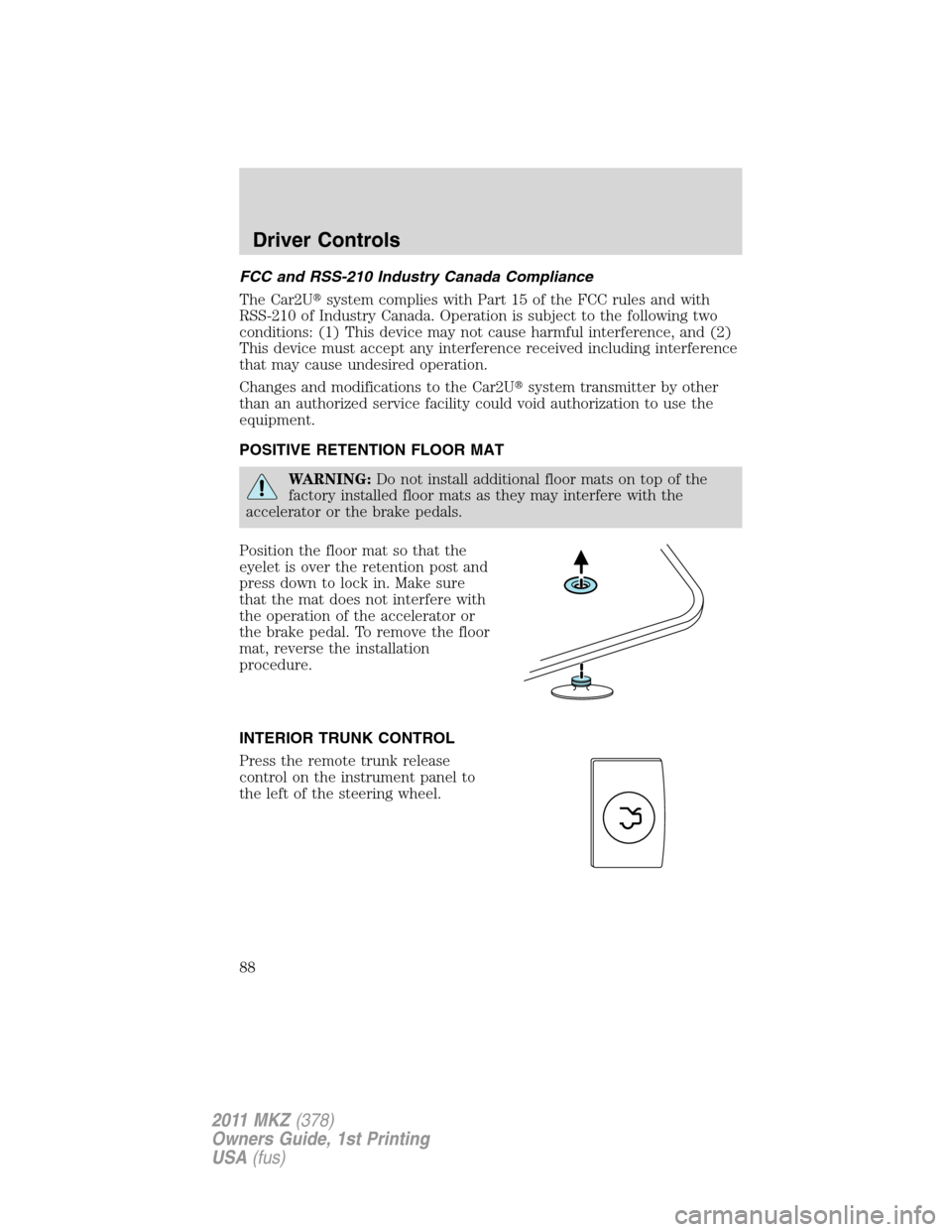

FCC and RSS-210 Industry Canada Compliance
The Car2Usystem complies with Part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received including interference
that may cause undesired operation.
Changes and modifications to the Car2Usystem transmitter by other
than an authorized service facility could void authorization to use the
equipment.
POSITIVE RETENTION FLOOR MAT
WARNING:Do not install additional floor mats on top of the
factory installed floor mats as they may interfere with the
accelerator or the brake pedals.
Position the floor mat so that the
eyelet is over the retention post and
press down to lock in. Make sure
that the mat does not interfere with
the operation of the accelerator or
the brake pedal. To remove the floor
mat, reverse the installation
procedure.
INTERIOR TRUNK CONTROL
Press the remote trunk release
control on the instrument panel to
the left of the steering wheel.
Driver Controls
88
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
