2011 LINCOLN MKZ Owners Manual

•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add MotorcraftGas Stabilizer or
equivalent meeting Ford material specification ESE-M99C112-A to the
vehicle fuel system whenever actual or expected storage periods exceed
30 days. Follow the instructions on the additive label. The vehicle should
then be operated at idle speed to circulate the additive throughout the
fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Maintenance and Specifications
305
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
MOTORCRAFT PART NUMBERS
Component 3.5L V6 engine
Engine air filter element FA-1884
Battery BXT-96R-500
Oil filter FL-500-S
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be void
for any damage to the engine if such spark plugs are not used.
Maintenance and Specifications
306
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

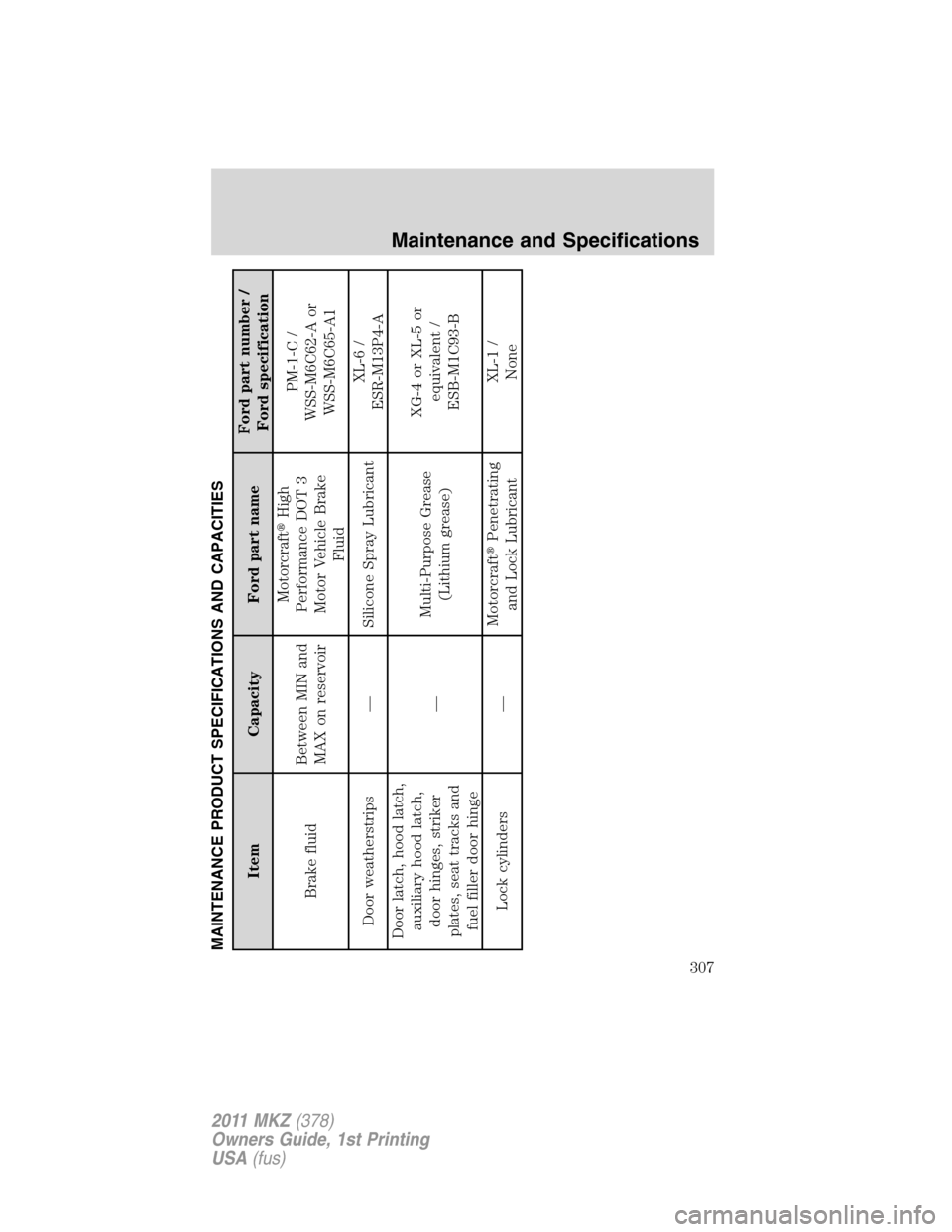

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Door latch, hood latch,
auxiliary hood latch,
door hinges, striker
plates, seat tracks and
fuel filler door hinge—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Lock cylinders —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Maintenance and Specifications
307
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Engine oil
1
5.5 quarts (5.2L)•MotorcraftSAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)
1
•XO-5W20-QSP (US)
•XO-5W-20-QFS (US)
•CXO-5W20–LSP12
(Canada)
•CXO-5W-20-LFS12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Engine coolant11.1 quarts
(10.5 L)MotorcraftSpecialty
Green Engine Coolant
(dark green-colored)
2
VC-10-A2 (US) /
CVC-10-A (Canada)
WSS-M97B55-A
Power steering fluidBetween MIN and
MAX on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic transmission
fluid7.4 quarts (7.0L)
3
MotorcraftPremium
Automatic Transmission
FluidXT-8-QAW /
WSS-M2C924-A
Rear differential (AWD)
fluid2.4 pints (1.15L)MotorcraftSAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Maintenance and Specifications
308
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Power Transfer Unit
(PTU) fluid (AWD)
4
12 ounces (0.35L)MotorcraftSAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank (FWD )17.5 gallons
(66.2L)——
Fuel tank (AWD)16.5 gallons
(62.5L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle. Check the coolant reservoir bottle
labeling for the correct fluid type to use.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4The power transfer unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace power transfer unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
See your authorized dealer for fluid level checking or filling of the power transfer unit.
Maintenance and Specifications
309
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 3.5L V6 engine
Cubic inches 214
Required fuel 87 octane
Firing order 1–4–2–5–3–6
Spark plug gap 0.051–0.057 inch (1.32–1.42 mm)
Ignition system Coil on plug
Compression ratio 10.3:1
Engine drivebelt routing
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
Maintenance and Specifications
310
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

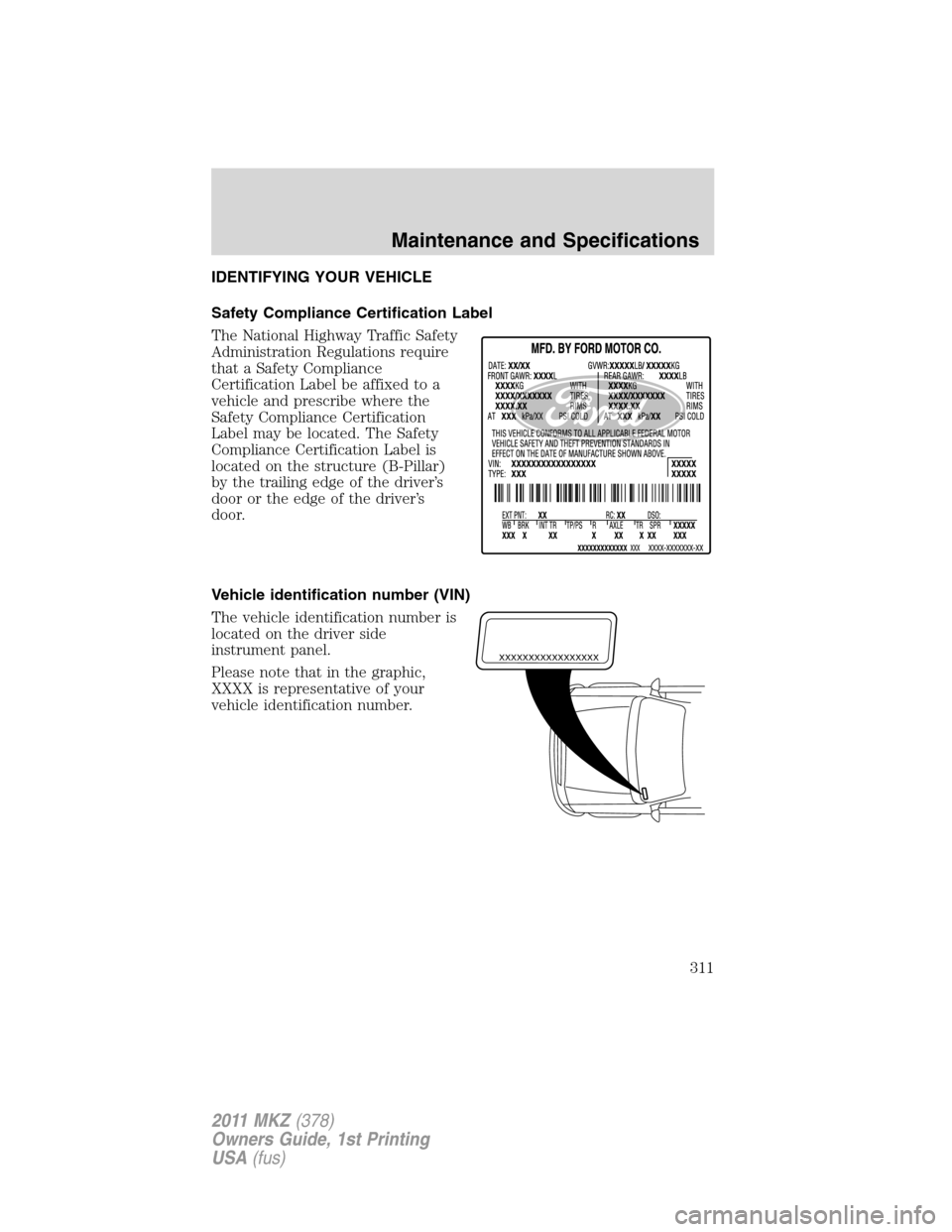

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
311
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (Aisin AW
F21)B
