2011 LINCOLN MKZ USB port

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Message center 18
Entertainment Systems 28
AM/FM stereo with CDX6/MP3 28
Auxiliary input jack (Line in) 35
USB port 37
Satellite radio information 39
Navigation system 43
SYNC43
Climate Controls 44
Dual automatic temperature control 44
Navigation system based climate control 47
Rear window defroster 51
Lights 52
Headlamps 52
Turn signal control 57
Bulb replacement 59
Driver Controls 68
Windshield wiper/washer control 68
Steering wheel adjustment 69
Power windows 74
Mirrors 76
Speed control 78
Moon roof 81
Table of Contents
1
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

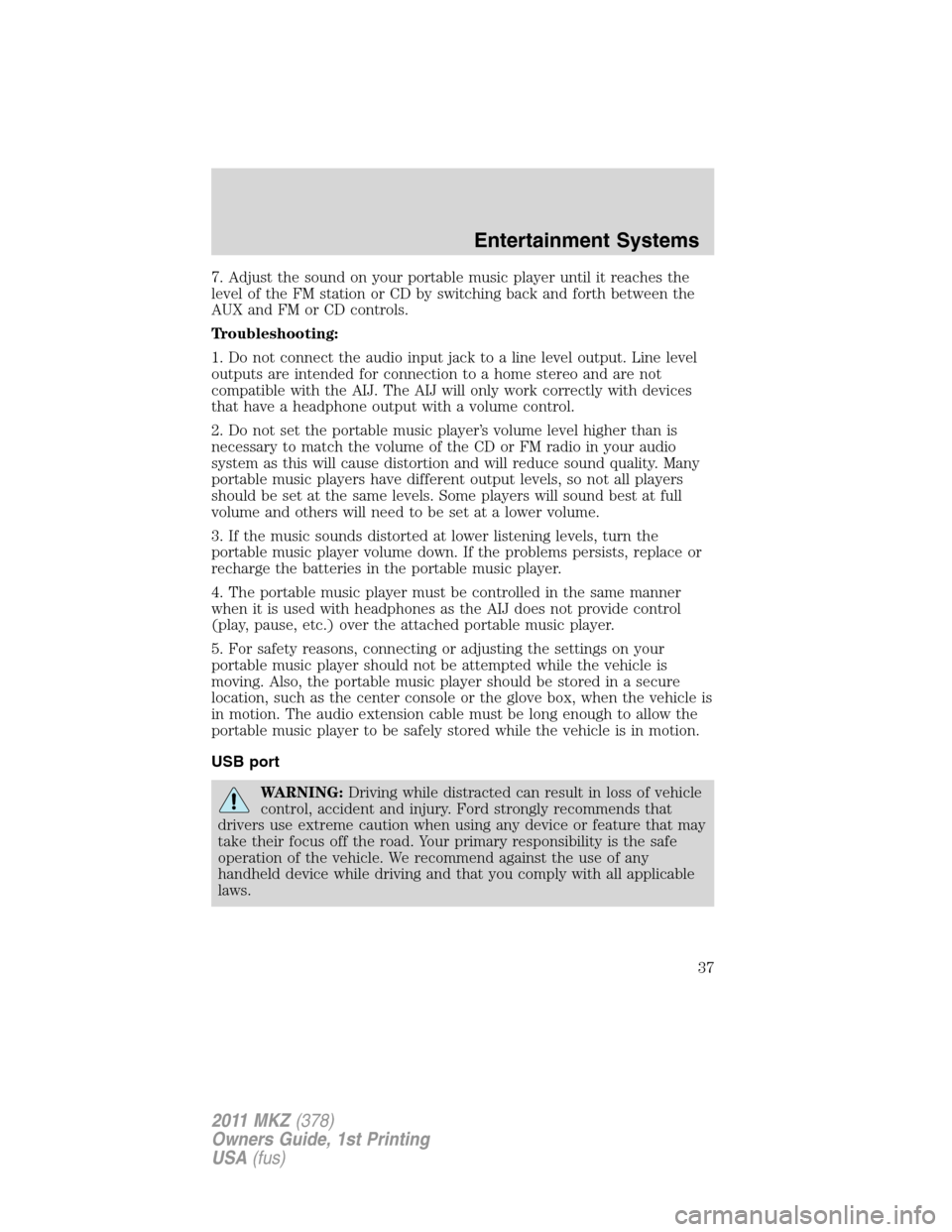

7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level
outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with devices
that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality. Many
portable music players have different output levels, so not all players
should be set at the same levels. Some players will sound best at full
volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace or
recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
5. For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
USB port
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Entertainment Systems
37
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Your vehicle is equipped with a USB
port inside your center console. This
feature allows you to plug in media
playing devices, memory sticks, and
also to charge devices if they
support this feature. For further
information on this feature, refer to
Accessing and using your USB
portin theSYNCsupplement or
Navigation Systemsupplement.
GENERAL AUDIO INFORMATION
Radio frequencies:AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the Canadian Radio and
Telecommunications Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:There are three factors that can affect radio
reception:
•Distance/strength: The further you travel from a station, the weaker
the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
Entertainment Systems
38
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cup holders with ambient lighting
(if equipped). Slide the door open
to access the cup holders.
2. Utility compartment with aux jack
and USB port, a power point, and
removable coin holder inside and a
secondary storage bin (on hinges
inside utility compartment).
Note:Slide the arm rest to the
rearward position to open the utility
compartment
3. Sliding arm rest.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12V DC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located in the center console utility
compartment.
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12V DC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
Driver Controls
73
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

What Maintenance Schedule
Should You Follow? ................321
Seats ..........................................114
child safety seats ....................162
cleaning ...................................271
climate control ..................47, 120
easy access/easyout feature ..121
front seats ...............................119
memory seat ...................103, 118
SecuriCode keyless entry
system ........................................107
SecuriLock passive anti-theft
system ........................................108
Servicing your vehicle ..............274
Setting the clock .........................29
Side air curtain .........................154
SOS Post Crash Alert ...............157
Spark plugs, specifications ......306,
310
Specification chart,
lubricants ...................................307
Speed control ..............................78
Starting your vehicle ........202–204
jump starting ..........................253
Steering wheel
controls ......................................80
tilting .........................................69
Stereo
6-CD in dash .............................28
CD-MP3 .....................................28
SYNC..........................................43
T
Tilt steering wheel ......................69Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....190
Tires ...........................175–176, 245
alignment ................................183
care ..........................................179
changing ..................................245
checking the pressure ............179
inflating ...................................177
label .........................................189
replacing ..................................181
rotating ....................................183
safety practices .......................182
sidewall information ...............184
snow tires and chains ............194
spare tire .................................246
terminology .............................176
tire grades ...............................176
treadwear ........................175, 180
Towing .......................................200
recreational towing .................200
trailer towing ..........................200
wrecker ....................................256
Transmission .............................215
brake-shift interlock (BSI) ....213
fluid, refill capacities ..............307
lubricant specifications ..........307
Trunk ...........................................99
remote release ..................88, 103
Turn signal ..................................57
U
Universal garage door opener ....83
USB port ......................................37
Index
344
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
