2011 LINCOLN MKZ Owners Manual

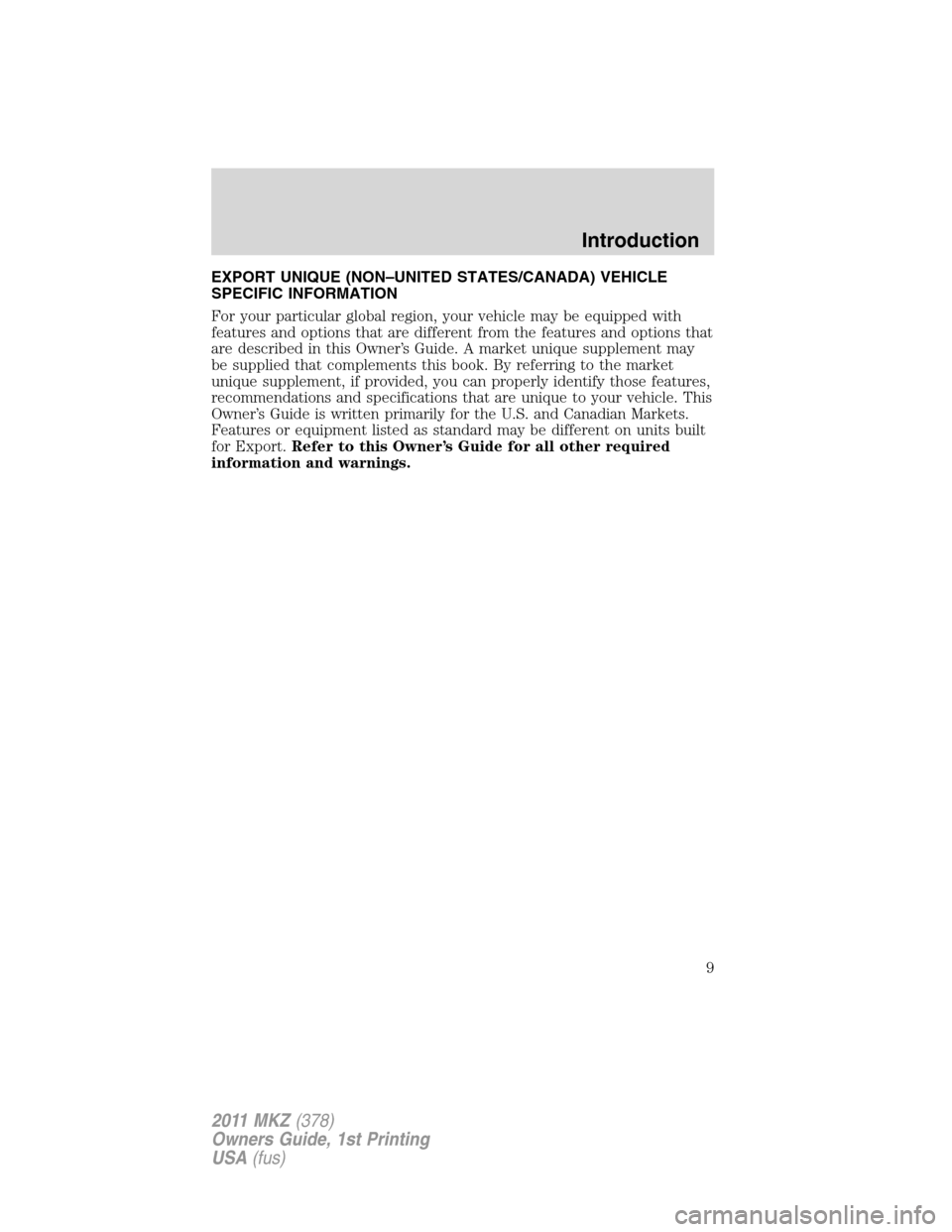

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE
SPECIFIC INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this Owner’s Guide. A market unique supplement may
be supplied that complements this book. By referring to the market
unique supplement, if provided, you can properly identify those features,
recommendations and specifications that are unique to your vehicle. This
Owner’s Guide is written primarily for the U.S. and Canadian Markets.
Features or equipment listed as standard may be different on units built
for Export.Refer to this Owner’s Guide for all other required
information and warnings.
Introduction
9
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
10
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

WARNING LIGHTS AND CHIMES
Standard instrument cluster shown; metric cluster similar
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Note:Some warning lights are
reconfigurable telltale (RTT)
indicator lights and will illuminate in
the message center. These lights
function the same as the other
warning lights.
Service engine soon:The service
engine soon indicator light
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the service engine soon
light will stay on until the engine is cranked, then turn itself off if no
malfunctions are present. However, if after 15 seconds the service engine
soon light blinks eight times, it means that the vehicle is not ready for
I/M testing. See theReadiness for Inspection/Maintenance (I/M)
testingin theMaintenance and Specificationschapter.
Instrument Cluster
12
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the on position
when the engine is not running, or in a position between on and start, or
by applying the parking brake when the ignition is turned to the on
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level or a
brake system malfunction and the brake system should be inspected
immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
P!
BRAKE
ABS
Instrument Cluster
13
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Airbag readiness:If this light fails
to illuminate when the ignition is
turned on, continues to flash or
remains on, have the system
serviced immediately by your authorized dealer. A chime will sound if
there is a malfunction in the indicator light.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and Safety Restraints
chapter to activate/deactivate the Belt-Minderchime feature.
Charging system (RTT):
Illuminates when the battery is not
charging properly. If it stays on
while the engine is running, there
may be a malfunction with the charging system. Contact your authorized
dealer as soon as possible. This indicates a problem with the electrical
system or a related component.
Engine oil pressure (RTT):
Illuminates in the message center
display when the oil pressure falls
below the normal range, refer to
Engine oilin theMaintenance and Specificationschapter.
Engine coolant temperature
(RTT):Displays when the engine
coolant temperature is high. Stop
the vehicle as soon as safely possible, switch off the engine and let it
cool. Refer toEngine coolantin theMaintenance and Specifications
chapter.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Low fuel (RTT):Illuminates in the
message center when the fuel level
in the fuel tank is at or near empty.
Refer toFuel gaugein this chapter.
Instrument Cluster
14
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

AdvanceTrac/traction control:
Illuminates when the
AdvanceTrac/traction control is
active. If the light remains on, have
the system serviced immediately,
refer to theDrivingchapter for more information.
AdvanceTrac/traction control
off light:Illuminates when the
AdvanceTrac/traction control has
been disabled by the driver. Refer to
theDrivingchapter for more
information.
Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTires, Wheels and Loadingchapter. When
the ignition is first turned on, the light will illuminate for three seconds
to ensure the bulb is working. If the light does not turn on or begins to
flash, have the system inspected by your authorized dealer. For more
information on this system, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter.
Speed control:Illuminates when
the speed control is engaged. Turns
off when the speed control system
is disengaged.
Anti-theft system:Flashes when
the SecuriLockpassive anti-theft
system has been activated.
Throttle control/transmission
(RTT):Illuminates in the message
center display when a powertrain or
a AWD fault has been detected.
Contact your authorized dealer as
soon as possible.
OFF
Instrument Cluster
15
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Door ajar (RTT):Illuminates in
the message center display when
the ignition is in the run position
and any door is open.
Trunk ajar (RTT):Illuminates in
the message center display when
the ignition is in the run position
and the trunk is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off, lock or accessory position and the driver’s door is
opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on warning chime:Sounds when the parking brake is
engaged and the vehicle is driven. If the warning remains after the
parking brake is disengaged, contact your authorized dealer as soon as
possible.
Message center activation chime:Sounds when some messages
appear in the message center display for the first time.
Turn signal on warning chime:Sounds when the turn signal has been
left on for an extended period of time.
Memory seat feedback chime:Sounds when saving/deleting memory
positions for seats, mirrors, etc.
Perimeter alarm warning chime:Sounds when using a key to unlock
the driver’s doors and the perimeter alarm is armed.
