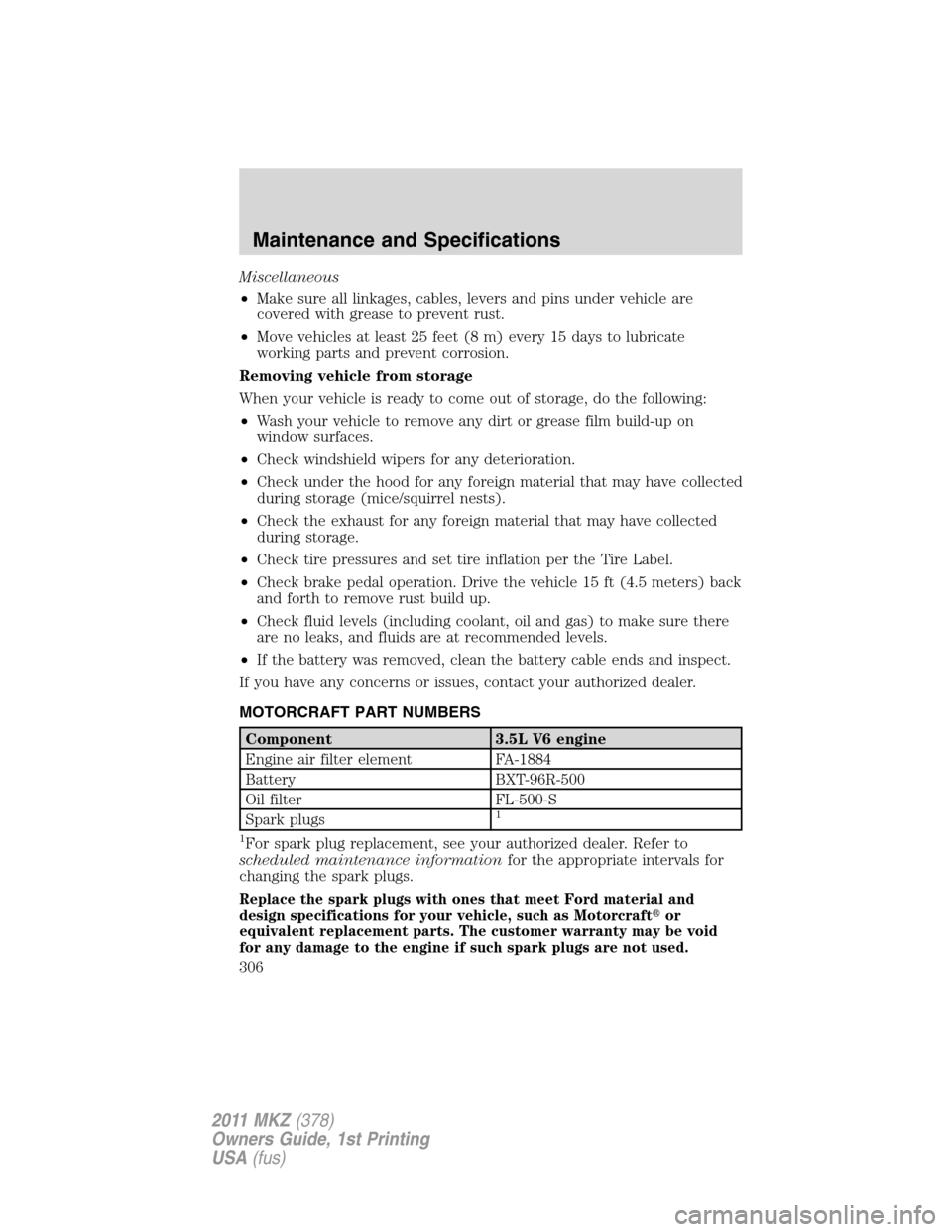

2011 LINCOLN MKZ spark plugs

Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
MOTORCRAFT PART NUMBERS
Component 3.5L V6 engine
Engine air filter element FA-1884
Battery BXT-96R-500
Oil filter FL-500-S
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be void
for any damage to the engine if such spark plugs are not used.
Maintenance and Specifications
306
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford, Lincoln, or Mercury dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
316
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Perform the services noted in the following table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Every 20,000 miles
(32,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace climate-controlled seat filter (if
equipped)
Replace engine air filter
Every 100,000 miles
(160,000 km)Change engine coolant
1
Replace spark plugs
Inspect accessory drive belt(s)2
Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(filter not required on 6F35, 6F50, DPS6 and
AWF-21 transmissions); consult dealer for
requirements
Change manual transmission fluid
Change rear axle fluid (RWD vehicles)
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace timing belt (Fiesta).Failure to replace
timing belt can cause internal engine
damage.
1Initial replacement at 100,000 miles (160,000 km) or 72 months; every
50,000 miles (80,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance Guide
327
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
As required– Change engine oil and replace oil filter as indicated by
message center and perform services as listed in the
Normal Scheduled Maintenance chart (except Fiesta)
Inspect frequently, service as
required– Replace cabin air filter (if equipped)
– Replace engine air filter
Every 300 hours of engine
operation*– Change engine oil and replace oil filter (Fiesta)
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta and
vehicles equipped with a 6R80 transmission)
Every 60,000 miles (96,000 km)– Replace spark plugs
* Engine hour meter installation is recommended for these operating
conditions.
Perform the services noted in the preceding table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance Guide
332
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

What Maintenance Schedule
Should You Follow? ................321
Seats ..........................................114
child safety seats ....................162
cleaning ...................................271
climate control ..................47, 120
easy access/easyout feature ..121
front seats ...............................119
memory seat ...................103, 118
SecuriCode keyless entry
system ........................................107
SecuriLock passive anti-theft
system ........................................108
Servicing your vehicle ..............274
Setting the clock .........................29
Side air curtain .........................154
SOS Post Crash Alert ...............157
Spark plugs, specifications ......306,
310
Specification chart,
lubricants ...................................307
Speed control ..............................78
Starting your vehicle ........202–204
jump starting ..........................253
Steering wheel
controls ......................................80
tilting .........................................69
Stereo
6-CD in dash .............................28
CD-MP3 .....................................28
SYNC..........................................43
T
Tilt steering wheel ......................69Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....190
Tires ...........................175–176, 245
alignment ................................183
care ..........................................179
changing ..................................245
checking the pressure ............179
inflating ...................................177
label .........................................189
replacing ..................................181
rotating ....................................183
safety practices .......................182
sidewall information ...............184
snow tires and chains ............194
spare tire .................................246
terminology .............................176
tire grades ...............................176
treadwear ........................175, 180
Towing .......................................200
recreational towing .................200
trailer towing ..........................200
wrecker ....................................256
Transmission .............................215
brake-shift interlock (BSI) ....213
fluid, refill capacities ..............307
lubricant specifications ..........307
Trunk ...........................................99
remote release ..................88, 103
Turn signal ..................................57
U
Universal garage door opener ....83
USB port ......................................37
Index
344
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
