2011 Lexus IS F Owner's Manual

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27.5 ASmart entry & start system
15RH-IG7.5 A
Seat belts, Lexus parking assist-
sensor, automatic transmission,
seat heaters, windshield wiper de-
icer
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart entry & start
system, VDIM, air conditioning
system, pre-crash seat belt, electric
tilt and telescopic steering column,
power windows, navigation sys-
tem, headlights, front fog lights,
front position lights, license plate
lights, windshield washer, outside
rear view mirrors
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 407)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

406
4-3. Do-it-yourself maintenance
IS F_EE
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
Do not modify the fuses or the fuse box.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
Light bulbs
You may replace the following bulbs yourself. For more information
about replacing other light bulbs, contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 481)
Removing the engine compartment cover
P. 367
Front bulb locations
Front fogHeadlight high
beamFront turn
signal light

408
4-3. Do-it-yourself maintenance
IS F_EE
Replacing light bulbs
Headlight high beams
When replacing the bulbs:
Left-side
Remove the wire harness
clamp.
Rear bulb locations
Rear fog light Rear turn signal
Back-up light
STEP1

409
4-3. Do-it-yourself maintenance
4
Maintenance and care

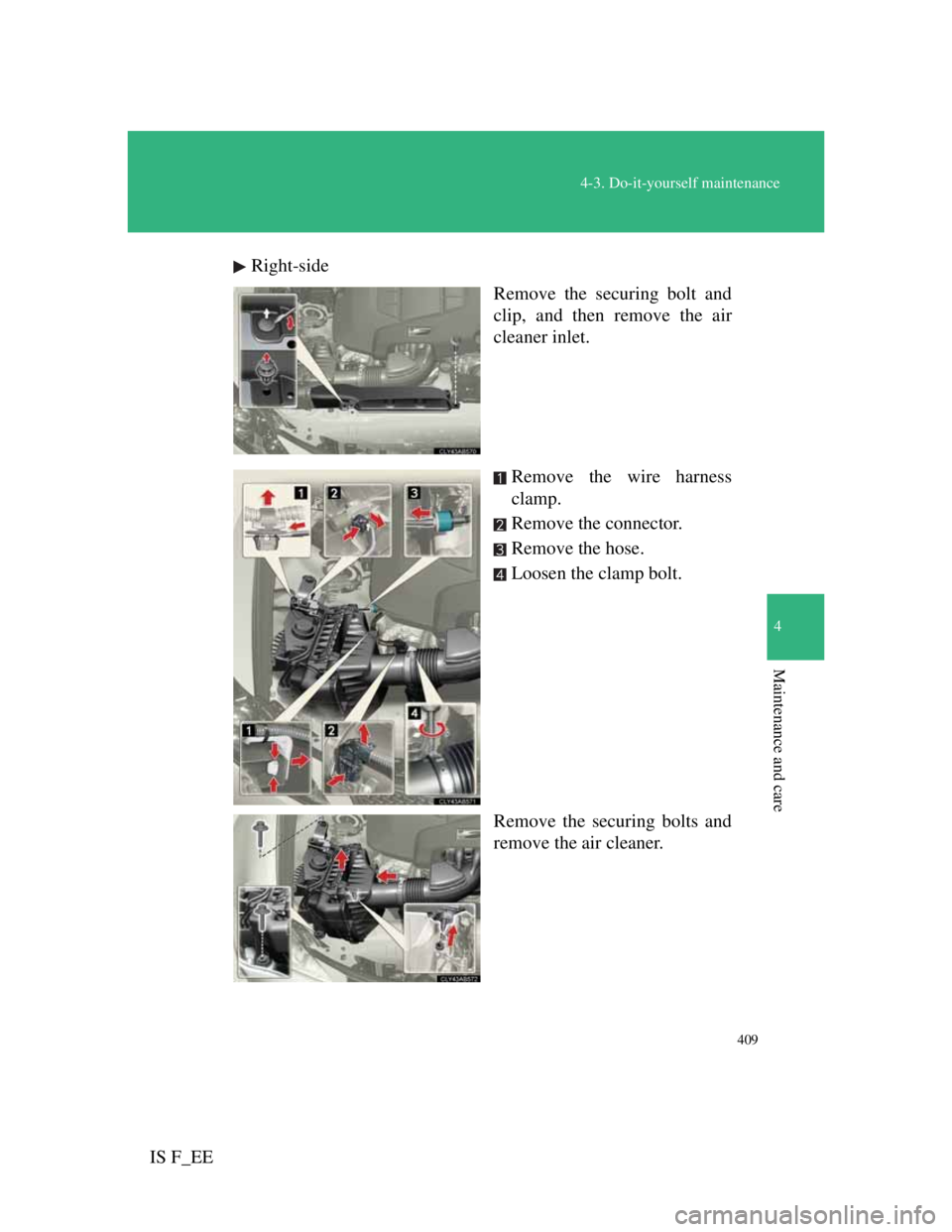

IS F_EERight-side
Remove the securing bolt and
clip, and then remove the air
cleaner inlet.
Remove the wire harness
clamp.
Remove the connector.
Remove the hose.
Loosen the clamp bolt.
Remove the securing bolts and
remove the air cleaner.

410
4-3. Do-it-yourself maintenance
IS F_EETurn the cover counterclock-
wise and remove it.
Turn the bulb base counter-
clockwise.
Unplug the connector while
pulling the lock release.
For installing the clip.
STEP2
STEP3
STEP4

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EEFront fog lights
To allow enough working clear-
ance, turn the steering wheel to
the opposite side of the bulb to
be replaced.
Remove the fender liner bolts.
Partly remove the fender liner.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

412
4-3. Do-it-yourself maintenance
IS F_EETurn the bulb base counter-
clockwise.
Front turn signal lights
To allow enough working clear-
ance, turn the steering wheel to
the opposite side of the bulb to
be replaced.
Remove the fender liner bolts.
Partly remove the fender liner.
STEP4
STEP1
STEP2
