d. Screw the pivot screws back into place using a #T30
Torxhead driver. Secure them until they are snug,
being careful not to cross-thread the screws or over-
tighten.CAUTION!
Do not overtighten the screws. You can strip the
screws if they are overtightened.
5. Remove the swing gate bar (black metal bar for
bottom of rear window) and set aside.
NOTE: Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
6. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
NOTE: A visual instruction sheet is enclosed in the dual
top wrap.
7. Put up the soft top. Refer to “Soft Top — Putting Up
The Soft Top” in this section.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

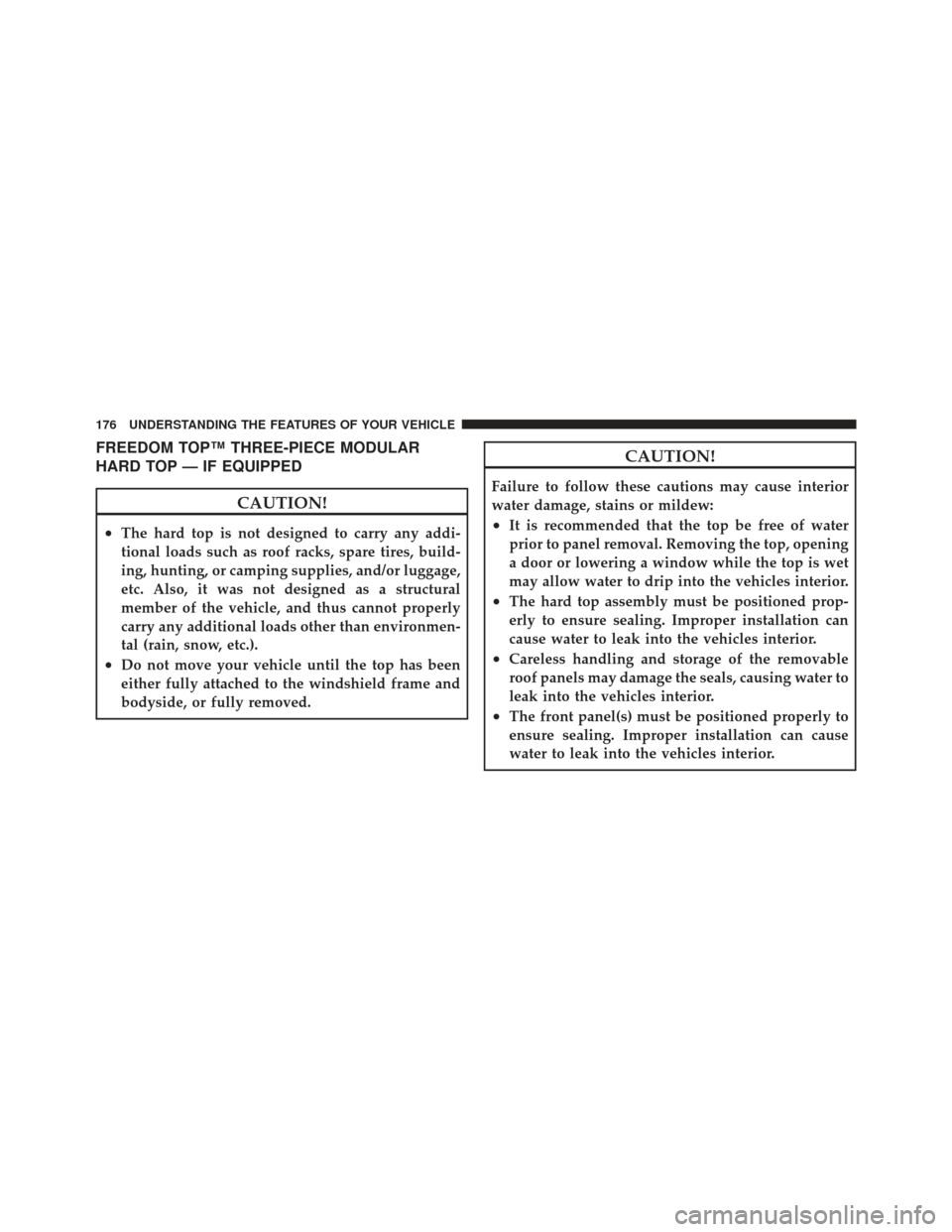

FREEDOM TOP™ THREE-PIECE MODULAR
HARD TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any addi-
tional loads such as roof racks, spare tires, build-
ing, hunting, or camping supplies, and/or luggage,
etc. Also, it was not designed as a structural
member of the vehicle, and thus cannot properly
carry any additional loads other than environmen-
tal (rain, snow, etc.).
•Do not move your vehicle until the top has been
either fully attached to the windshield frame and
bodyside, or fully removed.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew:
•It is recommended that the top be free of water
prior to panel removal. Removing the top, opening
a door or lowering a window while the top is wet
may allow water to drip into the vehicles interior.
•The hard top assembly must be positioned prop-
erly to ensure sealing. Improper installation can
cause water to leak into the vehicles interior.
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicles interior.
•The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicles interior.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Panel(s) Removal
NOTE: Left panel must be removed before removing
right panel.
1. Fold down the sun visor, and move it to the side.
2. Turn the rear fasteners (knobs) (located on the over-
head speaker bar assembly) counterclockwise until they
can be removed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

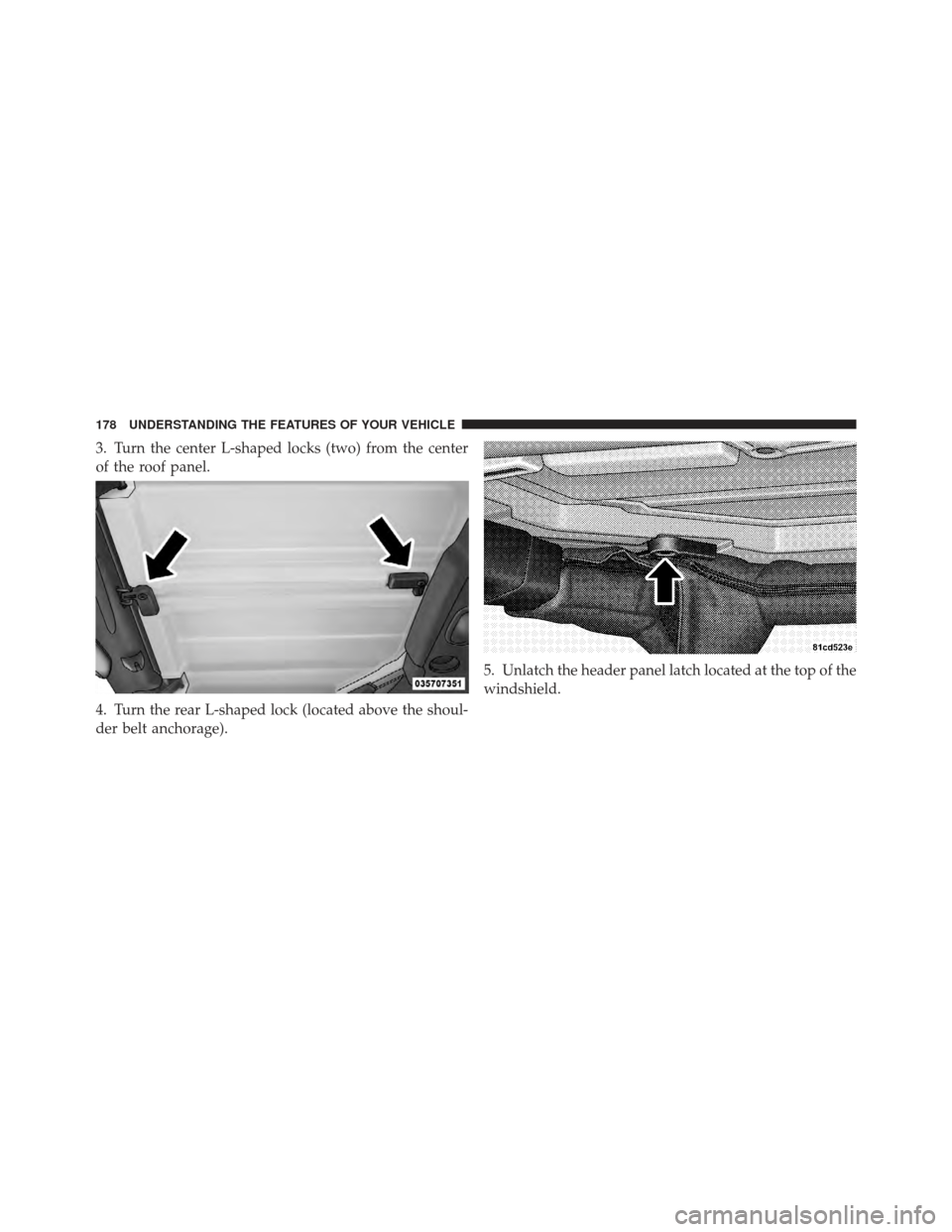

3. Turn the center L-shaped locks (two) from the center
of the roof panel.
4. Turn the rear L-shaped lock (located above the shoul-
der belt anchorage).5. Unlatch the header panel latch located at the top of the
windshield.
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

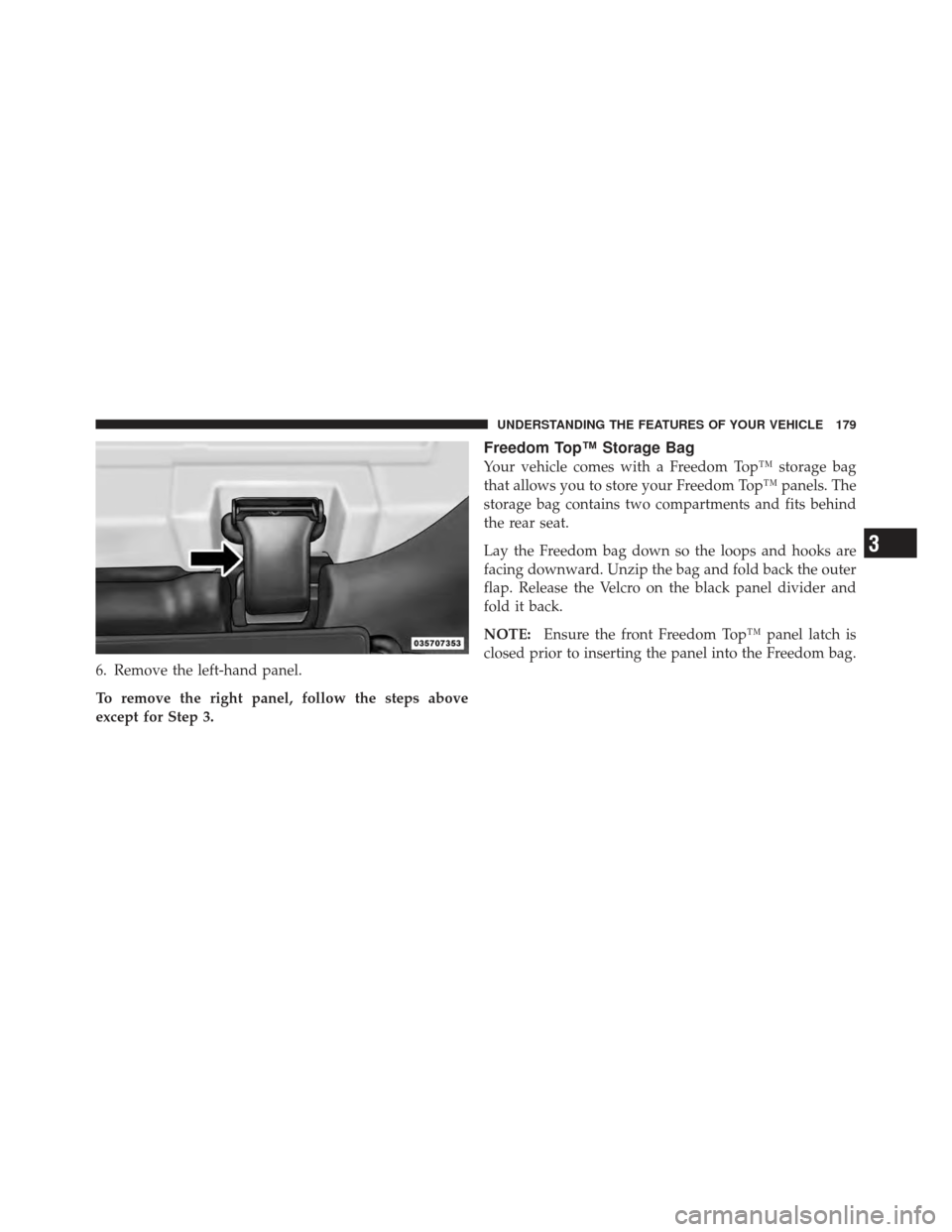

6. Remove the left-hand panel.
To remove the right panel, follow the steps above
except for Step 3.
Freedom Top™ Storage Bag
Your vehicle comes with a Freedom Top™ storage bag
that allows you to store your Freedom Top™ panels. The
storage bag contains two compartments and fits behind
the rear seat.
Lay the Freedom bag down so the loops and hooks are
facing downward. Unzip the bag and fold back the outer
flap. Release the Velcro on the black panel divider and
fold it back.
NOTE:Ensure the front Freedom Top™ panel latch is
closed prior to inserting the panel into the Freedom bag.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179

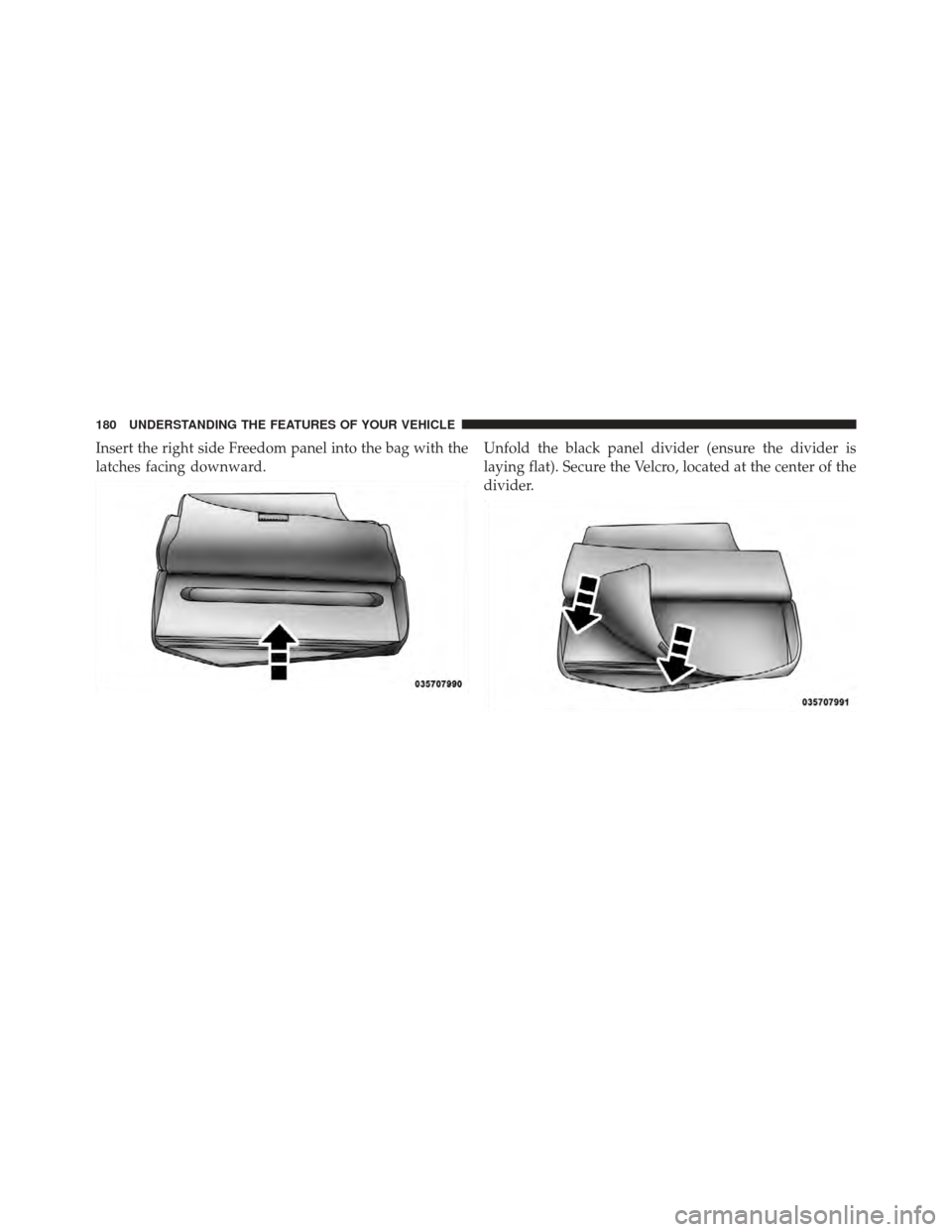

Insert the right side Freedom panel into the bag with the
latches facing downward.Unfold the black panel divider (ensure the divider is
laying flat). Secure the Velcro, located at the center of the
divider.
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

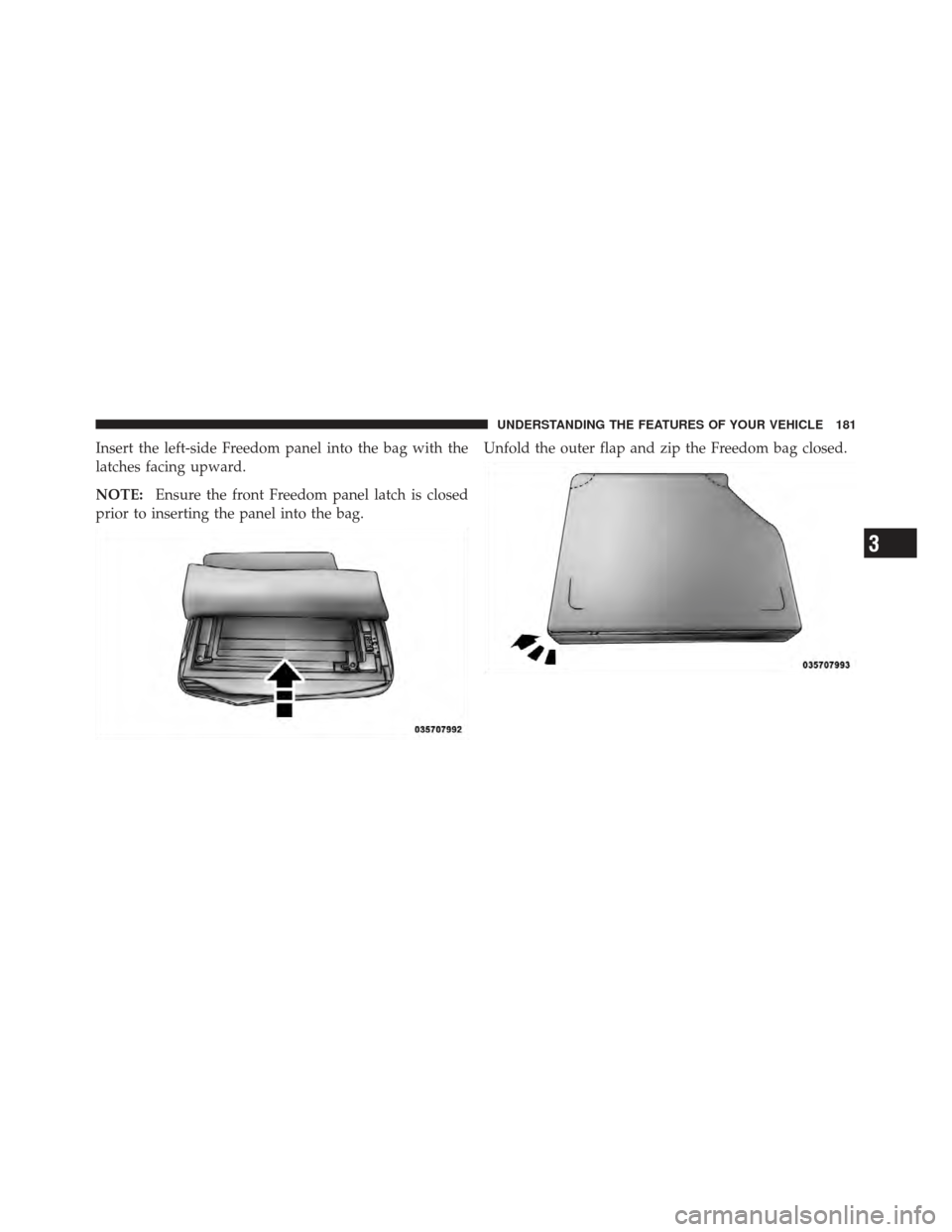

Insert the left-side Freedom panel into the bag with the
latches facing upward.
NOTE:Ensure the front Freedom panel latch is closed
prior to inserting the panel into the bag. Unfold the outer flap and zip the Freedom bag closed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

Install the seat attachment strap (at the top of the bag)
through the loops.
Lift the Freedom bag into the vehicle with the hooks and
straps facing the back of the rear seat. Attach the clips at
the bottom of the bag to the child restraint anchorages,
located at the base of the rear seat.Wrap the upper strap around the rear head restraints and
loop the strap through the buckle. Pull on the strap to
tighten the Freedom bag securely against the rear seat.
