2011 JEEP WRANGLER Owners Manual

The operator can override the AUTO mode setting to
change airflow distribution by rotating the Mode Control
knob (on the right) to one of the following positions.
•PanelAir is directed through the outlets in the instrument
panel. These outlets can be adjusted to direct airflow.
NOTE: The center instrument panel outlets can be
aimed so that they are directed toward the rear seat
passengers for maximum airflow to the rear.
•Bi-Level Air is directed through the panel and floor outlets.
NOTE: For all settings, except full cold or full hot, there
is a difference in temperature between the upper and
lower outlets. The warmer air flows to the floor outlets.
This feature gives improved comfort during sunny but
cool conditions.
•Floor Air is directed through the floor outlets with a
small amount flowing through the defrost and side
window demist outlets.
•Mix Air is directed through the floor, defrost, and side
window demist outlets. This setting works best in
cold or snowy conditions that require extra heat to
the windshield. This setting is good for maintaining
comfort while reducing moisture on the windshield.
•Defrost Air is directed through the windshield and side
window demist outlets. Use this mode with maxi-
mum blower and temperature settings for best wind-
shield and side window defrosting.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 359

•Air Conditioner ControlPress this button to turn on the air
conditioning during manual operation
only. When the air conditioning is
turned on, cool dehumidified air will
flow through the outlets selected with
the Mode control dial. Press this but-
ton a second time to turn OFF the air
conditioning. An LED in the button illuminates when
manual compressor operation is selected.
•Recirculation Control
The system will automatically control recircu-
lation. However, pressing the Recirculation
Control button will temporarily put the system
in recirculation mode (ten minutes). This can
be used when outside conditions such as smoke, odors,
dust, or high humidity are present. Activating recircula-
tion will cause the LED in the control button to illumi-
nate. After ten minutes, the system will return to normal
AUTO mode function and the LED will turn off. NOTE:
•When the ignition switch is turned to the LOCK
position, the recirculation feature will be cancelled.
•In cold weather, use of the Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in the floor, defrost, or defrost/
floor mode in order to improve window clearing.
Recirculation will be disabled automatically if these
modes are selected.
•Extended use of recirculation may cause the windows
to fog. If the interior of the windows begins to fog,
press the Recirculation button to return to outside air.
Some temp/humidity conditions will cause captured
interior air to condense on windows and hamper
visibility. For this reason, the system will not allow
recirculation to be selected while in floor, defrost, or
defrost/floor mode. Attempting to use recirculation
while in these modes will cause the LED in the control
button to blink and then turn off.
360 UNDERSTANDING YOUR INSTRUMENT PANEL

•Most of the time, when in Automatic Operation, you
can temporarily put the system into Recirculation
mode by pressing the Recirculation button. However,
under certain conditions, while in Automatic mode,
the system is blowing air out the defrost vents. When
these conditions are present, and the Recirculation
button is pressed, the indicator will flash and then turn
off. This tells you that you are unable to go into
Recirculation mode at this time. If you would like the
system to go into Recirculation mode, you must first
move the Mode knob to Panel, Panel/Floor and then
press the Recirculation button. This feature reduces the
possibility of window fogging.
Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% ethylene
glycol antifreeze coolant and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
Winter Operation
Use of the air Recirculation mode during winter months is
not recommended because it may cause window fogging.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower settings. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 361

Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes a problem, increase blower speed.
Vehicle windows tend to fog on the inside in mild but
rainy or humid weather.
NOTE:Recirculate without A/C should not be used for
long periods as fogging may occur.
Side Window Demisters
A side window demister outlet is located at each end of
the instrument panel. These non-adjustable outlets direct
air toward the side windows when the system is in the
Floor, Mix, or Defrost mode. The air is directed at the area
of the windows through which you view the outside
mirrors.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter — If Equipped
The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”
in “Maintaining Your Vehicle” for A/C Air Filter service
information or see your authorized dealer for service.
Refer to “Maintenance Schedules” for filter service
intervals.
362 UNDERSTANDING YOUR INSTRUMENT PANEL

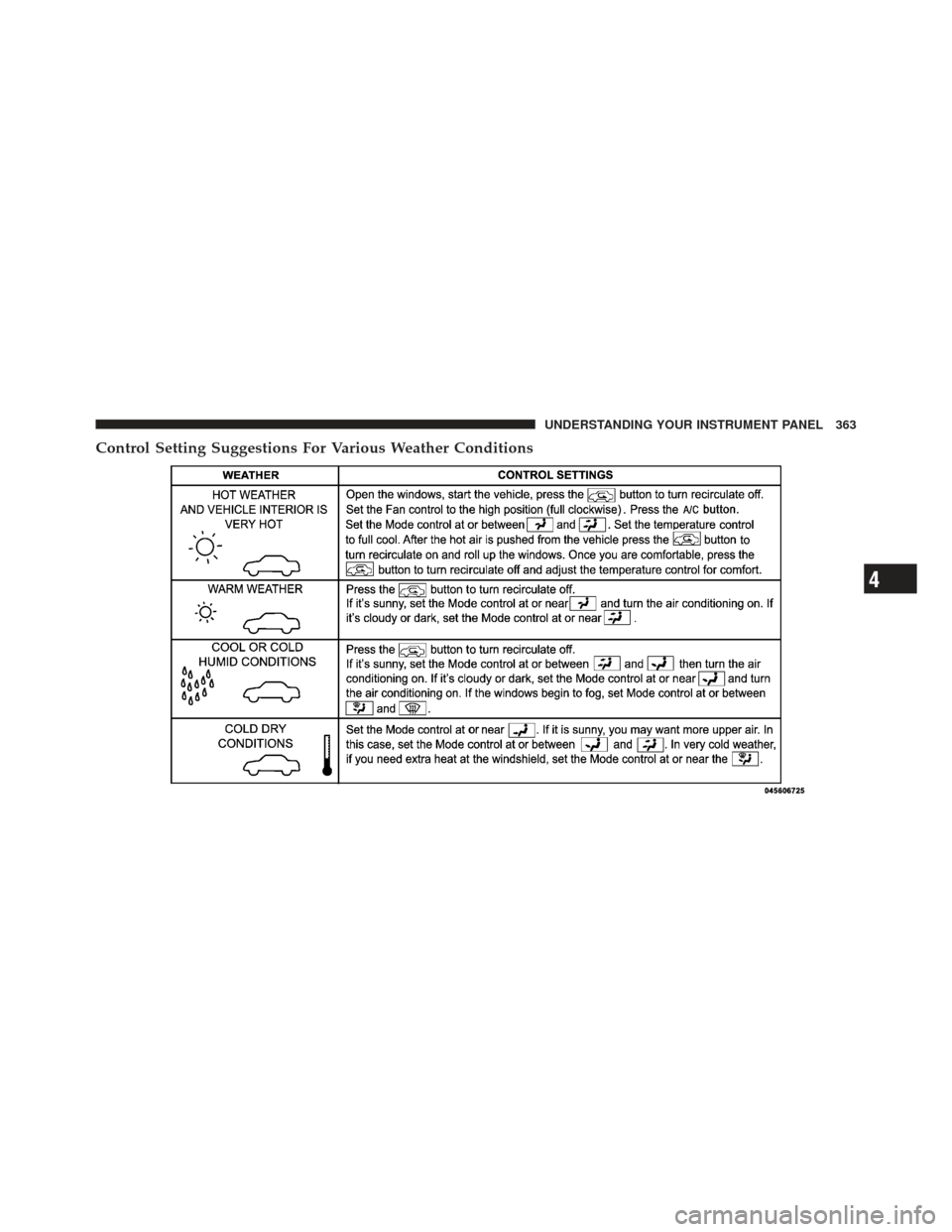

Control Setting Suggestions For Various Weather Conditions
4
UNDERSTANDING YOUR INSTRUMENT PANEL 363

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 370
▫ Manual Transmission – If Equipped ....... 370
▫ Automatic Transmission – If Equipped ..... 370
▫ Normal Starting ..................... 370
▫ Extreme Cold Weather (Below –20°F Or
–29°C) ............................ 371
▫ If Engine Fails To Start ................ 371
▫ After Starting ....................... 373
 Engine Block Heater — If Equipped ........ 373
Manual Transmission — If Equipped ........ 373
▫ Shifting ........................... 374
▫ Downshifting ....................... 375
▫ Reverse Shifting ..................... 376
 Automatic Transmission — If Equipped ...... 377
▫ Key Ignition Park Interlock ............. 378
▫ Brake/Transmission Interlock System ...... 378
▫ Automatic Transmission With Overdrive .... 378
5

Four–Wheel Drive Operation
(Command-Trac I Or Rock-Trac).......... 383
▫ Operating Instructions/Precautions ....... 383
▫ Shift Positions ...................... 385
▫ Shifting Procedure ................... 386
 Trac-Lok Rear Axle — If Equipped ........ 387
 Axle Lock (Tru–Lok) — Rubicon Models .... 388
 Electronic Sway Bar Disconnect —
If Equipped .......................... 389
 On-Road Driving Tips .................. 391
 Off-Road Driving Tips .................. 392
▫ Side Step Removal – If Equipped ......... 392
▫ The Basics Of Off-Road Driving .......... 393
▫ When To Use 4L (Low) Range ........... 394▫
Simultaneous Brake And Throttle
Operation .......................... 394
▫ Driving In Snow, Mud And Sand ......... 394
▫ Crossing Obstacles
(Rocks And Other High Points) .......... 396
▫ Hill Climbing ....................... 398
▫ Driving Through Water ................ 401
▫ After Driving Off-Road ................ 403
 Power Steering ....................... 405
▫ Power Steering Fluid Check ............. 406
 Parking Brake ........................ 406
 Anti-Lock Brake System ................. 409
 Electronic Brake Control System ........... 410
▫ Traction Control System (TCS) ........... 411
366 STARTING AND OPERATING
