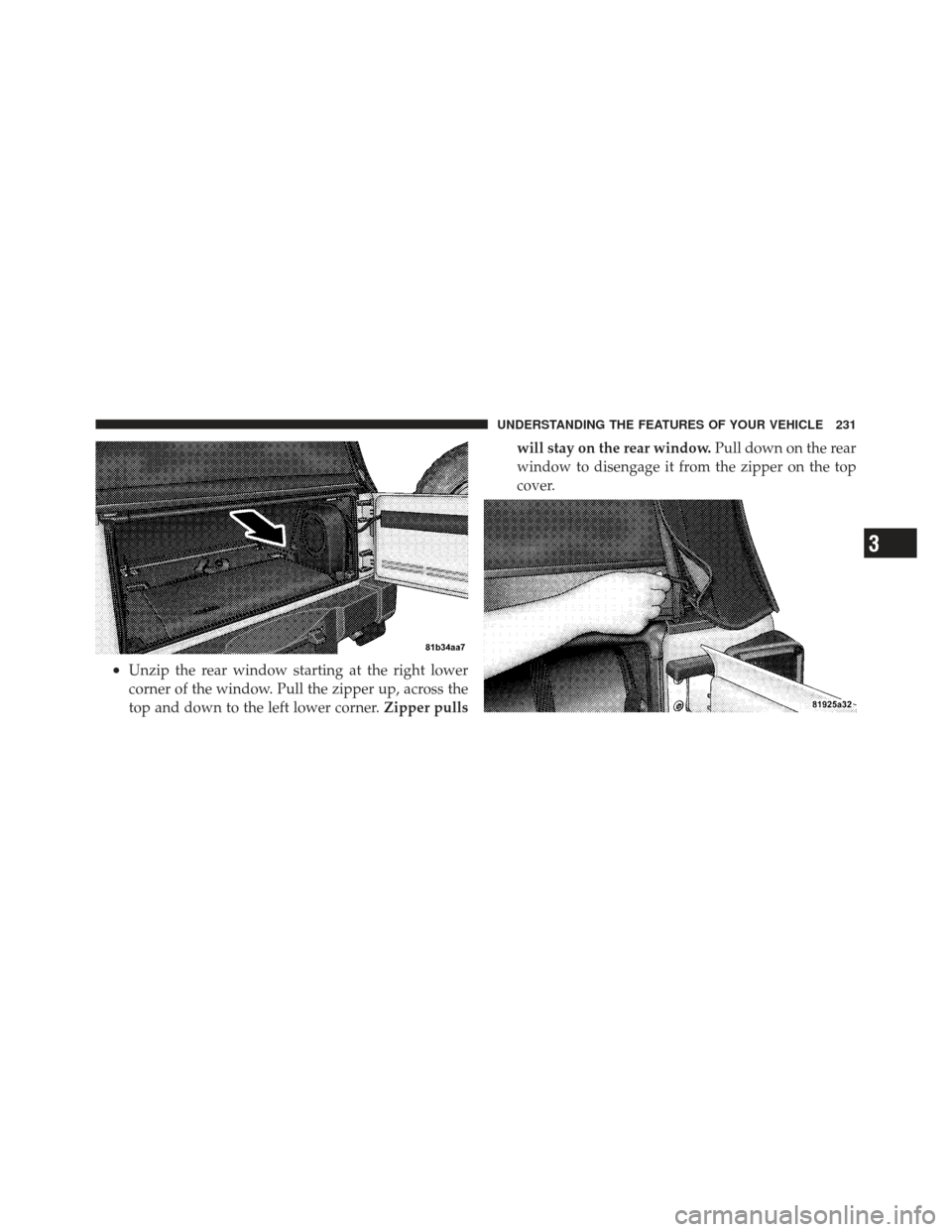

•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pullswill stay on the rear window.
Pull down on the rear
window to disengage it from the zipper on the top
cover.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 231

6. Remove the rear window retainer from the swing gate
bracket on both the left and right sides.
7. Stow the windows carefully to avoid scratching.
8. Undo the Velcrothat runs along the top and rear
edge of the side window. 9. Beginning from the rear lower corner, completely
unzip the window.
10. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat this
step on the opposite side.
232 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

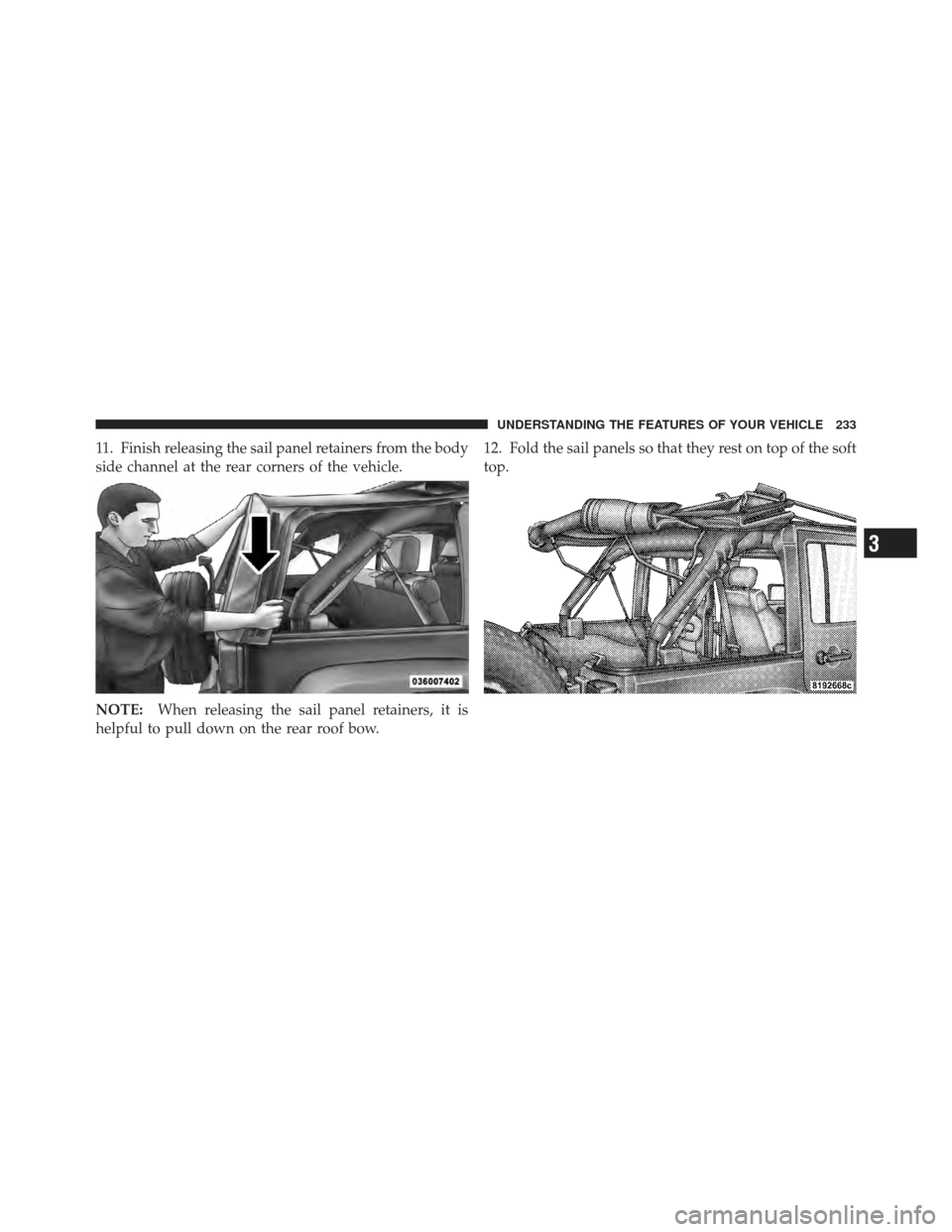

11. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow. 12. Fold the sail panels so that they rest on top of the soft
top.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 233

13. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in toward the vehicle
to disengage.14. Grasp the front side bow behind the header, and lift
the top.
234 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

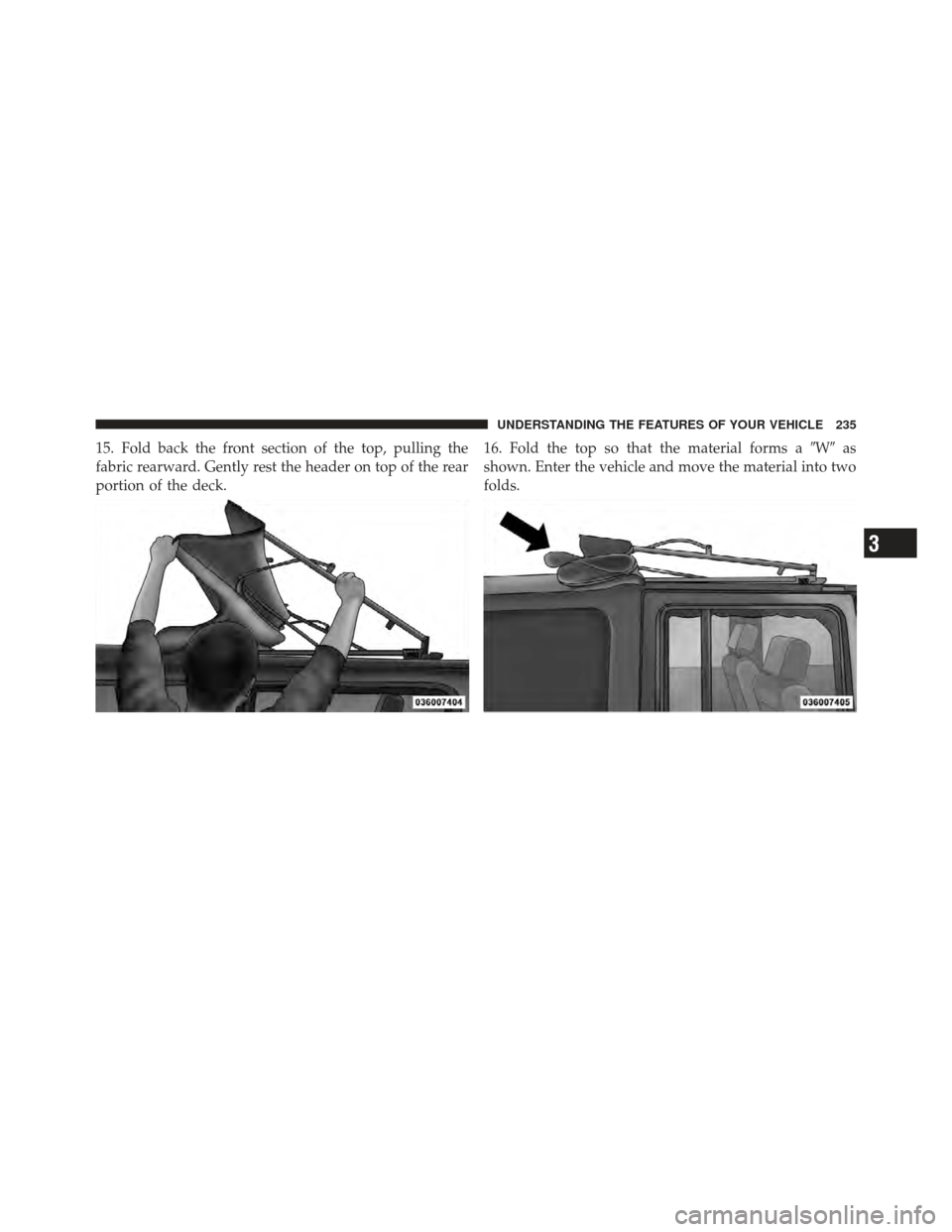

15. Fold back the front section of the top, pulling the
fabric rearward. Gently rest the header on top of the rear
portion of the deck.16. Fold the top so that the material forms a
Was
shown. Enter the vehicle and move the material into two
folds.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 235

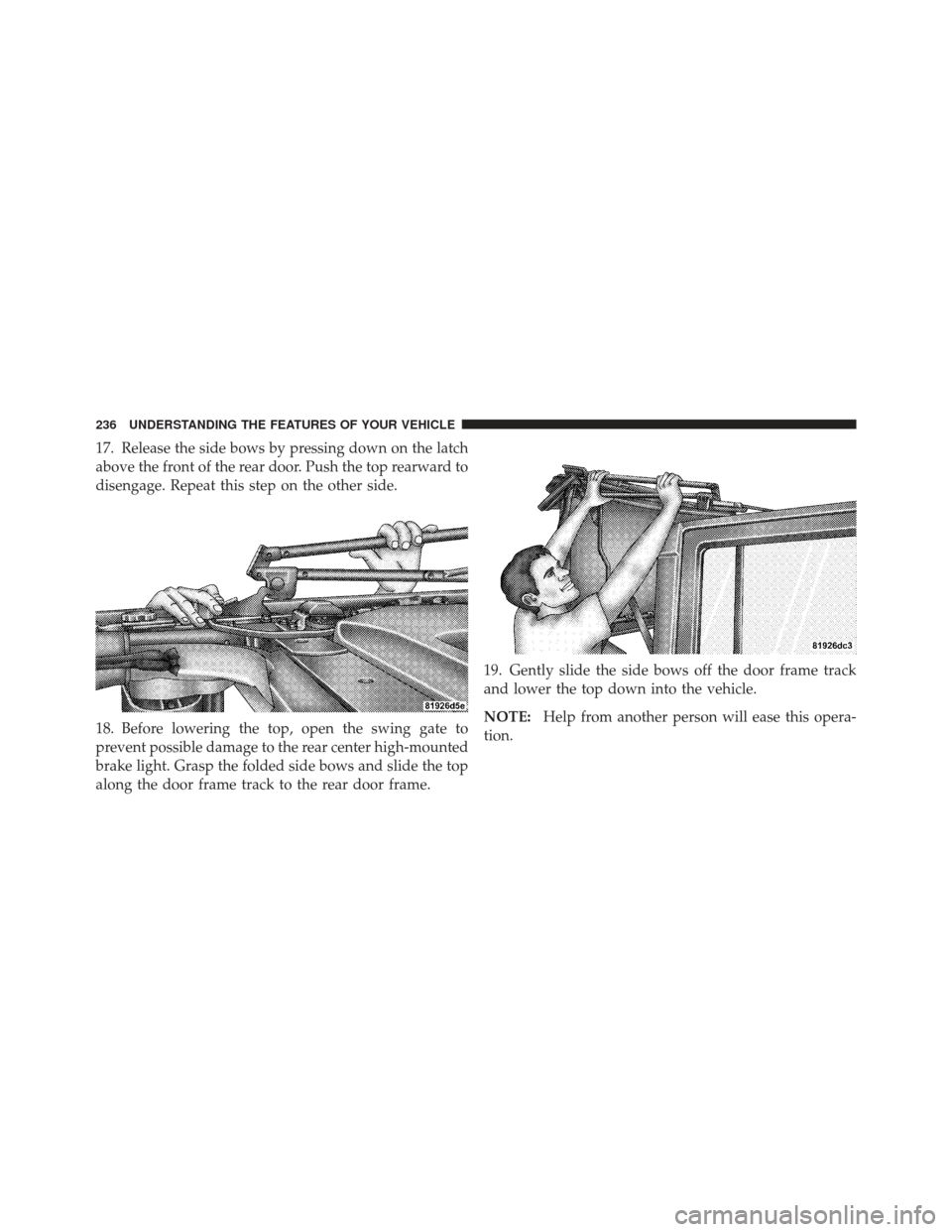

17. Release the side bows by pressing down on the latch
above the front of the rear door. Push the top rearward to
disengage. Repeat this step on the other side.
18. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-mounted
brake light. Grasp the folded side bows and slide the top
along the door frame track to the rear door frame.19. Gently slide the side bows off the door frame track
and lower the top down into the vehicle.
NOTE:
Help from another person will ease this opera-
tion.
236 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

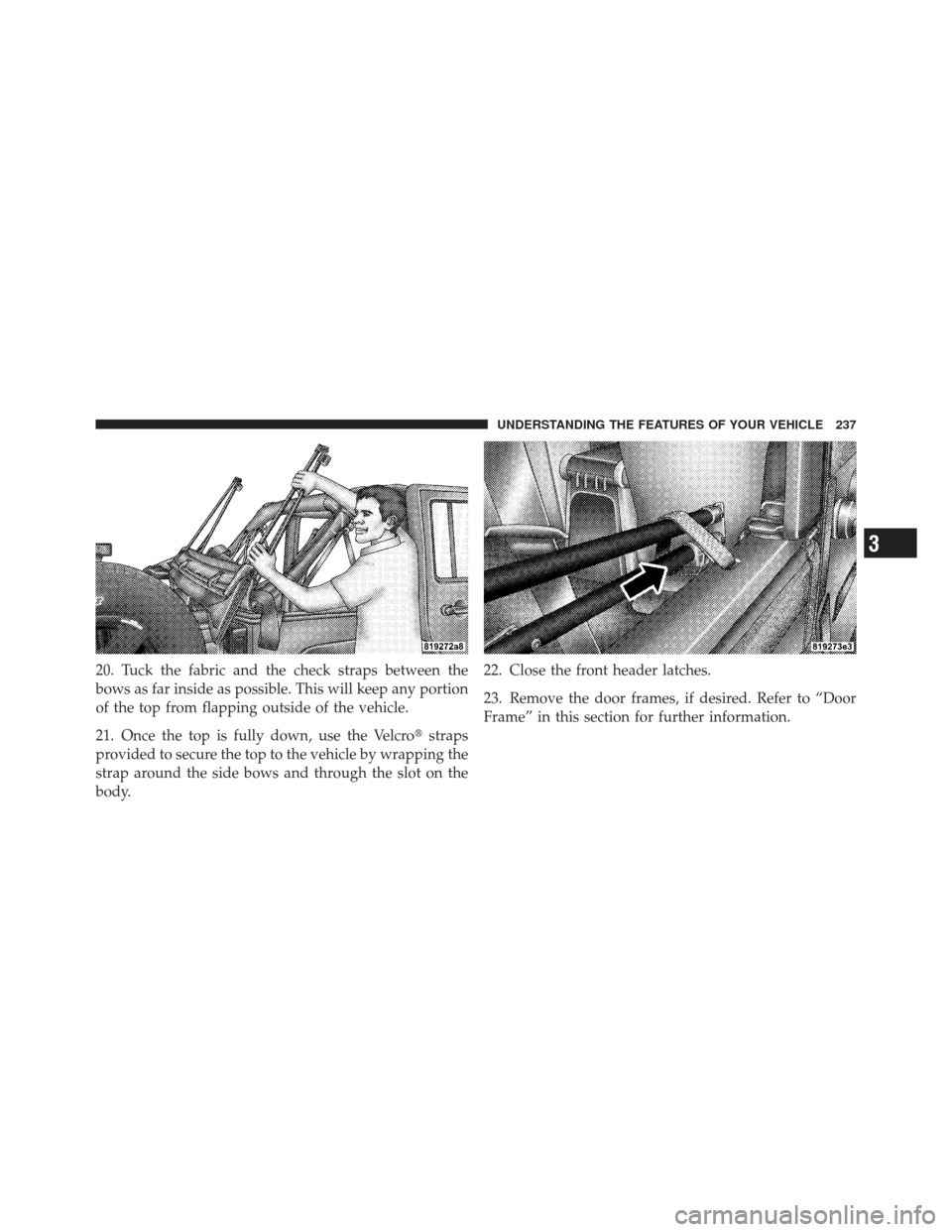

20. Tuck the fabric and the check straps between the
bows as far inside as possible. This will keep any portion
of the top from flapping outside of the vehicle.
21. Once the top is fully down, use the Velcrostraps
provided to secure the top to the vehicle by wrapping the
strap around the side bows and through the slot on the
body. 22. Close the front header latches.
23. Remove the door frames, if desired. Refer to “Door
Frame” in this section for further information.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237

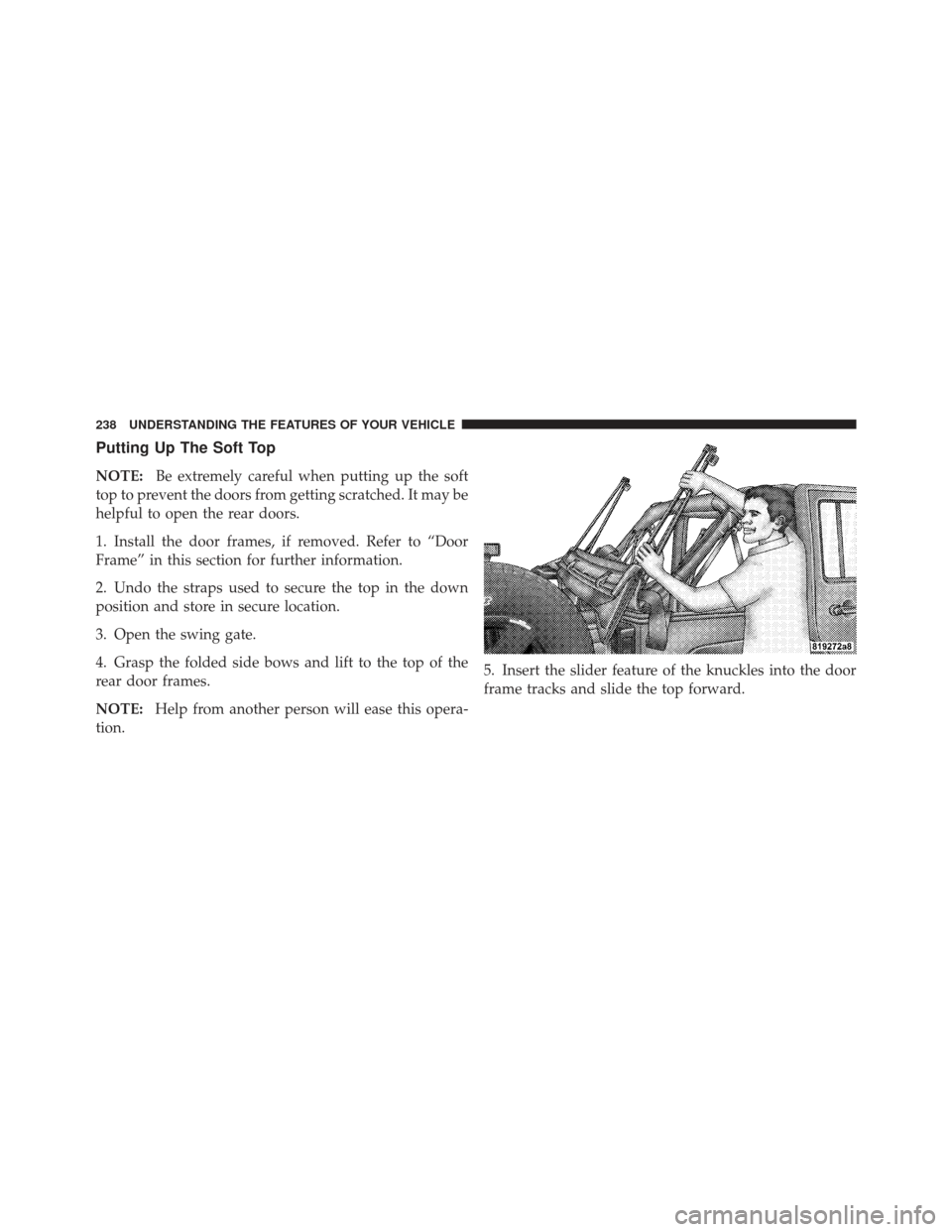

Putting Up The Soft Top
NOTE:Be extremely careful when putting up the soft
top to prevent the doors from getting scratched. It may be
helpful to open the rear doors.
1. Install the door frames, if removed. Refer to “Door
Frame” in this section for further information.
2. Undo the straps used to secure the top in the down
position and store in secure location.
3. Open the swing gate.
4. Grasp the folded side bows and lift to the top of the
rear door frames.
NOTE: Help from another person will ease this opera-
tion. 5. Insert the slider feature of the knuckles into the door
frame tracks and slide the top forward.
