UNDERSTANDING THE FEATURES OF YOUR VEHICLE 223

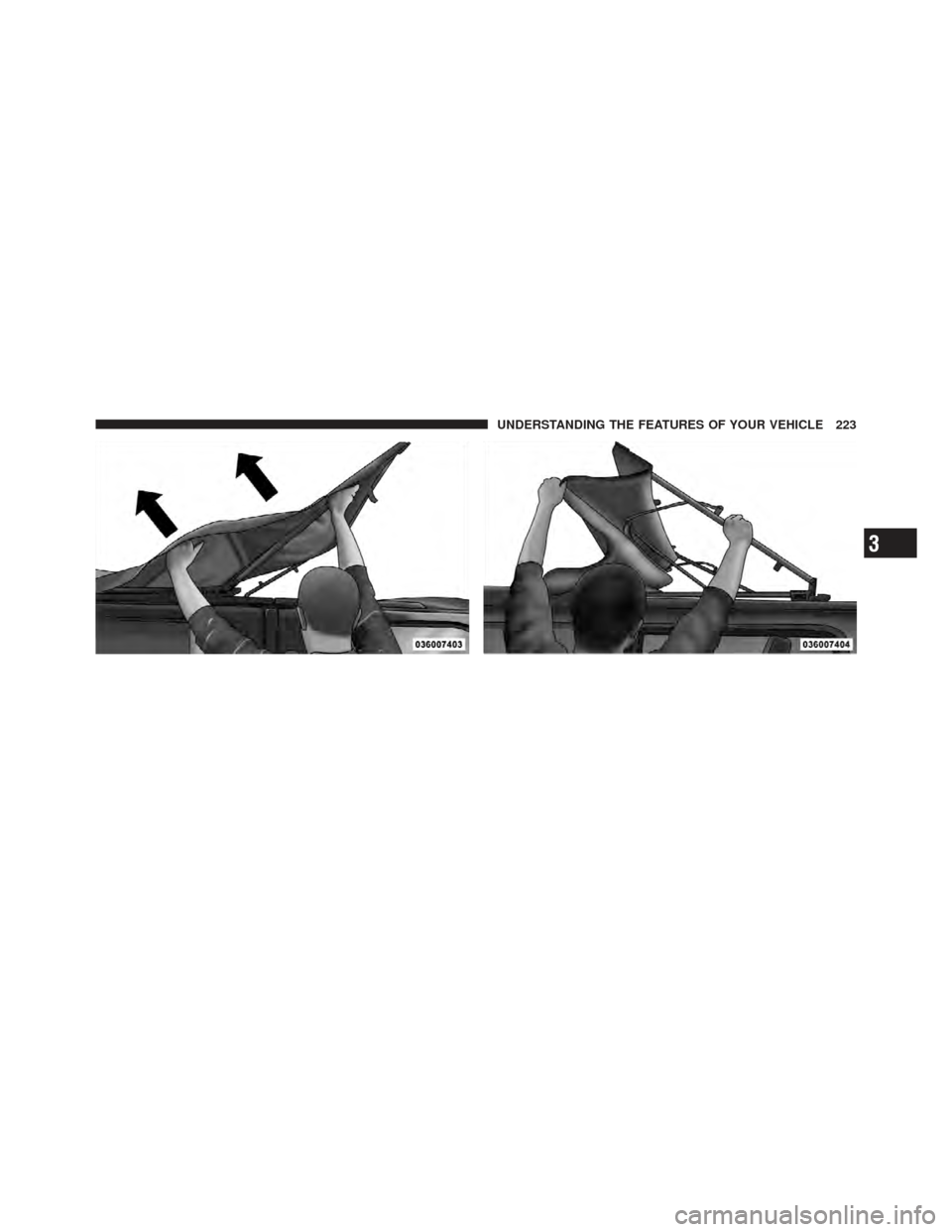

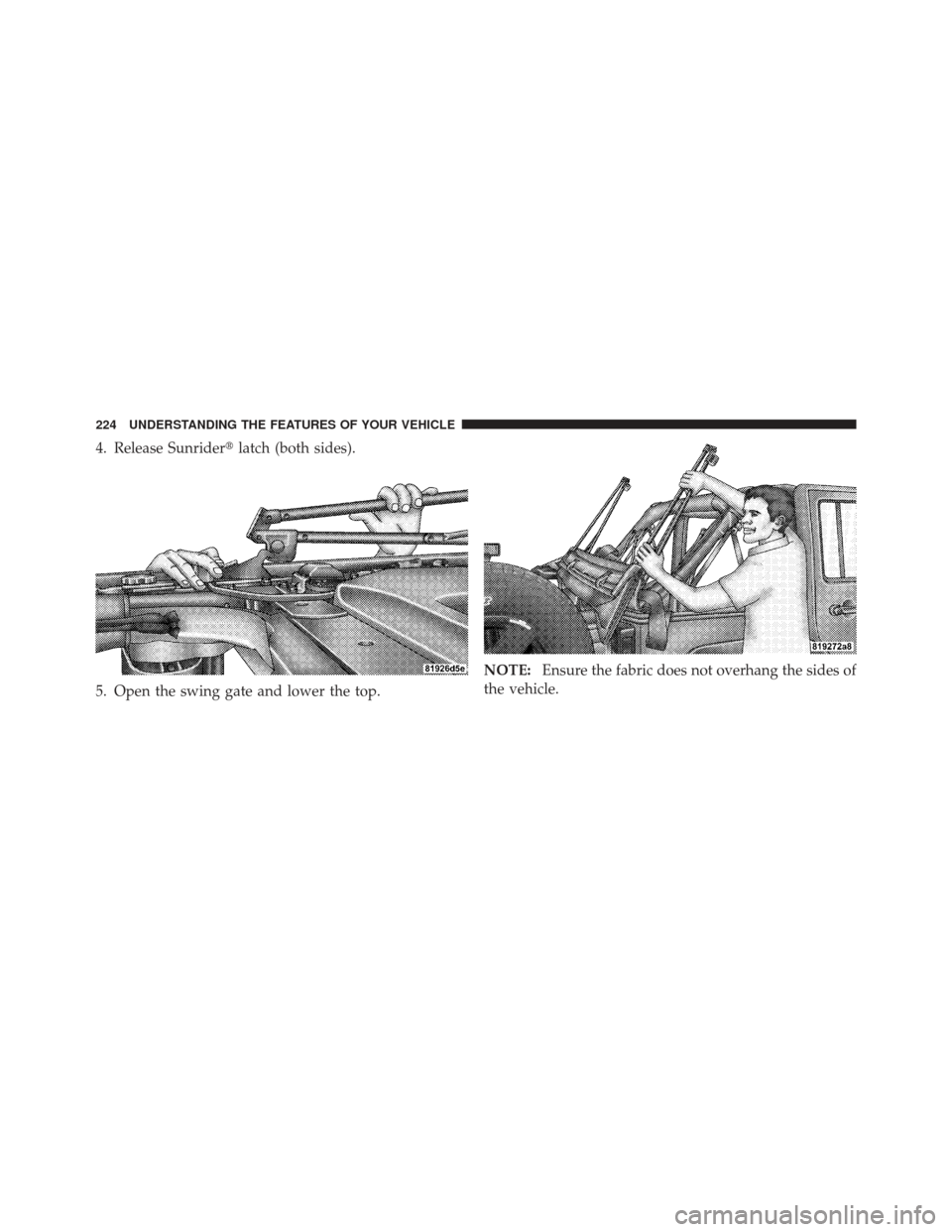

4. Release Sunriderlatch (both sides).
5. Open the swing gate and lower the top. NOTE:
Ensure the fabric does not overhang the sides of
the vehicle.
224 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Quick Steps For Raising The Soft Top

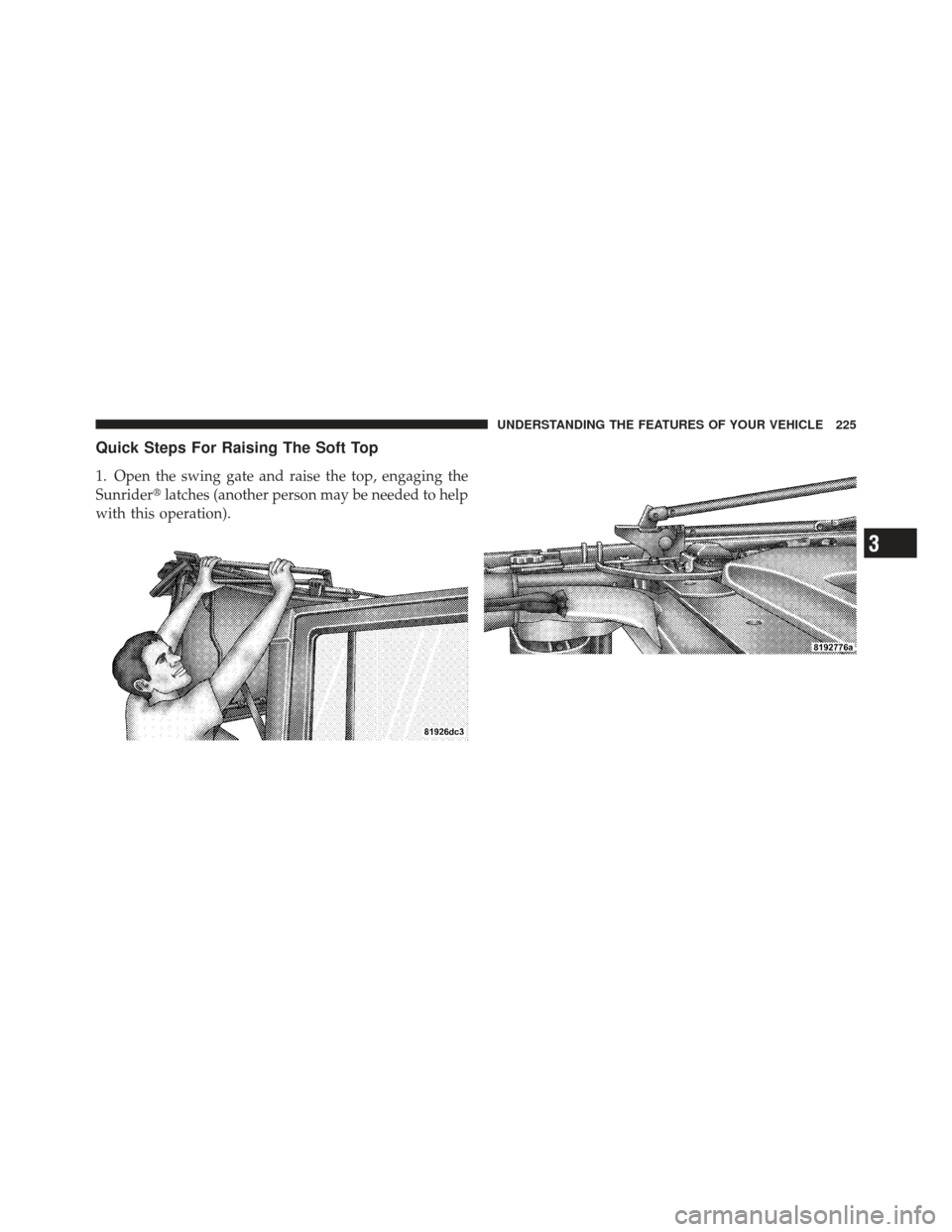

1. Open the swing gate and raise the top, engaging the
Sunriderlatches (another person may be needed to help
with this operation).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 225

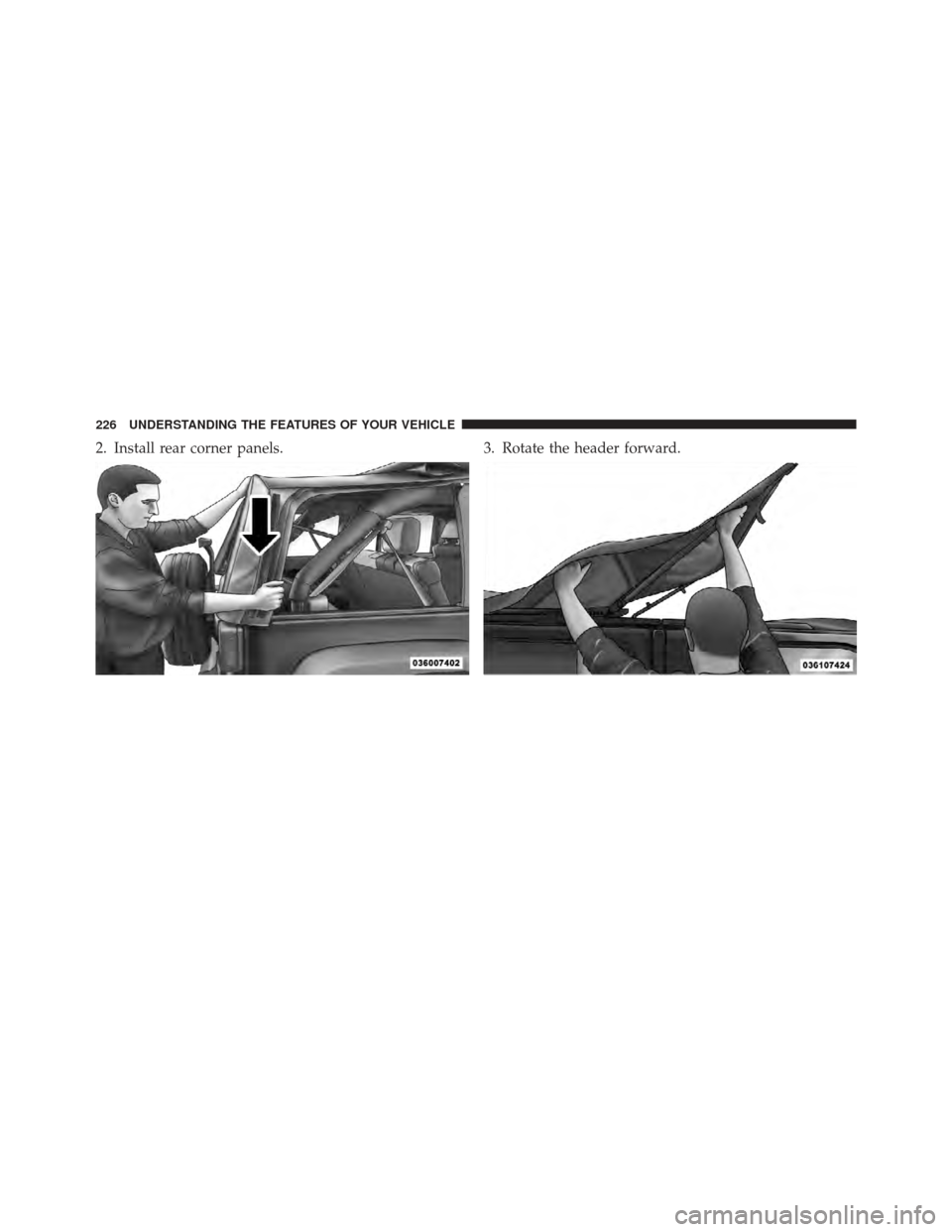

2. Install rear corner panels.3. Rotate the header forward.
226 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

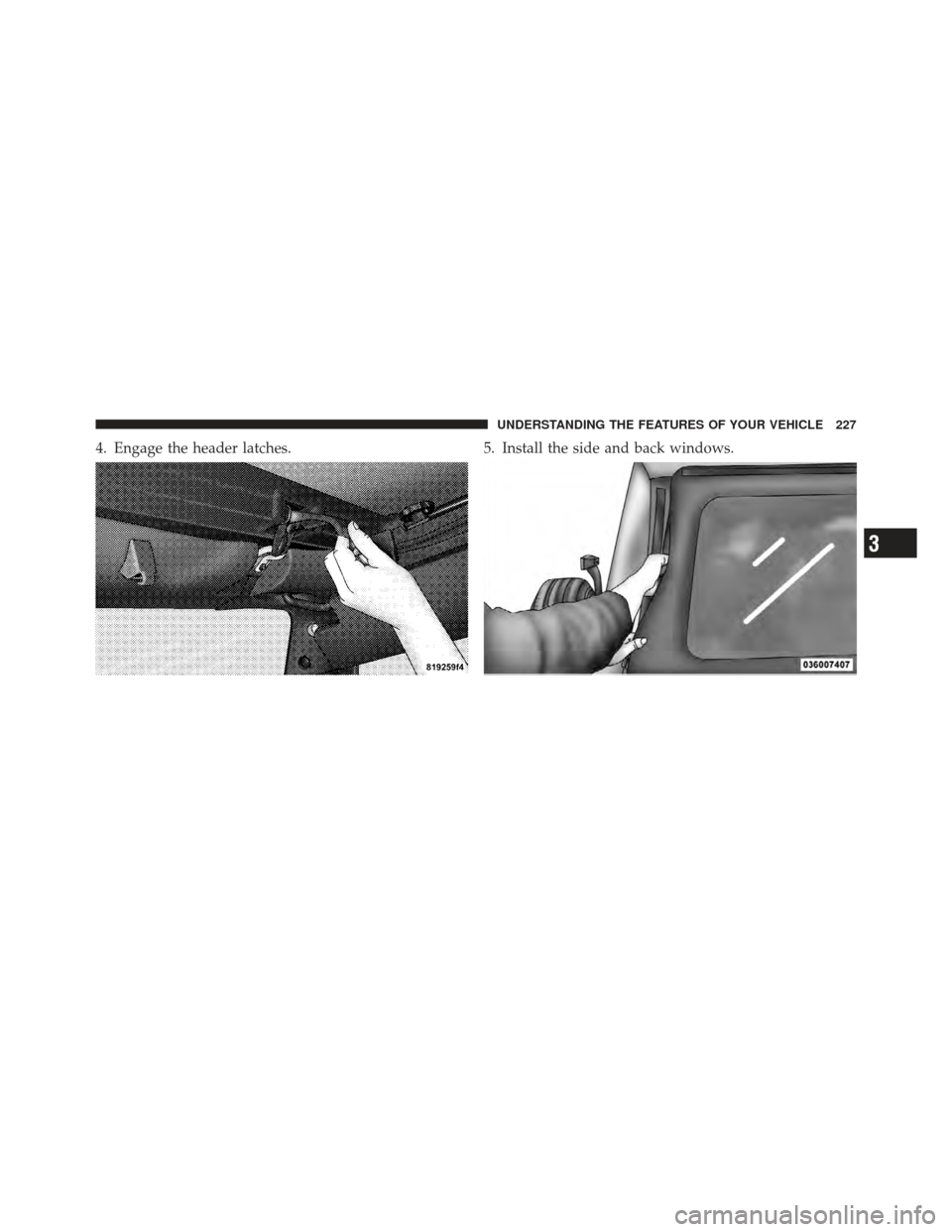

4. Engage the header latches.5. Install the side and back windows.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227

Folding Down The Soft Top

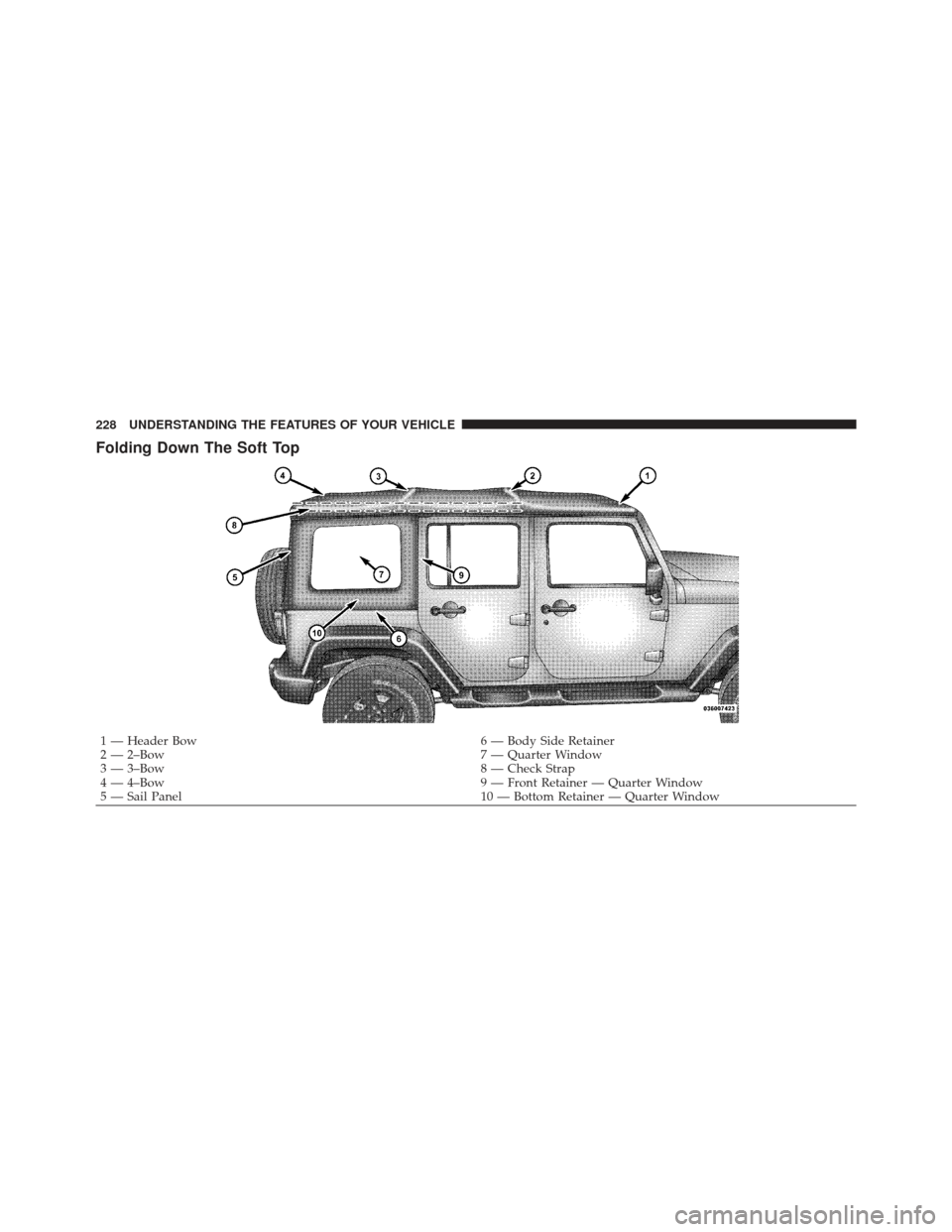

1 — Header Bow6 — Body Side Retainer
2 — 2–Bow 7 — Quarter Window
3 — 3–Bow 8 — Check Strap
4 — 4–Bow 9 — Front Retainer — Quarter Window
5 — Sail Panel 10 — Bottom Retainer — Quarter Window
228 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

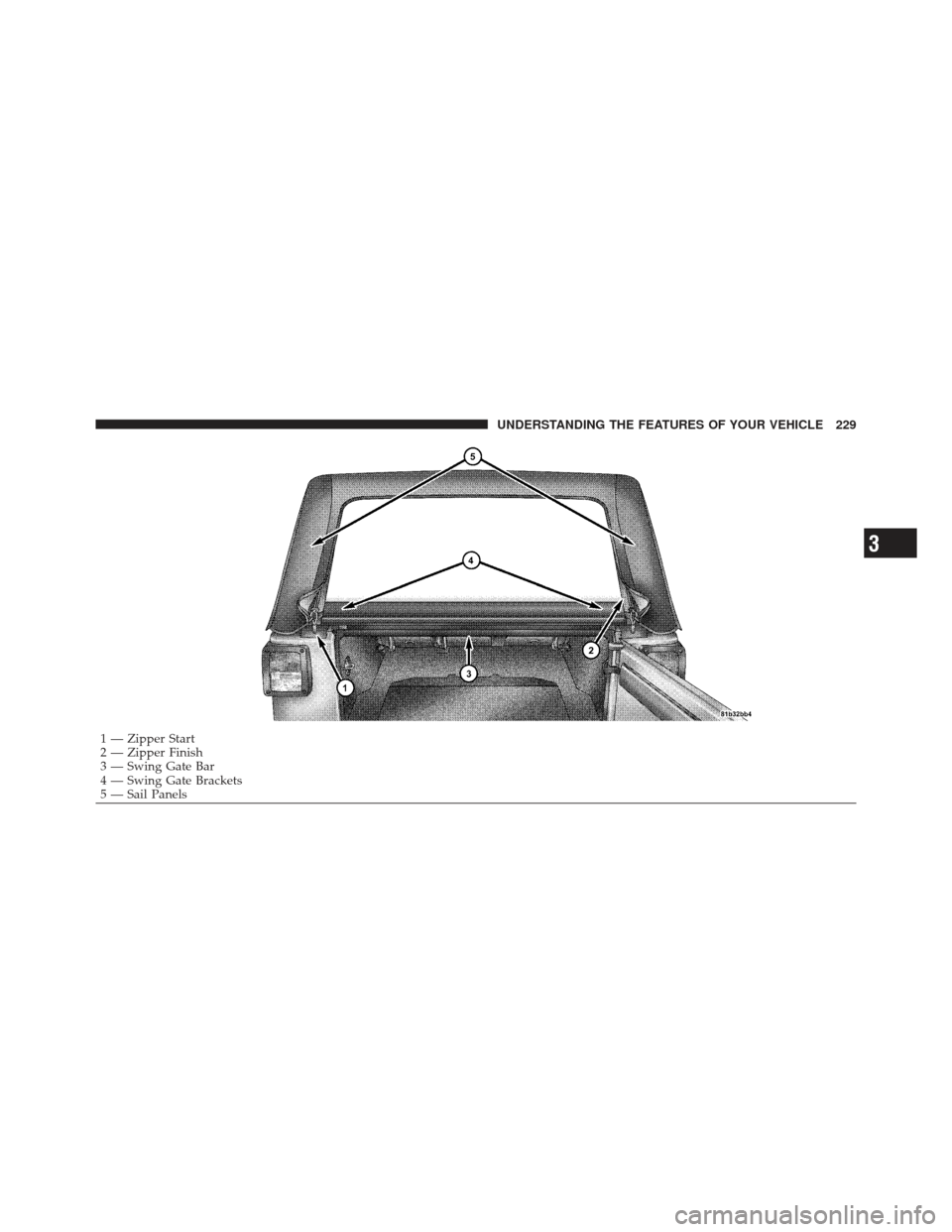

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 229

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half-doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow half-door windows carefully outside of the
vehicle, never inside, to avoid scratches.
2. Unclip and move the sun visors to the side.
3. Release the header latches and hooks from the loops
on the windshield frame. 4. Open the swing gate.
5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.
