Seat Belt Maintenance
Do not bleach, dye or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the seat belts from the
car to wash them. Dry with a soft cloth.
Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.

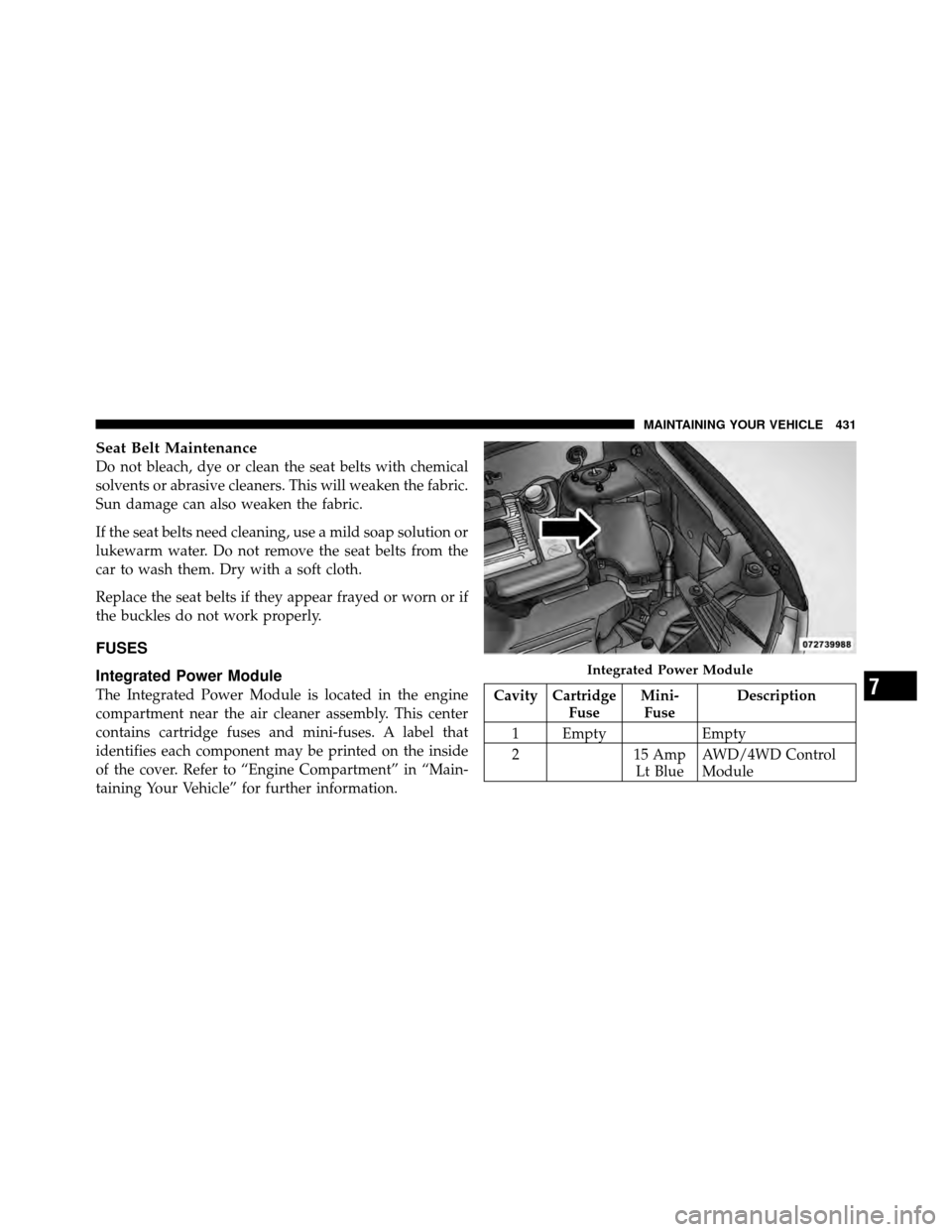

FUSES
Integrated Power Module
The Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini-fuses. A label that
identifies each component may be printed on the inside
of the cover. Refer to “Engine Compartment” in “Main-
taining Your Vehicle” for further information.Cavity CartridgeFuseMini-
Fuse Description
1 Empty Empty
2 15 Amp
Lt Blue AWD/4WD Control
Module
Integrated Power Module
7
MAINTAINING YOUR VEHICLE 431

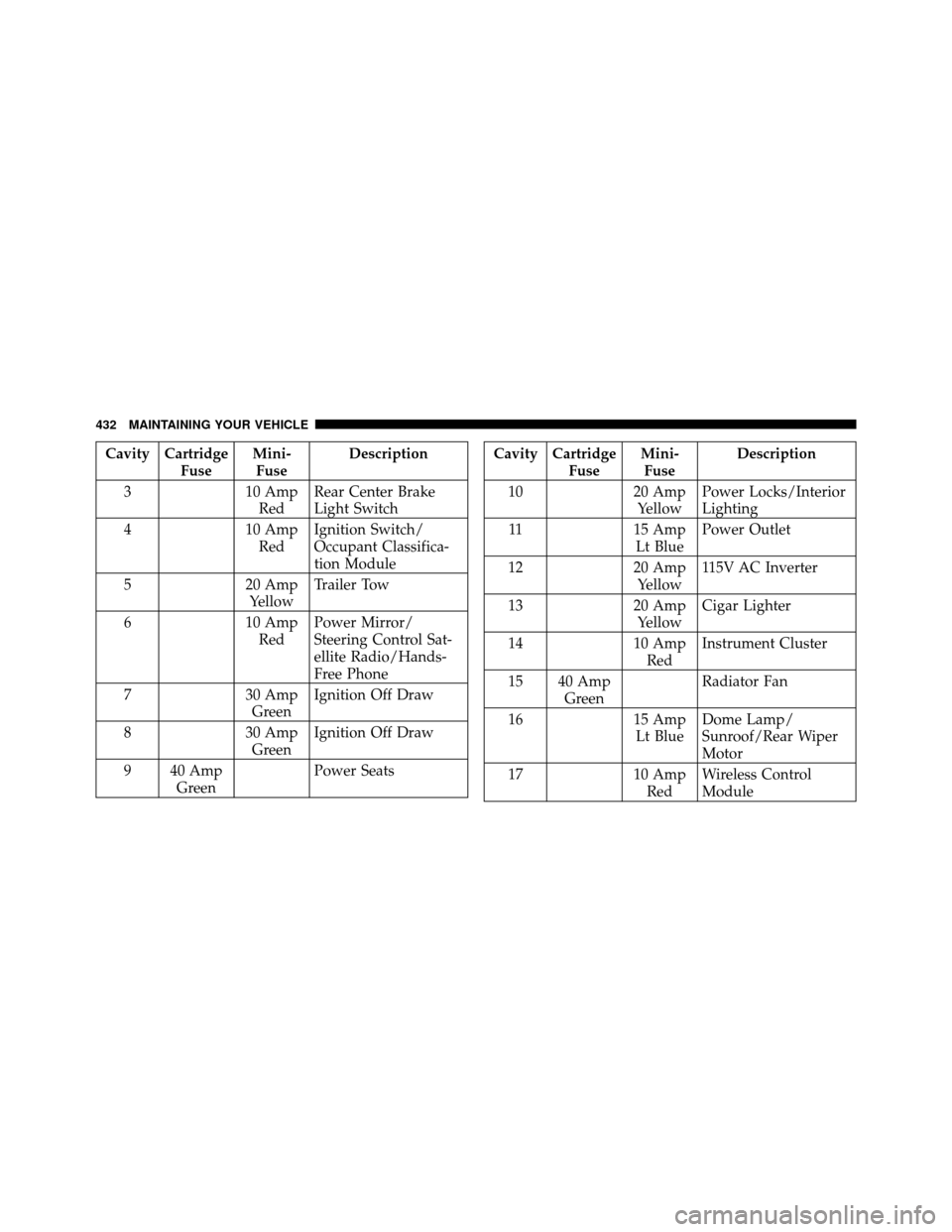

Cavity CartridgeFuseMini-
Fuse Description
3 10 Amp
Red Rear Center Brake
Light Switch
4 10 Amp
Red Ignition Switch/
Occupant Classifica-
tion Module
5 20 Amp
Yellow Trailer Tow
6 10 Amp
Red Power Mirror/
Steering Control Sat-
ellite Radio/Hands-
Free Phone
7 30 Amp
Green Ignition Off Draw
8 30 Amp
Green Ignition Off Draw
9 40 Amp Green Power SeatsCavity Cartridge
FuseMini-
Fuse Description
10 20 Amp
Yellow Power Locks/Interior
Lighting
11 15 Amp
Lt Blue Power Outlet
12 20 Amp
Yellow 115V AC Inverter
13 20 Amp
Yellow Cigar Lighter
14 10 Amp
Red Instrument Cluster
15 40 Amp Green Radiator Fan
16 15 Amp
Lt Blue Dome Lamp/
Sunroof/Rear Wiper
Motor
17 10 Amp
Red Wireless Control
Module
432 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description
18 40 Amp Green Auto Shutdown Relay
19 20 Amp
Yellow Radio Amplifiers
20 15 Amp
Lt Blue Radio
21 10 Amp
Red Intrusion Module/
Siren – If Equipped
22 10 Amp
Red Heating, AC/
Compass
23 15 Amp
Lt Blue Auto Shutdown Relay
24 15 Amp
Lt Blue Power Sunroof
25 10 Amp
Red Heated Mirror – If
EquippedCavity Cartridge
FuseMini-
Fuse Description
26 15 Amp
Lt Blue Auto Shutdown Relay
27 10 Amp
Red Airbag Control Mod-
ule
28 10 Amp
Red Airbag Control
Module/Occupant
Classification Module
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
Yellow Heated Seat – If
Equipped
31 10 Amp
Red Headlamp Washer –
If Equipped
32 30 Amp Pink Auto Shutdown Relay
7
MAINTAINING YOUR VEHICLE 433

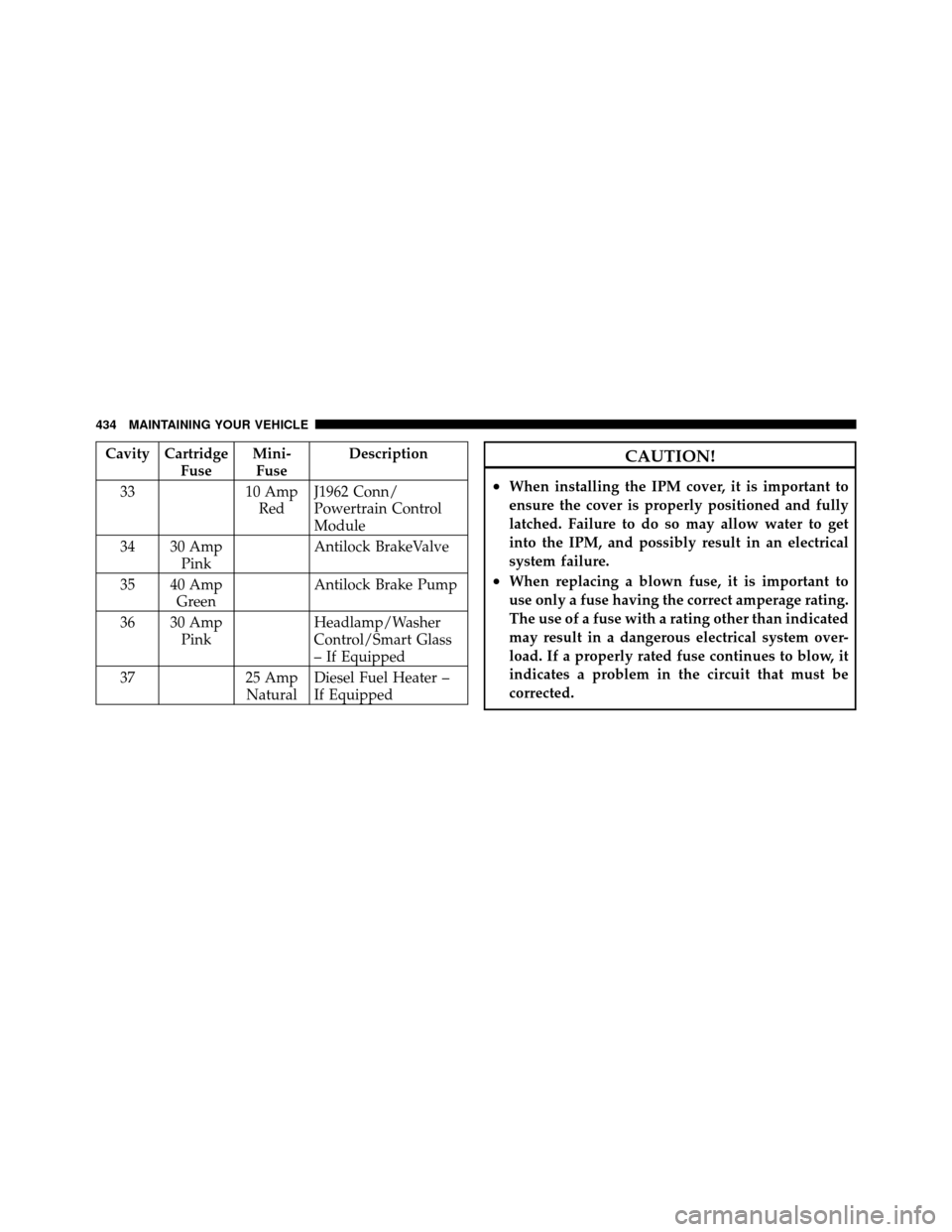

Cavity CartridgeFuseMini-
Fuse Description
33 10 Amp
Red J1962 Conn/
Powertrain Control
Module
34 30 Amp Pink Antilock BrakeValve
35 40 Amp Green Antilock Brake Pump
36 30 Amp Pink Headlamp/Washer
Control/Smart Glass
– If Equipped
37 25 Amp
Natural Diesel Fuel Heater –
If EquippedCAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
434 MAINTAINING YOUR VEHICLE

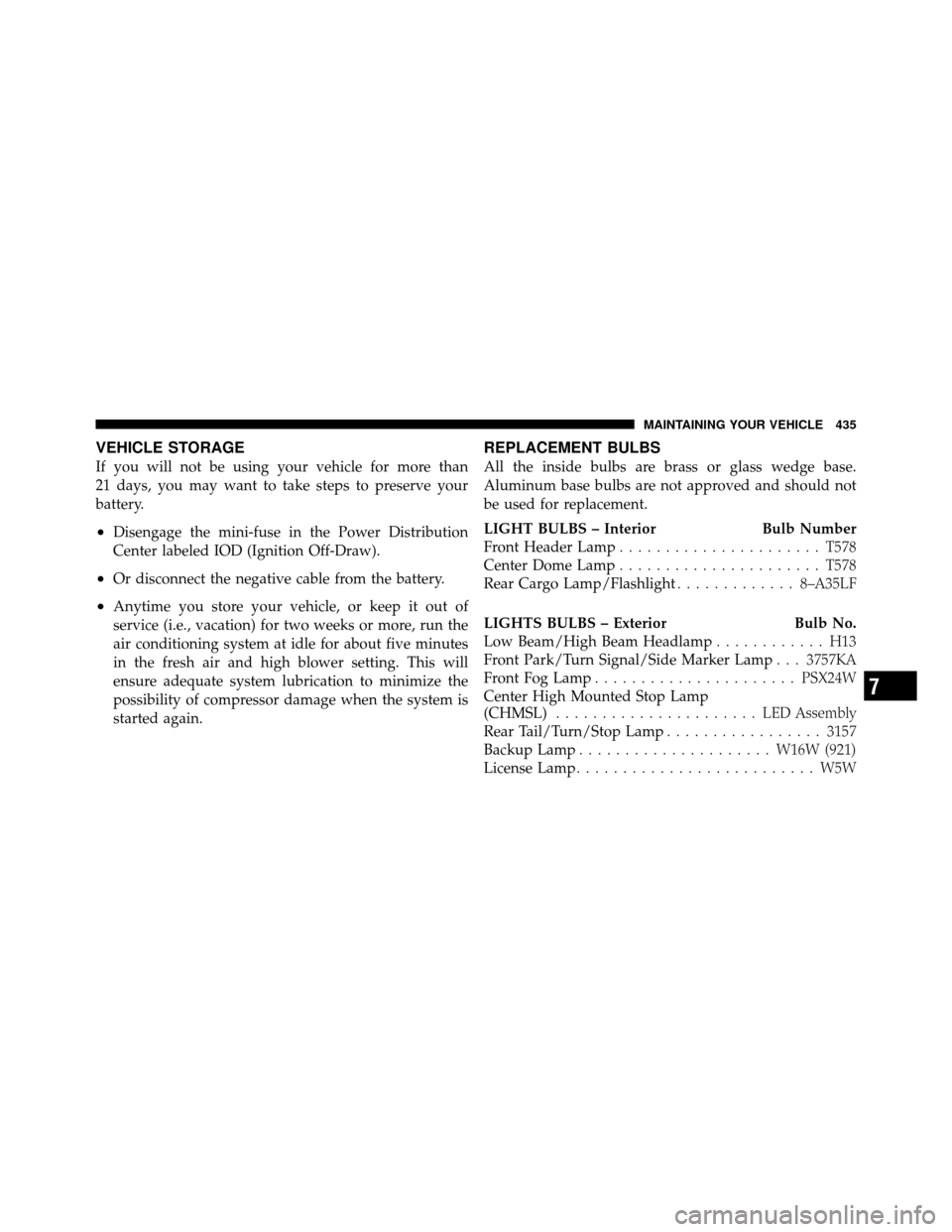

VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Front Header Lamp...................... T578
Center Dome Lamp ...................... T578
Rear Cargo Lamp/Flashlight .............8–A35LF
LIGHTS BULBS – Exterior Bulb No.
Low Beam/High Beam Headlamp ............ H13
Front Park/Turn Signal/Side Marker Lamp . . . 3757KA
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp
(CHMSL) ...................... LED Assembly
Rear Tail/Turn/Stop Lamp .................3157
Backup Lamp ..................... W16W (921)
License Lamp .......................... W5W
7
MAINTAINING YOUR VEHICLE 435

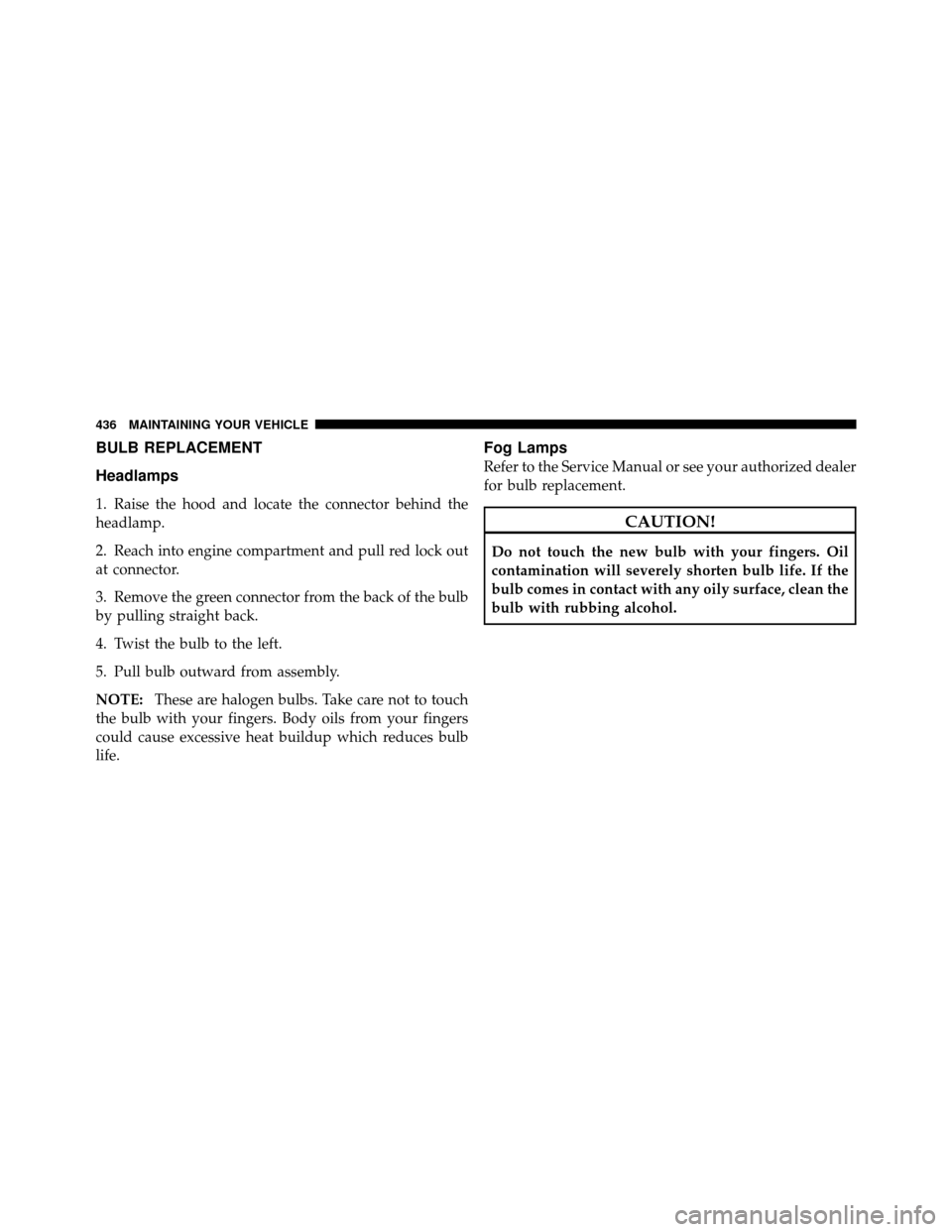

BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlamp.
2. Reach into engine compartment and pull red lock out
at connector.
3. Remove the green connector from the back of the bulb
by pulling straight back.
4. Twist the bulb to the left.
5. Pull bulb outward from assembly.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.
Fog Lamps
Refer to the Service Manual or see your authorized dealer
for bulb replacement.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
436 MAINTAINING YOUR VEHICLE

Rear Tail, Turn Signal And Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins from the taillamp housing.
3. Grasp the taillamp and pull firmly to disengage the
light from the aperture panel.
4. Twist and remove socket from the light.
5. Remove bulb from socket and replace.
License Lamps
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
2. Rotate the socket 1/4 turn counterclockwise.
3. Pull the bulb from the socket.
Center High-Mounted Stoplamp
This light is an LED assembly. See your authorized dealer
for replacement.
7
MAINTAINING YOUR VEHICLE 437

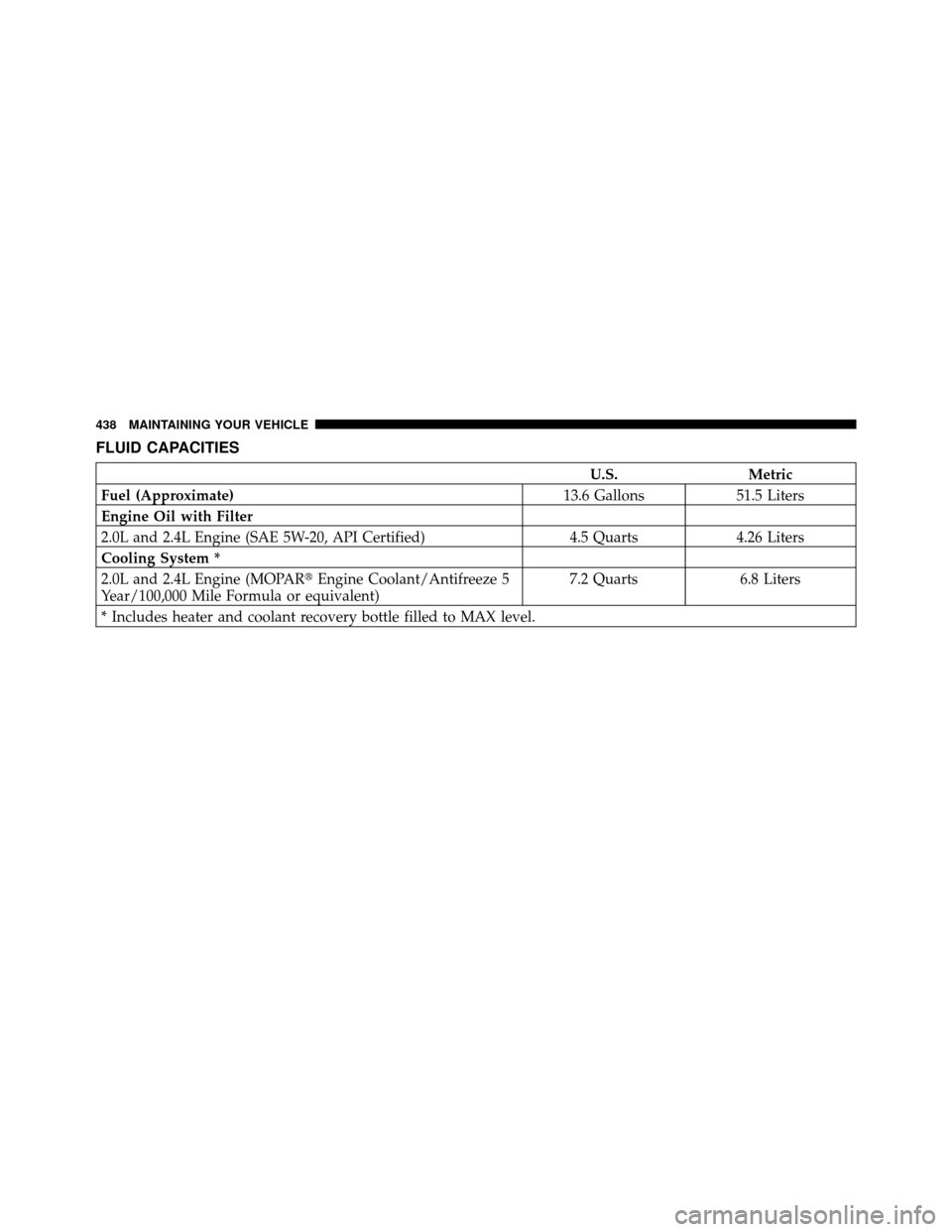

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 13.6 Gallons51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
