2011 JEEP PATRIOT Owners Manual

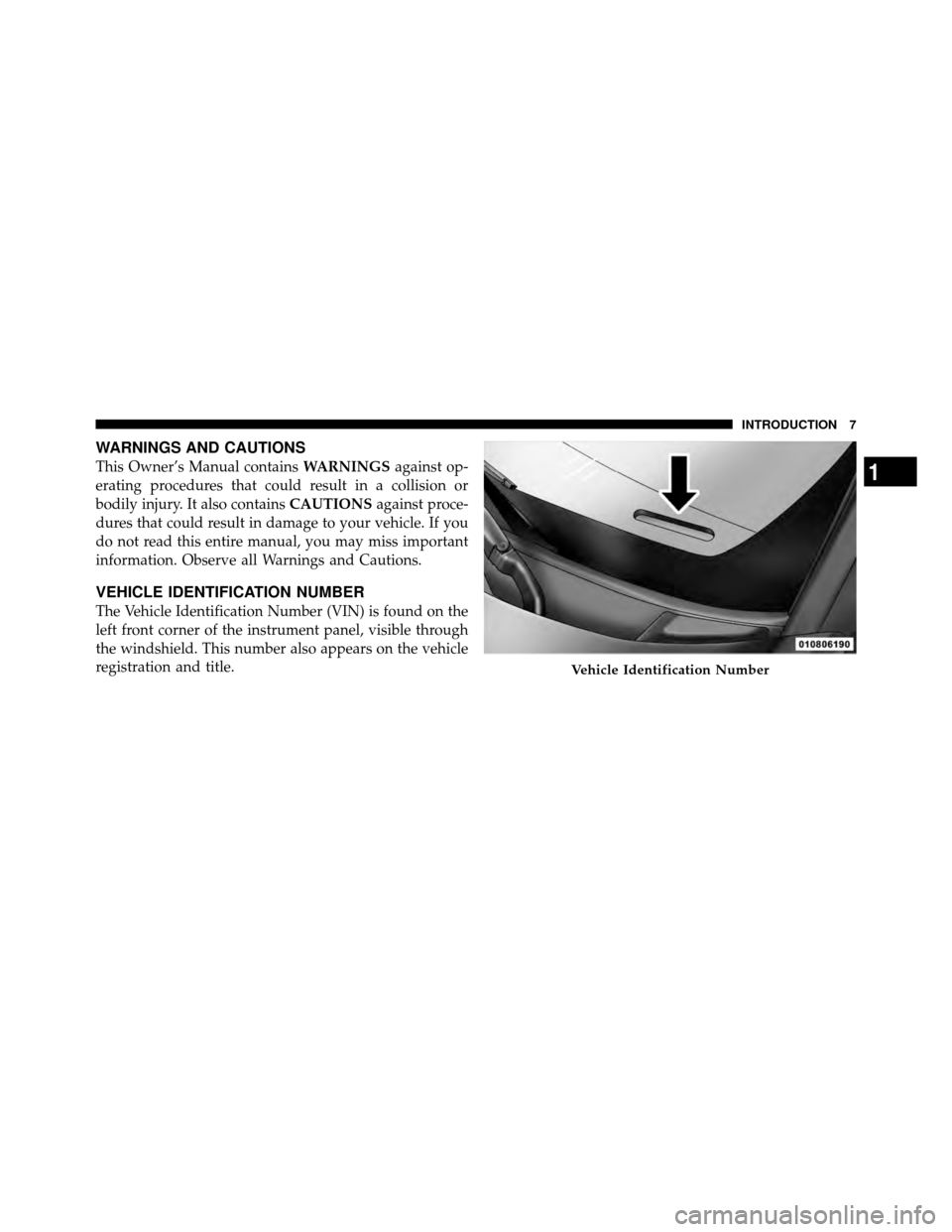

WARNINGS AND CAUTIONS
This Owner’s Manual containsWARNINGSagainst op-
erating procedures that could result in a collision or
bodily injury. It also contains CAUTIONSagainst proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the vehicle
registration and title.
Vehicle Identification Number
1
INTRODUCTION 7

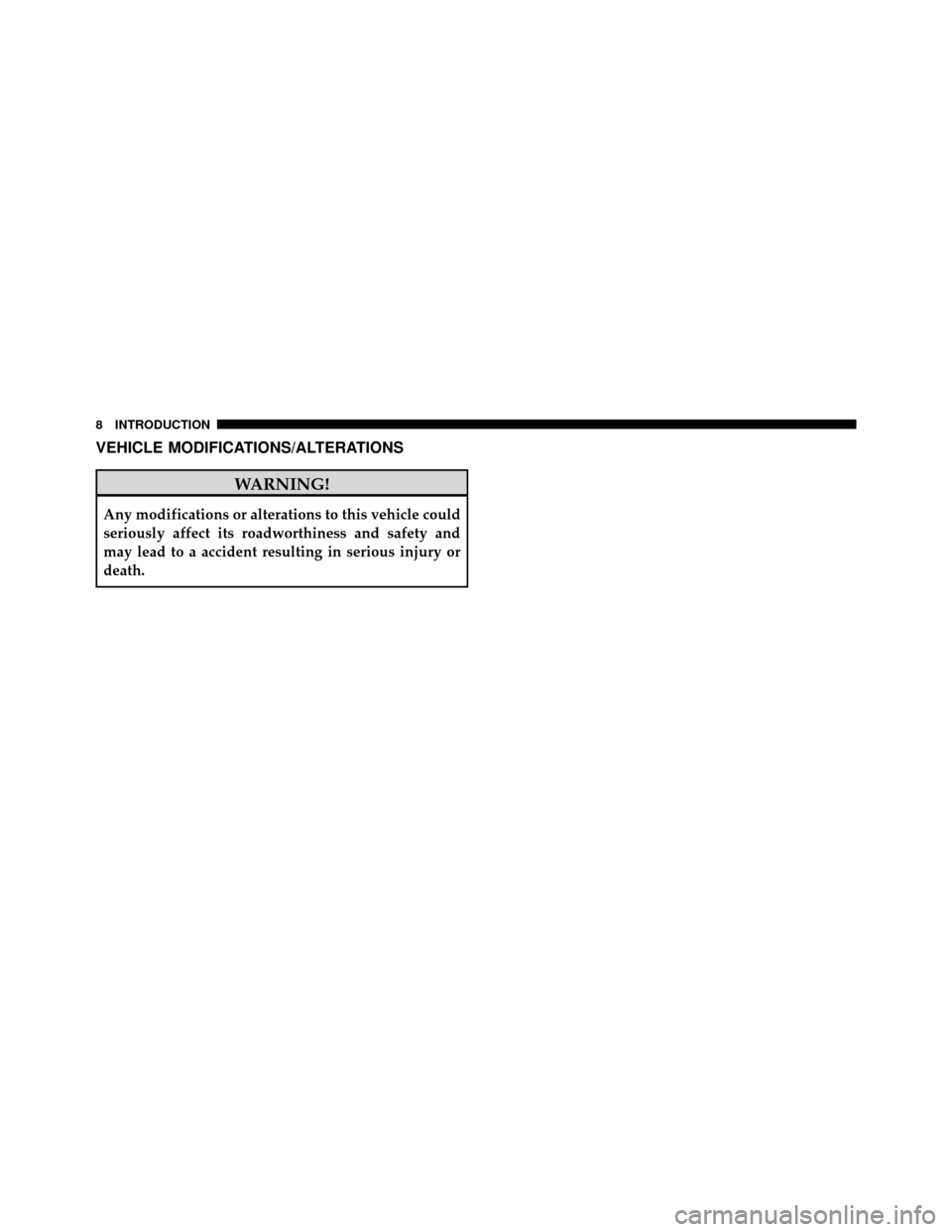

VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a accident resulting in serious injury or
death.
8 INTRODUCTION

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Locking Doors With A Key .............. 14
▫ Key-In-Ignition Reminder ............... 14
 Sentry Key .......................... 14
▫ Replacement Keys ..................... 15
▫ Customer Key Programming ............. 16
▫ General Information ................... 17
Vehicle Security Alarm — If Equipped ........ 17
▫ To Arm The System ................... 17
▫ To Disarm The System ................. 18
▫ Vehicle Security Alarm Manual Override ..... 18
 Remote Keyless Entry (RKE) — If Equipped . . . 18
▫ To Unlock The Doors And Liftgate ......... 19
▫ Remote Key Unlock, Driver Door/All First
Press .............................. 19
▫ Illuminated Approach — If Equipped ....... 20
2

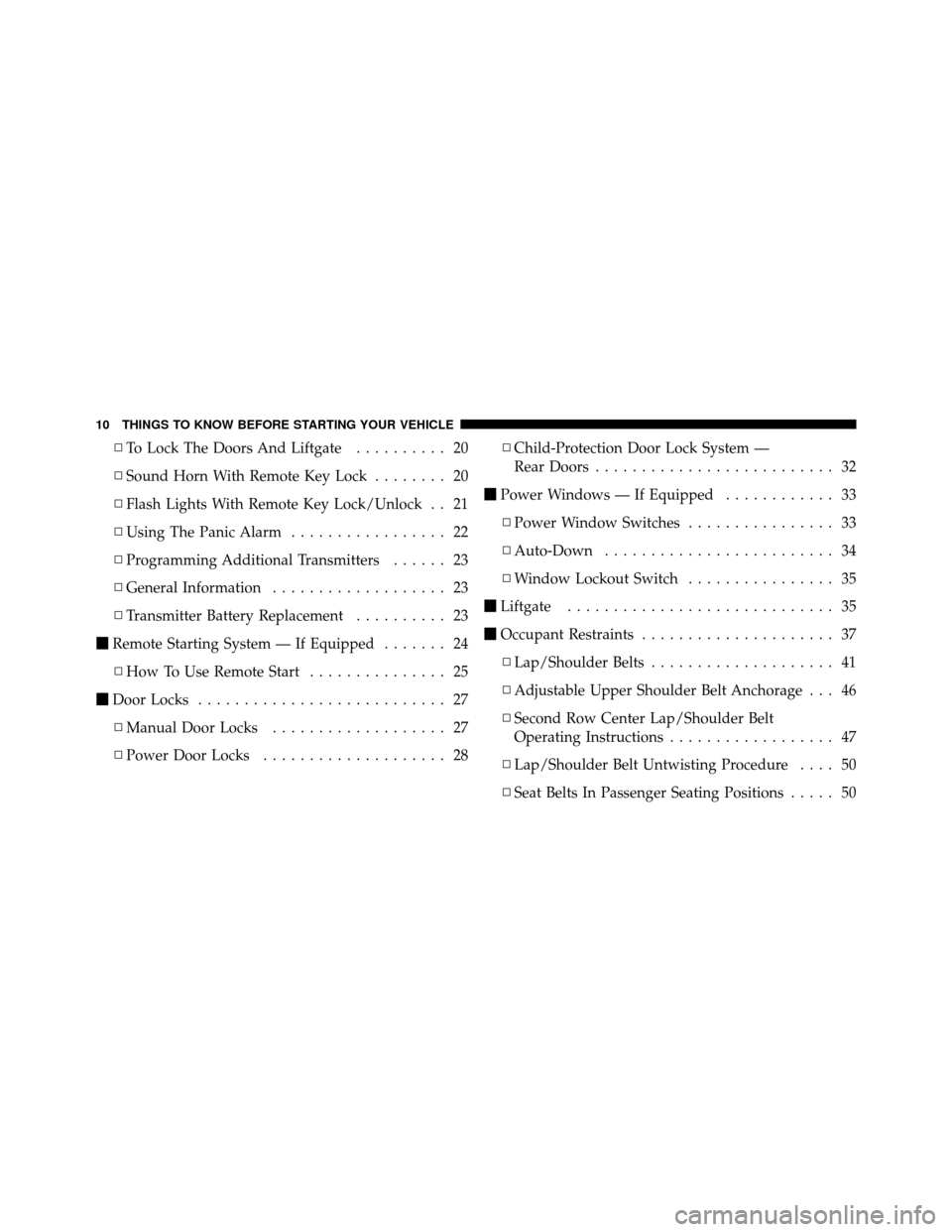

▫To Lock The Doors And Liftgate .......... 20
▫ Sound Horn With Remote Key Lock ........ 20
▫ Flash Lights With Remote Key Lock/Unlock . . 21
▫ Using The Panic Alarm ................. 22
▫ Programming Additional Transmitters ...... 23
▫ General Information ................... 23
▫ Transmitter Battery Replacement .......... 23
 Remote Starting System — If Equipped ....... 24
▫ How To Use Remote Start ............... 25
 Door Locks ........................... 27
▫ Manual Door Locks ................... 27
▫ Power Door Locks .................... 28 ▫
Child-Protection Door Lock System —
Rear Doors .......................... 32
 Power Windows — If Equipped ............ 33
▫ Power Window Switches ................ 33
▫ Auto-Down ......................... 34
▫ Window Lockout Switch ................ 35
 Liftgate ............................. 35
 Occupant Restraints ..................... 37
▫ Lap/Shoulder Belts .................... 41
▫ Adjustable Upper Shoulder Belt Anchorage . . . 46
▫ Second Row Center Lap/Shoulder Belt
Operating Instructions .................. 47
▫ Lap/Shoulder Belt Untwisting Procedure .... 50
▫ Seat Belts In Passenger Seating Positions ..... 50
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

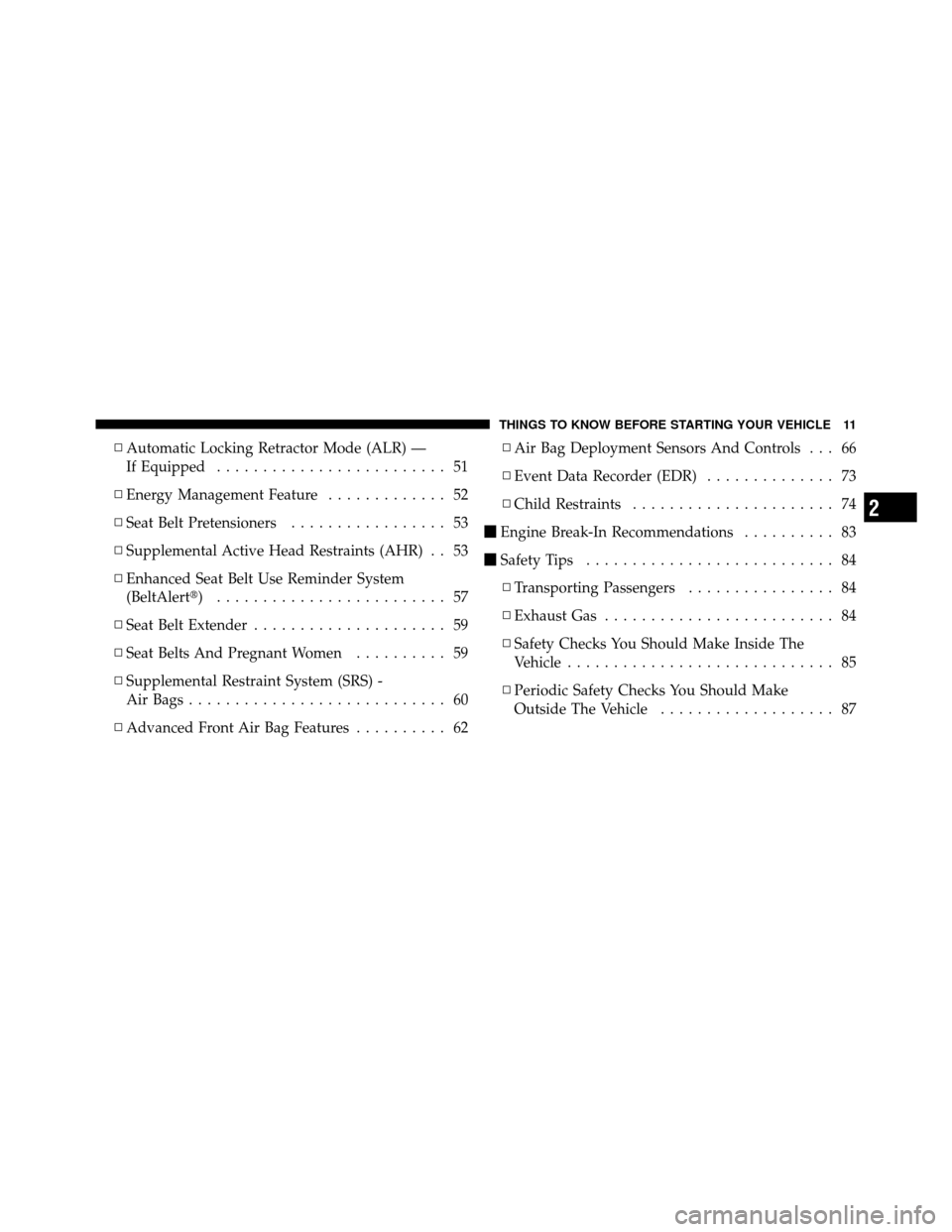

▫Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 51
▫ Energy Management Feature ............. 52
▫ Seat Belt Pretensioners ................. 53
▫ Supplemental Active Head Restraints (AHR) . . 53
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 57
▫ Seat Belt Extender ..................... 59
▫ Seat Belts And Pregnant Women .......... 59
▫ Supplemental Restraint System (SRS) -
Air Bags ............................ 60
▫ Advanced Front Air Bag Features .......... 62▫
Air Bag Deployment Sensors And Controls . . . 66
▫ Event Data Recorder (EDR) .............. 73
▫ Child Restraints ...................... 74
 Engine Break-In Recommendations .......... 83
 Safety Tips ........................... 84
▫ Transporting Passengers ................ 84
▫ Exhaust Gas ......................... 84
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 85
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 87
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

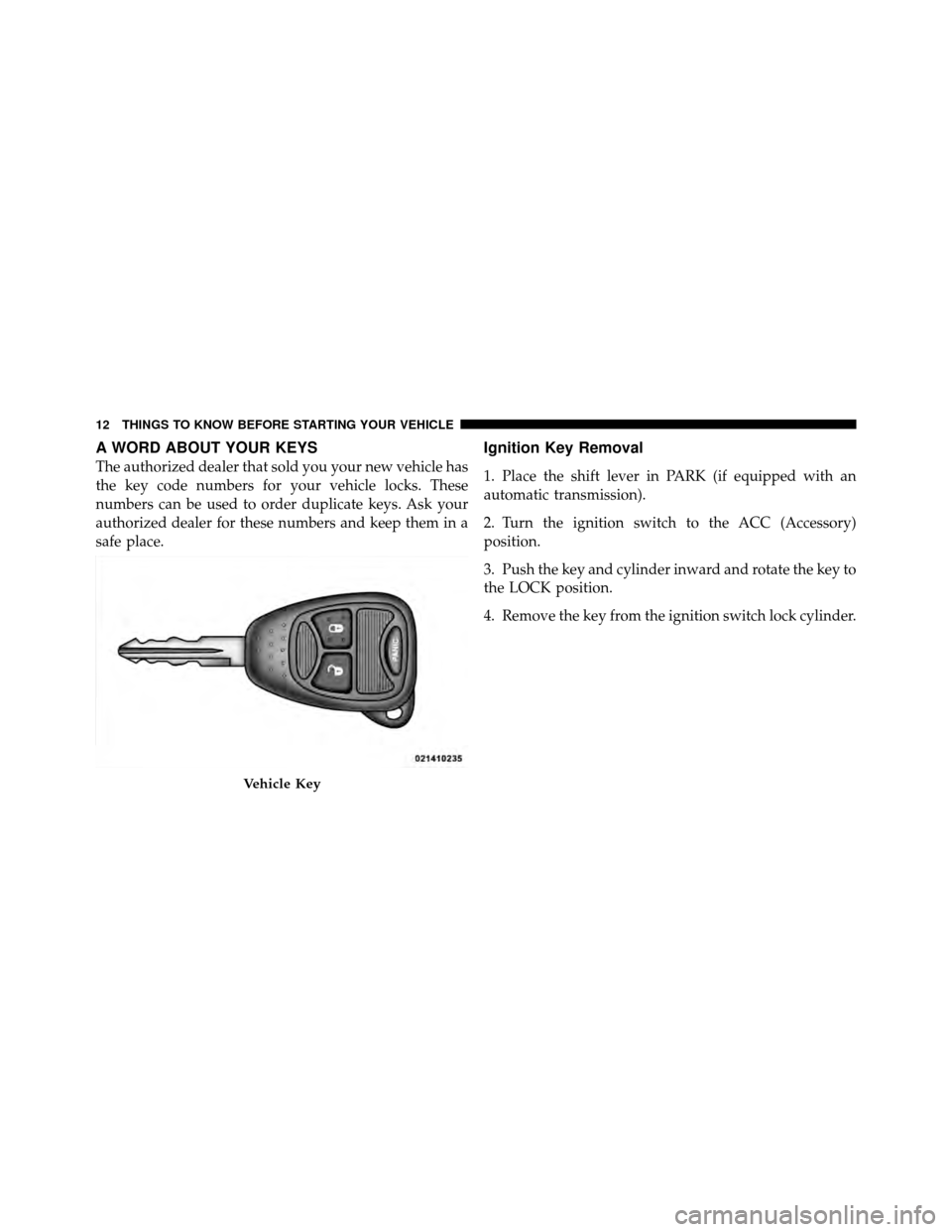

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys. Ask your
authorized dealer for these numbers and keep them in a
safe place.
Ignition Key Removal
1. Place the shift lever in PARK (if equipped with an
automatic transmission).
2. Turn the ignition switch to the ACC (Accessory)
position.
3. Push the key and cylinder inward and rotate the key to
the LOCK position.
4. Remove the key from the ignition switch lock cylinder.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition switch cylinder. If this occurs,
rotate the key to the right slightly, then remove the key as described. If a malfunction occurs, the system will trap
the key in the ignition cylinder to warn you that this
safety feature is inoperable. The engine can be started
and stopped but the key cannot be removed until you
obtain service.
WARNING!
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

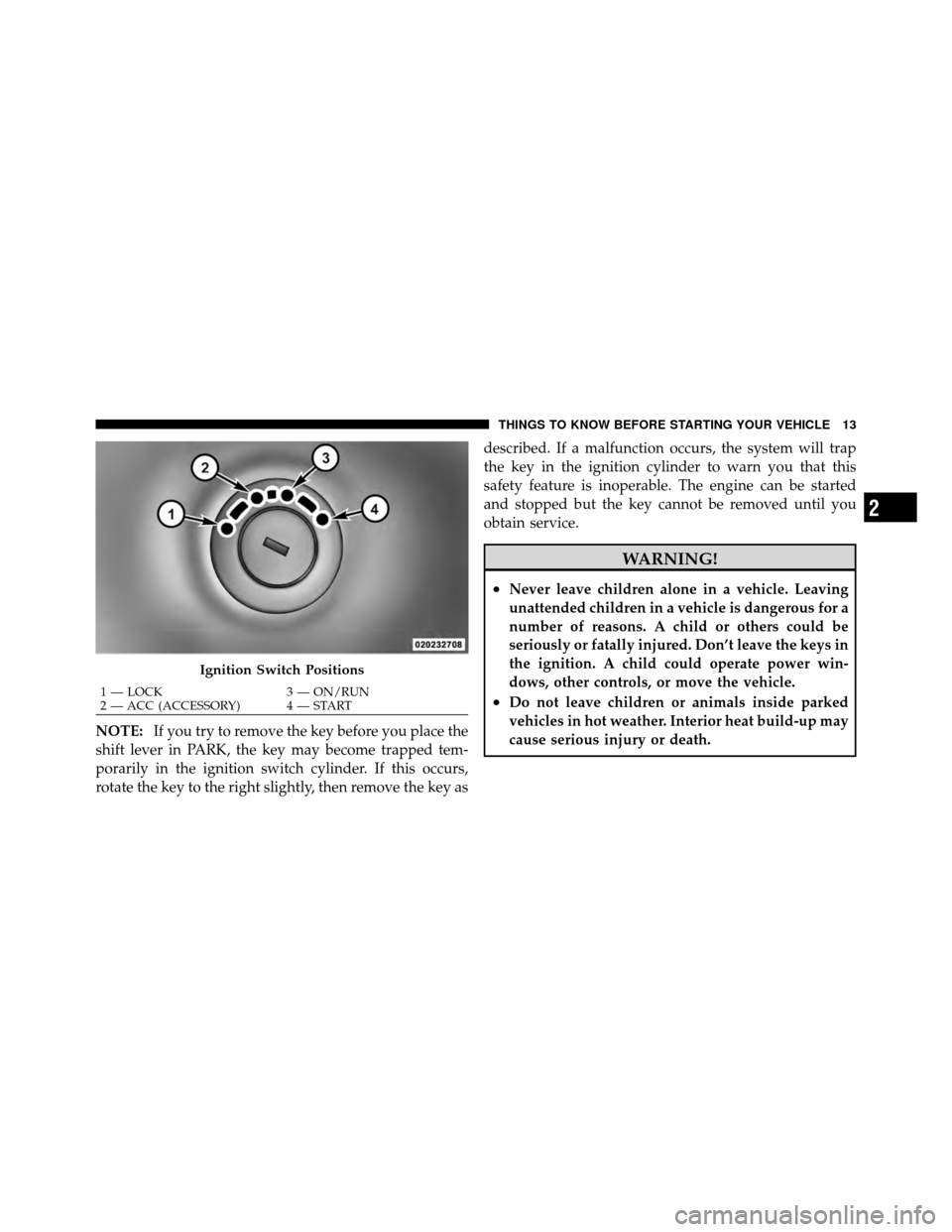

Ignition Switch Positions
1 — LOCK
3 — ON/RUN
2 — ACC (ACCESSORY) 4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the right. To unlock the door, turn
the key to the left. Refer to “Maintenance Procedures” in
“Maintaining Your Vehicle” for further information.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition position is LOCK or ACC, sounds a
signal to remind you to remove the key.
NOTE:With the driver’s door open and the key in the
ignition, the power door locks will not lock and Remote
Keyless Entry (RKE) transmitter will not function.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE: A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
