2011 JEEP PATRIOT Owners Manual

Page 137 of 490

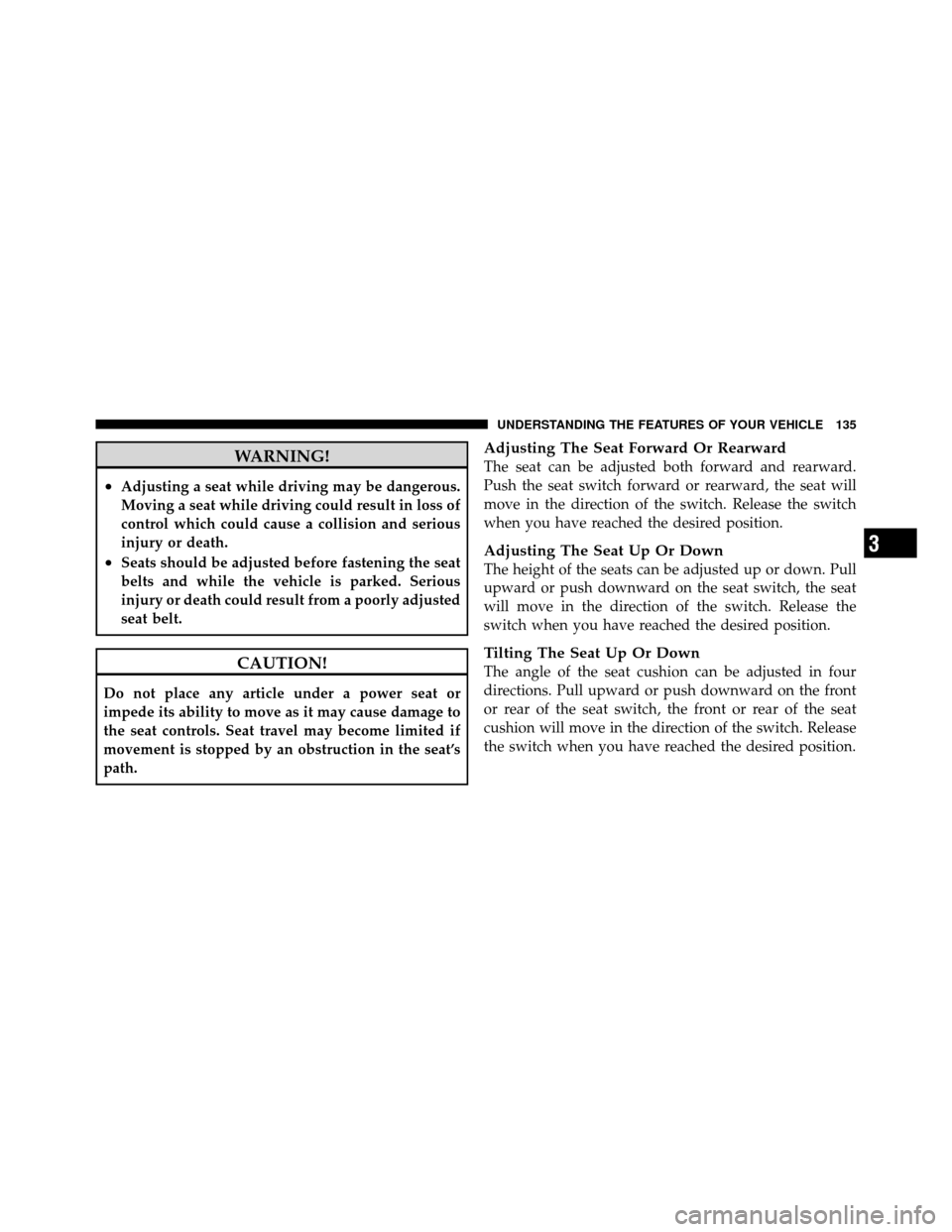

JEEP PATRIOT 2011 1.G Owners Manual WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be a

Page 138 of 490

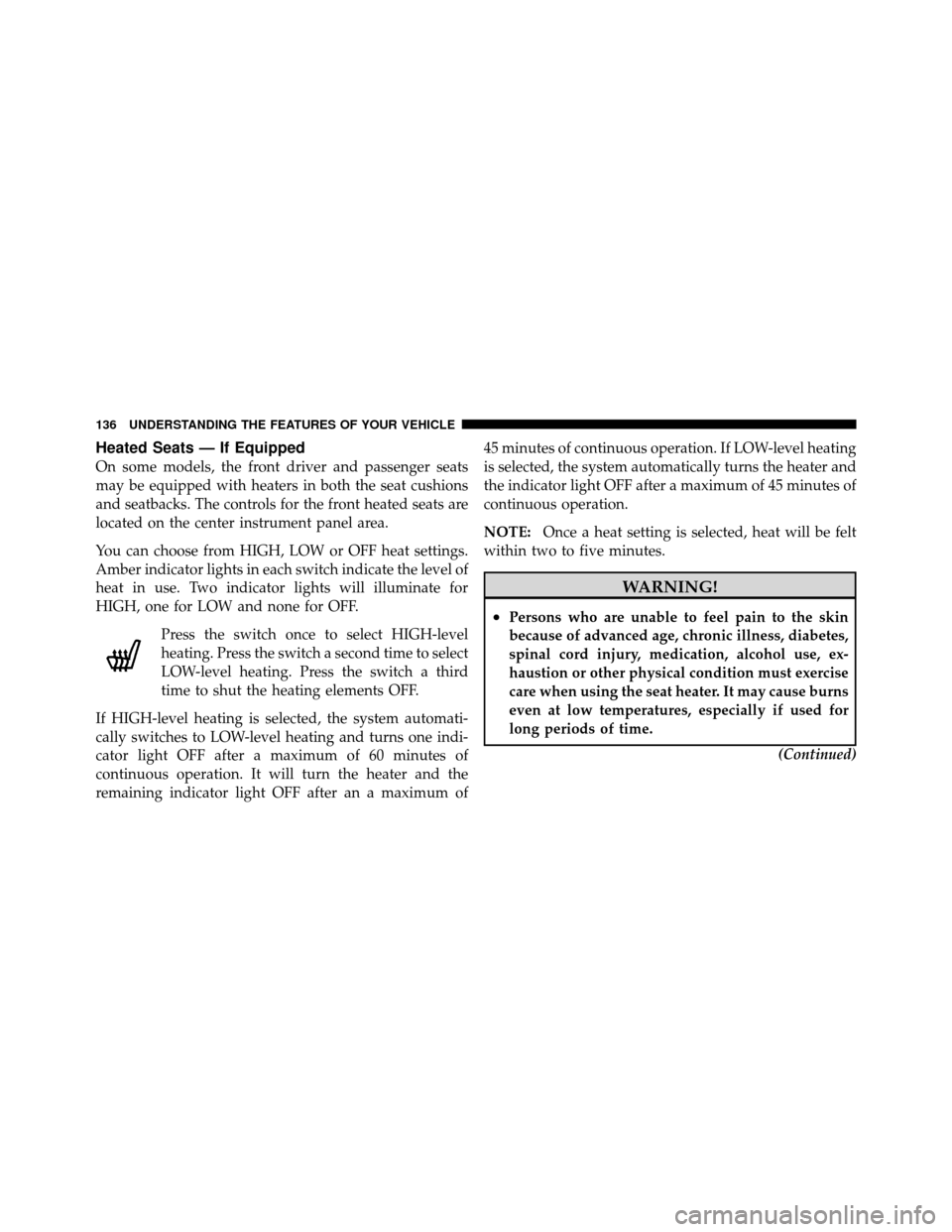

JEEP PATRIOT 2011 1.G Owners Manual Heated Seats — If Equipped
On some models, the front driver and passenger seats
may be equipped with heaters in both the seat cushions
and seatbacks. The controls for the front heated seats are
loca

Page 139 of 490

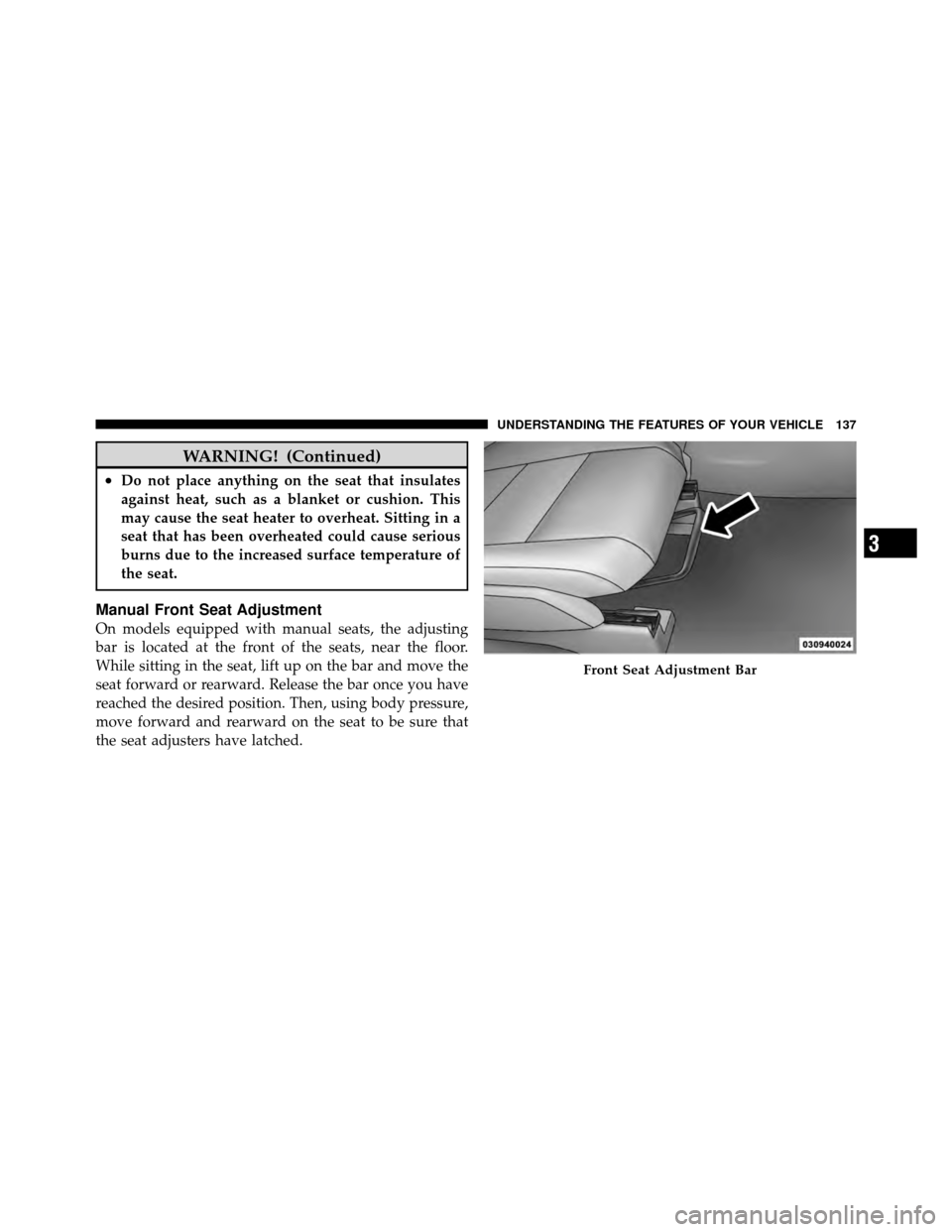

JEEP PATRIOT 2011 1.G Owners Manual WARNING! (Continued)
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. Sitting in a
seat that has been overhea

Page 140 of 490

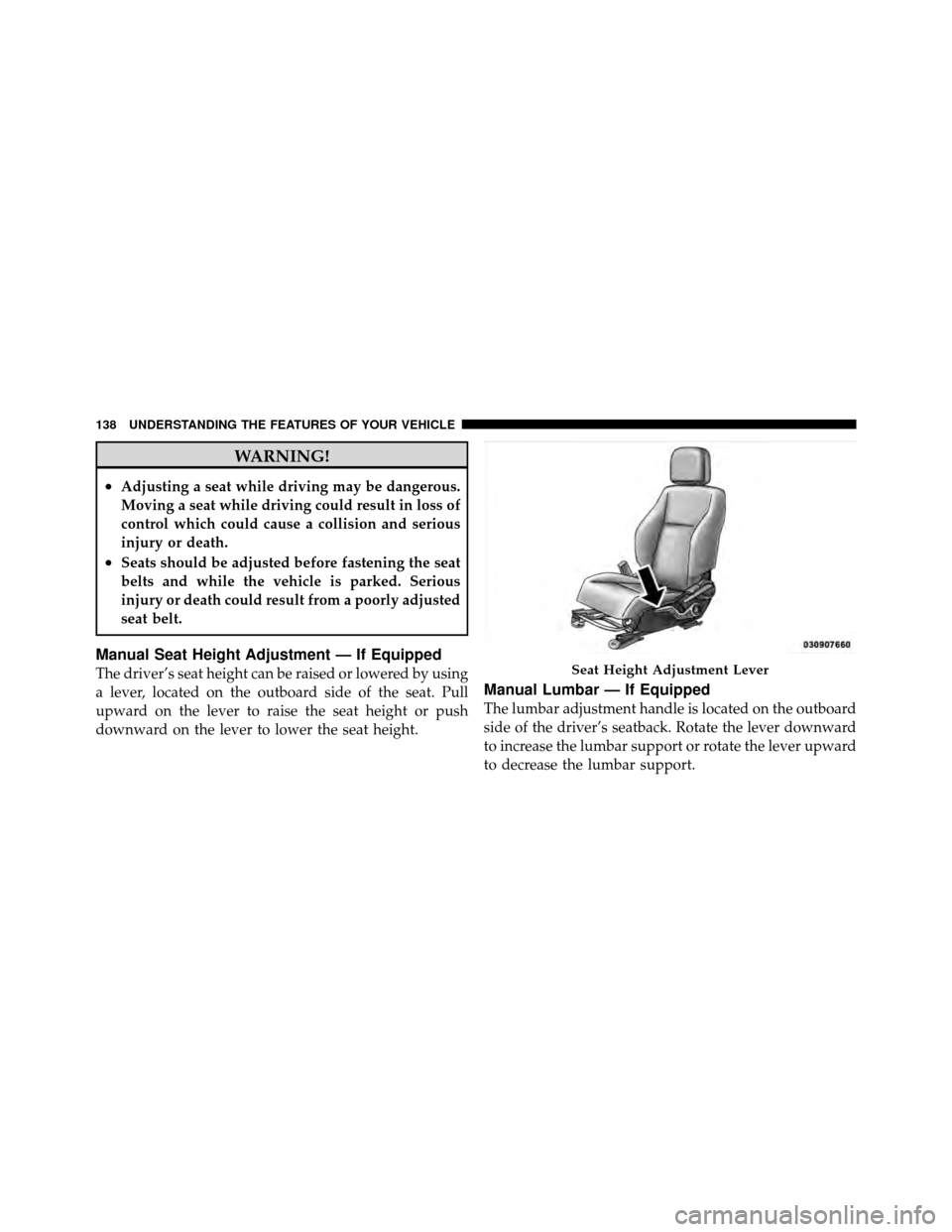

JEEP PATRIOT 2011 1.G Owners Manual WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•Seats should be a

Page 141 of 490

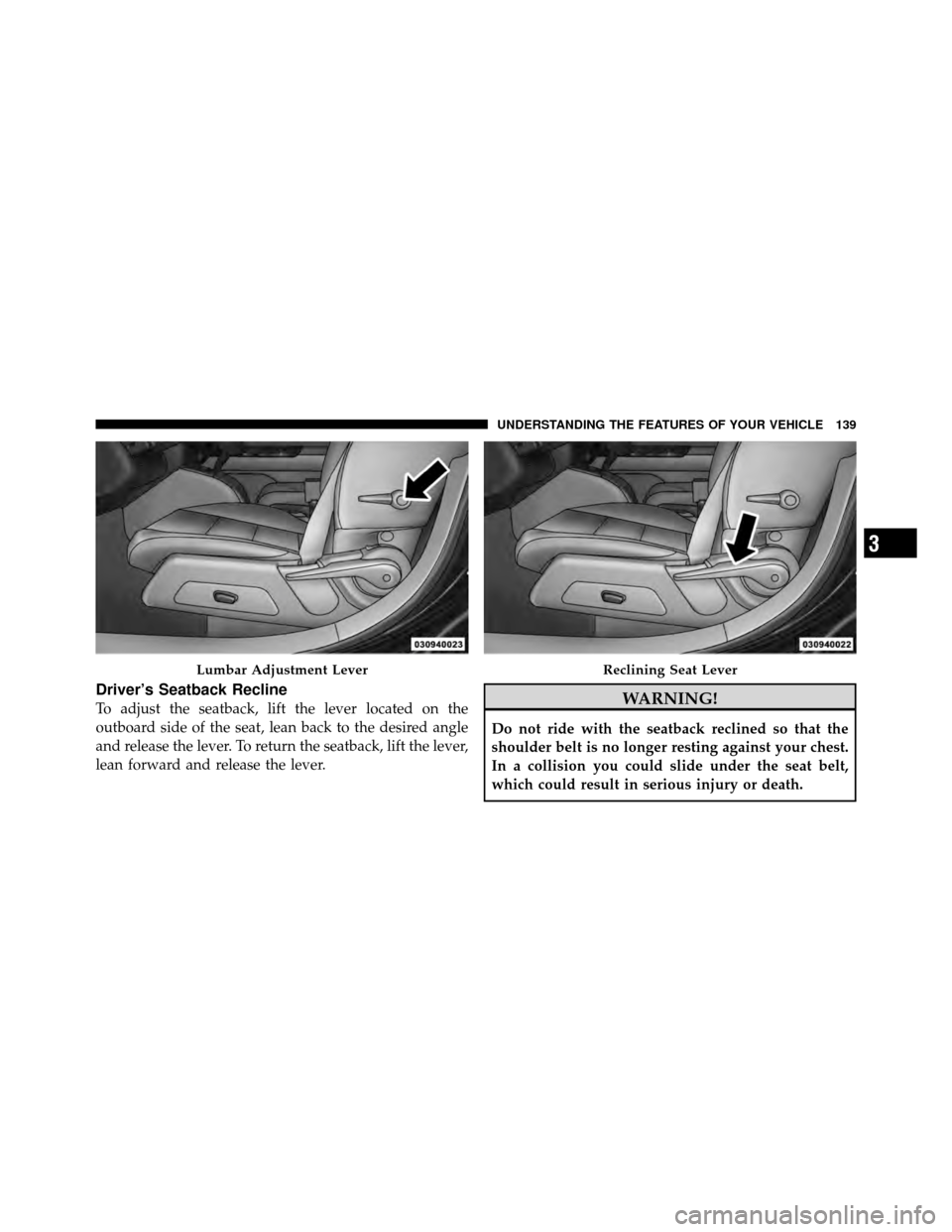

JEEP PATRIOT 2011 1.G Owners Manual Driver’s Seatback Recline
To adjust the seatback, lift the lever located on the
outboard side of the seat, lean back to the desired angle
and release the lever. To return the seatback, lift the leve

Page 142 of 490

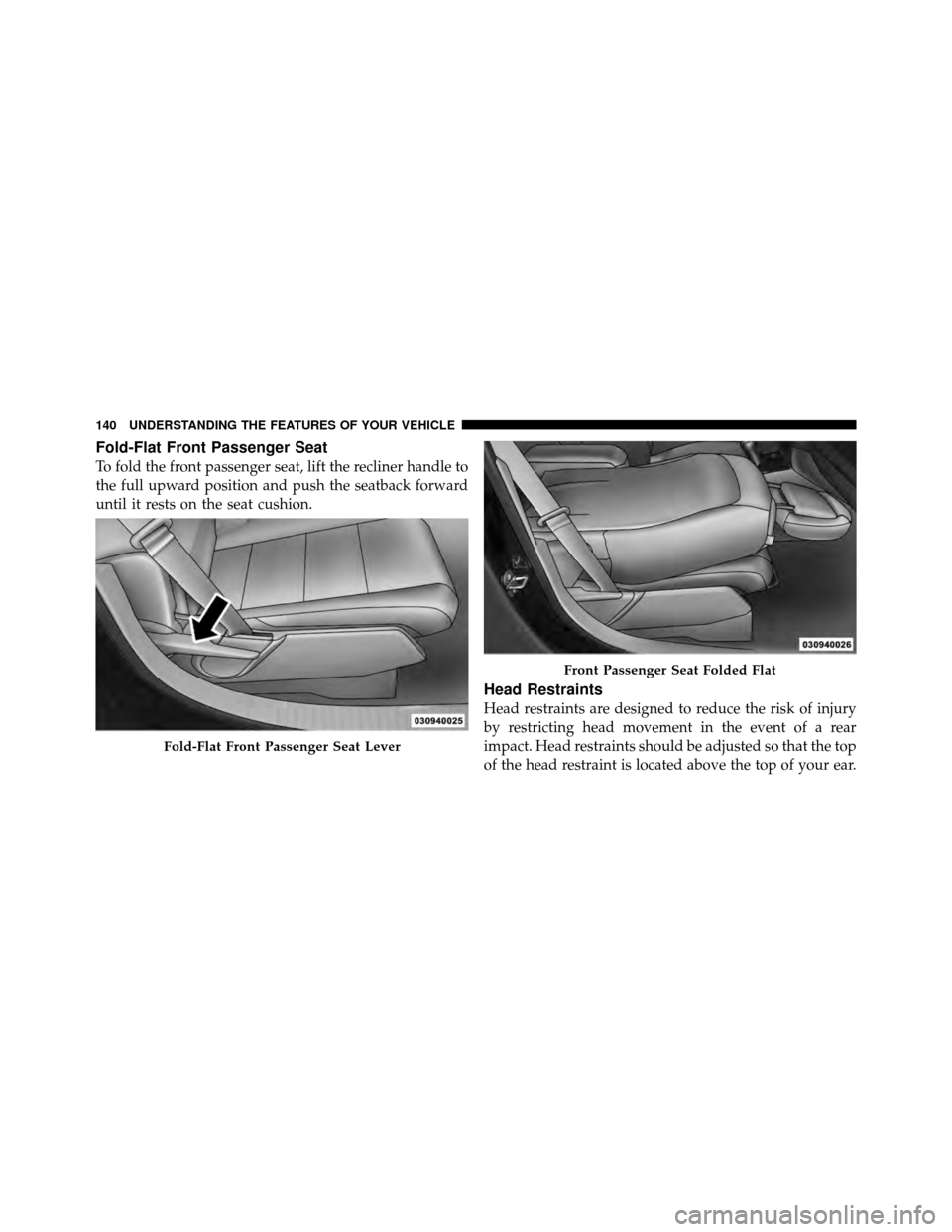

JEEP PATRIOT 2011 1.G Owners Manual Fold-Flat Front Passenger Seat
To fold the front passenger seat, lift the recliner handle to
the full upward position and push the seatback forward
until it rests on the seat cushion.
Head Restraints

Page 143 of 490

JEEP PATRIOT 2011 1.G Owners Manual WARNING!
The head restraints for all occupants must be prop-
erly adjusted prior to operating the vehicle or occu-
pying a seat. Head restraints should never be ad-
justed while the vehicle is in moti

Page 144 of 490

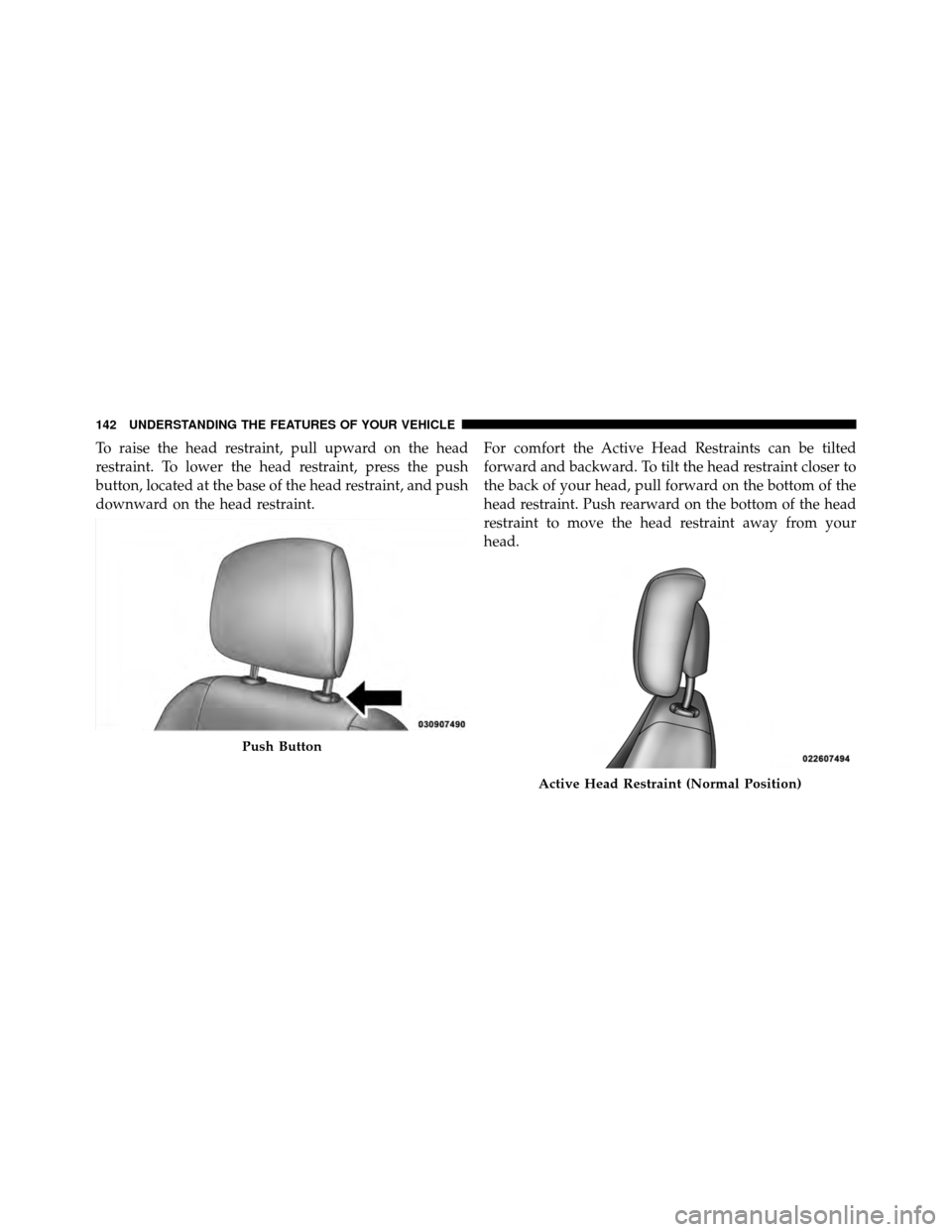

JEEP PATRIOT 2011 1.G Owners Manual To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint.F
