2011 HONDA PILOT Owners Manual

Û
ÝÛÝ
Press the fan control button
to increase the f an speed and airf low.
Press the button to
decrease it. The level of the f an
speed is shown in the display.
Each time you press the mode
button, the mode display changes
from to .
When is selected, air f lows
f rom the upper vents on the back of
the center console.
When is selected, air f lows
f rom the lower vents. Pressing the AUTO button puts the
system in automatic operation mode.
The rear system automatically
adjusts the fan speed and airflow
levels to maintain the selected
temperature of the rear passenger
compartment. You will see AUTO in
the display.
To shut of f the rear climate control
system, press the OFF button until
the system shuts off.
The temperatures of the driver’s side
and the front passenger’s side are
controlled independently.
When the RR (REAR) LOCK button
is of f , the temperature of the rear
passenger compartment can be
controlled independently.
To adjust each temperature, press
either of the temperature control
buttons ( or ) on the climate
control panel.
CONT INUED
Climate Control System
Fan Cont rol
Mode Cont rol Automatic OperationTriple Zone Temperature Control
Features
205
10/01/26 18:58:42 31SZA620_210
2011 Pilot

When you set each temperature to
its lower limit or its upper limit, it will
be displayed as ‘‘ ’’ or ‘‘ ’’.
Climate Control System
206
Driver’s sidePassenger’s side
Rear passenger compartment
10/01/26 18:58:49 31SZA620_211
2011 Pilot

Theclimatecontrolsystemhastwo
sensors: a sunlight sensor on top of
the dashboard, and a temperature
and humidity sensor next to the
steering column. Do not cover the
sensors or spill any liquid on them. Sunlight and T emperature
Sensors
Climate Control System
Features
207
TEMPERATURE/HUMIDITY SENSOR
SUNLIGHT SENSOR
10/01/26 18:58:55 31SZA620_212
2011 Pilot

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
For vehicles with rear entertainment
system, see pages through . For LX models, see pagesthrough .
For vehicles with navigation system,
see pages through . For vehicles without navigation
system, see pages through . 225
226 251
252 307 317 348
210
Audio System
208
LX models
EX and EX-L models without rear
entertainment system
U.S. models are shown.
10/01/26 18:59:06 31SZA620_213
2011 Pilot

Audio System
Features
209

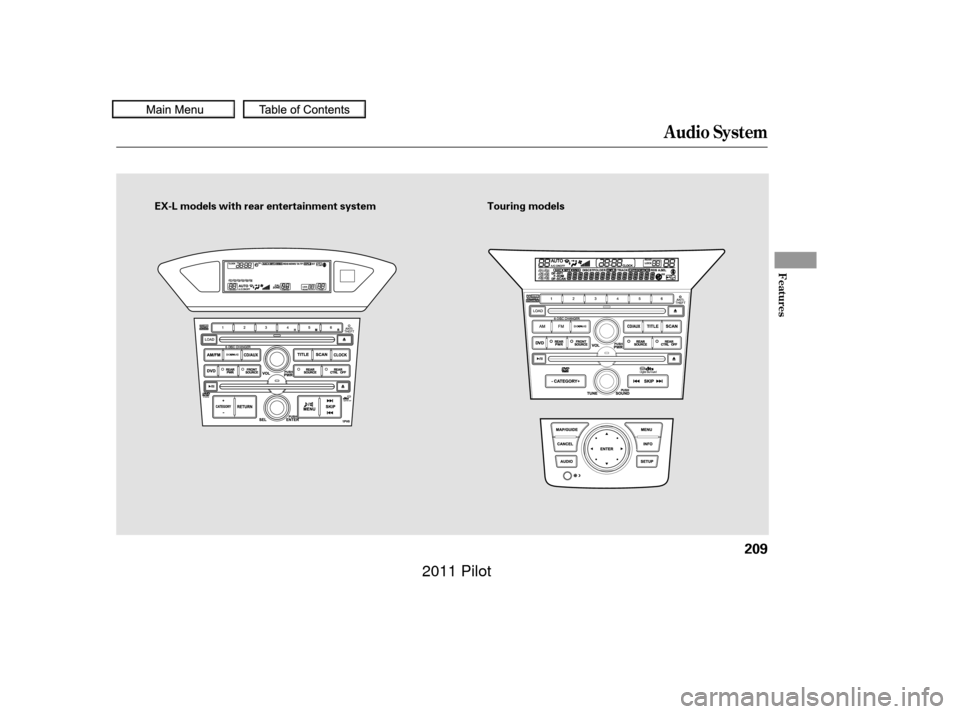

EX-L models with rear entertainment systemTouring models
10/01/26 18:59:14 31SZA620_214
2011 Pilot

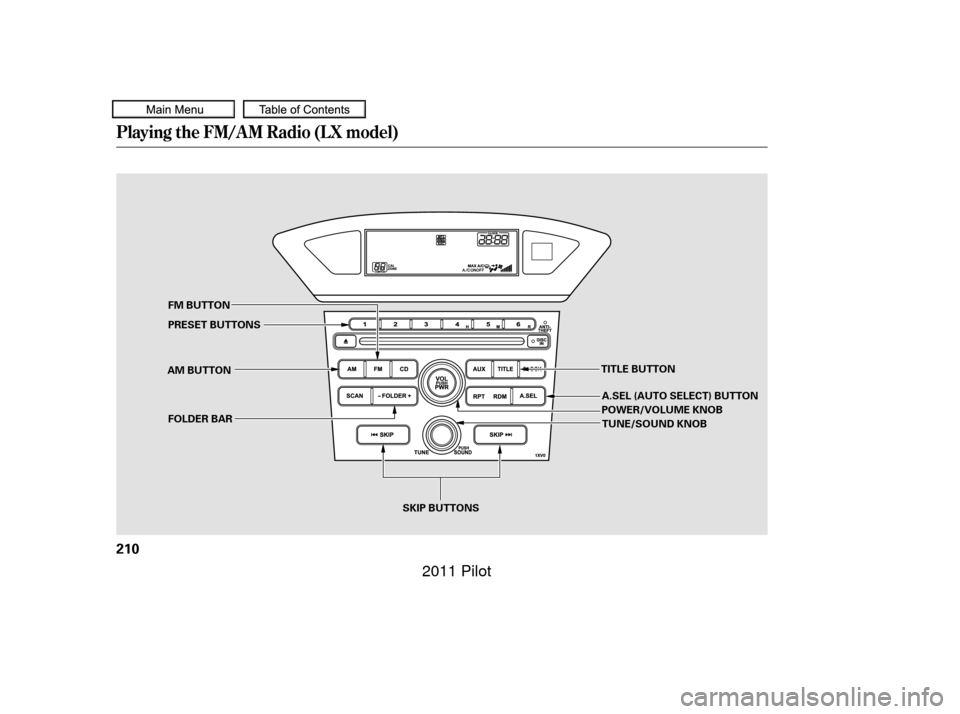

Playing the FM/AM Radio (LX model)
210
SKIP BUTTONS
PRESET BUTTONS FM BUTTON
AM BUTTON POWER/VOLUME KNOB
TITLE BUTTON
TUNE/SOUND KNOB
FOLDER BAR A.SEL (AUTO SELECT) BUTTON
10/01/26 18:59:18 31SZA620_215
2011 Pilot

µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip, scan, the preset
buttons, and auto select.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
inf ormation on the RDS, see page
.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency.
The skip f unction searches
up and down f rom the current
f requency to f ind a station with a
strong signal. To activate it, press
either of the SKIP buttons ( or ), then release it. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
When the system finds a strong
signal, it will stop and play that
station f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
213
CONT INUED
To Select a Station
To Play the FM/AM Radio
TUNE
SK IPSCAN
Playing the FM/AM Radio (LX model)
Features
211
10/01/26 18:59:30 31SZA620_216
2011 Pilot

µµ µ
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. You can store one f requency
on FM1, and one f requency on
FM2witheachpresetbutton.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. Pick a preset button (1 6), and
hold it until you hear a beep. Usethetune,skip,scan,orRDS
function to tune the radio to a
desired station. Press the A. SEL button. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button. ,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
For inf ormation on FM/AM radio
f requencies and reception, see page .
If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
1.
2.
3.
4. 308
To turn of f auto select
Preset
A UT O SEL ECT
Playing the FM/AM Radio (LX model)
212
10/01/26 18:59:42 31SZA620_217
2011 Pilot
