2011 HONDA PILOT Owners Manual

If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages, , and , or the diagram
on the f use box lid, which f use or
f uses control that device. Check
those fuses first, but check all the
f uses bef ore deciding that a blown
f use is the cause. Replace any blown
f uses, and check if the device works.
Remove the cover f rom the f use
box. Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f . Check each of the large f uses in
the under-hood f use boxes by
looking through the top at the wire
inside. Removing these f uses
requires a Phillips-head
screwdriver.
3.
1.
2. 528 529 530
CONT INUED
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
525
BLOWN
BLOWN
FUSE
10/01/26 19:54:12 31SZA620_530
2011 Pilot

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate that anything is wrong.
Replace the f use with one of the
correct rating as soon as you can.
Look f or a burned wire inside the
f use. If it is burned out, replace it
withoneof thesparefusesof the
same rating or lower.
Check the smaller f uses in the
under-hood f use boxes and rear
f use box, and all the f uses in the
interior and rear f use boxes by
pulling out each one with the f use
puller provided in the primary
under-hood f use box. 5.
4.
Fuses
526
BLOWN
FUSE PULLER
10/01/26 19:54:19 31SZA620_531
2011 Pilot

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘ENTER CODE’’ in the
f requency display. Use the preset
buttons to enter the digit code (see
page ) .
6. 313
Fuses
T aking Care of t he Unexpect ed
527
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
10/01/26 19:54:25 31SZA620_532
2011 Pilot

µ
µ
µ
µ
No. Amps.Amps.
No.
Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12 120 A
80 A
50 A
50 A
40 A
30 A
30 A
30 A
40 A
20 A
15 A
10 A 20 A
20 A
7.5 A 20 A
20 A
15 A
15 A
7.5 A 15 A
10 A
10 A
13
14
15
16
17
18
19
20
21
22
23
Main Fuse
Not Used
OP Main
IG Main
Not Used
Not Used
Head Light Main
Power Window Main
Not Used
Condenser Fan
Cooling Fan
Rear Defroster
Blower
Front Fog Light
Sub
ACM Front Passenger’s Power
Seat Reclining
Front Passenger’s Power
Seat Slide
Oil Level
Head Light Hi Main
Radio
IG Coil
Main
MG Clutch
DBW
Interior Light
Back Up
Fuse Locations
528
PRIMARY UNDER-HOOD FUSE BOX
10/01/26 19:54:34 31SZA620_533
2011 Pilot

Circuits Protected
Amps.
No.
No. Amps. No. Amps.
Circuits Protected Circuits Protected
Small Light
Stop Lamp
Back Lamp
Turn Lamp, Hazard
20 A
7.5 A
7.5 A
7.5 A
1
2
3
4
1
2
3
4 40 A
20 A
30 A
40 A 5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 30 A
30 A
15 A
20 A
20 A
20 A
20 A
15 A
10 A
20 A
20 A
15 A
20 A
15 A
15 A
20 A
15 A
30 A
Power Tailgate Motor
VTM-4
Trailer Main
VSA FSR Rear Blower
VSA Motor
Hazard
Power Tailgate Closer
Driver’s Power Seat
Reclining
Driver’s Power Seat Slide
Stop & Horn
Rear Console Accessory
Socket
Rear Wiper
Trailer E-Brake
A/C Inverter
Center Console Accessory
Socket
Trailer Charge
Front Accessory Socket
Rear Accessory Socket
Glass Hatch Motor
Rear Heated Seat
Head Light Washer Motor
Fuse Locations
T aking Care of t he Unexpect ed
529
SECONDARY UNDER-HOOD FUSE BOX
REAR FUSE BOX
10/01/26 19:54:45 31SZA620_534
2011 Pilot

Î
µ
µ
µ
µ
µ
Î
No.
Circuits Protected
No. Amps. Circuits Protected
No. Amps.
Circuits Protected
Amps.
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
VTM-4
Fuel Pump
ACG
VSA
Heated Seat
1
2
3
4
5 7.5 A
15 A
10 A
7.5 A 15 A VBSOL2
STRLD
Not Used
Not Used
Driver’s Power Window
HAC OP
Moonroof
Door Lock
Front Passenger’s Power
Window
Audio Amp
Passenger’s Side Rear
Power Window
Driver’s Side Rear Power
Window
Not Used
ACC
HAC
Day Light
Wiper
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38 7.5 A
7.5 A
20 A
20 A
20 A
20 A
20 A
30 A
20 A
20 A
10 A
10 A
7.5 A 30 A
Not Used
Auto Light
Auto Light
ODS
Meter
SRS
Right Daytime Running Light
Lef t Daytime Running Light
Small Lights (Interior)
Small Lights (Exterior)
Right Head Light Low
Left Head Light Low
Daytime Running Light Main
Small Lights Main
Not Used
TPMS
Head Light Low Main
10 A
7.5 A
7.5 A
7.5 A 10 A
10 A
10 A
7.5 A 10 A
15 A
15 A
20 A
15 A
7.5 A 20 A
: On vehicles with rear entertainment system
Fuse Locations
530
INTERIOR FUSE BOX
10/01/26 19:54:55 31SZA620_535
2011 Pilot

The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inf orm
them a f lat-bed is required.
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
4WD models only
Emergency Towing
The only way you can saf ely tow
your vehicle is with f lat-bed
equipment.
T aking Care of t he Unexpect ed
531
Towing with only two tires on the
ground will damage parts of the 4WD
system. It should be transported on a
f lat-bed truck or trailer.
10/01/26 19:55:01 31SZA620_536
2011 Pilot

If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see thepreviouspage).
For very short distances, such as
f reeing the vehicle, you can use the
detachable towing hook that mounts
on the anchors in the front and rear
bumpers.

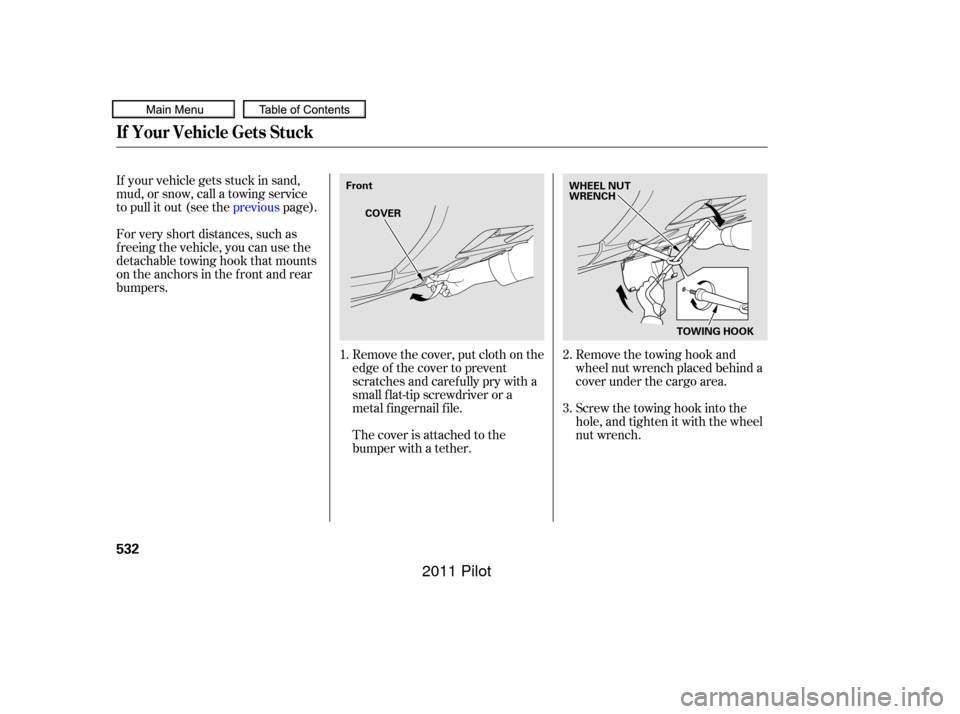

Remove the cover, put cloth on the
edge of the cover to prevent
scratches and caref ully pry with a
small f lat-tip screwdriver or a
metalfingernailfile.Remove the towing hook and
wheel nut wrench placed behind a
cover under the cargo area.
Screw the towing hook into the
hole, and tighten it with the wheel
nut wrench.
The cover is attached to the
bumper with a tether.
1.
2.
3.
If Your Vehicle Gets Stuck
532
COVER WHEEL NUT
WRENCH
TOWING HOOK
Front
10/01/26 19:55:10 31SZA620_537
