2011 HONDA FIT Owners Manual

Page 257 of 356

HONDA FIT 2011 2.G Owners Manual Symbol Maintenance Main ItemsA �
Replace engine oil
1
B �
Replace engine oil and oil filter
� Inspect front and rear brakes
� Check parking brake adjustment
� Inspect these items:
� Tie rod ends, ste

Page 258 of 356

HONDA FIT 2011 2.G Owners Manual CLUTCH FLUID
(Manual
Transmission only)
(Gray cap)
RADIATOR CAP
ENGINE OIL FILL CAP
AUTOMATIC TRANSMISSION
FLUID DIPSTICK (Yellow loop)
WASHER FLUID
(Blue cap)
ENGINE OIL DIPSTICK
(Orange loop)

Page 259 of 356

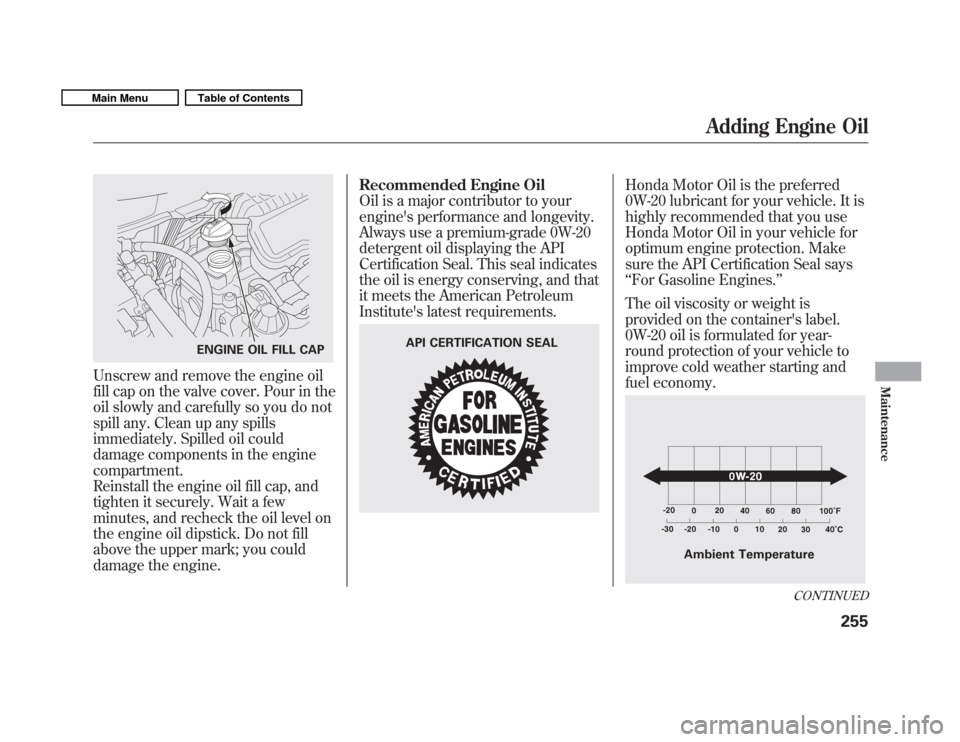

HONDA FIT 2011 2.G Owners Manual Unscrew and remove the engine oil
fill cap on the valve cover. Pour in the
oil slowly and carefully so you do not
spill any. Clean up any spills
immediately. Spilled oil could
damage components in th

Page 260 of 356

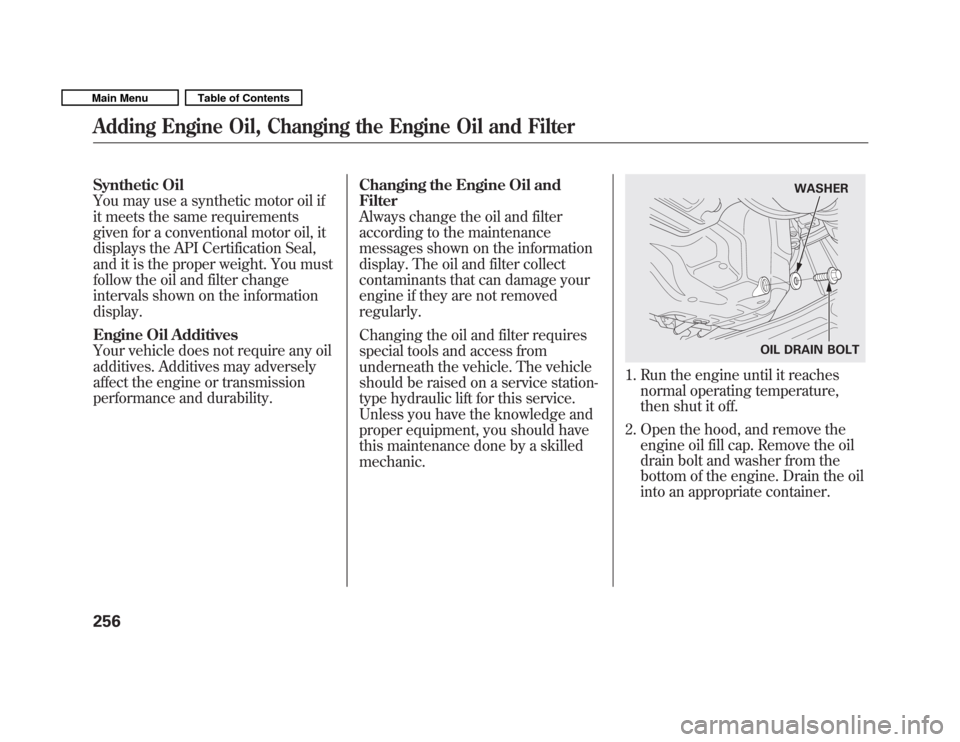

HONDA FIT 2011 2.G Owners Manual Synthetic Oil
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil, it
displays the API Certification Seal,
and it is the proper weight. You must
fol

Page 261 of 356

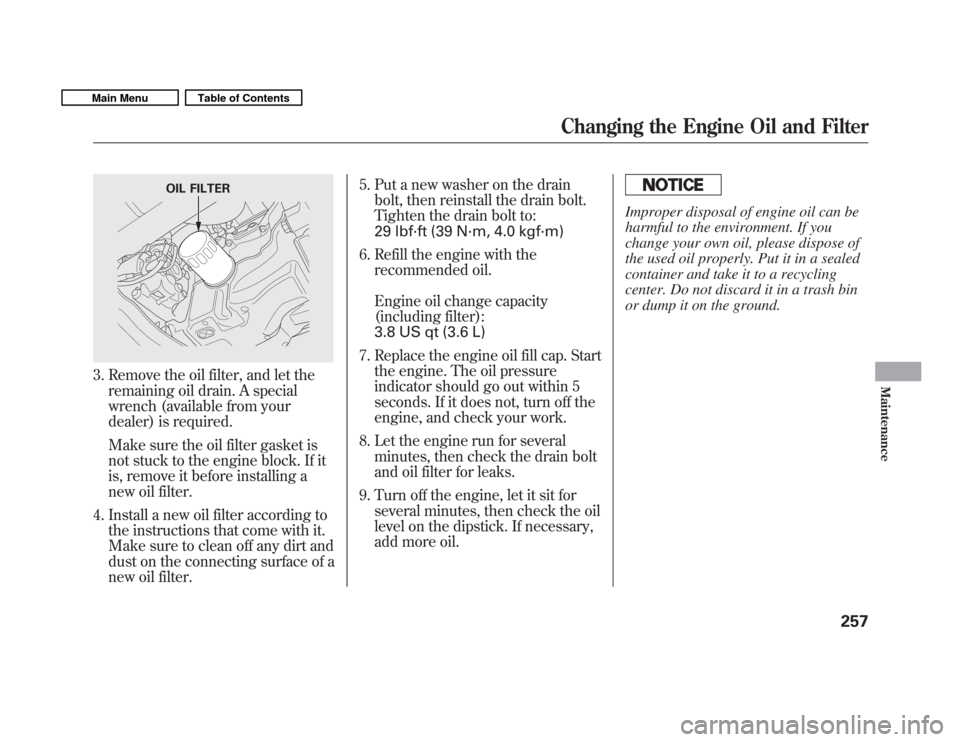

HONDA FIT 2011 2.G Owners Manual 3. Remove the oil filter, and let theremaining oil drain. A special
wrench (available from your
dealer) is required.
Make sure the oil filter gasket is
not stuck to the engine block. If it
is, rem

Page 262 of 356

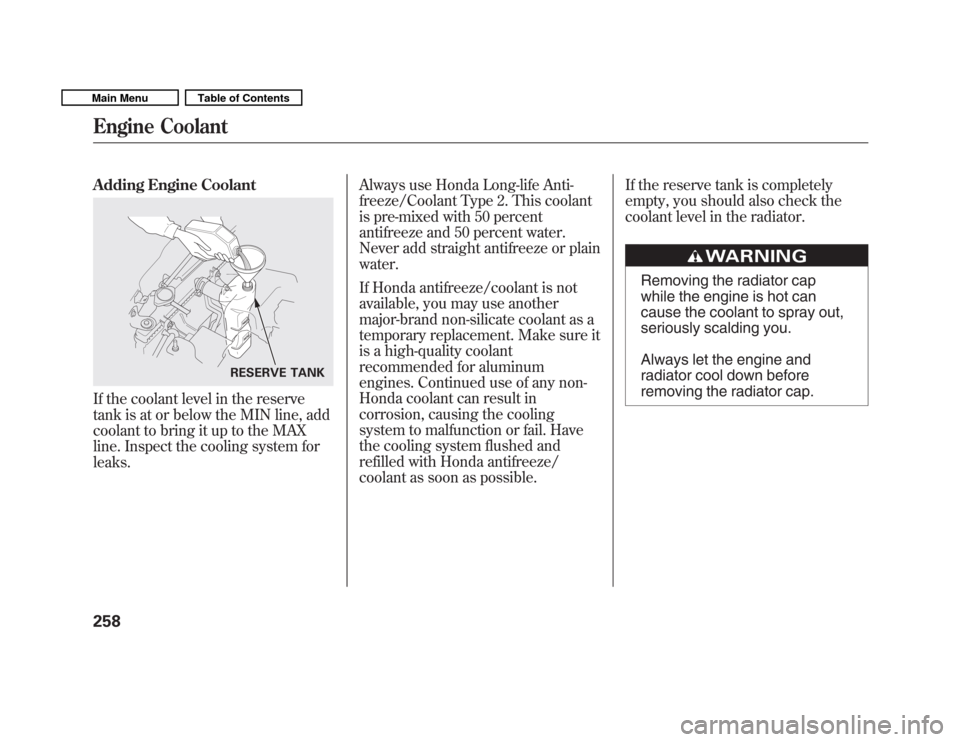

HONDA FIT 2011 2.G Owners Manual Adding Engine Coolant
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX
line. Inspect the cooling system forleaks.Always use Honda Long-life

Page 263 of 356

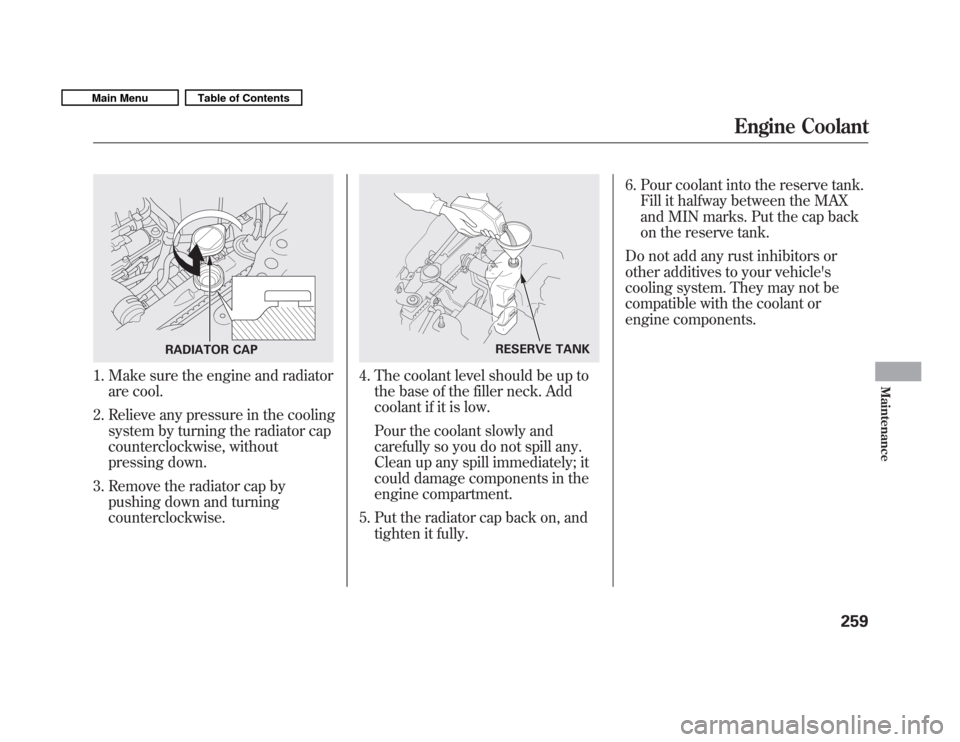

HONDA FIT 2011 2.G Owners Manual 1. Make sure the engine and radiatorare cool.
2. Relieve any pressure in the cooling system by turning the radiator cap
counterclockwise, without
pressing down.
3. Remove the radiator cap by pushing

Page 264 of 356

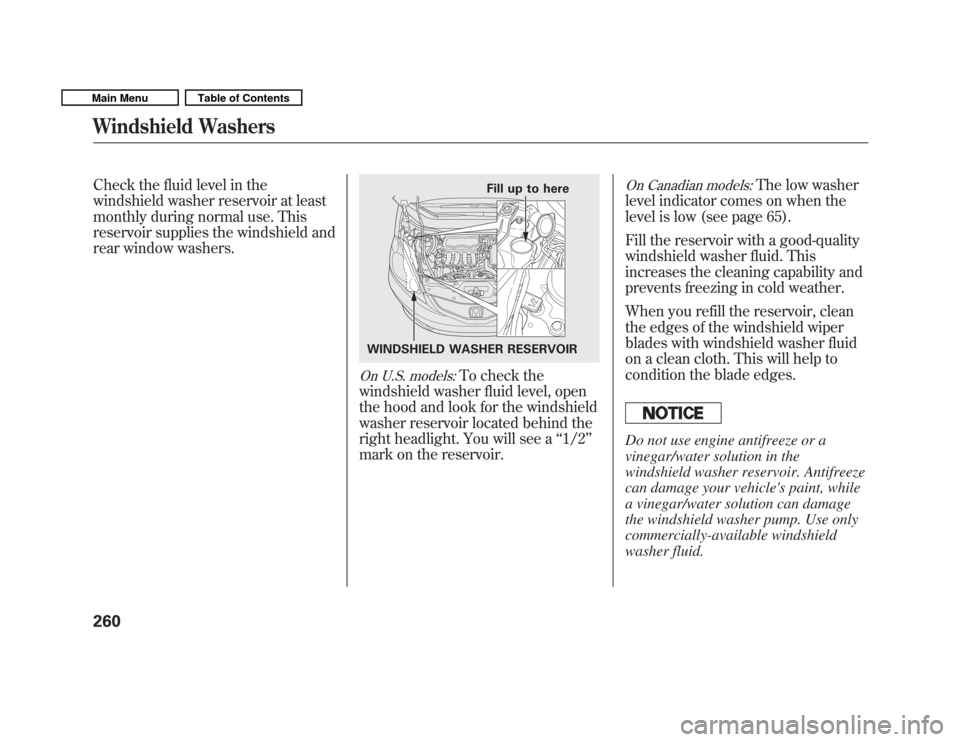

HONDA FIT 2011 2.G Owners Manual Check the fluid level in the
windshield washer reservoir at least
monthly during normal use. This
reservoir supplies the windshield and
rear window washers.
On U.S. models:To check the
windshield was
