2011 HONDA FIT Owners Manual

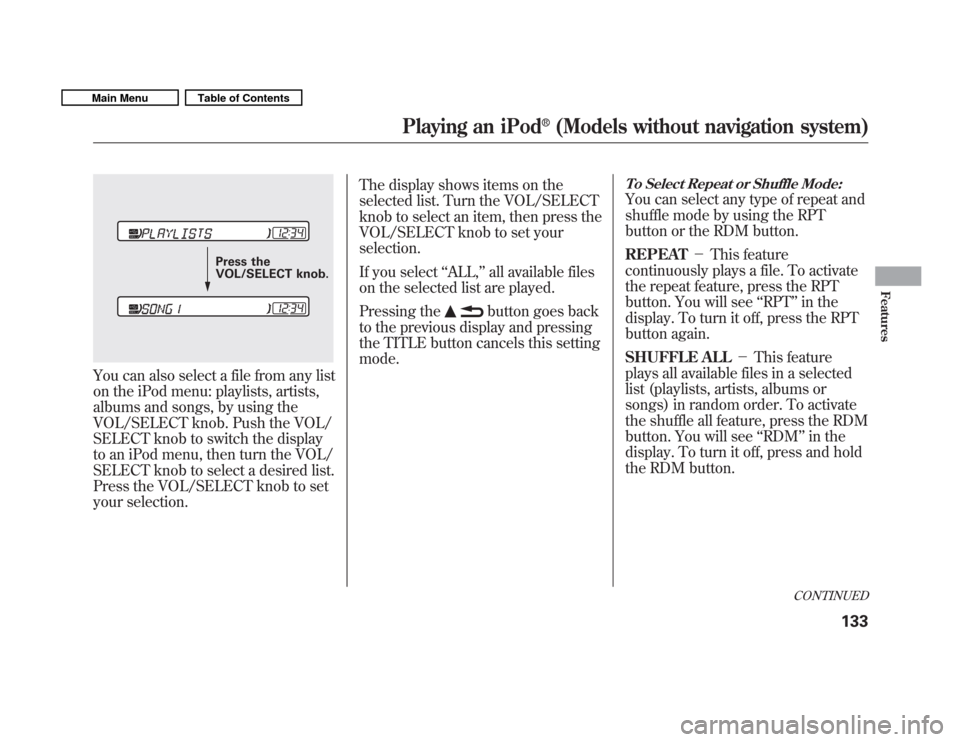

You can also select a file from any list
on the iPod menu: playlists, artists,
albums and songs, by using the
VOL/SELECT knob. Push the VOL/
SELECT knob to switch the display
to an iPod menu, then turn the VOL/
SELECT knob to select a desired list.
Press the VOL/SELECT knob to set
your selection.The display shows items on the
selected list. Turn the VOL/SELECT
knob to select an item, then press the
VOL/SELECT knob to set yourselection.
If you select
‘‘ALL, ’’all available files
on the selected list are played.
Pressing the
button goes back
to the previous display and pressing
the TITLE button cancels this settingmode.
To Select Repeat or Shuffle Mode:
You can select any type of repeat and
shuffle mode by using the RPT
button or the RDM button. REPEAT This feature
continuously plays a file. To activate
the repeat feature, press the RPT
button. You will see ‘‘RPT ’’in the
display. To turn it off, press the RPT
button again.
SHUFFLE ALL This feature
plays all available files in a selected
list (playlists, artists, albums or
songs) in random order. To activate
the shuffle all feature, press the RDM
button. You will see ‘‘RDM ’’in the
display. To turn it off, press and hold
the RDM button.
Press the
VOL/SELECT knob.
CONTINUED
Playing an iPod

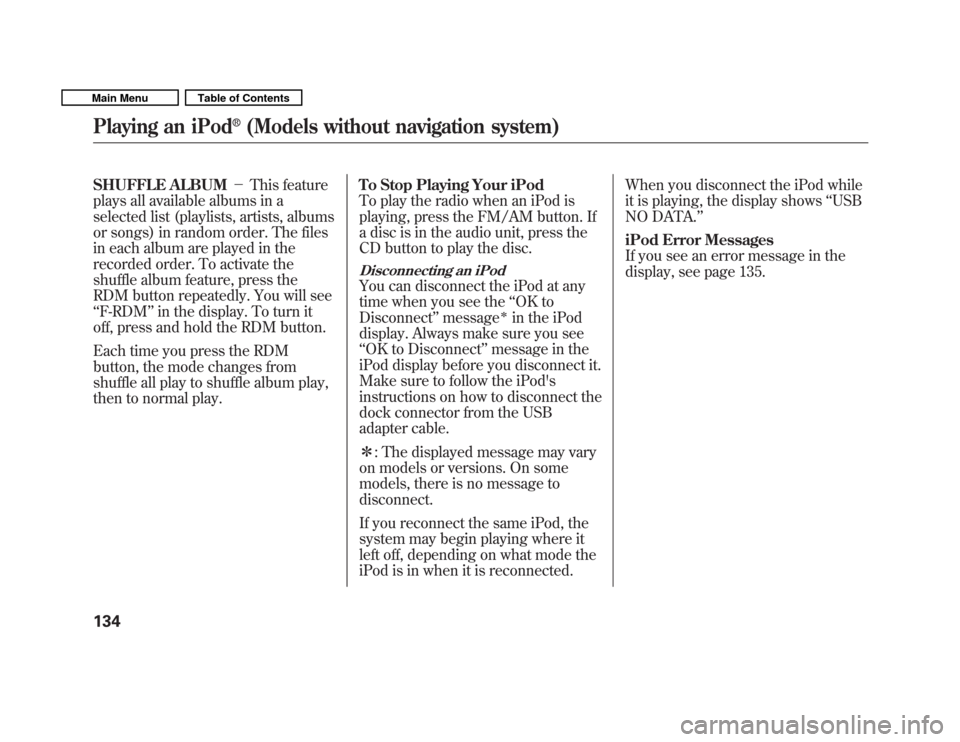

SHUFFLE ALBUMThis feature
plays all available albums in a
selected list (playlists, artists, albums
or songs) in random order. The files
in each album are played in the
recorded order. To activate the
shuffle album feature, press the
RDM button repeatedly. You will see‘‘ F-RDM ’’in the display. To turn it
off, press and hold the RDM button.
Each time you press the RDM
button, the mode changes from
shuffle all play to shuffle album play,
then to normal play. To Stop Playing Your iPod
To play the radio when an iPod is
playing, press the FM/AM button. If
a disc is in the audio unit, press the
CD button to play the disc.
Disconnecting an iPod
You can disconnect the iPod at any
time when you see the
‘‘OK to
Disconnect ’’message
in the iPod
display. Always make sure you see‘‘ OK to Disconnect ’’message in the
iPod display before you disconnect it.
Make sure to follow the iPod's
instructions on how to disconnect the
dock connector from the USB
adapter cable.  : The displayed message may vary
on models or versions. On some
models, there is no message todisconnect.
If you reconnect the same iPod, the
system may begin playing where it
left off, depending on what mode the
iPod is in when it is reconnected. When you disconnect the iPod while
it is playing, the display shows
‘‘USB
NO DATA. ’’
iPod Error Messages
If you see an error message in the
display, see page 135.
Playing an iPod

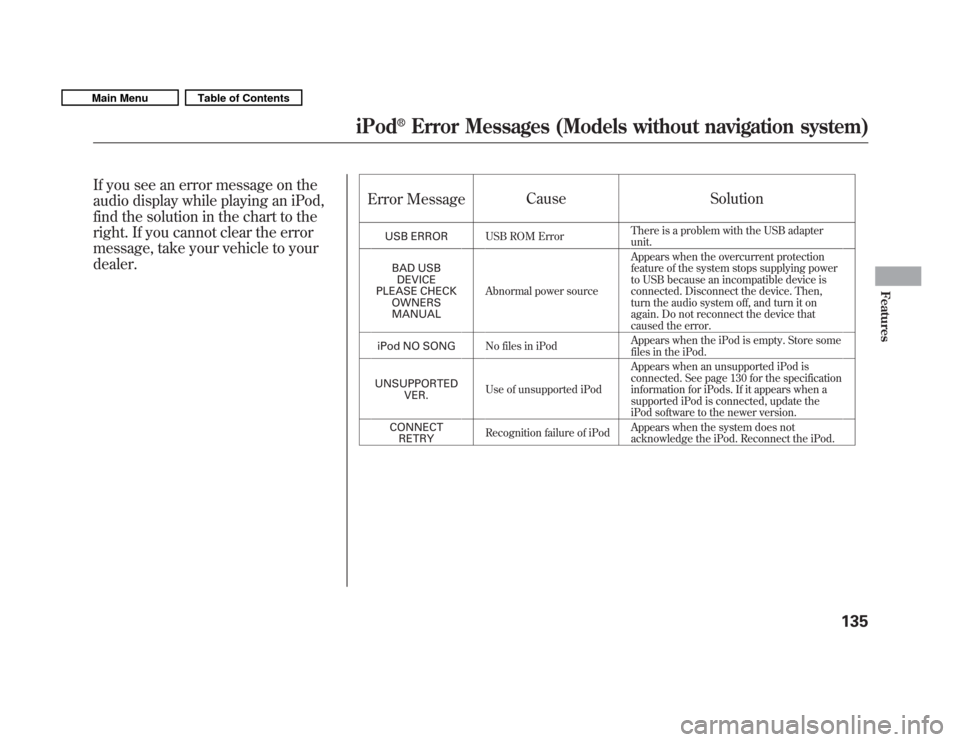

If you see an error message on the
audio display while playing an iPod,
find the solution in the chart to the
right. If you cannot clear the error
message, take your vehicle to yourdealer.Error Message
Cause Solution
USB ERROR USB ROM Error There is a problem with the USB adapter unit.
BAD USB DEVICE
PLEASE CHECK OWNERSMANUAL Abnormal power source Appears when the overcurrent protection
feature of the system stops supplying power
to USB because an incompatible device is
connected. Disconnect the device. Then,
turn the audio system off, and turn it on
again. Do not reconnect the device that
caused the error.
iPod NO SONG No files in iPod Appears when the iPod is empty. Store some
files in the iPod.
UNSUPPORTED VER. Use of unsupported iPod Appears when an unsupported iPod is
connected. See page 130 for the specification
information for iPods. If it appears when a
supported iPod is connected, update the
iPod software to the newer version.
CONNECT RETRY Recognition failure of iPod
Appears when the system does not
acknowledge the iPod. Reconnect the iPod.

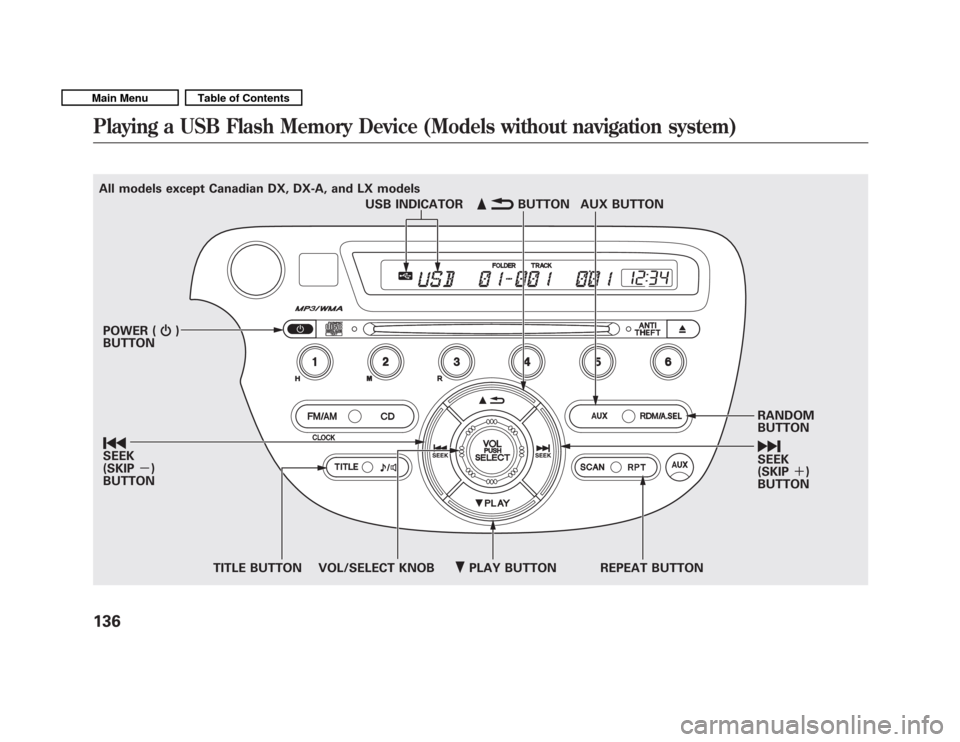

iPod

PLAY BUTTON
USB INDICATOR
RANDOM BUTTON ꀽ SEEK (SKIP)
BUTTON
TITLE BUTTON AUX BUTTON
ꂹꂾ BUTTON
VOL/SELECT KNOB REPEAT BUTTON
ꀾ SEEK (SKIP
－)
BUTTON
POWER (
ꂻ)
BUTTON
All models except Canadian DX, DX-A, and LX models
Playing a USB Flash Memory Device (Models without navigation system)
136
Main MenuTable of Contents

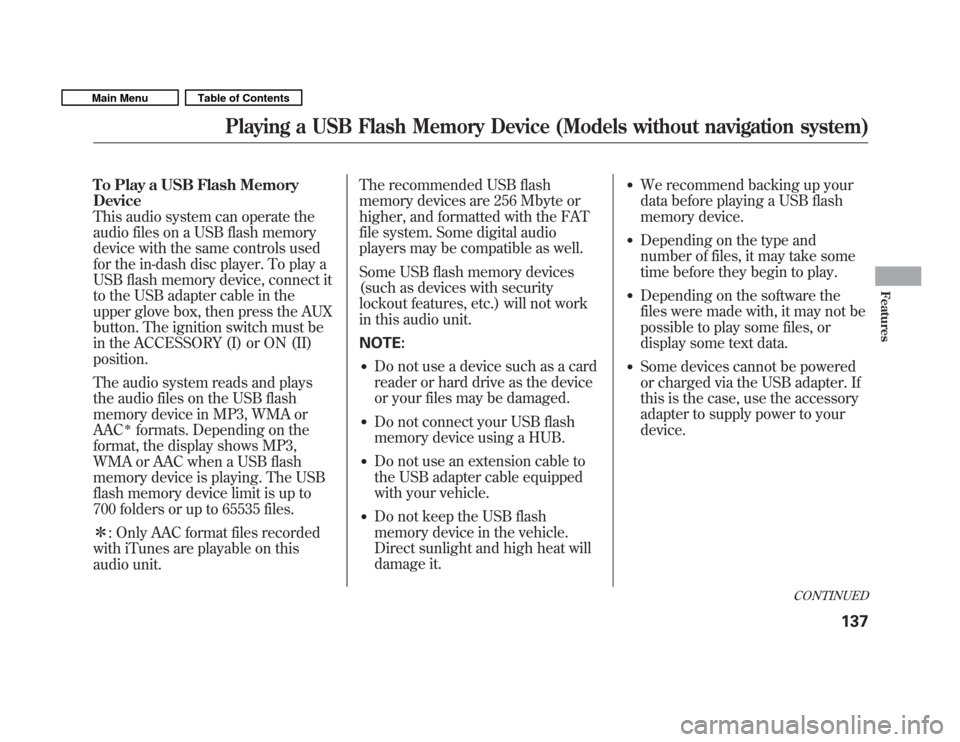

To Play a USB Flash Memory Device
This audio system can operate the
audio files on a USB flash memory
device with the same controls used
for the in-dash disc player. To play a
USB flash memory device, connect it
to the USB adapter cable in the
upper glove box, then press the AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)position.
The audio system reads and plays
the audio files on the USB flash
memory device in MP3, WMA orAAC
formats. Depending on the
format, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing. The USB
flash memory device limit is up to
700 folders or up to 65535 files.  : Only AAC format files recorded
with iTunes are playable on this
audio unit. The recommended USB flash
memory devices are 256 Mbyte or
higher, and formatted with the FAT
file system. Some digital audio
players may be compatible as well.
Some USB flash memory devices
(such as devices with security
lockout features, etc.) will not work
in this audio unit. NOTE:
Do not use a device such as a card
reader or hard drive as the device
or your files may be damaged.
Do not connect your USB flash
memory device using a HUB.
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.
Do not keep the USB flash
memory device in the vehicle.
Direct sunlight and high heat will
damage it.
We recommend backing up your
data before playing a USB flash
memory device.
Depending on the type and
number of files, it may take some
time before they begin to play.
Depending on the software the
files were made with, it may not be
possible to play some files, or
display some text data.
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to yourdevice.
CONTINUED
Playing a USB Flash Memory Device (Models without navigation system)
137
Features
Main MenuTable of Contents

Even if recorded in MP3, WMA or
AAC format, a file with unsupported
version cannot be played. If the
system finds it, the audio unit
displays UNSUPPORTED, and then
skips to the next file.In WMA or AAC format, DRM
(digital rights management) files
cannot be played. If the system finds
a DRM file, the audio unit displays
UNPLAYABLE FILE, and then skips

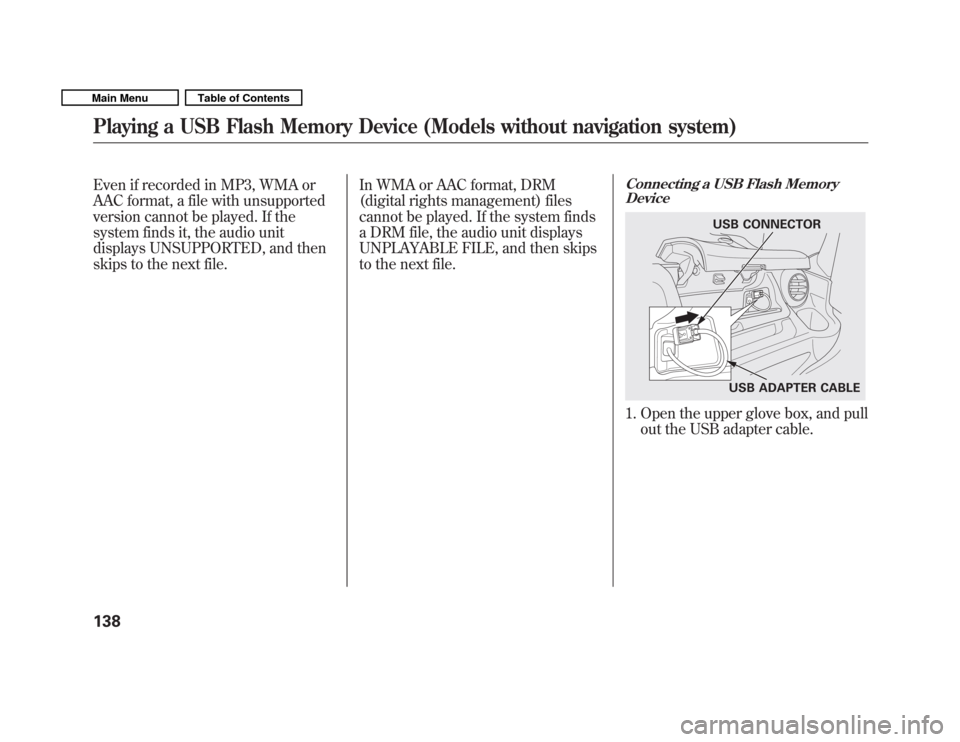

to the next file.Connecting a USB Flash Memory
Device
1. Open the upper glove box, and pull
out the USB adapter cable.
USB CONNECTOR
USB ADAPTER CABLE
Playing a USB Flash Memory Device (Models without navigation system)
138
Main MenuTable of Contents

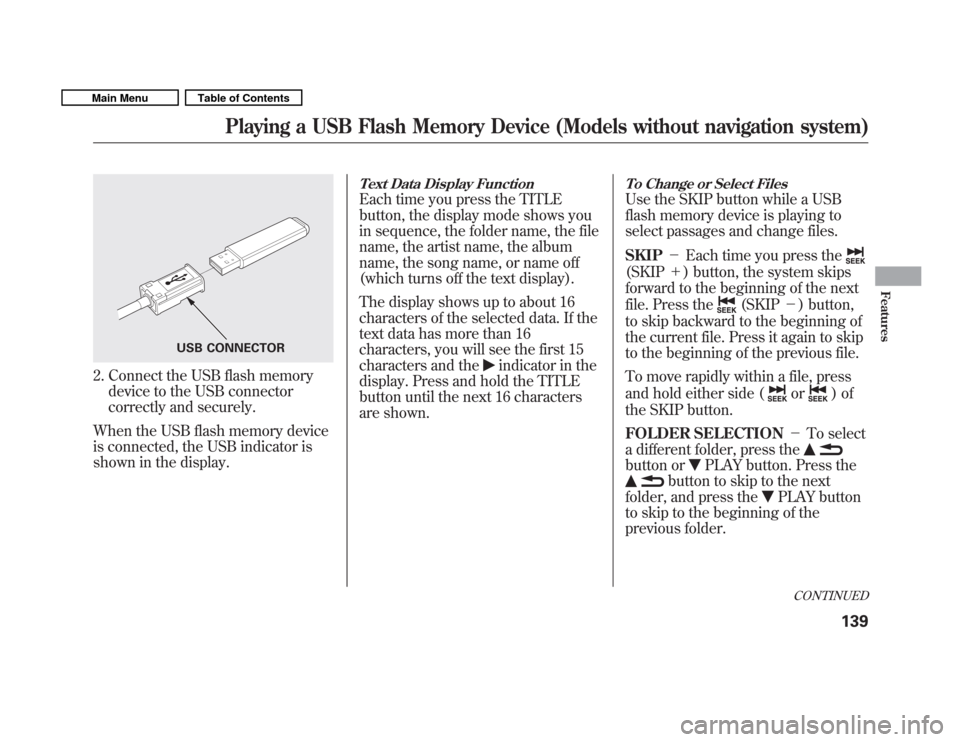

2. Connect the USB flash memorydevice to the USB connector
correctly and securely.
When the USB flash memory device
is connected, the USB indicator is
shown in the display.
Text Data Display Function
Each time you press the TITLE
button, the display mode shows you
in sequence, the folder name, the file
name, the artist name, the album
name, the song name, or name off
(which turns off the text display).
The display shows up to about 16
characters of the selected data. If the
text data has more than 16
characters, you will see the first 15
characters and the
indicator in the
display. Press and hold the TITLE
button until the next 16 characters
are shown.
To Change or Select Files
Use the SKIP button while a USB
flash memory device is playing to
select passages and change files. SKIP Each time you press the
(SKIP ＋) button, the system skips
forward to the beginning of the next
file. Press the
(SKIP ) button,
to skip backward to the beginning of
the current file. Press it again to skip
to the beginning of the previous file.
To move rapidly within a file, press
and hold either side (
or)of
the SKIP button.
FOLDER SELECTION To select
a different folder, press the
button orPLAY button. Press the
button to skip to the next
folder, and press the
PLAY button
to skip to the beginning of the
previous folder.
USB CONNECTOR
CONTINUED
Playing a USB Flash Memory Device (Models without navigation system)
139
Features
Main MenuTable of Contents

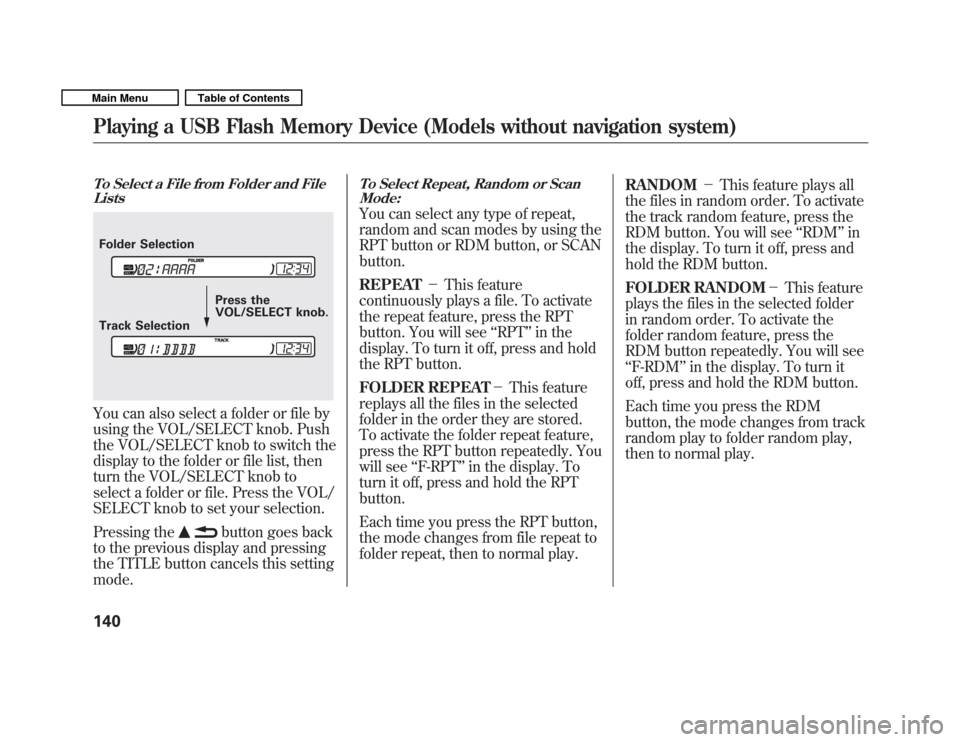

To Select a File from Folder and FileLists
You can also select a folder or file by
using the VOL/SELECT knob. Push
the VOL/SELECT knob to switch the
display to the folder or file list, then
turn the VOL/SELECT knob to
select a folder or file. Press the VOL/
SELECT knob to set your selection.
Pressing the
button goes back
to the previous display and pressing
the TITLE button cancels this settingmode.
To Select Repeat, Random or Scan Mode:
You can select any type of repeat,
random and scan modes by using the
RPT button or RDM button, or SCANbutton. REPEAT This feature
continuously plays a file. To activate
the repeat feature, press the RPT
button. You will see ‘‘RPT ’’in the
display. To turn it off, press and hold
the RPT button.
FOLDER REPEAT This feature
replays all the files in the selected
folder in the order they are stored.
To activate the folder repeat feature,
press the RPT button repeatedly. You
will see ‘‘F-RPT ’’in the display. To
turn it off, press and hold the RPT button.
Each time you press the RPT button,
the mode changes from file repeat to
folder repeat, then to normal play. RANDOM
This feature plays all
the files in random order. To activate
the track random feature, press the
RDM button. You will see ‘‘RDM ’’in
the display. To turn it off, press and
hold the RDM button.
FOLDER RANDOM This feature
plays the files in the selected folder
in random order. To activate the
folder random feature, press the
RDM button repeatedly. You will see‘‘ F-RDM ’’in the display. To turn it
off, press and hold the RDM button.
Each time you press the RDM
button, the mode changes from track
random play to folder random play,
then to normal play.
Folder Selection
Track Selection Press the
VOL/SELECT knob.
Playing a USB Flash Memory Device (Models without navigation system)
140
Main MenuTable of Contents
