2011 CHEVROLET IMPALA Owners Manual

Black plate (3,1)Chevrolet Impala Owner Manual - 2011
In Brief 1-3
A.Air Vents on page 8‑5.
B. Remote Trunk Release Button. See Trunk on page 2‑10.
C. Turn and Lane-Change Signals
on page 6‑5.
D. Instrument Cluster on
page 5‑11.
E. Hazard Warning Flashers on
page 6‑4.
F. Driver Information Center (DIC)
on page 5‑24.
G. Passenger Airbag Status
Indicator on page 5‑16.
H. AM-FM Radio on page 7‑6.
I. Exterior Lamp Controls on
page 6‑2. J.
Instrument Panel Illumination
Control on page 6‑6.
K. Traction Control System (TCS)
on page 9‑29 (If Equipped).
L. Steering Wheel Adjustment on
page 5‑2.
M. Cruise Control on page 9‑32.
N. Hood Release. See Hood on
page 10‑5.
O. Data Link Connector. See Malfunction Indicator Lamp on
page 5‑17.
P. Horn on page 5‑3.
Q. Steering Wheel Controls on
page 5‑3 (If Equipped). R.
Ignition Positions on page 9‑16.
S. Climate Control Systems on
page 8‑1.
T. Power Outlets on page 5‑9.
U. Center Console Shift Lever (If Equipped). See Shifting Into
Park on page 9‑20.
V. Glove Box on page 4‑1.

Black plate (4,1)Chevrolet Impala Owner Manual - 2011
1-4 In Brief

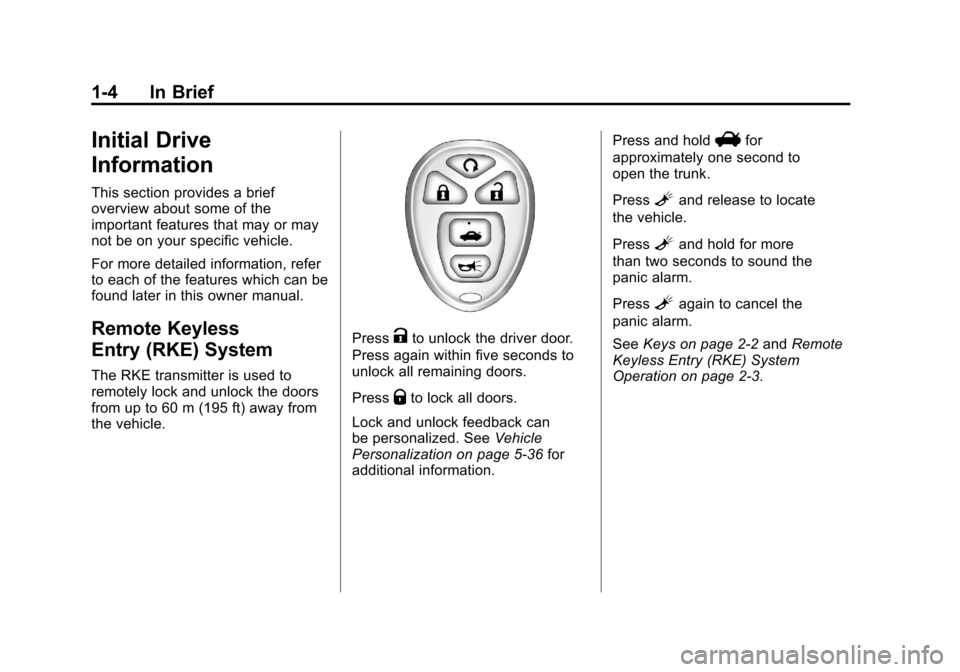

Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless
Entry (RKE) System
The RKE transmitter is used to
remotely lock and unlock the doors
from up to 60 m (195 ft) away from
the vehicle.
PressKto unlock the driver door.
Press again within five seconds to
unlock all remaining doors.
Press
Qto lock all doors.
Lock and unlock feedback can
be personalized. See Vehicle
Personalization on page 5‑36 for
additional information. Press and hold
Vfor
approximately one second to
open the trunk.
Press
Land release to locate
the vehicle.
Press
Land hold for more
than two seconds to sound the
panic alarm.
Press
Lagain to cancel the
panic alarm.
See Keys on page 2‑2 andRemote
Keyless Entry (RKE) System
Operation on page 2‑3.

Black plate (5,1)Chevrolet Impala Owner Manual - 2011
In Brief 1-5
Remote Vehicle Start
With this feature the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. Aim the RKE transmitter at thevehicle.
2. Press
Q.
3. Immediately after completing Step 2, press and hold
/until
the turn signal lamps flash.
When the vehicle starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the ignition on and then
back off.
See Remote Vehicle Start on
page 2‑5.
Door Locks
Manual Locks
From outside the vehicle, use the
key in the door or the Remote
Keyless Entry (RKE) transmitter to
lock or unlock the vehicle. From the
inside, pull up or push down on the
manual door lock knobs.
See Door Locks on page 2‑6.
Power Door Locks
Power door lock switches are
located on the front doors near the
handle.
Q:Press the bottom of the switch
to lock all doors.
K: Press the top of the switch to
unlock all doors.
For more information, see:
.Power Door Locks on page 2‑7.
.Delayed Locking on page 2‑8.
Trunk Release
In addition to the trunk release
button on the RKE transmitter, there
is a remote release
Vbutton
located on the left side of the
instrument panel.
For more information, see Trunk on
page 2‑10.

Black plate (6,1)Chevrolet Impala Owner Manual - 2011
1-6 In Brief
Windows
The power window switches are
on the driver door armrest. Each
passenger door has a switch that
controls only that window.
Press the front of the switch to the
first position to open the window.
Pull the switch up to close it.
For more information, seePower
Windows on page 2‑17.
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Lift the bar under the front edge of the seat cushion to unlock
the seat.
2. Slide the seat to the desired position and release the bar.
3. Try to move the seat back and forth to be sure the seat is
locked in place.
See Seat Adjustment on page 3‑3. Use the lever on the outboard side
of the seat to raise or recline the
seatback. See
“Manual Reclining
Seatbacks” underReclining
Seatbacks on page 3‑5.
Power Seats
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front or rear
of the seat cushion by moving
the front or rear of the control up
or down.

Black plate (7,1)Chevrolet Impala Owner Manual - 2011
In Brief 1-7
SeePower Seat Adjustment on
page 3‑4.
Power Reclining Seatback
To adjust a power seatback,
if equipped:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See “Power Reclining Seatbacks”
under Reclining Seatbacks on
page 3‑5.
Manual Lumbar
Increase or decrease the lumbar
support by repeatedly pushing down
or pulling up on the lever.
See Lumbar Adjustment on
page 3‑4 for more information.
Second Row Seats
On vehicles with the flip and fold
feature, the bottom seat cushions
can be flipped forward and the
seatback folded down to create an
extended cargo area. The vehicle also has an under seat
storage area.
See
Rear Seats (Split Folding) on
page 3‑8 for more information.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
For more information see Head
Restraints on page 3‑2 andSeat
Adjustment on page 3‑3.

Black plate (8,1)Chevrolet Impala Owner Manual - 2011
1-8 In Brief

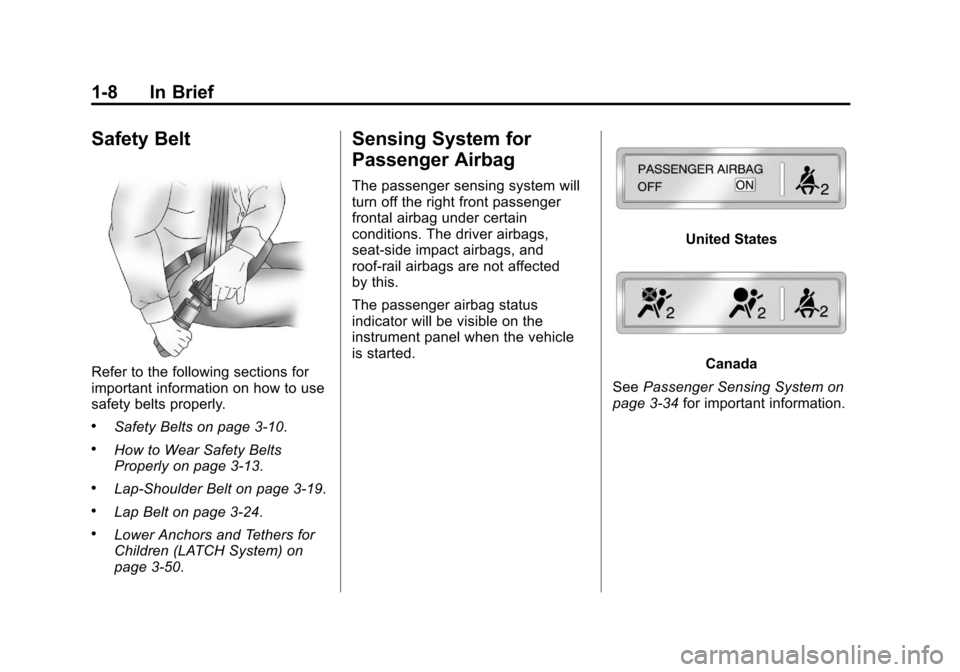

Safety Belt
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑10.
.How to Wear Safety Belts
Properly on page 3‑13.
.Lap-Shoulder Belt on page 3‑19.
.Lap Belt on page 3‑24.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑50.
Sensing System for
Passenger Airbag
The passenger sensing system will
turn off the right front passenger
frontal airbag under certain
conditions. The driver airbags,
seat‐side impact airbags, and
roof‐rail airbags are not affected
by this.
The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle
is started.
United States
Canada
See Passenger Sensing System on
page 3‑34 for important information.

Black plate (9,1)Chevrolet Impala Owner Manual - 2011
In Brief 1-9
Mirror Adjustment
Exterior Mirrors
Controls for the outside power
mirrors are on the driver door
armrest.
Press the left or right side of
the selector located above the
control pad to adjust the driver or
passenger mirror. Then press the
control pad to move the mirror in
the desired direction.
SeePower Mirrors on page 2‑15.
Interior Mirror
Vehicles with a manual rearview
mirror can be adjusted by holding
the mirror in the center to move it for
a clearer view behind the vehicle.
Adjust the mirror to avoid glare from
the headlamps behind. Pull the
lever, located at the bottom of the
mirror for nighttime use. Return the
lever to its original position for the
day position.
SeeManual Rearview Mirror on
page 2‑15.
On vehicles with an automatic
dimming rearview mirror, the mirror
will automatically adjust to reduce
the glare of lights from behind the
vehicle. See Automatic Dimming
Rearview Mirror on page 2‑16.
Steering Wheel
Adjustment
The tilt wheel lever is located on the
left side of the steering column.
To adjust the steering wheel:
1. Hold the wheel and pull the lever toward you.
2. Move the steering wheel up or down.
3. Release the lever to lock the steering wheel in place.

Black plate (10,1)Chevrolet Impala Owner Manual - 2011
1-10 In Brief
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamp
The center mounted dome lamp
overhead comes on when a door is
opened. This lamp can also be
turned on by turning the instrument
panel brightness control clockwise.
Reading Lamps
The vehicle has reading lamps that
also act as the dome lamp. Press
the button near each lamp to turn
them on and off.Map Lamps
The vehicle has map lamps on the
rearview mirror. Push the button
near each lamp to turn the map
lamps on and off.
For more information on interior
lighting, see:
.Exterior Lighting on page 1‑10.
.Courtesy Lamps on page 6‑6.
.Delayed Entry Lighting on
page 6‑7.
.Delayed Exit Lighting on
page 6‑7.
.Parade Dimming on page 6‑7.
Exterior Lighting
The exterior lamps control is located
on the instrument panel to the left of
the steering wheel.
P:
Briefly turn to this position to
manually turn the automatic lamp
control and Daytime Running
Lamps (DRL) off or on. For vehicles
first sold in Canada, the off position
only works when the vehicle is
shifted into the P (Park) position.
