2011 CHEVROLET COLORADO Owners Manual

Black plate (53,1)Chevrolet Colorado Owner Manual - 2011
Seats and Restraints 3-53
Crew Cab—Rear Seat
1. Put the child restraint on
the seat.
2. If the child restraint manufacturer's instructions
recommends that the top tether
be attached, attach the top
tether to the top tether
anchor (A). Refer to the child
restraint instructions and the
following steps:
2.1. Pull the seatback forward to access the top tether
anchors (A). See Rear Seats (Extended Cab) on
page 3‑10
orRear Seats
(Crew Cab) on page 3‑10.
2.2. Route the top tether according to your child
restraint instructions and
the following instructions:
If the position you are using
has a fixed headrest or
head restraint and you are
using a single tether, route
the tether over the head
restraint.
If the position you are using
has an adjustable headrest
or head restraint and you
are using a single tether,
raise the headrest or head
restraint and route the
tether under the headrest or
head restraint and in
between the headrest or
head restraint posts.

Black plate (54,1)Chevrolet Colorado Owner Manual - 2011
3-54 Seats and Restraints
If the position you are using
has a fixed or adjustable
headrest or head restraint
and you are using a dual
tether, route the tether
around the headrest or
head restraint.
2.3. Attach the top tether to the anchor (A). Make sure that
you secure the top tether to
the top tether anchor and
not to the seatback
latch (B).
2.4. Push rearward on the seatback until it locks into
its upright position. Push
and pull on the seatback to
make sure it is secured
properly. 3. Attach and tighten the lower
attachments to the lower
anchors. If the child restraint
does not have lower
attachments or the desired
seating position does not have
lower anchors, secure the child
restraint with the top tether and
the safety belts. Refer to your
child restraint manufacturer
instructions and the instructions
in this manual.
3.1. Find the lower anchors for
the desired seating
position.
3.2. Attach and tighten the lower attachments on the child
restraint to the lower
anchors.
4. Tighten the top tether.
5. Before placing a child in the child restraint, make sure it is
securely held in place. To check,
grasp the child restraint at the
LATCH path and attempt
to move it side‐to‐side and
back‐and‐forth. There should be no more than 2.5 cm (1 in) of
movement, for proper
installation.
Extended Cab
—Rear Seat
1. Attach and tighten the lower
attachments to the lower
anchors. If the child restraint
does not have lower
attachments or the desired
seating position does not have
lower anchors, secure the child
restraint with the top tether and
the safety belts. Refer to your

Black plate (55,1)Chevrolet Colorado Owner Manual - 2011
Seats and Restraints 3-55
child restraint manufacturer
instructions and the instructions
in this manual.
1.1. Find the lower anchors (D)for the desired seating
position.
1.2. Put the child restraint on the seat.
1.3. Attach the lower attachments on the child
restraint to the lower
anchors (D) in the vehicle.
The child restraint
instructions will show
you how. 2. If the child restraint manufacturer
recommends that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor (C). Refer to the child
restraint instructions and the
following steps:
2.1. Pull on the finger access
tab to remove the cover to
access the top tether
anchors (C). 2.2. Route the top tether (A)
through the loop (B) at the
top of the seatback to
attach the top tether to the
nearest top tether
anchor (C).
3. Tighten the lower anchor attachments and the top tether.
The child restraint instructions
will show you how.
4. Before placing a child in the child restraint, make sure it is
securely held in place. To check,
grasp the child restraint at the
LATCH path and attempt
to move it side‐to‐side and
back‐and‐forth. There should be
no more than 2.5 cm (1 in) of
movement, for proper
installation.

Black plate (56,1)Chevrolet Colorado Owner Manual - 2011
3-56 Seats and Restraints
Front Seat—Regular/
Extended Cab without Rear
Seats
The vehicle has a right front
passenger airbag and may also
have a passenger sensing system.
If the vehicle has a passenger
sensing system it is designed to turn
off the right front passenger frontal
airbag when an infant in a
rear-facing infant seat or a small
child in a forward-facing child
restraint or booster seat is detected.
See Securing Child Restraints (Rear
Seat Position) on page 3‑58 or
Securing Child Restraints (Center
Front Seat Position) on page 3‑60
or Securing Child Restraints (Right
Front Seat Position) on page 3‑60
and Passenger Sensing System on
page 3‑32 for important safety
information and additional information on installing a child
restraint in the right front seat
position.
1. See
Securing Child Restraints
(Rear Seat Position) on
page 3‑58 orSecuring Child
Restraints (Center Front Seat
Position) on page 3‑60 or
Securing Child Restraints (Right
Front Seat Position) on
page 3‑60 for instructions on
installing the child restraint using
the safety belts.
2. If the child restraint manufacturer's instructions
recommends that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor. Refer to the child
restraint instructions and the
following steps:
2.1. Pull the seatback forward to access the top tether
anchor. See Seatback
Latches on page 3‑7. 2.2. Pull on the finger access
tab to remove the cover to
access the top tether
anchor.
2.3. Route the top tether according to your child
restraint instructions and
the following instructions:
If the position you are using
has a fixed headrest or
head restraint and you are
using a single tether, route
the tether over the headrest
or head restraint.

Black plate (57,1)Chevrolet Colorado Owner Manual - 2011
Seats and Restraints 3-57
If the position you are using
has an adjustable headrest
or head restraint and you
are using a single tether,
raise the headrest or head
restraint and route the
tether under the headrest or
head restraint and in
between the headrest or
head restraint posts.If the position you are using
has a fixed or adjustable
headrest or head restraint
and you are using a dual
tether, route the tether
around the headrest or
head restraint.
3. Attach and tighten the top tether according to your child restraint
instructions.
4. Before placing a child in the child restraint, make sure it is
securely held in place. To
check, grasp the child restraint
at the LATCH path and attempt
to move it side‐to‐side and
back‐and‐forth. There should be no more than 2.5 cm (1 in) of
movement, for proper
installation.
Replacing LATCH System
Parts After a Crash
{WARNING
A crash can damage the LATCH
system in the vehicle. A damaged
LATCH system may not properly
secure the child restraint,
resulting in serious injury or even
death in a crash. To help make
sure the LATCH system is
working properly after a crash,
see your dealer to have the
system inspected and any
necessary replacements made as
soon as possible.
If the vehicle has the LATCH system
and it was being used during a
crash, new LATCH system parts
may be needed.

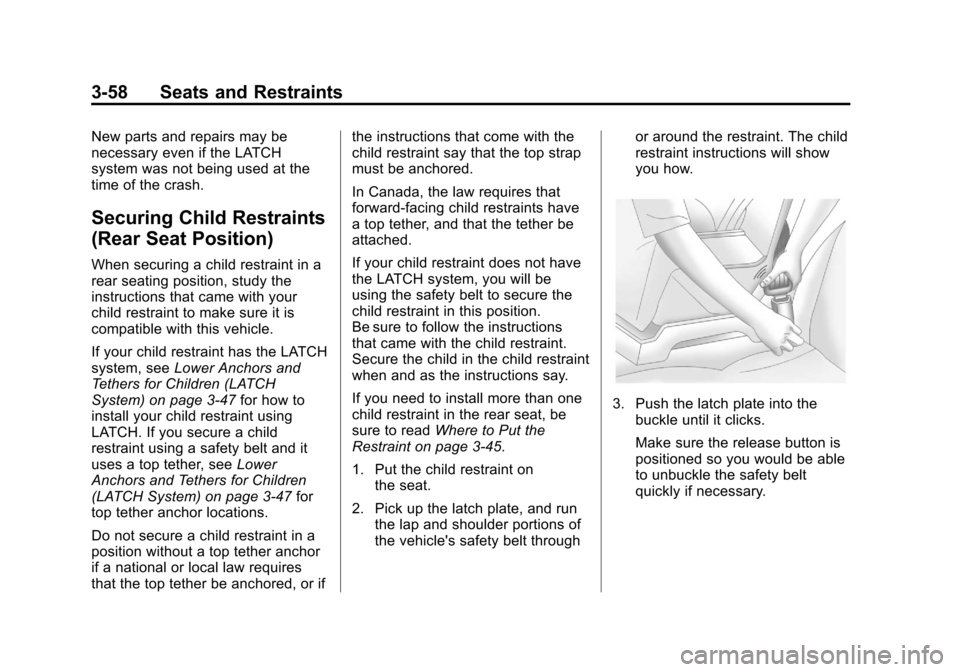

Black plate (58,1)Chevrolet Colorado Owner Manual - 2011
3-58 Seats and Restraints
New parts and repairs may be
necessary even if the LATCH
system was not being used at the
time of the crash.
Securing Child Restraints
(Rear Seat Position)
When securing a child restraint in a
rear seating position, study the
instructions that came with your
child restraint to make sure it is
compatible with this vehicle.
If your child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH
System) on page 3‑47 for how to
install your child restraint using
LATCH. If you secure a child
restraint using a safety belt and it
uses a top tether, see Lower
Anchors and Tethers for Children
(LATCH System) on page 3‑47 for
top tether anchor locations.
Do not secure a child restraint in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if the instructions that come with the
child restraint say that the top strap
must be anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether be
attached.
If your child restraint does not have
the LATCH system, you will be
using the safety belt to secure the
child restraint in this position.
Be sure to follow the instructions
that came with the child restraint.
Secure the child in the child restraint
when and as the instructions say.
If you need to install more than one
child restraint in the rear seat, be
sure to read
Where to Put the
Restraint on page 3‑45.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder portions of
the vehicle's safety belt through or around the restraint. The child
restraint instructions will show
you how.
3. Push the latch plate into the
buckle until it clicks.
Make sure the release button is
positioned so you would be able
to unbuckle the safety belt
quickly if necessary.

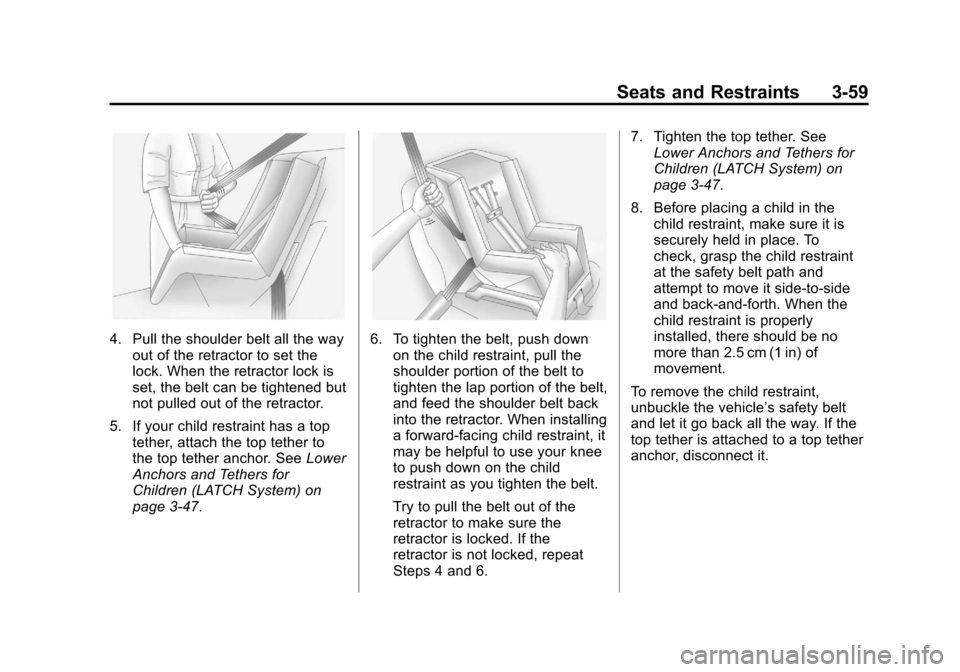

Black plate (59,1)Chevrolet Colorado Owner Manual - 2011
Seats and Restraints 3-59
4. Pull the shoulder belt all the wayout of the retractor to set the
lock. When the retractor lock is
set, the belt can be tightened but
not pulled out of the retractor.
5. If your child restraint has a top tether, attach the top tether to
the top tether anchor. See Lower
Anchors and Tethers for
Children (LATCH System) on
page 3‑47.6. To tighten the belt, push down on the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt,
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint, it
may be helpful to use your knee
to push down on the child
restraint as you tighten the belt.
Try to pull the belt out of the
retractor to make sure the
retractor is locked. If the
retractor is not locked, repeat
Steps 4 and 6. 7. Tighten the top tether. See
Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑47.
8. Before placing a child in the child restraint, make sure it is
securely held in place. To
check, grasp the child restraint
at the safety belt path and
attempt to move it side‐to‐side
and back‐and‐forth. When the
child restraint is properly
installed, there should be no
more than 2.5 cm (1 in) of
movement.
To remove the child restraint,
unbuckle the vehicle’s safety belt
and let it go back all the way. If the
top tether is attached to a top tether
anchor, disconnect it.

Black plate (60,1)Chevrolet Colorado Owner Manual - 2011
3-60 Seats and Restraints
Securing Child Restraints
(Center Front Seat
Position)
{WARNING
A child in a child restraint in the
center front seat can be badly
injured or killed by the frontal
airbags if they inflate. Never
secure a child restraint in the
center front seat. It is always
better to secure a child restraint in
a rear seat.
Do not use child restraints in the
center front seat position.
Securing Child Restraints
(Right Front Seat
Position)
This vehicle has airbags. A rear
seat is a safer place to secure a
forward-facing child restraint. See
Where to Put the Restraint on
page 3‑45.
In addition, the vehicle may have a
passenger sensing system which is
designed to turn off the right front
passenger's frontal airbag under
certain conditions. See Passenger
Sensing System on page 3‑32 and
Passenger Airbag Status Indicator
on page 5‑11 for more information
on this, including important safety
information.
A label on the sun visor says,
“Never put a rear-facing child seat in
the front.” This is because the risk to
the rear-facing child is so great,
if the airbag deploys.
{WARNING
A child in a rear-facing child
restraint can be seriously injured
or killed if the right front
passenger airbag inflates. This is
because the back of the
rear-facing child restraint would
be very close to the inflating
airbag. A child in a forward-facing
child restraint can be seriously
injured or killed if the right front
passenger airbag inflates and the
passenger seat is in a forward
position.
The vehicle may have a
passenger sensing system which
is designed to turn off the right
front passenger frontal airbag
under certain conditions.
Even if the passenger sensing
system, if equipped, has turned
off the right front passenger
frontal airbag, no system is
(Continued)
