2011 CHEVROLET COLORADO Owners Manual

Black plate (3,1)Chevrolet Colorado Owner Manual - 2011
In Brief 1-3
A.Air Vents on page 8‑3.
B. Turn and Lane‐Change Lever. See Turn and Lane-Change
Signals on page 6‑4.
Windshield Wiper/Washer on
page 5‑2.
C. Instrument Cluster on page 5‑7.
D. Hazard Warning Flashers on
page 6‑3.
E. Passenger Side Airbag. See Airbag System on page 3‑26.
F. Exterior Lamp Controls on
page 6‑1.
Fog Lamps on page 6‑4
(If Equipped).
Exterior Cargo Lamps on
page 6‑4.
G. Parking Brake on page 9‑44. H. Data Link Connector (DLC).
See Malfunction Indicator Lamp
on page 5‑12.
I. Horn on page 5‑2.
J. StabiliTrak
®System on
page 9‑47.
Four-Wheel Drive on
page 10‑30.
K. AM-FM Radio on page 7‑7.
L. Cigarette Lighter (If Equipped). See Ashtrays on page 5‑6 and
Cigarette Lighter on page 5‑5.
M. Climate Control Systems on
page 8‑1.
N. Power Outlets on page 5‑5.
O. Passenger Airbag Status
Indicator on page 5‑11.
P. Glove Box on page 4‑1.
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.

Black plate (4,1)Chevrolet Colorado Owner Manual - 2011
1-4 In Brief

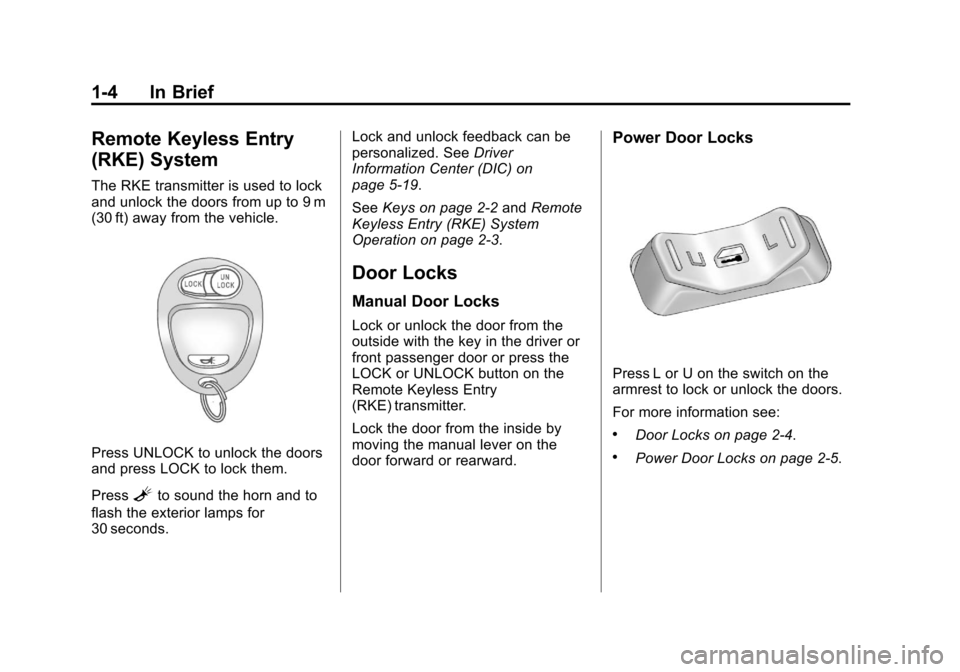

Remote Keyless Entry
(RKE) System
The RKE transmitter is used to lock
and unlock the doors from up to 9 m
(30 ft) away from the vehicle.
Press UNLOCK to unlock the doors
and press LOCK to lock them.
Press
Lto sound the horn and to
flash the exterior lamps for
30 seconds. Lock and unlock feedback can be
personalized. See
Driver
Information Center (DIC) on
page 5‑19.
See Keys on page 2‑2 andRemote
Keyless Entry (RKE) System
Operation on page 2‑3.
Door Locks
Manual Door Locks
Lock or unlock the door from the
outside with the key in the driver or
front passenger door or press the
LOCK or UNLOCK button on the
Remote Keyless Entry
(RKE) transmitter.
Lock the door from the inside by
moving the manual lever on the
door forward or rearward.
Power Door Locks
Press L or U on the switch on the
armrest to lock or unlock the doors.
For more information see:
.Door Locks on page 2‑4.
.Power Door Locks on page 2‑5.

Black plate (5,1)Chevrolet Colorado Owner Manual - 2011
In Brief 1-5

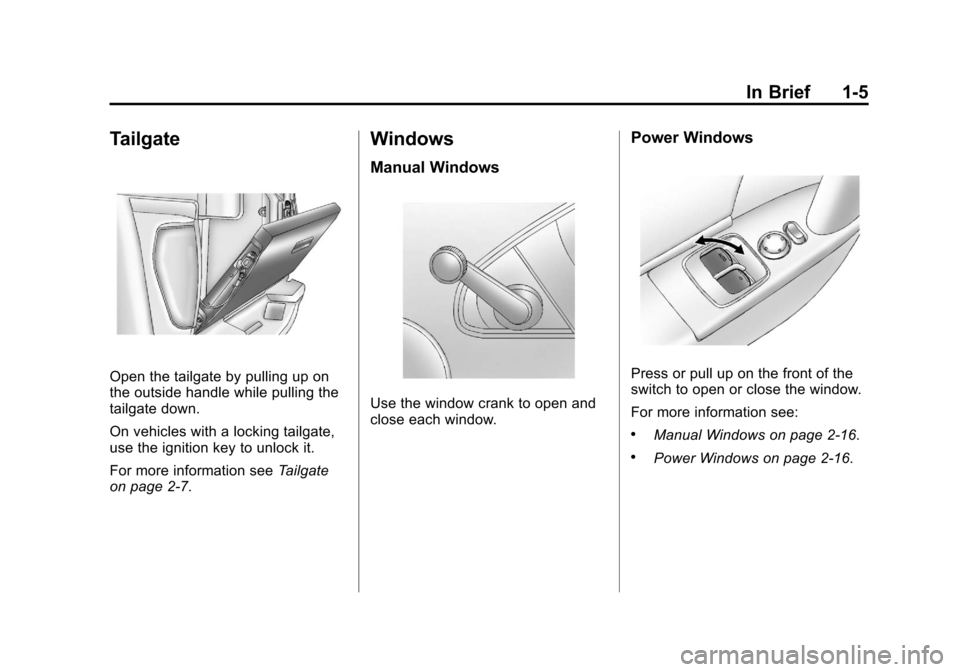

Tailgate
Open the tailgate by pulling up on
the outside handle while pulling the
tailgate down.
On vehicles with a locking tailgate,
use the ignition key to unlock it.
For more information seeTailgate
on page 2‑7.
Windows
Manual Windows
Use the window crank to open and
close each window.
Power Windows
Press or pull up on the front of the
switch to open or close the window.
For more information see:
.Manual Windows on page 2‑16.
.Power Windows on page 2‑16.

Black plate (6,1)Chevrolet Colorado Owner Manual - 2011
1-6 In Brief
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Lift the bar under the front of theseat cushion to unlock the seat.
2. Slide the seat to the desired position and release the bar.
3. Try to move the seat back and forth to make sure it is locked in
place.
See Seat Adjustment on page 3‑3
for more information.
Power Seats
If available, the power seat controls
are on the outboard sides of the
front seats. To adjust the seat:
.Move the seat forward or
rearward by sliding the
horizontal control forward or
rearward.
.Raise or lower the front or rear
part of the seat cushion by
moving the front or rear of the
horizontal control up or down.
.Raise or lower the entire seat by
moving the entire horizontal
control up or down.
.Raise or recline the seatback by
moving the vertical control.
See Power Seat Adjustment on
page 3‑4 andReclining Seatbacks
on page 3‑5 for more information.

Black plate (7,1)Chevrolet Colorado Owner Manual - 2011
In Brief 1-7
Power Lumbar
If available, press and hold the front
or rear of the control on the
outboard side of the seat to
increase or decrease lumbar
support. Release the control when
the level of support is reached.
SeeLumbar Adjustment on
page 3‑4 for more information.
Heated Seats
If available, the switches are on the
outboard sides of the front seats. To
operate, the ignition must be on.
.Press the top of the switch for
the high setting.
.Press the bottom of the switch
for the low setting.
.Put the switch in the center
position to turn this feature off.
See Heated Front Seats on
page 3‑8 for more information.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
For more information see Head
Restraints on page 3‑2 andSeat
Adjustment on page 3‑3.

Black plate (8,1)Chevrolet Colorado Owner Manual - 2011
1-8 In Brief

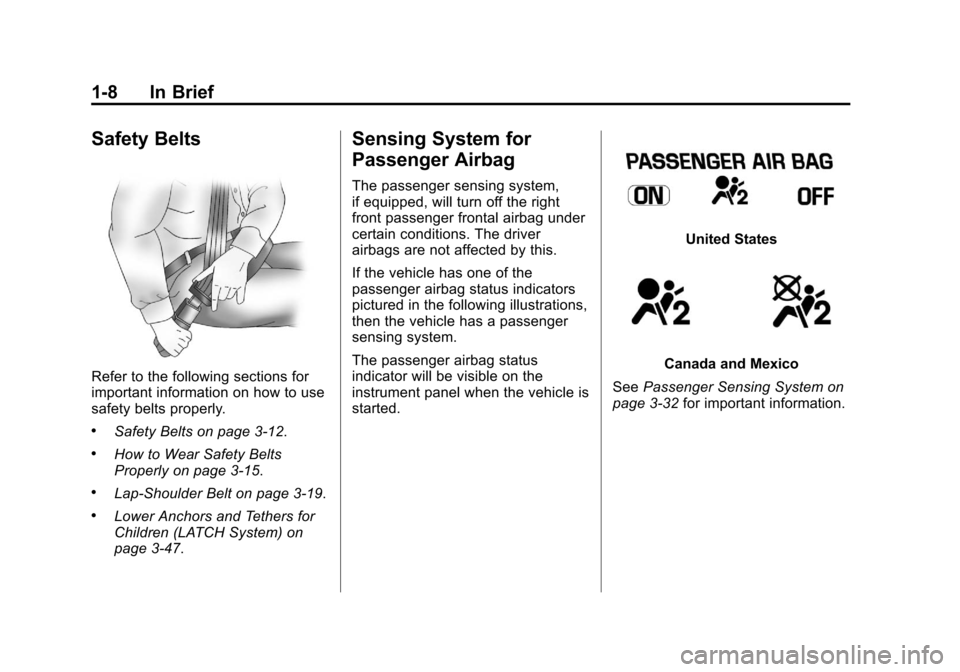

Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑12.
.How to Wear Safety Belts
Properly on page 3‑15.
.Lap-Shoulder Belt on page 3‑19.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑47.
Sensing System for
Passenger Airbag
The passenger sensing system,
if equipped, will turn off the right
front passenger frontal airbag under
certain conditions. The driver
airbags are not affected by this.
If the vehicle has one of the
passenger airbag status indicators
pictured in the following illustrations,
then the vehicle has a passenger
sensing system.
The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle is
started.
United States
Canada and Mexico
See Passenger Sensing System on
page 3‑32 for important information.

Black plate (9,1)Chevrolet Colorado Owner Manual - 2011
In Brief 1-9
Mirror Adjustment
Exterior Mirrors
Vehicles with power outside mirrors
have controls located on the
driver door.
1. Move the selector switch to theL (left) or R (right) to choose the
driver or passenger mirror.
2. Press one of the four arrows located on the control pad to
move the mirror to the desired
direction. 3. Return the selector switch to the
center position once the mirrors
are adjusted.
See Power Mirrors on page 2‑13.
Vehicles with manual outside
mirrors can be adjusted by pressing
the mirror up and down and left and
right so that you can see a clear
view behind you.
Manually fold the mirrors inward to
prevent damage when going
through an automatic car wash. To
fold, push the mirror toward the
vehicle. Push the mirror outward, to
return to its original position.
See Manual Mirrors on page 2‑13.
Interior Mirror
On vehicles with a manual inside
rearview mirror, the mirror can be
adjusted by holding it in the center
to move it for a clear view behind
you. To avoid glare from the
headlamps behind you, push the tab
forward for daytime use and pull it
for nighttime use.
SeeManual Rearview Mirror on
page 2‑14.
The automatic dimming inside
rearview mirror will automatically
reduce the glare of lights from
behind the vehicle.
See Automatic Dimming Rearview
Mirror on page 2‑14.

Black plate (10,1)Chevrolet Colorado Owner Manual - 2011
1-10 In Brief
Steering Wheel
Adjustment
The steering wheel adjustment lever
is located on the left side of the
steering wheel.To adjust:
1. Hold the steering wheel and pull
the lever toward you.
2. Move the steering wheel up or down.
3. Release the lever to lock the wheel in place.
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamps
The dome lamps come on when any
door is opened.
To manually turn on the dome
lamps, turn the thumbwheel, located
next to the exterior lamps control, all
the way up. The cargo lamps may
come on, if the vehicle is equipped
with Bluetooth. In this position, the
lamps remain on whether a door is
opened or closed. Reading Lamps
Press the lens on the lamps to turn
each reading lamp on or off.
These lamps will not come on with
the dome lamps.
.See
“Dome Lamp Override” in
Dome Lamps on page 6‑5.
.Instrument Panel Illumination
Control on page 6‑5.
.Exit Lighting on page 6‑6.
