2011 CHEVROLET COLORADO Owners Manual

Black plate (9,1)Chevrolet Colorado Owner Manual - 2011
Service and Maintenance 11-9
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 15942429 —
Engine Oil Filter 2.9L L4 Engine 19210283 PF46
3.7L L5 Engine 19210285 PF61
5.3L V8 Engine 89017524 PF48
Spark Plugs 2.9L L4 and 3.7L L5 Engines 12625058 41-103
5.3L V8 Engine 12609877 41-985
Wiper Blades
Driver Side —55 cm (22 in) 10389562 —
Passenger Side —48 cm (19 in) 10389563 —

Black plate (10,1)Chevrolet Colorado Owner Manual - 2011
11-10 Service and Maintenance
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed

Black plate (11,1)Chevrolet Colorado Owner Manual - 2011
Service and Maintenance 11-11

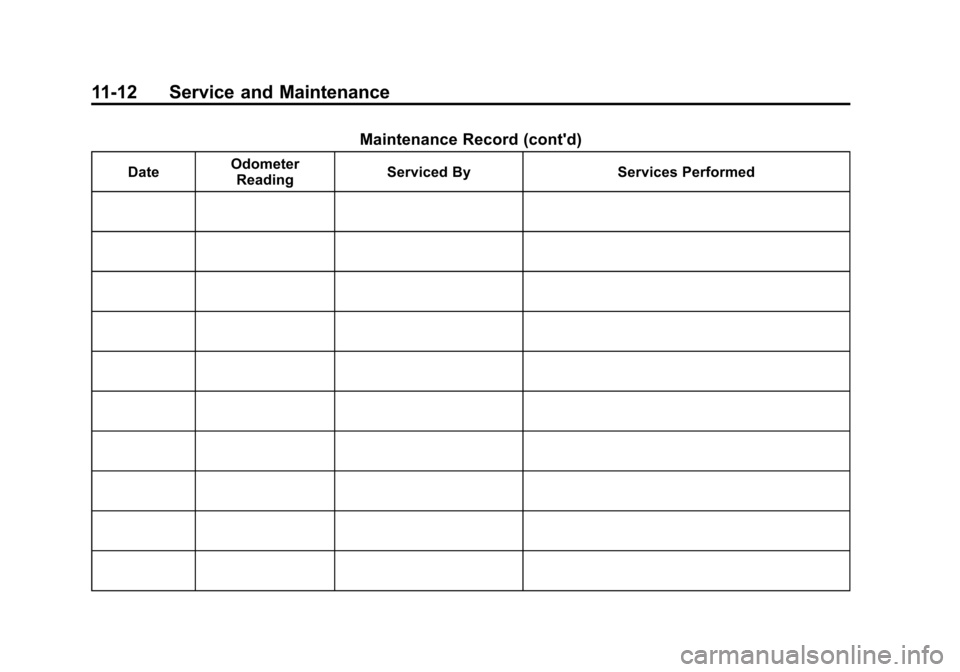

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (12,1)Chevrolet Colorado Owner Manual - 2011
11-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (13,1)Chevrolet Colorado Owner Manual - 2011
Service and Maintenance 11-13
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (14,1)Chevrolet Colorado Owner Manual - 2011
11-14 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)Chevrolet Colorado Owner Manual - 2011
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.

Black plate (2,1)Chevrolet Colorado Owner Manual - 2011
12-2 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate conversion capacities are given in metric and English conversions. SeeRecommended
Fluids and Lubricants on page 11‑6 for more information.
Capacities and Specifications
Application Capacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Cooling System
2.9L L4 Engine 9.8 L 10.4 qt
3.7L L5 Engine 10.0 L 10.6 qt
5.3L V8 Engine 13.0 L 13.7 qt
Engine Oil with Filter 2.9L L4 Engine 4.7 L 5.0 qt
3.7L L5 Engine 5.7 L 6.0 qt
5.3L V8 Engine 5.7 L 6.0 qt
Fuel Tank 74 L 19.5 gal
