143Driving





Reversing camera

A reversing camera is activated automatically
when reverse gear is engaged.
The colour image is provided in the navigationscreen. The
green lines represent the general direction of the vehicle.
The red lines represent around 30 cm beyond
the limit of your vehicle's rear bumper. The
audible signal becomes continuous from thislimit.
The blue lines represent the maximum turningcircle.

Clean the reversing camera regularly using a sponge and a soft cloth.

005
Visibility

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.

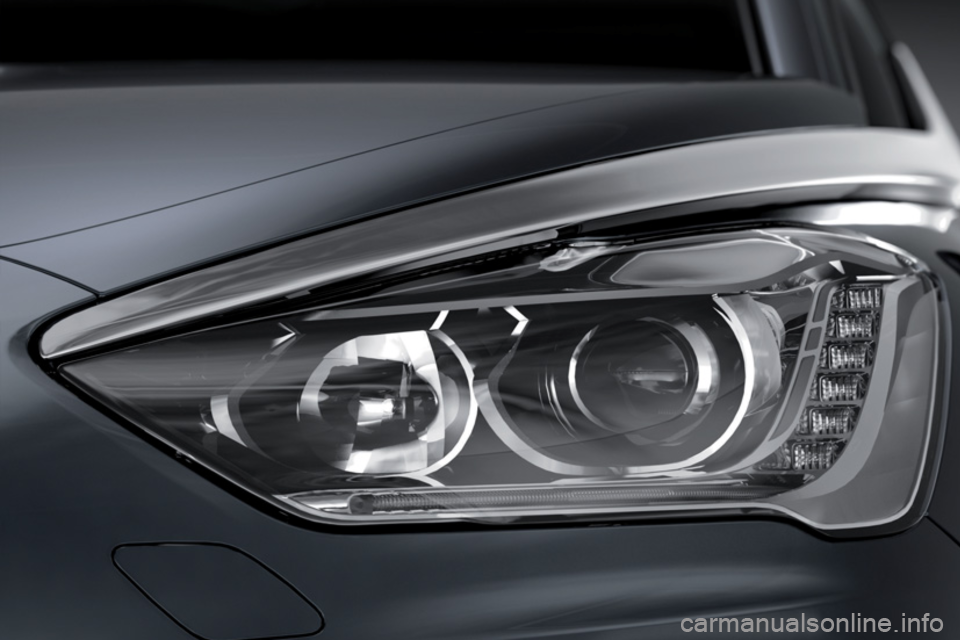

Main lighting
There are various lamps on the vehicle:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearly when
the road is clear,
- directional headlamps for improved
v
isibility when cornering.


Additional lighting
Other lamps are installed to fulfil the requirements of par ticular driving conditions:


- rear foglamps to better signal the presence of the vehicle in foggy conditions,

- front foglamps for better visibility in foggyconditions and to improve lighting at
intersections and when parking,

- daytime running lamps to be seen duringthe day.



Automatic lighting functions

Various automatic lighting functions are also
available depending on options:


-
guide-me-home lighting,

- directional headlamps,

- welcome li
ghting,

- daytime running lamps,

- automatic illumination of headlamps,

- automat
ic headlamp dipping.

Visibility


Selection ring for main lighting mode

Turn the ring to position the symbol required
facing the mark.

Lighting o
ff.
Automatic illumination of headlamps.


Sidelamps only.

Dipped or main beam headlamps.

Stalk for switching headlamps

Pull the stalk to switch the lighting between
dipped/main beam headlamps.

In the li
ghting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting switched on.

The foglamps operate with dipped and main beam headlamps.
Front and rearfoglamps
Rotate and release the ring: )forwards a first time to switch on the frontfoglamps, )forwards a second time to switch on therear foglamps, )rearwards a first time to switch off the rear foglamps, )rearwards a second time to switch of the
front fo
g lamps. When the headlamps switch off with automatic
illumination of headlamps
(AUTO model) or
when the dipped beam headlamps are switched
off manuall
y, the foglamps and sidelampsremain on.
) Turn the ring rear wards to switch off thefoglamps, the sidelamps will then switch off.

In good or rainy weather, both day and night, the front foglamps and the rear foglamps are prohibited. In these situations, the power of their beams may dazzle other drivers. They shouldonly be used in fog or snow.
In these weather conditions, it is your responsibility to switch on the foglamps and dipped headlamps manually as the sunshine sensor may detect sufficientlight.
Do not forget to switch off the front foglamps and the rear foglamps when they are no longer needed.

149Visibility

Lighting left on audible signal
An audible signal when a front door
is opened warns the driver that the vehicle's exterior lighting is on, with theignition off and in manual lighting mode.
In this case, switching off the lighting stops the audible signal.
With the ignition off, if the dipped headlamps remain on, the vehicle goes into "ECO" mode to avoid discharging the battery.

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.

The daytime runninglamps can be activated and deactivated via the configuration menu.



The lighting goes off when you switchoff the ignition, but you can always switch it on again using the lighting control stalk.
Daytime running lamps
(LEDs)
They come on when the engine is star ted.
Depending on the country of sale or whererequired by regulations, they are used for:
- daytime running lamps in day mode andsidelamps in night mode (they are brighter
when daytime running lamps), or
- sidelamps in day and night mode.

switched on automatically, without any action
on the par t of the driver, when a low level of
external light is detected or in certain cases of activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automaticall
y.
Automatic illumination of headlamps
Activation
)Turn the ring to the "AU TO "position,automatic illumination of headlamps is activated and a message is displayed in the screen.
Deactivation
)Turn the ring to another position. Deactivation is accompanied by a message in the screen.


Association with the automatic "Guide-me-home" lighting

Association with the automatic lighting provides
the "guide-me-home" lighting with the following
additional options after the ignition isswitched off:


- selection of the lighting duration of 15, 30or 60 seconds in the vehicle parameters in
the vehicle configuration menu,

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a malfunctionof the sunshine sensor,
the lighting comes on, this
warning lamp is displayed in the instrumentpanel and/or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
wor
kshop.
In fog or snow, the sunshine sensor may detect sufficient light. In this case, thelighting will not come on automatically. Do not cover the sunshine sensor,coupled with the rain sensor andlocated in the centre of the windscreen behind the rear view mirror; theassociated functions would no longer be controlled.
