Page 41 of 88
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB 1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
9* Swingarm • Check operation and for
excessive play.
√√√ √
• Lubricate with lithium-soap-
based grease. Every 24000 km (14000 mi)
• Check chain slack, alignment and condition. Every 500 km (300 mi) and after
10 Drive chain • Adjust and lubricate chain with washing the motorcycle
a special O-ring chain lubricant or riding in the rain
thoroughly.
11 * Steering bearings • Check bearing play and steering
for roughness.
√√ √ √ √
• Lubricate with lithium-soap-
based grease. Every 50000 km (30000 mi)
12 * Chassis fasteners • Make sure that all nuts, bolts and
screws are properly tightened. √√√ √√
13 Brake lever pivot
• Lubricate with silicone grease. √√√ √√
shaft
14 Brake pedal pivot
• Lubricate with lithium-soap-
√√√ √√
shaftbased grease.
15 Clutch lever pivot
• Lubricate with lithium-soap-
shaft based grease. √√√ √√
16 Shift pedal pivot
• Lubricate with lithium-soap-
shaft based grease. √√√ √√
17 Sidestand • Check operation.
• Lubricate. √√√ √√
18 * Sidestand switch • Check operation. √√ √ √ √ √
PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
5WX-F819D-E3 24/11/08 20:10 Página 41
Page 42 of 88
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB 1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
19 * Front fork • Check operation and for
oil leakage. √√√ √
20 *Rear suspension
• Check operation.
√√√ √
relay arm and • Lubricate with lithium-soap-
connecting arm
based grease. √√
pivoting points
21 * Autolube pump • Check operation.
• Bleed if necessary. √√ √√
22
Transmission oil • Check oil level.
√√ √ √ √ √• Change.√√ √
23 * Front and rear brake
switches • Check operation.
√√ √ √ √ √
24 Moving parts and
cables • Lubricate.
√√√ √√
• Check operation and free play.
Throttle grip • Adjust the throttle cable free play
25 * housing if necessary. √√√ √√
and cable • Lubricate the throttle grip
housing and cable.
26 * Lights, signals and
• Check operation.
switches • Adjust headlight beam. √√ √ √ √ √
PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
5WX-F819D-E3 24/11/08 20:10 Página 42
Page 43 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU18670
TIP
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinders and calipers, and change th\
e bra- ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
5WX-F819D-E3 24/11/08 20:10 Página 43
Page 44 of 88
EAU18712
Removing and installing
cowlings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each
time a cowling or panel needs to be
removed and installed.
1. Cowling A
2. Cowling C1. Cowling B
2. Panel A
3. Panel B
EAU18790
Cowling A
T
o remove the cowling
Remove the screws, and then take
the cowling off.
1. Cowling A
2. Screw
To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
5WX-F8199-E3 7/11/08 16:51 Página 44
Page 45 of 88
EAUS1571
Cowling B
T
o remove the cowling
1. Remove cowling A. (See page
6-8).
2. Remove the screws shown, and
then take the cowling off.
1. Cowling B
2. Screw
To install the cowling
1. Place the cowling in the original
position, and then install the
screws.
2. Install cowling A.
EAU37730
Cowling C
T
o remove the cowling
1. Remove cowlings A and B. (See
page 6-8).
2. Remove the bolts and screws
shown, and then take the cowling
off.
1. Cowling C
2. Bolt
3. Screw
To install the cowling
1. Place the cowling in the original
position, and then install the
bolts and screws.
2. Install cowlings A and B.
EAU19272
Panel A
T
o remove the panel
Remove the screw, and then pull out-
ward on the areas shown.
1. Panel A
2. Screw
To install the panel
Place the panel in the original posi-
tion, and then install the screw.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
5WX-F8199-E3 7/11/08 16:51 Página 45
Page 46 of 88
EAU19210
Panel B
T
o remove the panel
Remove the screws, and then take
the panel off.
1. Panel B
2. Screw
To install the panel
Place the panel in the original posi-
tion, and then install the screws.
EAUS1580
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Remove panel A. (See page 6-8).
2. Remove the spark plug cap.
1. Spark plug cap
3. Remove the spark plug as
shown, using the spark plug
wrench, which is located in the
storage compartment. (See page
6-1).
1. Spark plug wrench
To check the spark plug
1. Check that the porcelain insula-
tor around the center electrode of
the spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
TIP
If the spark plug shows a distinctly
different color, the engine could be
operating improperly. Do not attempt
to diagnose such problems yourself.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
5WX-F8199-E3 7/11/08 16:51 Página 46
Page 47 of 88
Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electro-
de erosion and excessive carbon
or other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-
cification.
1. Spark plug gap
2. Clean the surface of the spark
plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4–1/2 turn past finger tight. Howe-
ver, the spark plug should be tighte-
ned to the specified torque as soon
as possible.
4. Install the spark plug cap.
5. Install the panel.
EAUS1591
Transmission oil
The transmission oil level should be
checked before each ride. In addition,
the oil must be changed at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
To check the transmission oil level
1. Oil filler cap
2. Oil check bolt
1. Remove cowling A. (See page
6-8).
2. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
Tightening torque:
Spark plug:
22.5 Nm (2.2 m•kgf, 16.3 ft•lbf)
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
1
Specified spark plug:
NGK / BR9 ES
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
5WX-F8199-E3 7/11/08 16:51 Página 47
Page 48 of 88

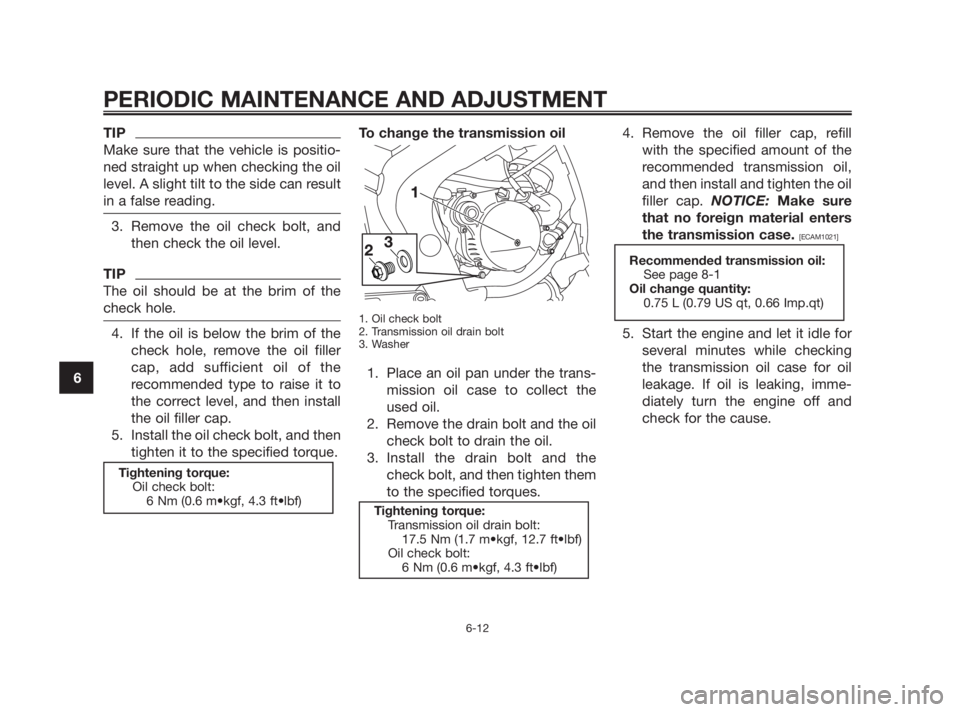

TIP
Make sure that the vehicle is positio-
ned straight up when checking the oil
level. A slight tilt to the side can result
in a false reading.
3. Remove the oil check bolt, and
then check the oil level.
TIP
The oil should be at the brim of the
check hole.
4. If the oil is below the brim of the
check hole, remove the oil filler
cap, add sufficient oil of the
recommended type to raise it to
the correct level, and then install
the oil filler cap.
5. Install the oil check bolt, and then
tighten it to the specified torque.To change the transmission oil
1. Oil check bolt
2. Transmission oil drain bolt
3. Washer
1. Place an oil pan under the trans-
mission oil case to collect the
used oil.
2. Remove the drain bolt and the oil
check bolt to drain the oil.
3. Install the drain bolt and the
check bolt, and then tighten them
to the specified torques.4. Remove the oil filler cap, refill
with the specified amount of the
recommended transmission oil,
and then install and tighten the oil
filler cap. NOTICE: Make sure
that no foreign material enters
the transmission case.
[ECAM1021]
5. Start the engine and let it idle for
several minutes while checking
the transmission oil case for oil
leakage. If oil is leaking, imme-
diately turn the engine off and
check for the cause.
Recommended transmission oil:
See page 8-1
Oil change quantity:
0.75 L (0.79 US qt, 0.66 Imp.qt)
Tightening torque:
Transmission oil drain bolt:
17.5 Nm (1.7 m•kgf, 12.7 ft•lbf)
Oil check bolt:
6 Nm (0.6 m•kgf, 4.3 ft•lbf)
Tightening torque:
Oil check bolt:
6 Nm (0.6 m•kgf, 4.3 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
5WX-F8199-E3 7/11/08 16:51 Página 48
