This indicates reserve. If you run out
of fuel while riding, move the lever to
this position. Fill the tank at the first
opportunity. Be sure to set the lever
back to “ON” after refueling!EAU13590
Starter (choke) lever “ ”
1. Starter (choke) lever “ ”
Starting a cold engine requires a
richer air-fuel mixture, which is sup-
plied by the starter (choke).
Move the lever in direction (a) to turn
on the starter (choke).
Move the lever in direction (b) to turn
off the starter (choke).
EAU13900
Seat
To remove the seat
1. Insert the key into the seat lock,
and then turn it as shown.
1. Seat lock
2. Open.
2. Pull the seat off.
To install the seat
1. Insert the projection on the front
of the seat into the seat holder as
shown.
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
5WX-F8199-E3 7/11/08 16:50 Página 25

1. Projection
2. Seat holder
2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
TIP
Make sure that the seat is properly
secured before riding.
EAUM1941
Anti-theft device housing
The anti-theft device housing, located
in the storage compartment under the
seat, is designed to hold a genuine
Yamaha CYCLELOK. (See page 3-11
for seat opening and closing proce-
dures.) When placing a CYCLELOK in
the storage compartment, securely
fasten it with the straps. When the
CYCLELOK is not in the storage com-
partment, be sure to secure the
straps to prevent losing them.
TIP
Some U-LOCKS cannot fit into the
housing due to their size or shape.
EAU39671
Rear view mirrors
The rear view mirrors of this vehicle
can be folded forward or backward
for parking in narrow spaces. Fold the
mirrors back to their original position
before riding.
EWA14371
Be sure to fold the rear view
mirrors back to their original posi-
tion before riding.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
5WX-F8199-E3 7/11/08 16:50 Página 26

EAU15301
Sidestand
1. Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut-
off system.)
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU15314
Ignition circuit cut-off sys-
tem
The ignition circuit cut-off system
(comprising the sidestand switch,
clutch switch and neutral switch) has
the following functions.
●It prevents starting when the
transmission is in gear and the
sidestand is up, but the clutch
lever is not pulled.
●It prevents starting when the
transmission is in gear and the
clutch lever is pulled, but the
sidestand is still down.
●It cuts the running engine when
the transmission is in gear and
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
TIP
This check is most reliable if perfor-
med with a warmed-up engine.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
5WX-F8199-E3 7/11/08 16:50 Página 27

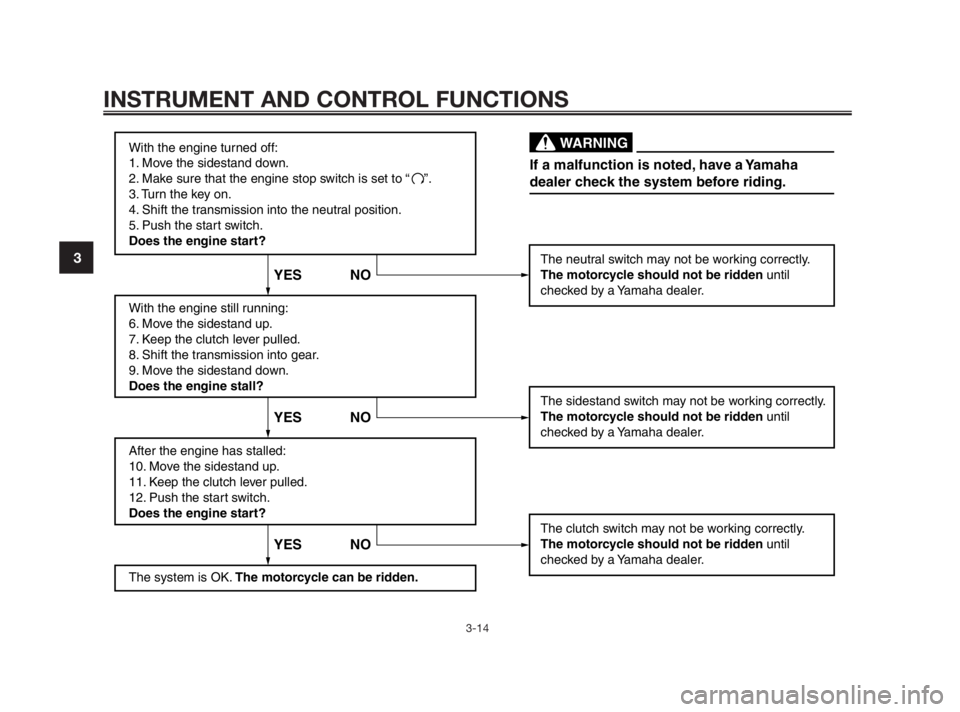

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
5WX-F8199-E3 7/11/08 16:50 Página 28

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15591
The condition of a vehicle is the
owner’s responsibility. Vital compo-
nents can start to deteriorate quickly
and unexpectedly, even if the vehicle
remains unused (for example, as a
result of exposure to the elements).
Any damage, fluid leakage or loss of
tire air pressure could have serious
consequences. Therefore, it is very
important, in addition to a thorough
visual inspection, to check the follo-
wing points before each ride.
TIP
Pre-operation checks should be
made each time the vehicle is used.
Such an inspection can be accom-
plished in a very short time; and the
added safety it assures is more than
worth the time involved.
EWA11150
If any item in the Pre-operation
check list is not working properly,
have it inspected and repaired
before operating the vehicle.
WARNING
5WX-F8199-E3 7/11/08 16:50 Página 29

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-7
• Check fuel line for leakage.
• Check oil level in oil tank.
2-stroke engine oil• If necessary, add recommended oil to specified level. 3-9
• Check vehicle for oil leakage.
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-13
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
Front brake• Check brake pads for wear. 6-20 ~ 6-22
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
WARNING
5WX-F8199-E3 7/11/08 16:50 Página 30

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-3
4
ITEM CHECKS PAGE
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 6-21, 6-22
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
Clutch• Lubricate cable if necessary.
6-19
• Check lever free play.
• Adjust if necessary.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable 6-17, 6-26
and grip housing.
Control cables• Make sure that operation is smooth.
• Lubricate if necessary.6-26
• Check chain slack.
Drive chain• Adjust if necessary.
• Check chain condition.6-24, 6-25
• Lubricate if necessary.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
• Check air pressure.6-17, 6-19
• Correct if necessary.
Brake and shift pedals• Make sure that operation is smooth.
• Lubricate pedal pivoting points if necessary.6-27
Brake and clutch levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-27
Sidestand• Make sure that operation is smooth.
• Lubricate pivot if necessary.6-28
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
5WX-F8199-E3 7/11/08 16:50 Página 31

ITEM CHECKS PAGE
Instruments, lights, signals • Check operation.
and switches• Correct if necessary.—
Engine stop switch• Check operation.3-4
Sidestand switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer check vehicle.3-13
FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-4
4
