2010 YAMAHA TZR50 Owners Manual

turn due to excessive speed or
undercornering (insufficient lean
angle for the speed).
• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
●The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the operator foo-
trests during operation to
maintain control of the
motorcycle.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo-
trests. Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
●Never ride under the influence of
alcohol or other drugs.
●This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.
Protective apparel
The majority of fatalities from
motorcycle accidents are the result of
head injuries. The use of a safety hel-
met is the single most critical factor in
the prevention or reduction of head
injuries.
●Always wear an approved hel-
met.
●Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision that could delay
seeing a hazard.
●The use of a jacket, heavy boots,
trousers, gloves, etc., is effective
in preventing or reducing abra-
sions or lacerations.
●Never wear loose-fitting clothes,
otherwise they could catch on
the control levers, footrests, or
wheels and cause injury or an
accident.
●Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or
after operation and can cause
burns.
●A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing
carbon monoxide can cause heada-
ches, dizziness, drowsiness, nausea,
confusion, and eventually death.
Carbon Monoxide is a colorless,
odorless, tasteless gas which may be
present even if you do not see or
smell any engine exhaust. Deadly
levels of carbon monoxide can collect
rapidly and you can quickly be over-
come and unable to save yourself.
Also, deadly levels of carbon monoxi-
de can linger for hours or days in
enclosed or poorly ventilated areas. If
you experience any symptoms of car-
bon monoxide poisoning, leave the
area immediately, get fresh air, and
SEEK MEDICAL TREATMENT.
1
SAFETY INFORMATION
1-2
5WX-F8199-E3 7/11/08 16:50 Página 9

●Do not run engine indoors. Even
if you try to ventilate engine
exhaust with fans or open win-
dows and doors, carbon monoxi-
de can rapidly reach dangerous
levels.
●Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
●Do not run engine outdoors whe-
re engine exhaust can be drawn
into a building through openings
such as windows and doors.
Loading
Adding accessories or cargo to your
motorcycle can adversely affect sta-
bility and handling if the weight distri-
bution of the motorcycle is changed.
To avoid the possibility of an acci-
dent, use extreme caution when
adding cargo or accessories to your
motorcycle. Use extra care when
riding a motorcycle that has added
cargo or accessories. Here, along
with the information about accesso-
ries below, are some general guideli-
nes to follow if loading cargo to yourmotorcycle:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.
When loading within this weight limit,
keep the following in mind:
●Cargo and accessory weight
should be kept as low and close
to the motorcycle as possible.
Securely pack your heaviest
items as close to the center of
the vehicle as possible and make
sure to distribute the weight as
evenly as possible on both sides
of the motorcycle to minimize
imbalance or instability.
●Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the
motorcycle before riding. Check
accessory mounts and cargo res-
traints frequently.• Properly adjust the suspension
for your load (suspension-
adjustable models only), and
check the condition and pres-
sure of your tires.
• Never attach any large or
heavy items to the handlebar,
front fork, or front fender. The-
se items, including such cargo
as sleeping bags, duffel bags,
or tents, can create unstable
handling or a slow steering res-
ponse.
●This vehicle is not designed to
pull a trailer or to be attached
to a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avai-
lable only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and
accessories or offer other modifica-
tions for Yamaha vehicles. Yamaha is
not in a position to test the products
Maximum load:
196 kg (432 lb)
1
SAFETY INFORMATION
1-3
5WX-F8199-E3 7/11/08 16:50 Página 10

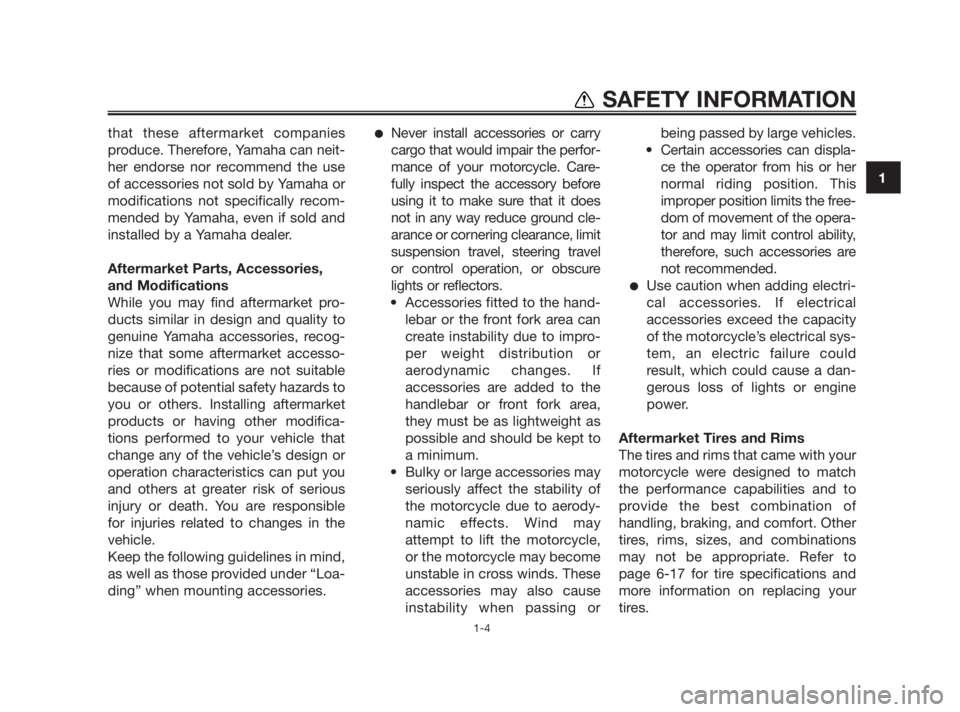

1
SAFETY INFORMATION
1-4
that these aftermarket companies
produce. Therefore, Yamaha can neit-
her endorse nor recommend the use
of accessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.●Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground cle-
arance or cornering clearance, limit
suspension travel, steering travel
or control operation, or obscure
lights or reflectors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may
attempt to lift the motorcycle,
or the motorcycle may become
unstable in cross winds. These
accessories may also cause
instability when passing orbeing passed by large vehicles.
• Certain accessories can displa-
ce the operator from his or her
normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.
●Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the motorcycle’s electrical sys-
tem, an electric failure could
result, which could cause a dan-
gerous loss of lights or engine
power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of
handling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to
page 6-17 for tire specifications and
more information on replacing your
tires.
5WX-F8199-E3 7/11/08 16:50 Página 11

EAU10410
Left view
DESCRIPTION
2-1
2
1. Air filter (page 6-15)
2. Fuel cock (page 3-10)
3. Seat lock (page 3-11)
4. Grab bar
5. Sidestand (page 3-13, 6-28)
6. Shift pedal (page 3-5)
7. Coolant reservoir (page 6-13)
8. Idle adjusting screw (page 6-16)
5WX-F8199-E3 7/11/08 16:50 Página 12

EAU10420
Right view
DESCRIPTION
2-2
2
1. Storage compartment (page 3-12)
2. Owner’s tool kit (page 6-1)
3. Battery (page 6-30)
4. Fuse (page 6-31)
5. Oil tank cap (page 3-9)
6. Front brake fluid reservoir (page 6-22)
7. Radiator (page 6-13)
8. Brake pedal (page 3-6)9. Rear brake fluid reservoir (page 6-22)
5WX-F8199-E3 7/11/08 16:50 Página 13

EAU10430
Controls and instruments
DESCRIPTION
2-3
2
1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Tachometer (page 3-4)
4. Main switch/steering lock (page 3-1)
5. Speedometer (page 3-3)
6. Right handlebar switches (page 3-4)
7. Throttle grip (page 6-17)
8. Front brake lever (page 3-6)9. Fuel tank cap (page 3-6)
5WX-F8199-E3 14/11/08 15:10 Página 14

EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
TIP
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10681
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ”
position, and then turn it to
“ ” while still pushing it.
3. Remove the key.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
5WX-F8199-E3 7/11/08 16:50 Página 15

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
To unlock the steering
1. Push.
2. Turn.
Push the key in, and then turn it to
“ ” while still pushing it.
EAU11004
Indicator and warning lights
1. Coolant temperature warning light “ ”
2. Oil level warning light “ ”
3. Turn signal indicator light “ ”
4. Neutral indicator light “ ”
5. Engine trouble warning light “ ”
EAU11020
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU11060
Neutral indicator light “ ”
This indicator light comes on when
the transmission is in the neutral posi-
tion.
EAUM1062
Oil level warning light “ ”
This warning light comes on when the
key is in the “ ” position or if the oil
level in the 2-stroke engine oil tank is
low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
2-stroke engine oil of either JASO
grade “FC” or ISO grades “EG-C” or
“EG-D”. The warning light should go
off after the 2-stroke engine oil tank
has been refilled.
TIP
If the warning light does not come on
when the key is in the “ ” position or
does not go off after the 2-stroke
engine oil tank has been refilled, have
an Yamaha dealer check the electrical
circuit.
ECA16291
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
NOTICE
5WX-F8199-E3 7/11/08 16:50 Página 16
