2010 Seat Leon 5D MEDIA SYSTEM 2.2

Navigation
56Selecting a point of interest as a destinationDefining the search area
The search area covers a radius of roughly 75 km from the chosen “search
area centre”.
•Open the Navigation main menu.•Select the Point of interest function button.•Press the function button in the pop-up window, select a town as
the search area centre ⇒page 52 and press the function button
⇒ fig. 54•ALTERNATIVELY: Press the function button in the pop-up window to
set the current vehicle position as the search area centre.
The POI search input window opens.
POI search: Entering a keyword
A keyword is a word or a combination of digits and letters that occurs in the
name or the detailed information of the desired point of interest.
A keyword may be the known part of a name, e.g. “Lakeside”.
Starting from the search area centre, the unit searches for points of interest
which contain the keyword in their name or address. Possible results for the
keyword “Lakeside” would be, for example, “Lakeside Hotel” or points of
interest on “ Lakeside” Avenue.
The POI search input window allows free text input ⇒page 51. Correct
spelling is therefore important!
Starting the search•When you have entered the keyword, press the function button.•The search radius is displayed and gradually enlarged. When several
matching points of interest are found, the display switches straight to the list
view.
The search ends automatically when it has covered a radius of roughly 100
kilometres from the defined search area centre.
A message appears to inform the user if no matching point of interest was
found.
Depending on the unit (RNS 310), you can stop the search for a point of
interest by pressing the function button.
Fig. 54 Setting a location
as the search area centre.Fig. 55 List of points of
interest found (keyword:
SEE).
–To w n
Find
Here
Find
Stop
MediaSystem2.1_EN.book Seite 56 Donnerstag, 29. April 2010 4:18 16

Navigation57
Selecting a point of interest from the list•Select a destination in the list by turning the setting knob ⇒page 8, fig. 1
and press to start route guidance ⇒page 13.•Alternatively: Browse the list by dragging the scroll marker on the screen
and select a destination to start route guidance ⇒page 10.•Press the function button. Press the function button in the
detailed view to start route guidance.•In the list view or detailed view, press the function button to store
the marked or displayed address in the Destination memory ⇒ page 59.Note
The distances and directions for points of interest refer to the route as the
crow flies.A10
Details
StartStore
MediaSystem2.1_EN.book Seite 57 Donnerstag, 29. April 2010 4:18 16

Navigation
58Destination memoryIntroductionThe destination memory is used to store navigation destinations manually.
The function buttons for storing a destination are only enabled when the
destination has been sufficiently defined.
Destinations saved in the memory can be edited or used to navigate to the
destination.
Additional Information:•Safety notes
’ ⇒ page 6
•Unit overview ⇒page 8•Introduction to navigation ⇒page 47•Entering a destination ⇒page 52
Automatically stored last destinationsUp to 50 destinations for which route guidance has been started are automat-
ically stored in the Last destinations list ⇒fig. 56 .
Old last destinations are automatically overwritten by new destinations when
the list is full. To permanently retain one of the last destinations, it must be
stored in the Destination memory .•In the list of last destinations, mark the destination you wish to store
⇒ fig. 56.•Press the function button and store the destination ⇒page 59.
Fig. 56 List of recent
destinations.
Store
MediaSystem2.1_EN.book Seite 58 Donnerstag, 29. April 2010 4:18 16

Navigation59
Storing destinations manuallyWhen the function button is displayed, the destination currently
shown can be stored in the destination memory.•Pressing the function button opens an input window where you can
assign an entry name ⇒fig. 57 .•If you wish to assign a name of your own, first press the function
button and then enter your own chosen name for the destination ⇒page 50.•Press to store the destination under the currently displayed name in
the Destination memory .
Editing or deleting destinatio ns in the destination memory•Open the Navigation main menu.•Press the Destination memory function button to open the list of
manually stored destinations ⇒ fig. 58.
Fig. 57 Input window for
assigning your own entry
name.
Store
Store
Delete
OK
Fig. 58 Destination
memory with manually
stored destinations.Fig. 59 Destination
window showing a desti-
nation from the destina-
tion memory.
*
MediaSystem2.1_EN.book Seite 59 Donnerstag, 29. April 2010 4:18 16

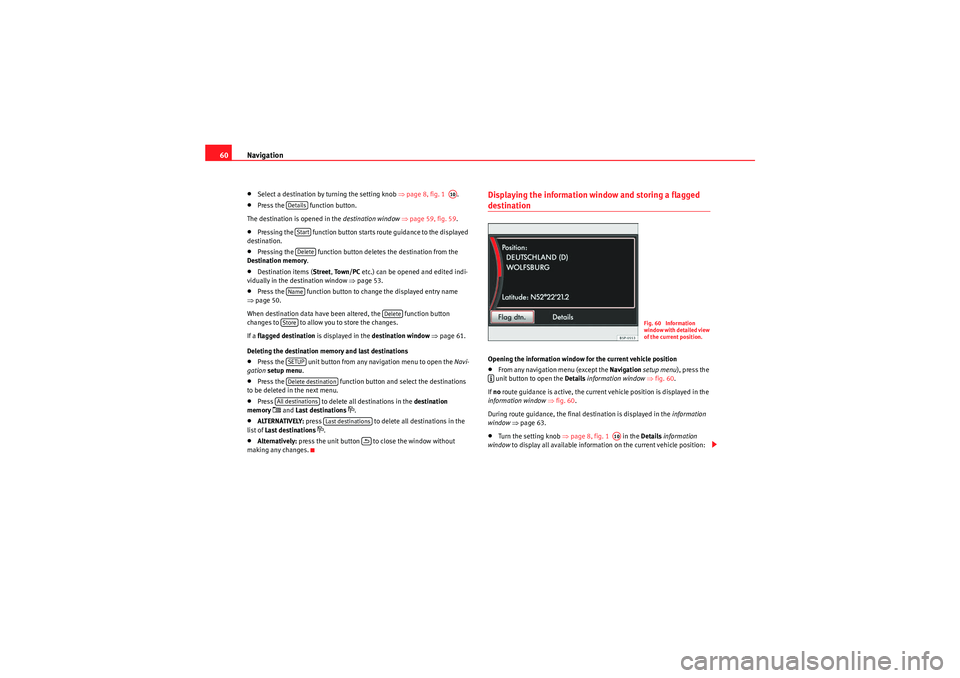

Navigation
60•Select a destination by turning the setting knob ⇒page 8, fig. 1 .•Press the function button.
The destination is opened in the destination window ⇒ page 59, fig. 59.•Pressing the function button starts route guidance to the displayed
destination.•Pressing the function button deletes the destination from the
Destination memory .•Destination items (Street, To w n / P C etc.) can be opened and edited indi-
vidually in the destination window ⇒page 53.•Press the function button to change the displayed entry name
⇒ page 50.
When destination data have been altered, the function button
changes to to allow you to store the changes.
If a flagged destination is displayed in the destination window ⇒ page 61.
Deleting the destination memory and last destinations•Press the unit button from any navigation menu to open the Navi-
gation setup menu .•Press the function button and select the destinations
to be deleted in the next menu.•Press to delete all destinations in the destination
memory
* and Last destinations
•.
•ALTERNATIVELY: press to delete all destinations in the
list of Last destinations
•.
•Alternatively: press the unit button to close the window without
making any changes.
Displaying the information window and storing a flagged destinationOpening the information window for the current vehicle position•From any navigation menu (except the Navigation setup menu ), press the
unit button to open the Details information window ⇒ fig. 60 .
If no route guidance is active, the current vehicle position is displayed in the
information window ⇒ fig. 60 .
During route guidance, the final destination is displayed in the information
window ⇒ page 63.•Turn the setting knob ⇒page 8, fig. 1 in the Details information
window to display all available information on the current vehicle position:
A10
DetailsStartDeleteName
Delete
StoreSETUPDelete destinationAll destinations
Last destinations
E
Fig. 60 Information
w i n d o w w i t h d e t a i l e d v i e w
of the current position.
º
A10
MediaSystem2.1_EN.book Seite 60 Donnerstag, 29. April 2010 4:18 16

Navigation61
Storing a flagged destination•Pressing the function button stores the displayed position as
a Flagged destination in the Destination memory
* ⇒ page 60, fig. 60.
To permanently retain the position stored as a Flagged destination, it must be
renamed in the Destination memory . Otherwise the stored position will be
overwritten the next time a flagged destination is stored.
•Select the flagged destination in the Destination memory ⇒ page 59,
fig. 58 .•Press the function button.
The flagged destination can be renamed.
Storing or editing the home addressOnly one address or position can be stored as the home address at any one
time. The stored home address can be edited or overwritten.
Display
Meaning
Position:
Vehicle position determined by means of GPS
data and navigation data
Latitude:
Latitude
Longitude:
Longitude
Height:
Height above mean sea level.
GPS status:
Display of technical GPS information
Useable satellites:
The number determines the GPS status
Flagged dtn.Details
Fig. 61 Navigation main
menu.Fig. 62 Destination
window with the home
address.
MediaSystem2.1_EN.book Seite 61 Donnerstag, 29. April 2010 4:18 16

Navigation
62To start route guidance to the stored home address, press the
function button in the Navigation main menu ⇒page 61, fig. 61.
If no home address has been stored yet, a home address can be defined after
confirmation of a prompt.
Enter home address•Press the function button to store your current geographical
position (longitude and latitude) as the home address.•ALTERNATIVELY: press to open the destination window Home
address ⇒ page 61, fig. 62 .
The name Home addr. is already entered by default. You can then enter or
change the address ⇒page 53, “Destination window”.
Changing the stored home address•Press the unit button from any navigation menu to open the Navi-
gation setup menu .•Select the function button.•Enter the home address.
Home addr.
Position
Address
SETUPEnter home address
MediaSystem2.1_EN.book Seite 62 Donnerstag, 29. April 2010 4:18 16

Navigation63
Route guidanceIntroductionOnce route guidance has started, the route is calculated according to the data
selected in route options.
The unit switches to the map view. You are guided to your chosen destination
by announcements and visual recommendations.
If dynamic route guidance is activated, TMC traffic reports will be taken into
account in the route calculation ⇒ page 70.
The route options can be changed manually while route guidance is in
progress.
All of the unit's audio sources are available during route guidance.
Additional Information:•Safety notes
’ ⇒ page 6
•Unit overview ⇒ page 8•Introduction to navigation ⇒page 47•Entering a destination ⇒page 52WARNING
The recommendations and traffic signs shown by the navigation system
may differ from the true traffic conditions.•Traffic signs and traffic regulations have priority over the recommenda-
tions and instructions given by the navigation system.•Adapt your speed and driving style to suit visibility, road, traffic and
weather conditions.
Route optionsIt is possible to include TMC traffic reports, exclude certain types of route and
define route criteria for the calculation of the route. The route options can be
Fig. 63 Navigation setup
menu.Fig. 64 Navigation setup
menu: Route options.
MediaSystem2.1_EN.book Seite 63 Donnerstag, 29. April 2010 4:18 16
