2010 PONTIAC VIBE Owners Manual

The best way to protect the fetus is
to protect the mother. When a safety
belt is worn properly, it is more likely
that the fetus will not be hurt in a
crash. For pregnant women, as for
anyone, the key to making safety
belts effective is wearing them
properly.
Safety Belt Extender
If the vehicle’s safety belt will fasten
around you, you should use it.
But if a safety belt is not long
enough, your dealer/retailer will
order you an extender. When you go
in to order it, take the heaviest coat
you will wear, so the extender will be
long enough for you. To help avoid
personal injury, do not let someone
else use it, and use it only for the
seat it is made to fit. The extender
has been designed for adults.
Never use it for securing child seats.
To wear it, just attach it to the regular
safety belt. For more information, see
the instruction sheet that comes with
the extender.When a safety belt extender is
installed in the right front passenger
safety belt, make sure the passenger
airbag status indicator displays
ON. See
Passenger Airbag Status
Indicator on page 4-13 .Ifthe
indicator shows OFF, disconnect
the extender’s latch from the buckle
then reconnect the safety belt.
The passenger airbag status
indicator light should be ON
and then the safety belt extender
can be reconnected. If the safety
belt extender is used while the
passenger airbag status indicator
light is OFF, the right front passenger
frontal and seat-mounted side impact
airbags (if equipped) may not
activate correctly.
Always disconnect the extender
from the safety belt after you
use it so that the airbag will work
properly the next time someone
uses that seat.
Safety System Check
Now and then, check that the safety
belt reminder light, safety belts,
buckles, latch plates, retractors and
anchorages are working properly.
Look for any other loose or damaged
safety belt system parts that might
keep a safety belt system from doing
its job. See your dealer/retailer to
have it repaired. Torn or frayed
safety belts may not protect you in
a crash. They can rip apart under
impact forces. If a belt is torn or
frayed, get a new one right away.
Make sure the safety belt reminder
light is working. See Safety Belt
Reminders on page 4-11 for more
information.
Keep safety belts clean and dry.
See Safety Belt Care on page 2-22 .
Seats and Restraints 2-21

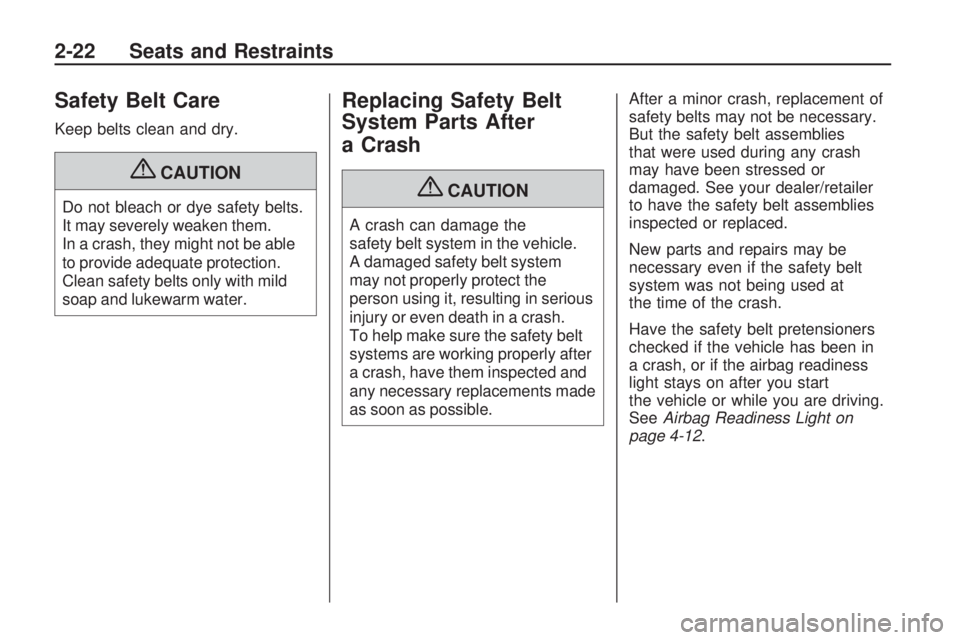

Safety Belt Care
Keep belts clean and dry.
{CAUTION
Do not bleach or dye safety belts.
It may severely weaken them.
In a crash, they might not be able
to provide adequate protection.
Clean safety belts only with mild
soap and lukewarm water.
Replacing Safety Belt
System Parts After
a Crash
{CAUTION
A crash can damage the
safety belt system in the vehicle.
A damaged safety belt system
may not properly protect the
person using it, resulting in serious
injury or even death in a crash.
To help make sure the safety belt
systems are working properly after
a crash, have them inspected and
any necessary replacements made
as soon as possible.After a minor crash, replacement of
safety belts may not be necessary.
But the safety belt assemblies
that were used during any crash
may have been stressed or
damaged. See your dealer/retailer
to have the safety belt assemblies
inspected or replaced.
New parts and repairs may be
necessary even if the safety belt
system was not being used at
the time of the crash.
Have the safety belt pretensioners
checked if the vehicle has been in
a crash, or if the airbag readiness
light stays on after you start
the vehicle or while you are driving.
See
Airbag Readiness Light on
page 4-12.
2-22 Seats and Restraints

Airbag System
This vehicle has the following
airbags:
•A frontal airbag for the driver.
•A frontal airbag for the right front
passenger.
The vehicle may have the following
airbags:
•A seat-mounted side impact
airbag for the driver.
•A seat-mounted side impact
airbag for the right front
passenger.
•A roof-rail airbag for the driver
and the passenger seated
directly behind the driver.
•A roof-rail airbag for the
right front passenger and the
passenger seated directly behind
the right front passenger. All of the airbags in the vehicle will
have the word AIRBAG embossed in
the trim or on an attached label near
the deployment opening.
For frontal airbags, the word
AIRBAG will appear on the middle
part of the steering wheel for the
driver and on the instrument panel
for the right front passenger.
With seat-mounted side impact
airbags, the word AIRBAG
will appear on the side of the
seatback closest to the door.
With roof-rail airbags, the word
AIRBAG will appear along the
headliner or trim.
Airbags are designed to supplement
the protection provided by safety
belts. Even though today’s airbags
are also designed to help reduce the
risk of injury from the force of an
inflating bag, all airbags must inflate
very quickly to do their job. Here are the most important things
to know about the airbag system:
{CAUTION
You can be severely injured or
killed in a crash if you are not
wearing your safety belt — even if
you have airbags. Airbags are
designed to work with safety belts,
but do not replace them. Also,
airbags are not designed to deploy
in every crash. In some crashes
safety belts are your only restraint.
See
When Should an Airbag
Inate? on page 2-26.
Wearing your safety belt during a
crash helps reduce your chance of
hitting things inside the vehicle or
being ejected from it. Airbags are
“supplemental restraints” to the
safety belts. Everyone in your
vehicle should wear a safety belt
properly — whether or not there
is an airbag for that person.
Seats and Restraints 2-23

{CAUTION
Airbags inflate with great force,
faster than the blink of an eye.
Anyone who is up against, or very
close to, any airbag when it inflates
can be seriously injured or killed.
Do not sit unnecessarily close to
the airbag, as you would be if you
were sitting on the edge of your
seat or leaning forward. Safety
belts help keep you in position
before and during a crash. Always
wear your safety belt, even with
airbags. The driver should sit as
far back as possible while still
maintaining control of the vehicle.
Occupants should not lean on or
sleep against the door or side
windows in seating positions with
seat-mounted side impact airbags
and/or roof-rail airbags.
{CAUTION
Children who are up against, or
very close to, any airbag when it
inflates can be seriously injured or
killed. Airbags plus lap-shoulder
belts offer protection for adults and
older children, but not for young
children and infants. Neither the
vehicle’s safety belt system nor
its airbag system is designed for
them. Young children and infants
need the protection that a child
restraint system can provide.
Always secure children properly
in your vehicle. To read how, see
Older Children on page 2-37or
Infants and Young Children on
page 2-38. There is an airbag readiness
light on the instrument panel cluster,
which shows the airbag symbol.
The system checks the airbag
electrical system for malfunctions.
The light tells you if there is an
electrical problem. See
Airbag
Readiness Light on page 4-12 for
more information.
Where Are the Airbags?
The driver frontal airbag is in the
middle of the steering wheel.
2-24 Seats and Restraints

The right front passenger frontal
airbag is in the instrument panel on
the passenger’s side.
If the vehicle has seat-mounted side
impact airbags for the driver and right
front passenger, they are in the side
of the seatbacks closest to the door.If the vehicle has roof-rail airbags for
the driver, right front passenger, and
second row outboard passengers,
they are in the ceiling above the side
windows.
{CAUTION
If something is between an
occupant and an airbag, the airbag
might not inflate properly or it might
force the object into that person
causing severe injury or even
death. The path of an inflating
airbag must be kept clear. Do not
put anything between an occupant
and an airbag, and do not attach or
put anything on the steering wheel
hub or on or near any other airbag
covering.
(Continued)
CAUTION (Continued)
Do not use seat accessories
that block the inflation path of a
seat-mounted side impact airbag.
Never secure anything to the roof
of a vehicle with roof-rail airbags
by routing a rope or tie down
through any door or window
opening. If you do, the path of
an inflating roof-rail airbag will
be blocked.
Driver Side shown,
Passenger Side similar
Seats and Restraints 2-25

When Should an Airbag
Inate?
Frontal airbags are designed to
inflate in moderate to severe frontal
or near-frontal crashes to help
reduce the potential for severe
injuries mainly to the driver or right
front passenger head and chest.
However, they are only designed
to inflate if the impact exceeds a
predetermined deployment
threshold. Deployment thresholds
are used to predict how severe a
crash is likely to be in time for the
airbags to inflate and help restrain
the occupants.
Whether the frontal airbags will
or should deploy is not based on
how fast the vehicle is traveling.
It depends largely on what you
hit, the direction of the impact,
and how quickly your vehicle
slows down.Frontal airbags may inflate at
different crash speeds. For example:•If the vehicle hits a stationary
object, the airbags could inflate
at a different crash speed than if
the vehicle hits a moving object.
•If the vehicle hits an object that
deforms, the airbags could inflate
at a different crash speed than if
the vehicle hits an object that
does not deform.
•If the vehicle hits a narrow object
(like a pole), the airbags could
inflate at a different crash speed
than if the vehicle hits a wide
object (like a wall).
•If the vehicle goes into an object
at an angle, the airbags could
inflate at a different crash speed
than if the vehicle goes straight
into the object.
Thresholds can also vary with
specific vehicle design. Frontal airbags are not intended to
inflate during vehicle rollovers, rear
impacts, or in many side impacts.
Frontal airbags for the driver and
right front passenger may also
deploy if a serious impact occurs to
the underside of the vehicle such as
hitting a curb, falling into a deep hole,
or landing hard.
In addition, the vehicle has
dual-stage frontal airbags.
Dual-stage airbags adjust the
restraint according to crash severity.
The vehicle has electronic frontal
sensors, which help the sensing
system distinguish between a
moderate frontal impact and a more
severe frontal impact. For moderate
frontal impacts, dual-stage airbags
inflate at a level less than full
deployment. For more severe frontal
impacts, full deployment occurs.
2-26 Seats and Restraints

The vehicle has seat-mounted
side impact and roof-rail airbags.
SeeAirbag System on page 2-23 .
Seat-mounted side impact and
roof-rail airbags are intended to
inflate in moderate to severe side
crashes. Seat-mounted side impact
and roof-rail airbags will inflate if the
crash severity is above the system’s
designed threshold level. The vehicle
has sensors which detect side
impacts. These sensors signal the
appropriate side impact airbag to
inflate. The threshold level can vary
with specific vehicle design.
Seat-mounted side impact and
roof-rail airbags are not intended to
inflate in frontal impacts, near-frontal
impacts, rollovers, or rear impacts.
A seat-mounted side impact airbag is intended to deploy on the side of
the vehicle that is struck. A roof-rail
airbag is intended to deploy on the
side of the vehicle that is struck. It is
possible that, in a crash involving the
rear side of your vehicle, that only the
roof-mounted airbag will deploy.
In any particular crash, no one
can say whether an airbag should
have inflated simply because of
the damage to a vehicle or because
of what the repair costs were.
For frontal airbags, inflation is
determined by what the vehicle
hits, the angle of the impact, and
how quickly the vehicle slows down.
For seat-mounted side impact and
roof-rail airbags, deployment is
determined by the location and
severity of the side impact.What Makes an Airbag
Inate?
In a deployment event, the sensing
system sends an electrical signal
triggering a release of gas from the
inflator. Gas from the inflator fills the
airbag causing the bag to break out
of the cover and deploy. The inflator,
the airbag, and related hardware are
all part of the airbag module.
Frontal airbag modules are located
inside the steering wheel and
instrument panel. For vehicles with
seat-mounted side impact airbags,
there are airbag modules in the side
of the front seatbacks closest to the
door. For vehicles with roof-rail
airbags, there are airbag modules in
the ceiling of the vehicle, near the
side windows that have occupant
seating positions.
Seats and Restraints 2-27

How Does an Airbag
Restrain?
In moderate to severe frontal or
near frontal collisions, even belted
occupants can contact the steering
wheel or the instrument panel.
In moderate to severe side collisions,
even belted occupants can contact
the inside of the vehicle.
Airbags supplement the protection
provided by safety belts. Frontal
airbags distribute the force of the
impact more evenly over the
occupant’s upper body, stopping
the occupant more gradually.
Seat-mounted side impact and
roof-rail airbags distribute the force
of the impact more evenly over the
occupant’s upper body.
But airbags would not help in many
types of collisions, primarily because
the occupant’s motion is not toward
those airbags. SeeWhen Should an
Airbag Inate? on page 2-26 for
more information.
Airbags should never be regarded
as anything more than a supplement
to safety belts.
What Will You See After
an Airbag Inates?
After the frontal airbags and
seat-mounted side impact airbags
inflate, they quickly deflate, so
quickly that some people may not
even realize an airbag inflated.
Roof-rail airbags may still be at least
partially inflated for some time after
they deploy. Some components of
the airbag module may be hot for
several minutes. For location of the
airbag modules, see What Makes
an Airbag Inate? on page 2-27 .
The parts of the airbag that come
into contact with you may be warm,
but not too hot to touch. There may
be some smoke and dust coming
from the vents in the deflated
airbags. Airbag inflation does not
prevent the driver from seeing out
of the windshield or being able to
steer the vehicle, nor does it prevent
people from leaving the vehicle.
{CAUTION
When an airbag inflates, there
may be dust in the air. This dust
could cause breathing problems
for people with a history of asthma
or other breathing trouble.
To avoid this, everyone in the
vehicle should get out as soon
as it is safe to do so. If you have
breathing problems but cannot get
out of the vehicle after an airbag
inflates, then get fresh air by
opening a window or a door. If you
experience breathing problems
following an airbag deployment,
you should seek medical attention.
The vehicle has a feature that may
automatically unlock the doors, turn
the interior lamps on, and turn the
hazard warning flashers on when
the airbags inflate. You can lock
the doors, turn the interior lamps off,
and turn the hazard warning flashers
off by using the controls for those
features.
2-28 Seats and Restraints
