2010 NISSAN ALTIMA COUPE Navigation Manual

content, quality, accuracy, completeness,
effectiveness, reliability, fitness for a particular
purpose, usefulness, use or results to be ob-
tained from this Data, or that the Data or server
will be uninterrupted or error-free.
Disclaimer of Warranty: NT AND ITS LICEN-
SORS (INCLUDING THEIR LICENSORS AND
SUPPLIERS) DISCLAIM ANY WARRANTIES,
EXPRESS OR IMPLIED, OF QUALITY,
PERFORMANCE, MERCHANTABILITY, FIT-
NESS FOR A PARTICULAR PURPOSE OR
NON-INFRINGEMENT. Some States, Territories
and Countries do not allow certain warranty
exclusions, so to that extent the above exclusion
may not apply to you.
Disclaimer of Liability: NT AND ITS LICENSORS(INCLUDING THEIR LICENSORS AND SUPPLI-
ERS) SHALL NOT BE LIABLE TO YOU IN RE-
SPECT OF ANY CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF THE NATURE OF THE
CAUSE OF THE CLAIM, DEMAND OR ACTION
ALLEGING ANY LOSS, INJURY OR DAMAGES,
DIRECT OR INDIRECT, WHICH MAY RESULT
FROM THE USE OR POSSESSION OF THIS
DATA; OR FOR ANY LOSS OF PROFIT,
REVENUE, CONTRACTS OR SAVINGS, OR ANY
OTHER DIRECT, INDIRECT, INCIDENTAL, SPE-
CIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF YOUR USE OF OR INABILITY TO USE
THIS DATA, ANY DEFECT IN THIS DATA, OR THEBREACH OF THESE TERMS OR CONDITIONS,
WHETHER IN AN ACTION IN CONTRACT OR
TORT OR BASED ON A WARRANTY, EVEN IF NT
OR ITS LICENSORS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Some
States, Territories and Countries do not allow cer-
tain liability exclusions or damages limitations, so to
that extent the above may not apply to you.
Export Control You agree not to export from any-where any part of the Data provided to you or any
direct product thereof except in compliance with,
and with all licenses and approvals required under,
applicable export laws, rules and regulations.
Entire Agreement These terms and conditions
constitute the entire agreement between NT (and
its licensors, including their licensors and suppli-
ers) and you pertaining to the subject matter
hereof, and supersedes in their entirety any and all
written or oral agreements previously existing be-
tween us with respect to such subject matter.
Governing Law The above terms and conditionsshall be governed by the laws of the State of
Illinois, without giving effect to (i) its conflict of
laws provisions, or (ii) the United Nations Con-
vention for Contracts for the International Sale of
Goods, which is explicitly excluded. You agree to
submit to the jurisdiction of the State of Illinois
for any and all disputes, claims and actions aris-
ing from or in connection with the Data provided
to you hereunder.Government End Users If the Data is being ac-
quired by or on behalf of the United States gov-
ernment or any other entity seeking or applying
rights similar to those customarily claimed by the
United States government, this Data is acom-
mercial itemas that term is defined at 48 C.F.R.
(FAR) 2.101, is licensed in accordance with
this End-User License Agreement, and each
copy of Data delivered or otherwise furnished
shall be marked and embedded as appropriate
with the followingNotice of Use,and be
treated in accordance with such Notice:
NOTICE OF USE
CONTRACTOR(MANUFACTURER/ SUPPLIER)
NAME: NAVTEQ
CONTRACTOR (MANUFACTURER/SUPPLIER)
ADDRESS: 425 West Randolph Street, Chicago,
IL 60606.
This Data is a commercial item as defined in FAR
2.101 and is subject to the End-User License
Agreement under which this Data was provided.
© 2009 NAVTEQ. All rights reserved.
If the Contracting Officer, federal government
agency, or any federal official refuses to use the
legend provided herein, the Contracting Officer,
federal government agency, or any federal official
must notify NAVTEQ prior to seeking additional
or alternative rights in the Data.
©2009 NAVTEQ. All Rights Reserved.
10-18General system information

The display is a liquid crystal display and should
be handled with care.
WARNING
Never disassemble the display. Some
parts utilize extremely high voltage.
Touching them may result in serious
personal injury.
CHARACTERISTICS OF A LIQUID
CRYSTAL DISPLAY
●If the temperature inside the vehicle is espe-
cially low, the display will stay relatively dim or
the movement of the images may be slow.
These conditions are normal. The display will
function normally when the interior of the ve-
hicle has warmed up.
●Some pixels in the display are darker or
brighter than others. This condition is an in-
herent characteristic of liquid crystal displays,
and it is not a malfunction.
●A remnant of the previous display image may
remain on the screen. This screen burn is in-
herent in displays, and it is not a malfunction.
INFO:
The screen may become distorted by strong
magnetic fields.
MAINTENANCE OF THE DISPLAY
CAUTION
●To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner and any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
●Do not splash any liquid such as wa-
ter or car fragrance on the display.
Contact with liquid will cause the
system to malfunction.
To clean the display screen, use a dry, soft cloth.
If additional cleaning is necessary, use a small
amount of neutral detergent with a soft cloth.
Never spray the screen with water or detergent.
Dampen the cloth first, then wipe the screen.
HOW TO HANDLE THE DISPLAY
General system information10-19

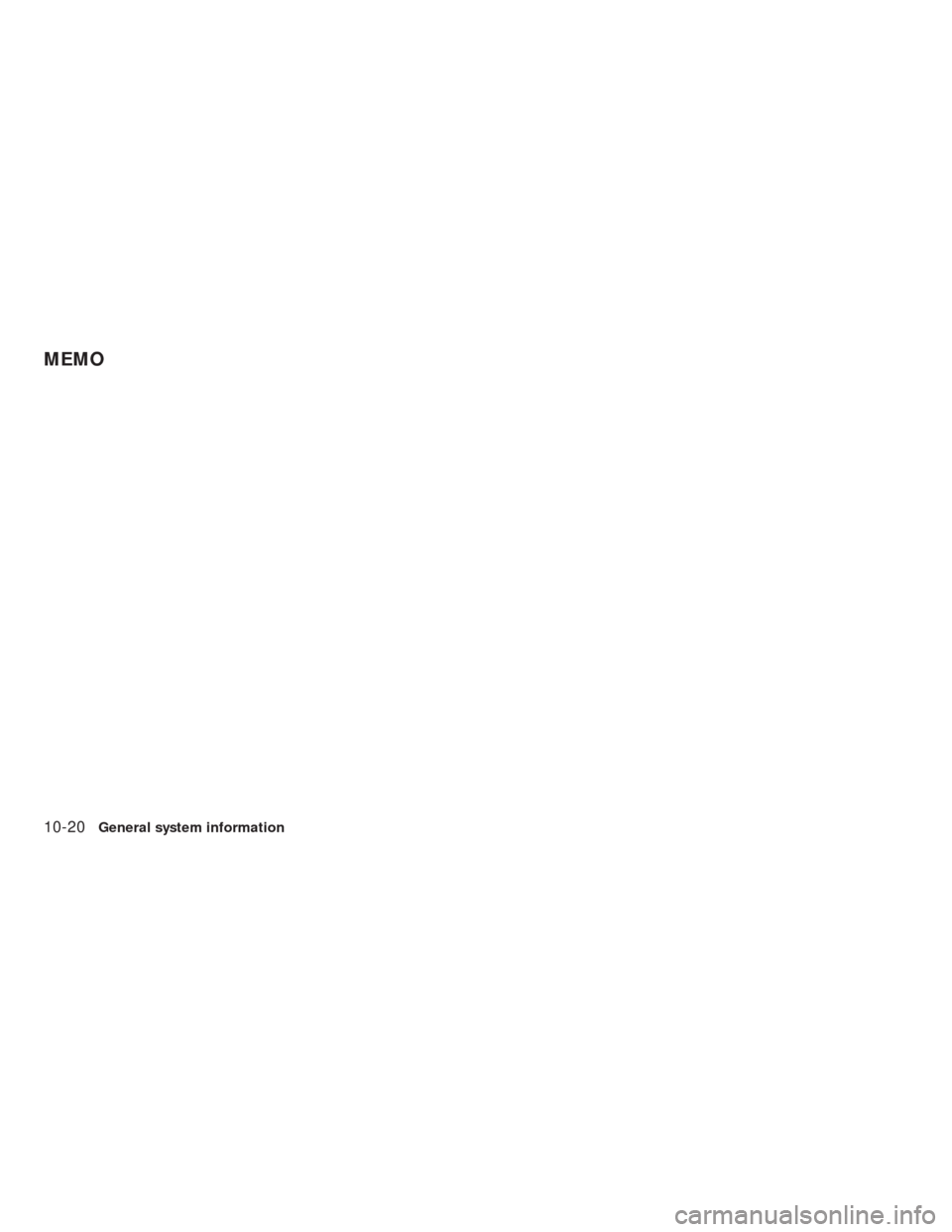

10-20General system information
MEMO

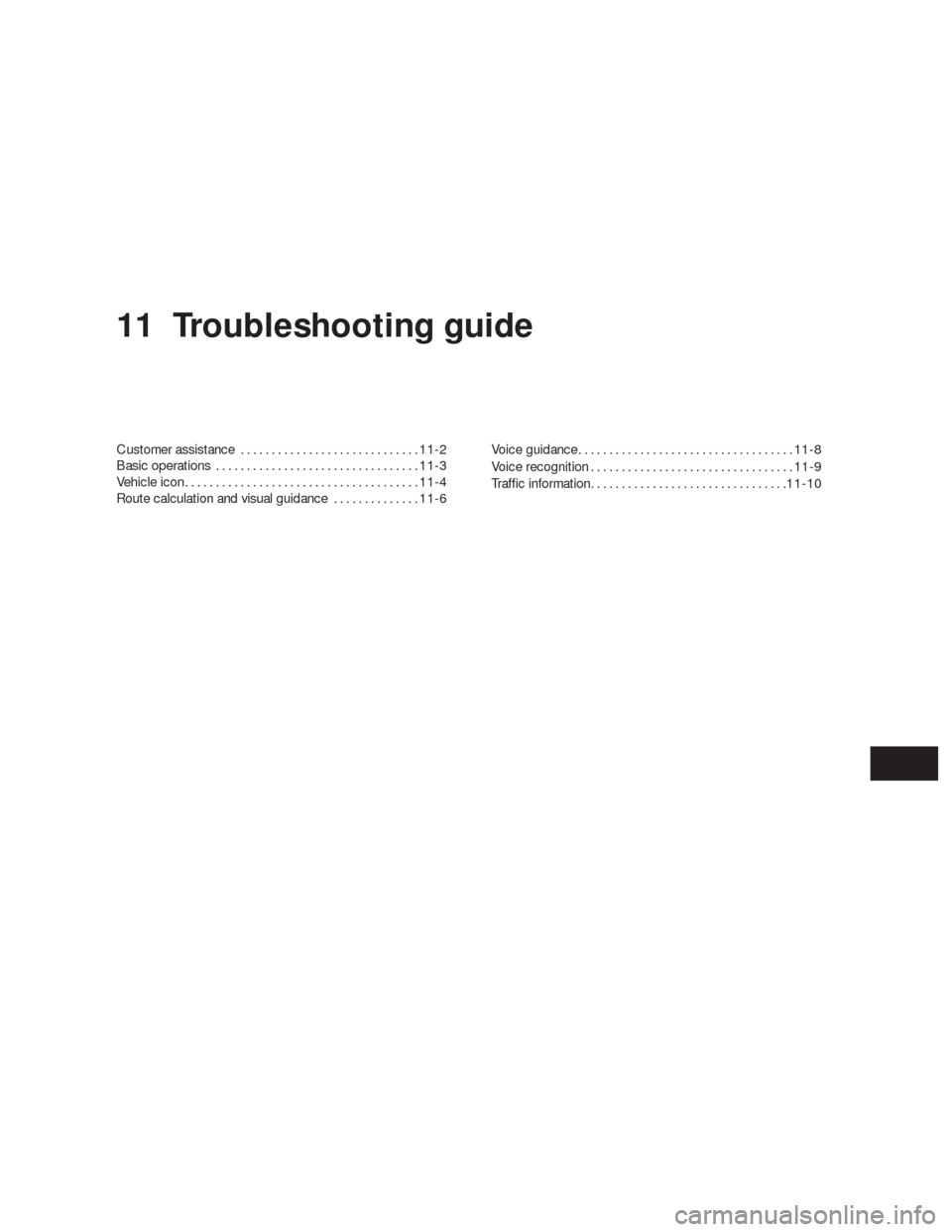

11 Troubleshooting guide
Customer assistance.............................11-2
Basic operations.................................11-3
Vehicle icon......................................11-4
Route calculation and visual guidance..............11-6Voice guidance...................................11-8
Voice recognition.................................11-9
Traffic information................................11-10

For assistance or inquiries about the NISSAN
Navigation System, please contact the NISSAN
NAVIGATION HELPDESK. See the contact in-
formation on the inside front cover of this
manual.
CUSTOMER ASSISTANCE
11-2Troubleshooting guide

Symptom Possible cause Possible solution
No image is displayed. The brightness is at the lowest setting. Adjust the brightness of the display.
The system in the video mode. Press DISC-AUX to change the mode. Refer to the vehicle Owner’s Manual.
The display is turned off.
Press and hold the
button to turn on the display.
No voice guidance is available.
or
The volume is too high or too low.The volume is not set correctly, or it is turned off. Adjust the volume of voice guidance.
Voice guidance is not provided for certain streets
(roads displayed in gray) .This is not a malfunction.
No map is displayed on the screen. A screen other than map screen is displayed. Press the MAP button.
The screen is too dim. The movement is slow. The temperature in the interior of the vehicle is low. Wait until the interior of the vehicle has warmed up.
Some pixels in the display are darker or
brighter than others.This condition is an inherent characteristic of liquid
crystal displays.This is not a malfunction.
Some menu items cannot be selected. Some menu items become unavailable while the
vehicle is driven.Park the vehicle in a safe location, and then operate the navigation system.
BASIC OPERATIONS
Troubleshooting guide11-3

Symptom Possible cause Possible solution
Names of roads and locations differ between Plan
view and Birdview™.This is because the quantity of the displayed information is
reduced so that the screen does not become too crowded.
There is also a chance that names of the roads or locations
may be displayed multiple times, and the names appearing
on the screen may be different because of a processing
procedure.This is not a malfunction.
The vehicle icon is not displayed in the correct
position.The vehicle was transported after the ignition switch was
pushed off, for example, by a ferry or car transporter.Drive the vehicle for a while on a road where GPS signals can
be received.
The position and direction of the vehicle icon may be incor-
rect depending on the driving environments and the levels of
positioning accuracy of the navigation system.This is not a malfunction. Drive the vehicle for a while to auto-
matically correct the position and direction of the vehicle icon.
“Current vehicle location” (page 10-4)
When the vehicle is traveling on a new road, the
vehicle icon is located on another road nearby.Because the new road is not stored in the map data, the sys-
tem automatically places the vehicle icon on the nearest road
available.Updated road information will be included in the next version of
the map data.
The screen does not switch to the night screen
even after turning on the headlights.The daytime screen was set the last time the headlights were
turned on.Set the screen to the night screen mode using the
but-
ton when turning on the headlights.
“Display settings” (page 8-3)
The map does not scroll even when the vehicle is
moving.The current location map screen is not displayed. Press the MAP button.
The vehicle icon is not displayed. The current location map screen is not displayed. Press the MAP button.
VEHICLE ICON
11-4Troubleshooting guide

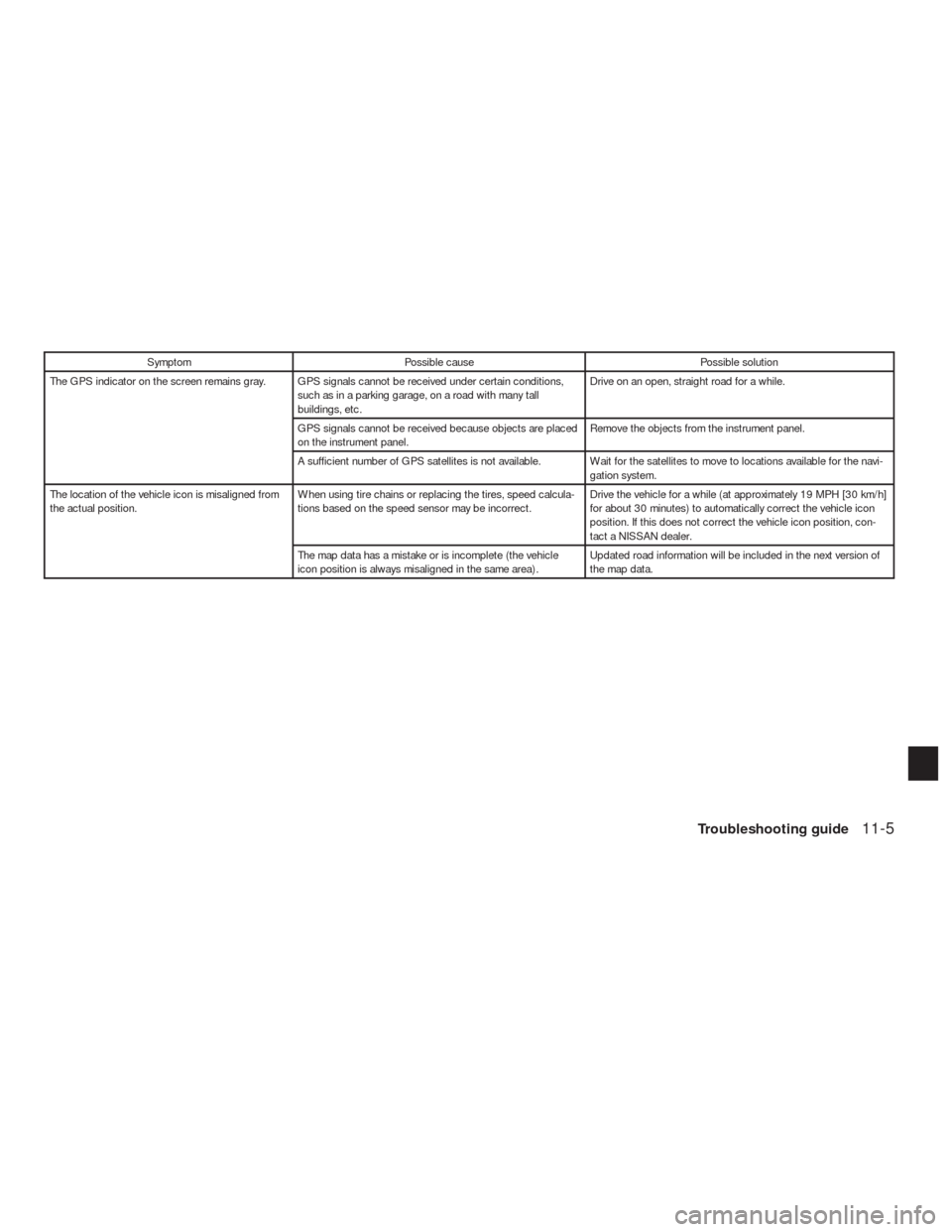

Symptom Possible cause Possible solution
The GPS indicator on the screen remains gray. GPS signals cannot be received under certain conditions,
such as in a parking garage, on a road with many tall
buildings, etc.Drive on an open, straight road for a while.
GPS signals cannot be received because objects are placed
on the instrument panel.Remove the objects from the instrument panel.
A sufficient number of GPS satellites is not available. Wait for the satellites to move to locations available for the navi-
gation system.
The location of the vehicle icon is misaligned from
the actual position.When using tire chains or replacing the tires, speed calcula-
tions based on the speed sensor may be incorrect.Drive the vehicle for a while (at approximately 19 MPH [30 km/h]
for about 30 minutes) to automatically correct the vehicle icon
position. If this does not correct the vehicle icon position, con-
tact a NISSAN dealer.
The map data has a mistake or is incomplete (the vehicle
icon position is always misaligned in the same area) .Updated road information will be included in the next version of
the map data.
Troubleshooting guide11-5
