2010 NISSAN ALTIMA COUPE Navigation Manual

CONTROL PANEL
1MAP:
Press to display the map. While following
programmed route, press multiple times to
change the type of route information.
2DEST:
Press to enter a destination. Various meth-
ods for entering a destination are available.
“4. Setting a destination”.
3ROUTE:
Press and hold to hear the current route
guidance (guidance cancellation, route
priority, way point setting on the route, etc.) .
4INFO:
Press to display the vehicle, traffic, weather
or voice recognition information.
5SETTING:
Press to access the system settings.
6DAY/NIGHT:
Press to switch between the day screen
(bright) and the night screen (dark) . Press
and hold to turn off the display. Press again
to turn on the display.
INFO:
If the “Back” key needs to be touched to apply
the setting on a settings screen, this manual will
explicitly include a step for this procedure.
Otherwise, touching the “Back” key returns the
display to the previous screen.
The layout of the control panel switches may vary
depending on the vehicle model and equipment.
WNV0563
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

STEERING WHEEL SWITCH
1SOURCE:
Use to switch the audio mode (source) . For
additional information, see the Owner’s
Manual.
2ENTER:
Move up or down to highlight an item on the
screen or adjust a setting. Press to select
the highlighted item.If this button is pressed while a map is
displayed, the map menu screen is dis-
played
“Map menu screen” (page 2-12)
Press and hold to display the start menu.
“Start menu” (page 2-5)
If this button is moved up while the audio
function is activated and the map or status
screen is displayed, the audio system can
be operated.
3:
Press this button during a setting operation to
return to the previous screen. In certain screens,
this button can also be used to apply the setting.
This button will only work when the “Back” key is
shown on the screen.
4–or+:
Use to adjust the volume. These buttons have
the same function as that of the volume knob. For
additional information, see the Owner’s Manual.
5:
Press to start the voice recognition mode. If the
voice recognition mode is already activated,
pressing this button interrupts the voice guid-
ance and you can speak a voice command
immediately.
6:
Use to enable BluetoothHands-Free Phone
system. For additional information, see the Own-
er’s Manual.
LNV0423
Getting started2-3

The navigation system starts when the ignition
switch is turned to the ACC or ON position.
NOTE:
Do not keep the navigation system on with
the engine stopped. Doing so may dis-
charge the vehicle battery. When you use
the navigation system, always keep the en-
gine running.
To ensure safe driving, some functions cannot be
operated or have limited operation while driving.Park the vehicle in a safe location and then oper-
ate the navigation system.
NGT0019
STARTING THE SYSTEM FUNCTIONS DISABLED WHILE DRIV-
ING
2-4Getting started

MENU SCREENS AND THEIR PUR-
POSES
Press the DEST, ROUTE, INFO,or SET-
TING button to display the corresponding menu
screen.
How to select a menu item
Example: DEST screen
1. Select the preferred menu item by touching
the corresponding key on the screen. The
next screen is displayed.
2. Press BACK to return to the previous
screen without applying any changes.
3. Press MAP to return to the current location
map screen without applying any changes.
INFO:
●Depending on the menu selected, pressing
MAP may not return the display to the current
location map screen.
●An item can also be selected by moving the
steering wheel switch up and down.
USING CONTROLS TO ADJUST
VALUES, LEVELS, ETC.
There are two main methods to control the navi-
gation system: the touch panel and the steering
wheel switch. Use these controls to adjust the
volume of phone and voice guidance, the display
brightness, etc.
How to adjust
1. Select the preferred setting item and press
SELECT. The color of the corresponding
adjustment item changes.
2. Use one of the controls to increase or de-
crease the indicated value.
3. Press SELECT or BACK to apply the
setting.
INFO:
●The volume of phone and voice guidance, the
display brightness, etc. can be adjusted by
moving the ENTER switch on the steering
wheel up and down.
●These same adjustments can also be per-
formed using the touch panel operation.
“Adjusting the volume and oth-
ers” (page 2-8)
START MENU
While in the map view, the start menu can be
displayed using the steering wheel switch.
MENU SCREEN TYPES AND HOW TO
OPERATE
Getting started2-5

1. Press and hold ENTER on the steering
wheel switch.
2. Select the preferred item and push ENTER.
INFO:
ENTER on the steering wheel switch can be
used to display the start menu only when the
map or status screen is displayed.
Available items
●“Destination”:
Displays the destination screen. It is the same
screen that appears when DEST is pushed.
“4. Setting a destination”●“Route”:
Displays the route screen. It is the same
screen that appears when ROUTE is pushed.
“5. Route guidance”
●“Info”:
Displays the information screen. It is the same
screen that appears when INFO is pushed.
“7. Viewing technical information”
●“Settings”:
Displays the settings screen. It is the same
screen that appears when SETTING is
pushed.
“8. Other settings”
NGT0023
2-6Getting started

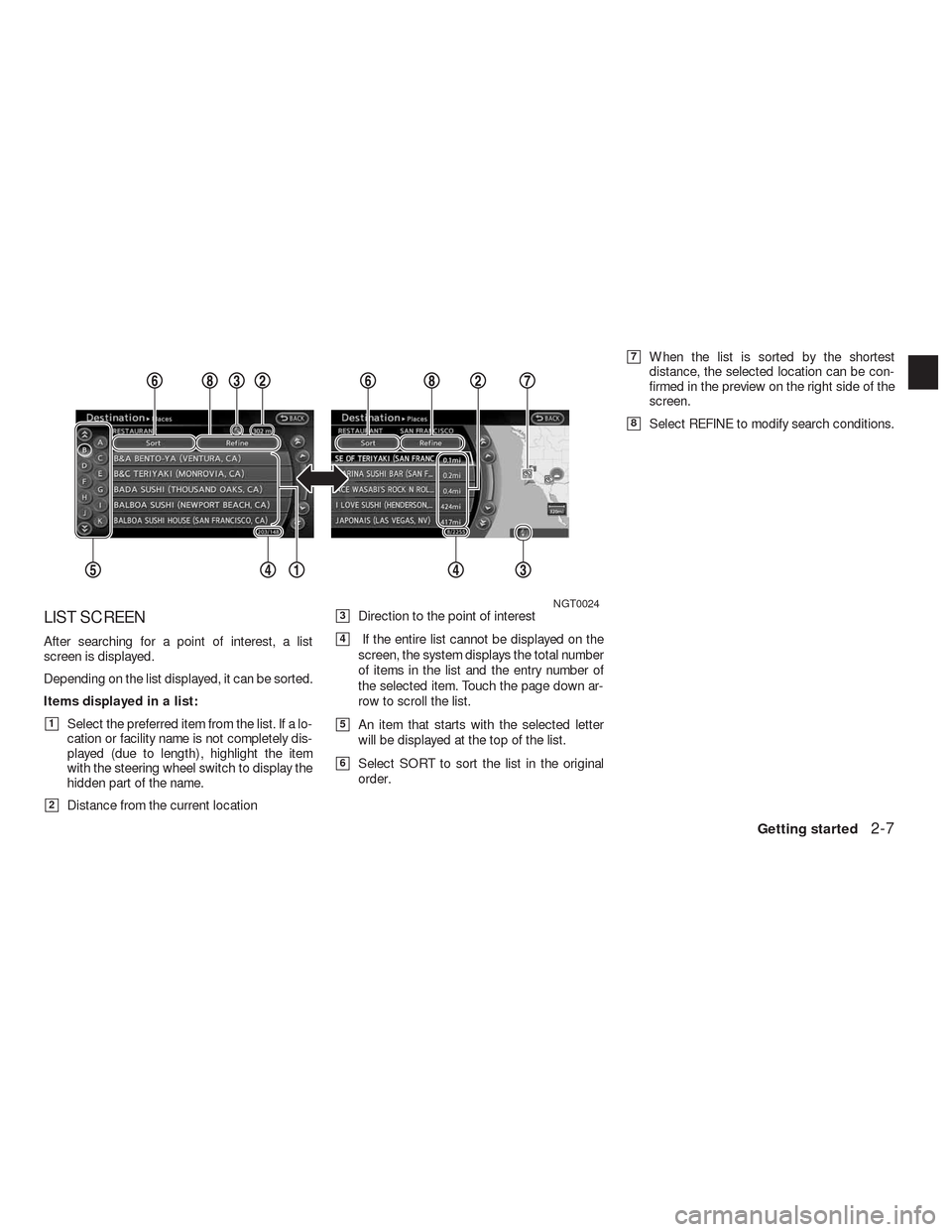

LIST SCREEN
After searching for a point of interest, a list
screen is displayed.
Depending on the list displayed, it can be sorted.
Items displayed in a list:
1Select the preferred item from the list. If a lo-
cation or facility name is not completely dis-
played (due to length) , highlight the item
with the steering wheel switch to display the
hidden part of the name.
2Distance from the current location
3Direction to the point of interest
4If the entire list cannot be displayed on the
screen, the system displays the total number
of items in the list and the entry number of
the selected item. Touch the page down ar-
row to scroll the list.
5An item that starts with the selected letter
will be displayed at the top of the list.
6Select SORT to sort the list in the original
order.
7When the list is sorted by the shortest
distance, the selected location can be con-
firmed in the preview on the right side of the
screen.
8Select REFINE to modify search conditions.
NGT0024
Getting started2-7

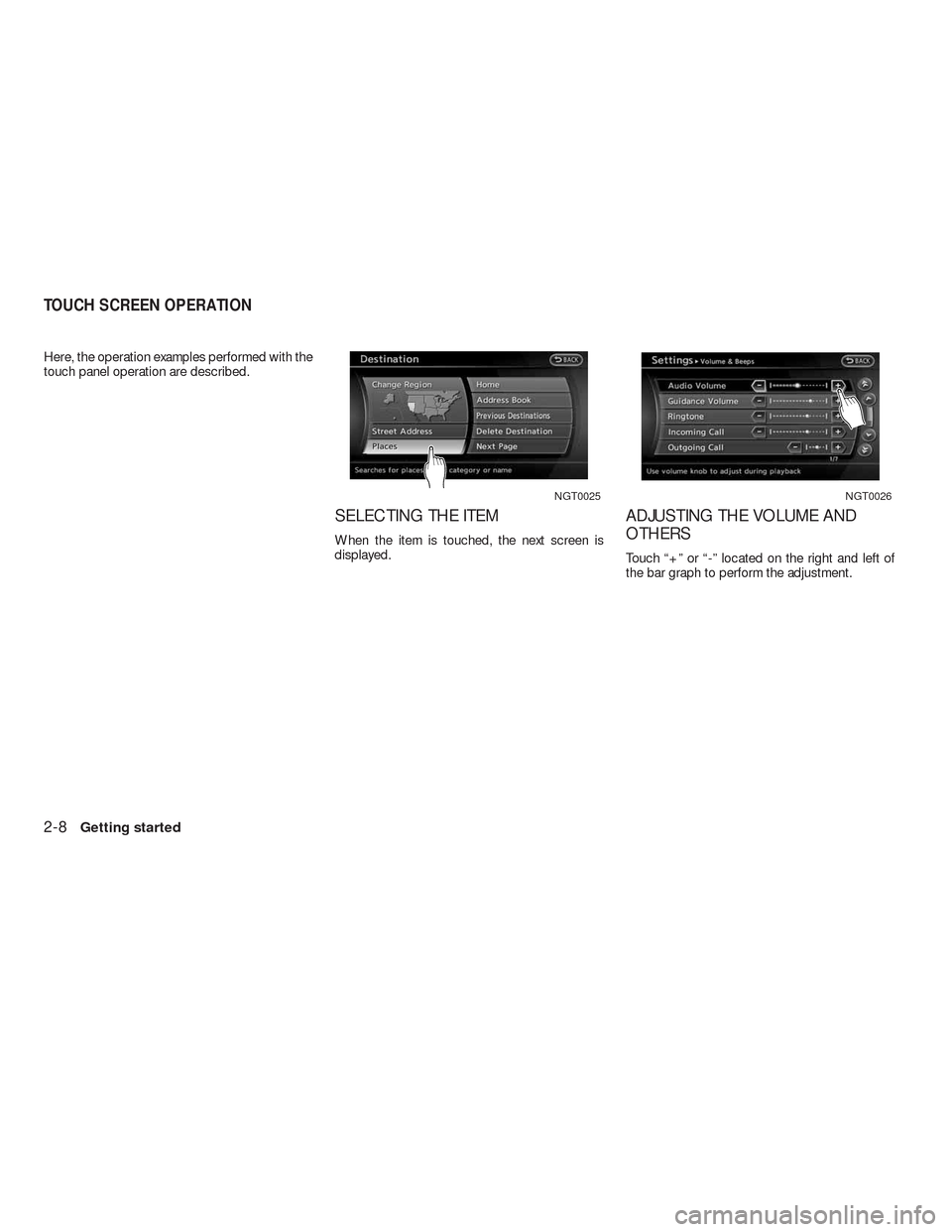

Here, the operation examples performed with the
touch panel operation are described.
SELECTING THE ITEM
When the item is touched, the next screen is
displayed.
ADJUSTING THE VOLUME AND
OTHERS
Touch “+” or “-” located on the right and left of
the bar graph to perform the adjustment.
NGT0025NGT0026
TOUCH SCREEN OPERATION
2-8Getting started

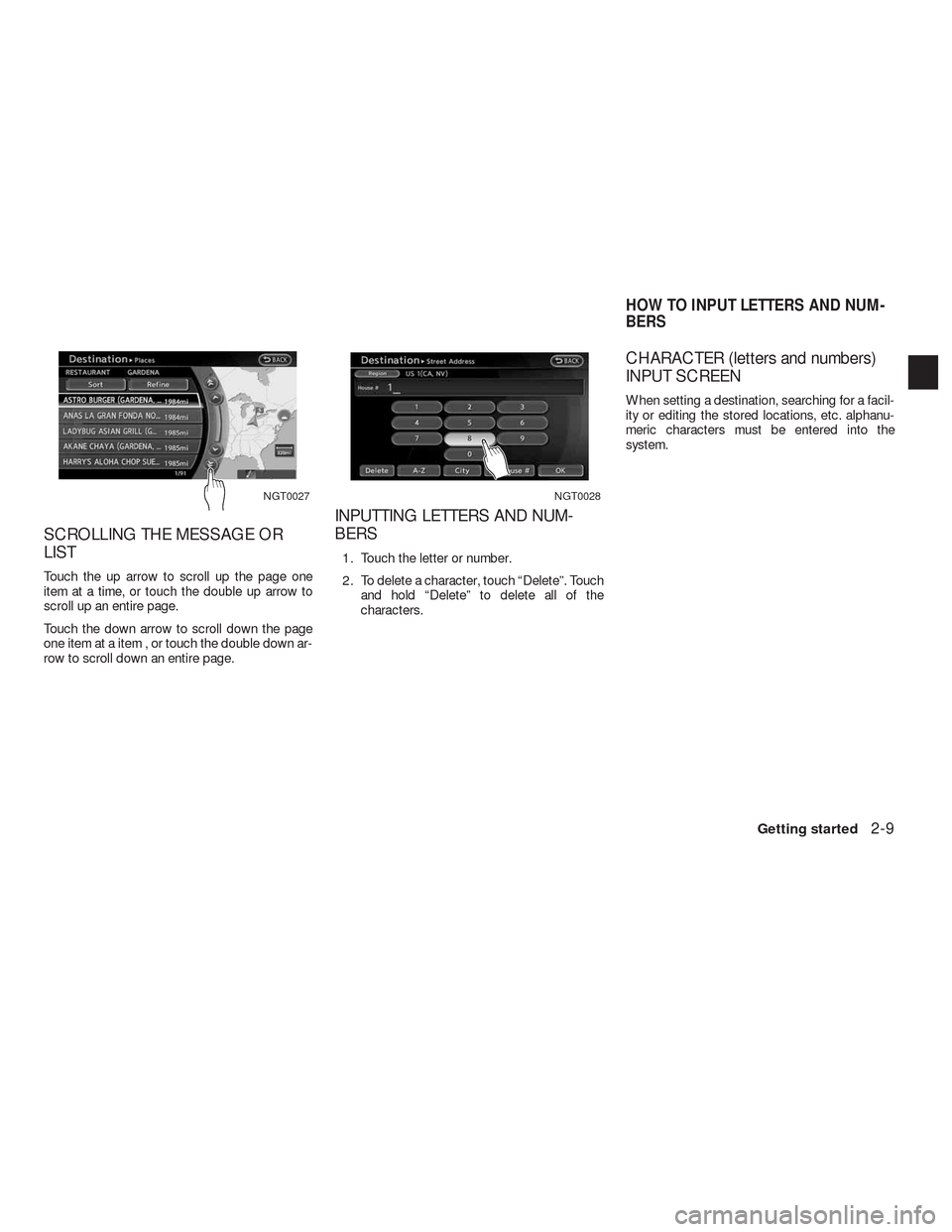

SCROLLING THE MESSAGE OR
LIST
Touch the up arrow to scroll up the page one
item at a time, or touch the double up arrow to
scroll up an entire page.
Touch the down arrow to scroll down the page
one item at a item , or touch the double down ar-
row to scroll down an entire page.
INPUTTING LETTERS AND NUM-
BERS
1. Touch the letter or number.
2. To delete a character, touch “Delete”. Touch
and hold “Delete” to delete all of the
characters.
CHARACTER (letters and numbers)
INPUT SCREEN
When setting a destination, searching for a facil-
ity or editing the stored locations, etc. alphanu-
meric characters must be entered into the
system.
NGT0027NGT0028
HOW TO INPUT LETTERS AND NUM-
BERS
Getting started2-9
