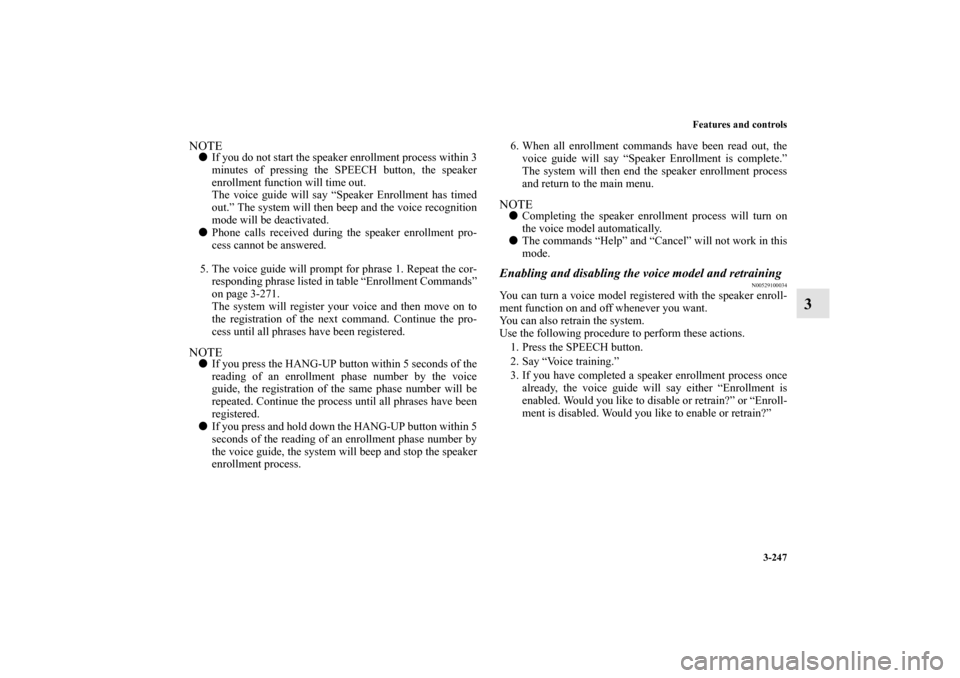

2010 MITSUBISHI LANCER SPORTBACK ECO mode

Features and controls
3-247
3
NOTE

If you do not start the speaker enrollment process within 3
minutes of pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker Enrollment has timed
out.” The system will then beep and the voice recognition
mode will be deactivated.


Phone calls received during the speaker enrollment pro-
cess cannot be answered.
5. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment Commands”
on page 3-271.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.
NOTE

If you press the HANG-UP button within 5 seconds of the
reading of an enrollment phase number by the voice
guide, the registration of the same phase number will be
repeated. Continue the process until all phrases have been
registered.


If you press and hold down the HANG-UP button within 5
seconds of the reading of an enrollment phase number by
the voice guide, the system will beep and stop the speaker
enrollment process.6. When all enrollment commands have been read out, the
voice guide will say “Speaker Enrollment is complete.”
The system will then end the speaker enrollment process
and return to the main menu.
NOTE

Completing the speaker enrollment process will turn on
the voice model automatically.


The commands “Help” and “Cancel” will not work in this
mode.
Enabling and disabling the voice model and retraining
N00529100034
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training.”
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable or retrain?” or “Enroll-
ment is disabled. Would you like to enable or retrain?”
BK0103001US.book 247 ページ ２００９年８月２０日　木曜日　午前１０時４５分

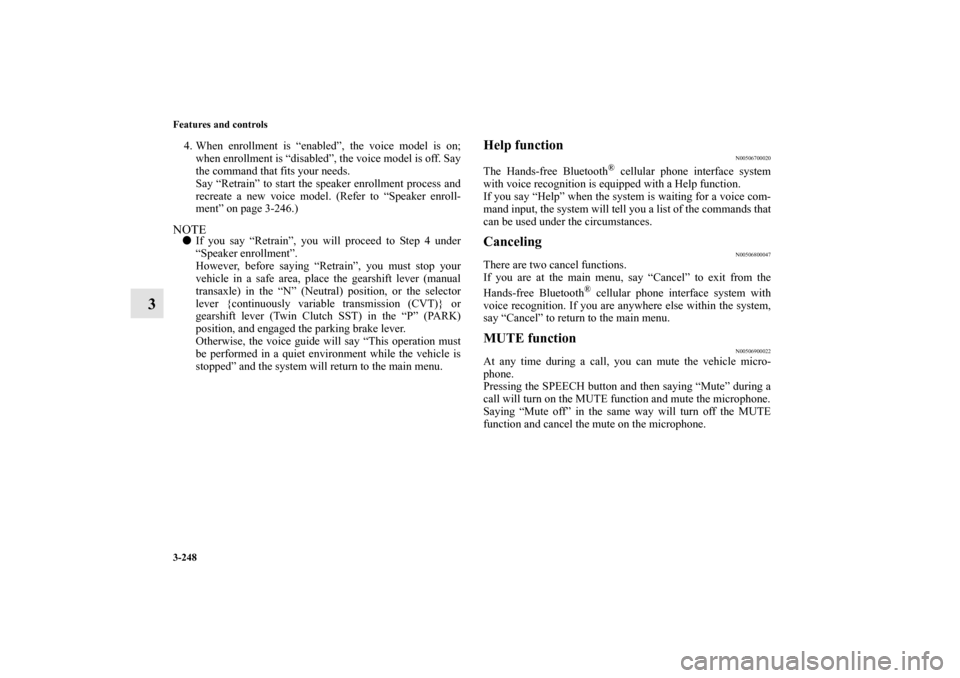

3-248 Features and controls
3
4. When enrollment is “enabled”, the voice model is on;
when enrollment is “disabled”, the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker enroll-
ment” on page 3-246.)NOTE

If you say “Retrain”, you will proceed to Step 4 under
“Speaker enrollment”.
However, before saying “Retrain”, you must stop your
vehicle in a safe area, place the gearshift lever (manual
transaxle) in the “N” (Neutral) position, or the selector
lever {continuously variable transmission (CVT)} or
gearshift lever (Twin Clutch SST) in the “P” (PARK)
position, and engaged the parking brake lever.
Otherwise, the voice guide will say “This operation must
be performed in a quiet environment while the vehicle is
stopped” and the system will return to the main menu.
Help function
N00506700020
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a Help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00506800047
There are two cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Hands-free Bluetooth
® cellular phone interface system with
voice recognition. If you are anywhere else within the system,
say “Cancel” to return to the main menu.
MUTE function
N00506900022
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn on the MUTE function and mute the microphone.
Saying “Mute off” in the same way will turn off the MUTE
function and cancel the mute on the microphone.
BK0103001US.book 248 ページ ２００９年８月２０日　木曜日　午前１０時４５分

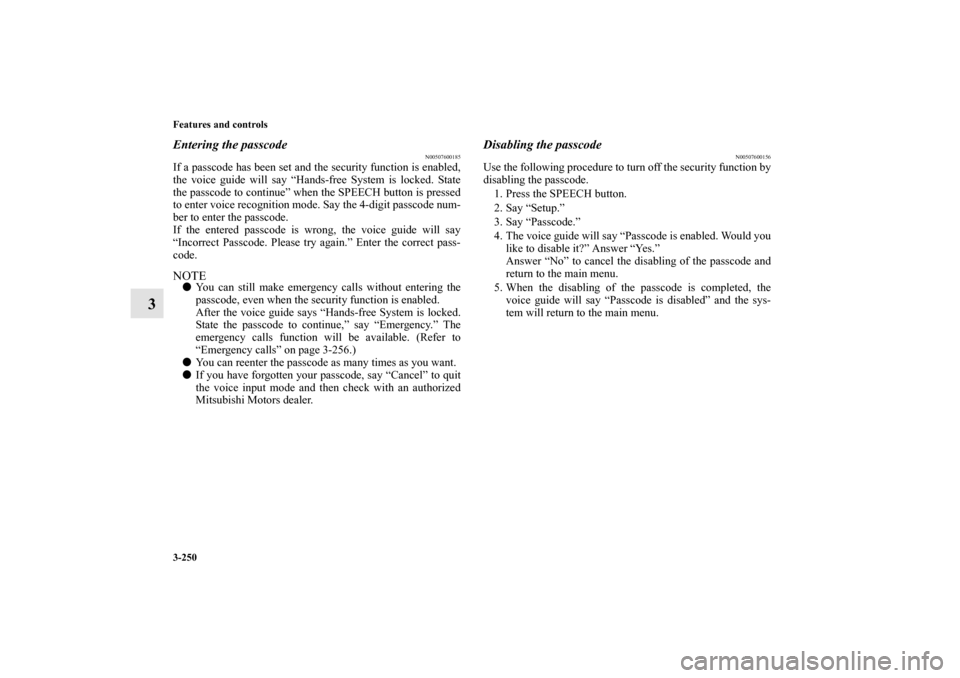

3-250 Features and controls
3
Entering the passcode
N00507600185
If a passcode has been set and the security function is enabled,
the voice guide will say “Hands-free System is locked. State
the passcode to continue” when the SPEECH button is pressed
to enter voice recognition mode. Say the 4-digit passcode num-
ber to enter the passcode.
If the entered passcode is wrong, the voice guide will say
“Incorrect Passcode. Please try again.” Enter the correct pass-
code. NOTE

You can still make emergency calls without entering the
passcode, even when the security function is enabled.
After the voice guide says “Hands-free System is locked.
State the passcode to continue,” say “Emergency.” The
emergency calls function will be available. (Refer to
“Emergency calls” on page 3-256.)


You can reenter the passcode as many times as you want.


If you have forgotten your passcode, say “Cancel” to quit
the voice input mode and then check with an authorized
Mitsubishi Motors dealer.
Disabling the passcode
N00507600156
Use the following procedure to turn off the security function by
disabling the passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is enabled. Would you
like to disable it?” Answer “Yes.”
Answer “No” to cancel the disabling of the passcode and
return to the main menu.
5. When the disabling of the passcode is completed, the
voice guide will say “Passcode is disabled” and the sys-
tem will return to the main menu.
BK0103001US.book 250 ページ ２００９年８月２０日　木曜日　午前１０時４５分

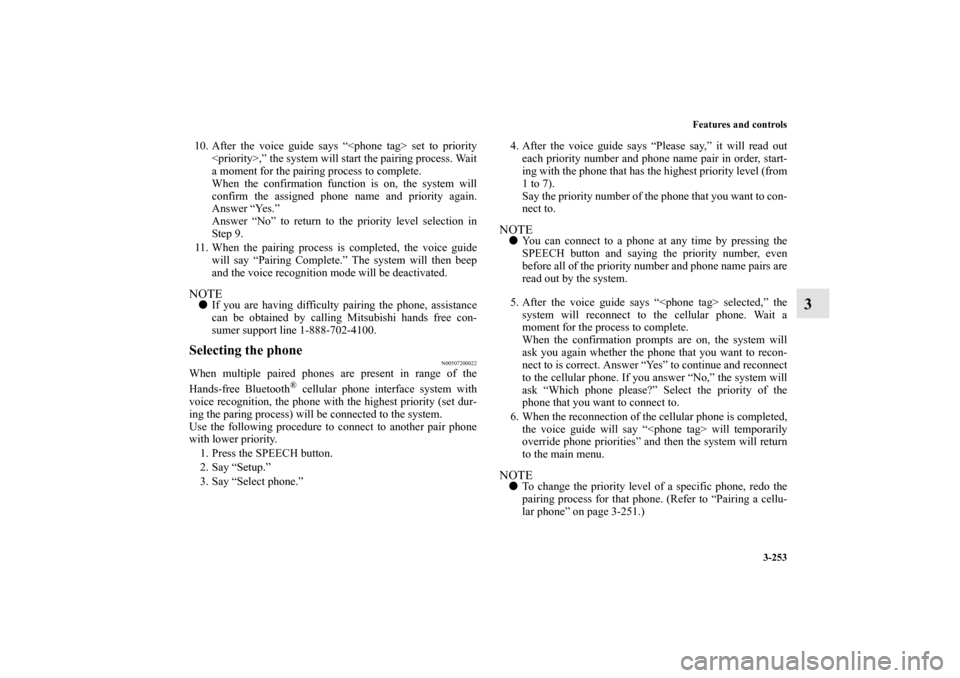

Features and controls
3-253
3
10. After the voice guide says “ set to priority
,” the system will start the pairing process. Wait
a moment for the pairing process to complete.
When the confirmation function is on, the system will
confirm the assigned phone name and priority again.
Answer “Yes.”
Answer “No” to return to the priority level selection in
Step 9.
11. When the pairing process is completed, the voice guide
will say “Pairing Complete.” The system will then beep
and the voice recognition mode will be deactivated.NOTE

If you are having difficulty pairing the phone, assistance
can be obtained by calling Mitsubishi hands free con-
sumer support line 1-888-702-4100.
Selecting the phone
N00507200022
When multiple paired phones are present in range of the
Hands-free Bluetooth
® cellular phone interface system with
voice recognition, the phone with the highest priority (set dur-
ing the paring process) will be connected to the system.
Use the following procedure to connect to another pair phone
with lower priority.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”4. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7).
Say the priority number of the phone that you want to con-
nect to.
NOTE

You can connect to a phone at any time by pressing the
SPEECH button and saying the priority number, even
before all of the priority number and phone name pairs are
read out by the system.
5. After the voice guide says “ selected,” the
system will reconnect to the cellular phone. Wait a
moment for the process to complete.
When the confirmation prompts are on, the system will
ask you again whether the phone that you want to recon-
nect to is correct. Answer “Yes” to continue and reconnect
to the cellular phone. If you answer “No,” the system will
ask “Which phone please?” Select the priority of the
phone that you want to connect to.
6. When the reconnection of the cellular phone is completed,
the voice guide will say “ will temporarily
override phone priorities” and then the system will return
to the main menu.
NOTE

To change the priority level of a specific phone, redo the
pairing process for that phone. (Refer to “Pairing a cellu-
lar phone” on page 3-251.)
BK0103001US.book 253 ページ ２００９年８月２０日　木曜日　午前１０時４５分

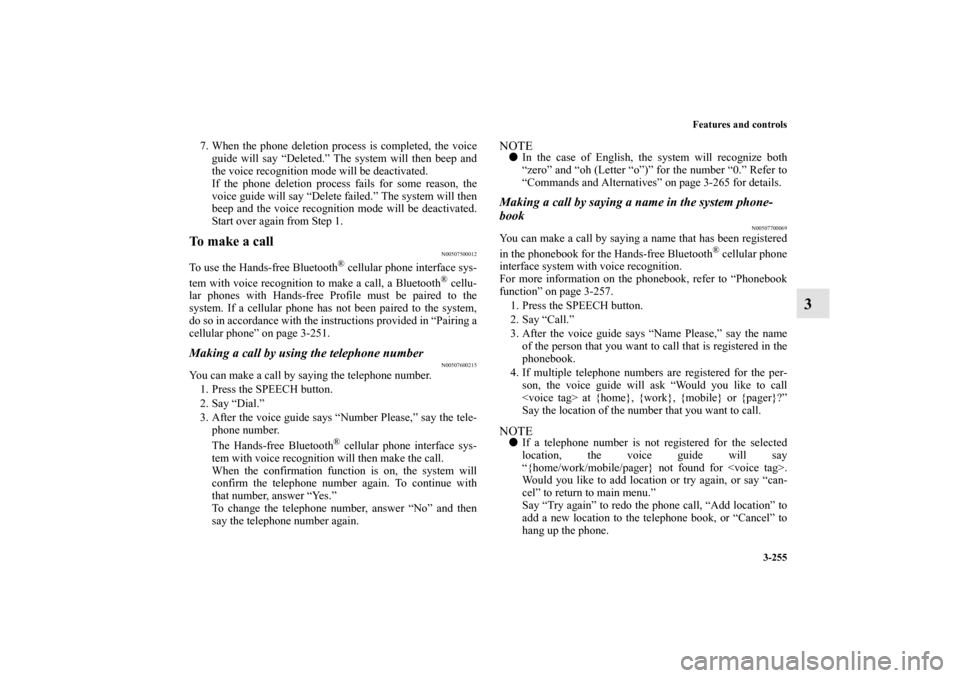

Features and controls
3-255
3
7. When the phone deletion process is completed, the voice
guide will say “Deleted.” The system will then beep and
the voice recognition mode will be deactivated.
If the phone deletion process fails for some reason, the
voice guide will say “Delete failed.” The system will then
beep and the voice recognition mode will be deactivated.
Start over again from Step 1. To make a call
N00507500012
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition to make a call, a Bluetooth
® cellu-
lar phones with Hands-free Profile must be paired to the
system. If a cellular phone has not been paired to the system,
do so in accordance with the instructions provided in “Pairing a
cellular phone” on page 3-251.
Making a call by using the telephone number
N00507600215
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number Please,” say the tele-
phone number.
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
NOTE

In the case of English, the system will recognize both
“zero” and “oh (Letter “o”)” for the number “0.” Refer to
“Commands and Alternatives” on page 3-265 for details.
Making a call by saying a name in the system phone-
book
N00507700069
You can make a call by saying a name that has been registered
in the phonebook for the Hands-free Bluetooth
® cellular phone
interface system with voice recognition.
For more information on the phonebook, refer to “Phonebook
function” on page 3-257.
1. Press the SPEECH button.
2. Say “Call.”
3. After the voice guide says “Name Please,” say the name
of the person that you want to call that is registered in the
phonebook.
4. If multiple telephone numbers are registered for the per-
son, the voice guide will ask “Would you like to call
at {home}, {work}, {mobile} or {pager}?”
Say the location of the number that you want to call.
NOTE

If a telephone number is not registered for the selected
location, the voice guide will say
“{home/work/mobile/pager} not found for .
Would you like to add location or try again, or say “can-
cel” to return to main menu.”
Say “Try again” to redo the phone call, “Add location” to
add a new location to the telephone book, or “Cancel” to
hang up the phone.
BK0103001US.book 255 ページ ２００９年８月２０日　木曜日　午前１０時４５分

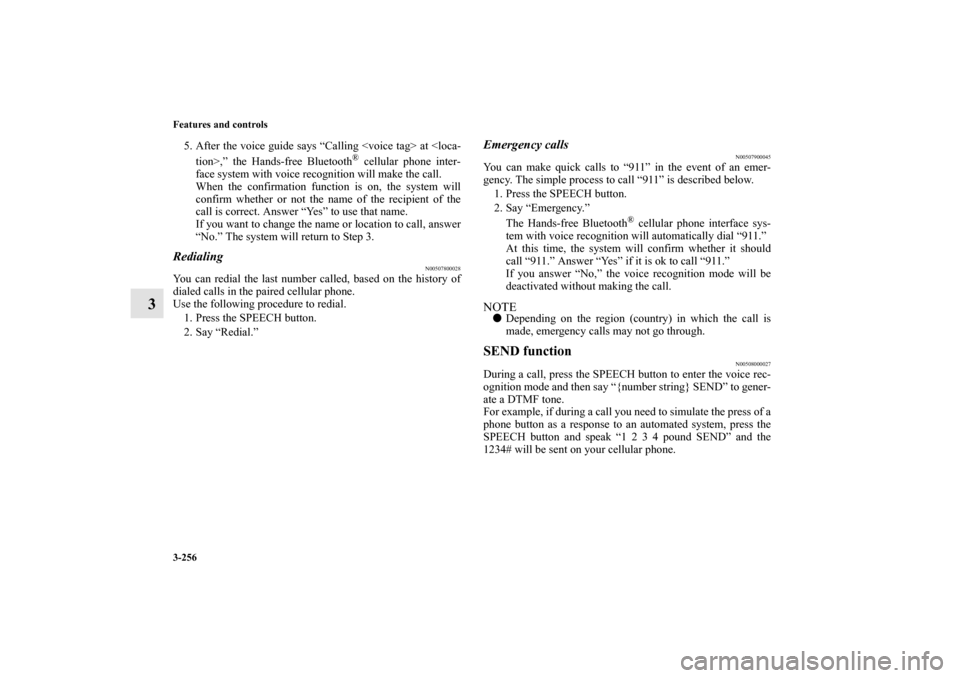

3-256 Features and controls
3
5. After the voice guide says “Calling at tion>,” the Hands-free Bluetooth
® cellular phone inter-
face system with voice recognition will make the call.
When the confirmation function is on, the system will
confirm whether or not the name of the recipient of the
call is correct. Answer “Yes” to use that name.
If you want to change the name or location to call, answer
“No.” The system will return to Step 3.
Redialing
N00507800028
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”
Emergency calls
N00507900045
You can make quick calls to “911” in the event of an emer-
gency. The simple process to call “911” is described below.
1. Press the SPEECH button.
2. Say “Emergency.”
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will automatically dial “911.”
At this time, the system will confirm whether it should
call “911.” Answer “Yes” if it is ok to call “911.”
If you answer “No,” the voice recognition mode will be
deactivated without making the call.
NOTE

Depending on the region (country) in which the call is
made, emergency calls may not go through.
SEND function
N00508000027
During a call, press the SPEECH button to enter the voice rec-
ognition mode and then say “{number string} SEND” to gener-
ate a DTMF tone.
For example, if during a call you need to simulate the press of a
phone button as a response to an automated system, press the
SPEECH button and speak “1 2 3 4 pound SEND” and the
1234# will be sent on your cellular phone.
BK0103001US.book 256 ページ ２００９年８月２０日　木曜日　午前１０時４５分

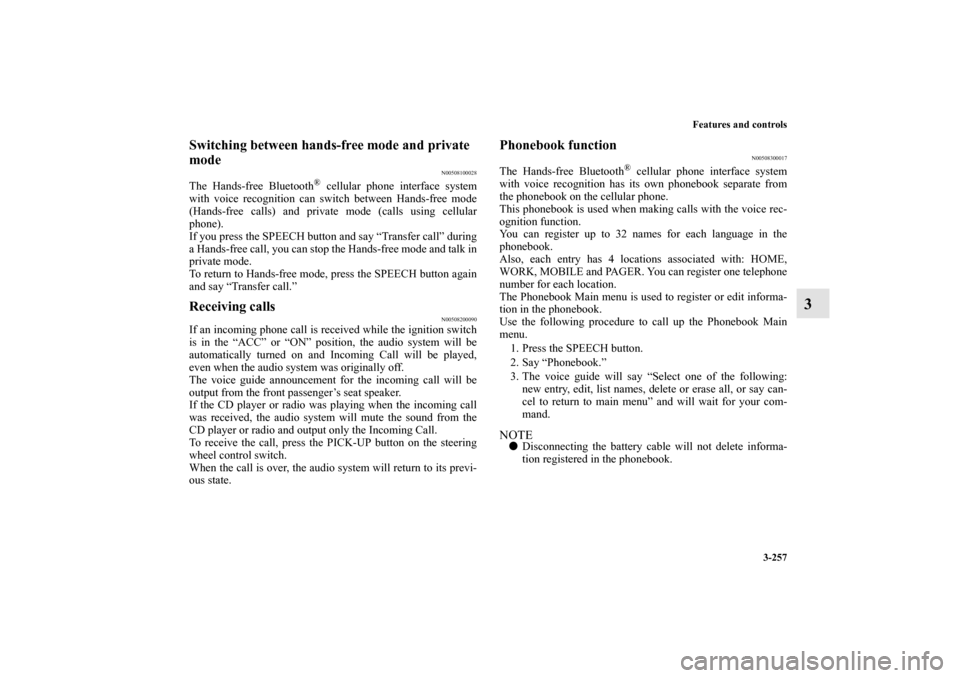

Features and controls
3-257
3
Switching between hands-free mode and private
mode
N00508100028
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can switch between Hands-free mode
(Hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a Hands-free call, you can stop the Hands-free mode and talk in
private mode.
To return to Hands-free mode, press the SPEECH button again
and say “Transfer call.”
Receiving calls
N00508200090
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and Incoming Call will be played,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the Incoming Call.
To receive the call, press the PICK-UP button on the steering
wheel control switch.
When the call is over, the audio system will return to its previ-
ous state.
Phonebook function
N00508300017
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition has its own phonebook separate from
the phonebook on the cellular phone.
This phonebook is used when making calls with the voice rec-
ognition function.
You can register up to 32 names for each language in the
phonebook.
Also, each entry has 4 locations associated with: HOME,
WORK, MOBILE and PAGER. You can register one telephone
number for each location.
The Phonebook Main menu is used to register or edit informa-
tion in the phonebook.
Use the following procedure to call up the Phonebook Main
menu.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit, list names, delete or erase all, or say can-
cel to return to main menu” and will wait for your com-
mand.
NOTE

Disconnecting the battery cable will not delete informa-
tion registered in the phonebook.
BK0103001US.book 257 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-261
3
4. When the deletion of the telephone number is completed,
the voice guide will say “ deleted”
and then the system will return to the main menu. NOTE

If you delete all telephone numbers registered for the 4
locations of an entry, the entry itself will be deleted from
the phonebook.
Erasing the Phonebook
N00511800058
You can delete all registered information in the phonebook by
saying “Erase all” on the Phonebook Main menu.
1. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your phone-
book?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
2. The system will confirm one more time. Answer “Yes” to
continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
3. When the deletion of all information in the phonebook is
completed, the voice guide will say “Phonebook Erased”
and then return to the main menu.
General information
N00511900062
MODEL: MMC FCC ID: CB2MBLUEC07 IC: 279B-
MBLUEC07
Your Hands-free Bluetooth
® cellular phone interface system
with voice recognition operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions:


This device may not cause interference.


This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
CAUTION
!

Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0103001US.book 261 ページ ２００９年８月２０日　木曜日　午前１０時４５分
